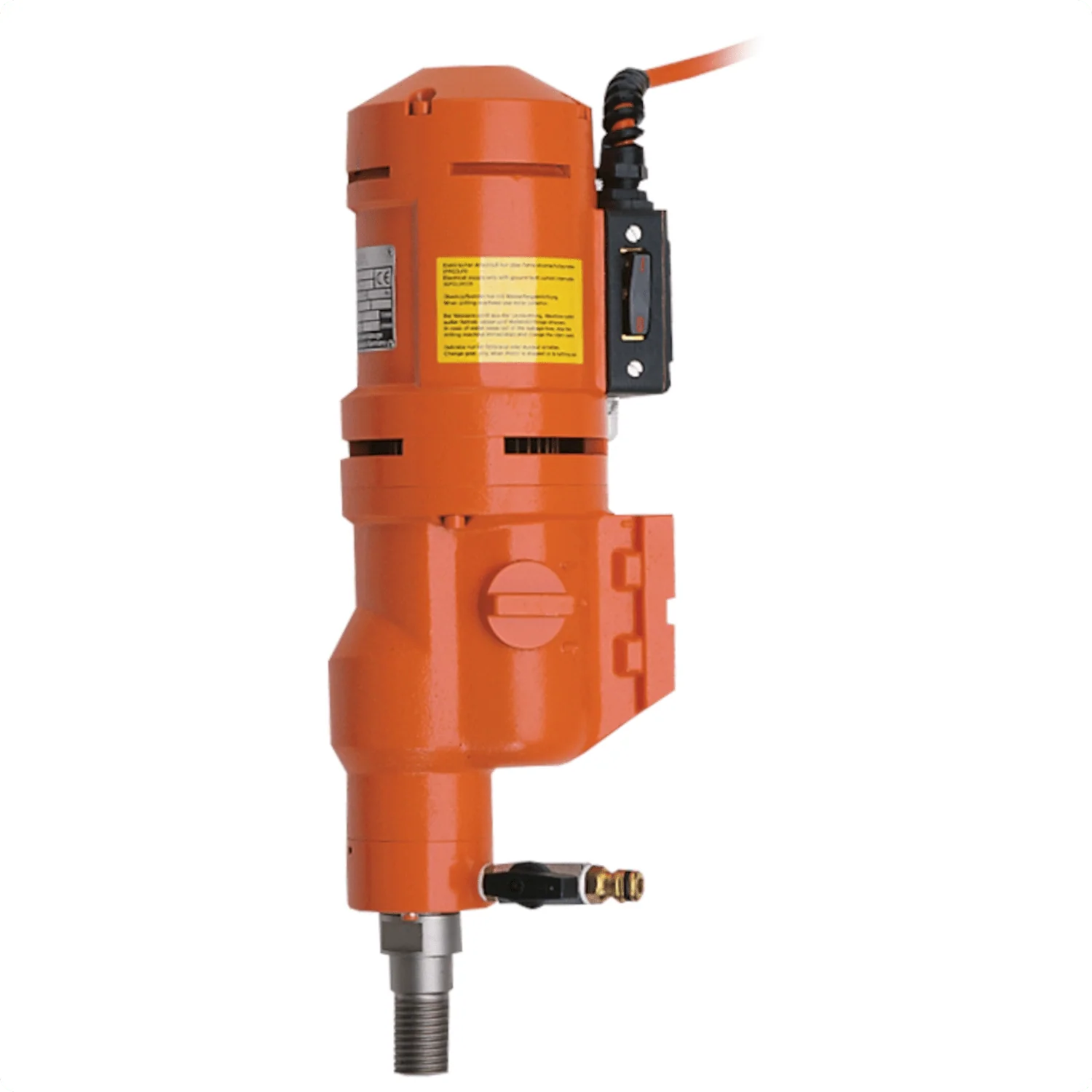

WEKA DK22 Series Core Drill Motor
$2,503.15
WEKA DK22 Series Core Drill Motor is a Weka rig-mounted core drill motor for contractors who need accurate cores, clear power requirements, and verified model-level specifications before ordering. Verified configuration for model WEKA DK22 series: Power: Heavy Duty, Voltage/source: 230V, Capacity: 16", Speed: 960 RPM, Mount: Rig-Mounted.
WEKA DK22 Series Core Drill Motor is organized for concrete and construction crews comparing drill capacity, power source, mounting style, spindle compatibility, water control, and transport details before purchase. The product record is tied to Equipment Broker Group SKU 47069 and verified model WEKA DK22 series, with manufacturer and retailer/source URLs retained for traceability. This rig-mounted core drill motor is suited to stand-mounted concrete coring, large utility penetrations, reinforced concrete openings, and production drilling with controlled feed. Key buying details include Power: Heavy Duty, Voltage/source: 230V, Capacity: 16", Speed: 960 RPM, Mount: Rig-Mounted. Included items are recorded as: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated. Confirm voltage/phase, bit diameter, stand compatibility, batteries, hydraulic power requirements, freight handling, and current warranty terms before checkout.
Key Features
- Heavy Duty power configuration matched to the verified product source
- 230V power/drive requirement captured for jobsite planning
- 16" drilling or boring capacity for selecting the right bit and setup
- 960 RPM speed range or gearbox detail supports bit-size control
- 1.250"-7 spindle/thread detail helps confirm bit and adapter compatibility
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Built for professional coring in concrete, masonry, stone, and reinforced slabs
Specifications
- Tool Mount: Rig-Mounted
- Available Variants: DK22 230 V 11 A; DK22 110 V 23 A; DK22L 110 V 23 A; DK22S 230 V 11 A; DK22S 110 V 23 A
- Manufacturer: Weka
- Model #: DK22
- SKU/Part #: 4244016
- Product Type: Core Drill
- Product Subtype: Drill Motor
- Product Mount: Rig-Mounted
- Engine/Motor: Electric Motor
- Horse Power: Heavy Duty
- Power Source: Electric
- Voltage: 230V
- Amperage: 11 AMP
- Power Phase: 1PH
- Variable Speed: 3-Speed
- Speed 1 Max RPM: 300 RPM
- Speed 2 Max RPM: 640 RPM
- Speed 3 Max RPM: 960 RPM
- Max Speed RPM: 960 RPM
- Recommended Bit Diameter: 1" – 12"
- Max Bit Diameter: 16"
- Drilling Depth per Pass: User-Dependent
- Spindle Features: 1.250"-7
- Dust Collection System: Not applicable
- Weight (lbs): 13
- Shipping Weight: 28.3
- Clutch: Slip
- Compact Design: Yes
- Applications: Concrete, Masonry, Stone
- Dry/Wet: Wet
- Power Compatibility: Standard Electric Supply
- Product Warranty: 1 Year
- WooCommerce SKU: 47069
- Store Title: WEKA DK22 Series Core Drill Motor
- Collection: Core Drilling
- Brand: Weka
- Verified Manufacturer Model: WEKA DK22 series
- Manufacturer Part Number: 4244016 for listed DK22 230 V variant
- Spindle Thread: 1.250"-7
- Included: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
| Weight | 47.000 lbs |
|---|---|
| Brand | Weka |
| Product Type | Core Drill |
