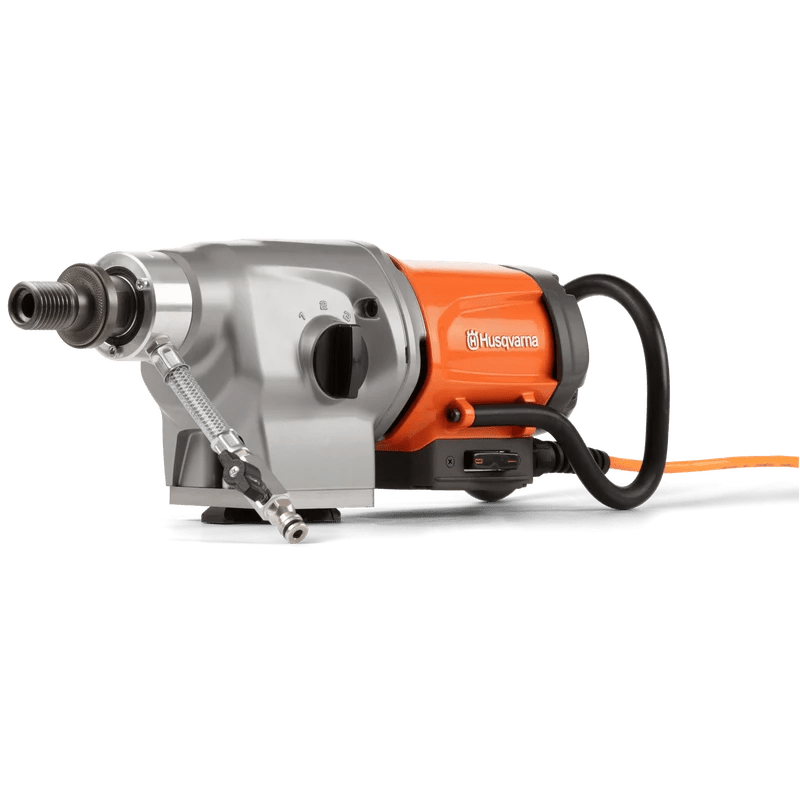

Husqvarna DM 400 | Core Drill Motor
$2,224.30
Husqvarna DM 400 | Core Drill Motor is a Husqvarna Construction rig-mounted core drill motor for contractors who need accurate cores, clear power requirements, and verified model-level specifications before ordering. Verified configuration for model 967910303: Power: 4.29 hp, Voltage/source: 100-120 V, Capacity: 14", Speed: 420 rpm, Mount: Rig-Mounted.
Husqvarna DM 400 | Core Drill Motor is organized for concrete and construction crews comparing drill capacity, power source, mounting style, spindle compatibility, water control, and transport details before purchase. The product record is tied to Equipment Broker Group SKU 967910303 and verified model 967910303, with manufacturer and retailer/source URLs retained for traceability. This rig-mounted core drill motor is suited to stand-mounted concrete coring, large utility penetrations, reinforced concrete openings, and production drilling with controlled feed. Key buying details include Power: 4.29 hp, Voltage/source: 100-120 V, Capacity: 14", Speed: 420 rpm, Mount: Rig-Mounted. Included items are recorded as: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated. Confirm voltage/phase, bit diameter, stand compatibility, batteries, hydraulic power requirements, freight handling, and current warranty terms before checkout.
Key Features
- 4.29 hp power configuration matched to the verified product source
- 100-120 V power/drive requirement captured for jobsite planning
- 14" drilling or boring capacity for selecting the right bit and setup
- 420 rpm speed range or gearbox detail supports bit-size control
- 1 1/4" 7 UNC spindle/thread detail helps confirm bit and adapter compatibility

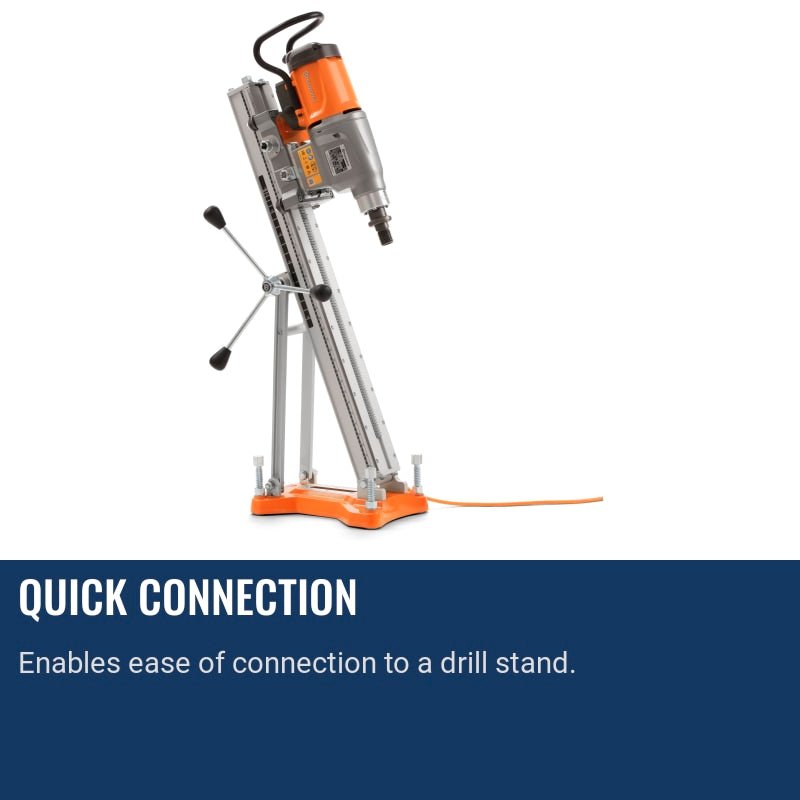

- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Built for professional coring in concrete, masonry, stone, and reinforced slabs
Specifications
- Max Bit Diameter: 14"
- Power Phase: 1PH
- Power Source: Corded
- Recommended Bit Diameter: 2" – 14"
- Tool Mount: Rig-Mounted
- Wet/Dry Use: Wet
- Illustrated part list: Illustrated part list DM 400, 2020-02 PDF ANY
- Rated input power: 4.29 hp
- Frequency: 50-60 Hz
- Voltage: 100-120 V
- Phases: 1 ph
- Drill bit diameter with stand, max: 14 in
- Recommended drill bit diameter, min: 2 in
- Coolant: Wet

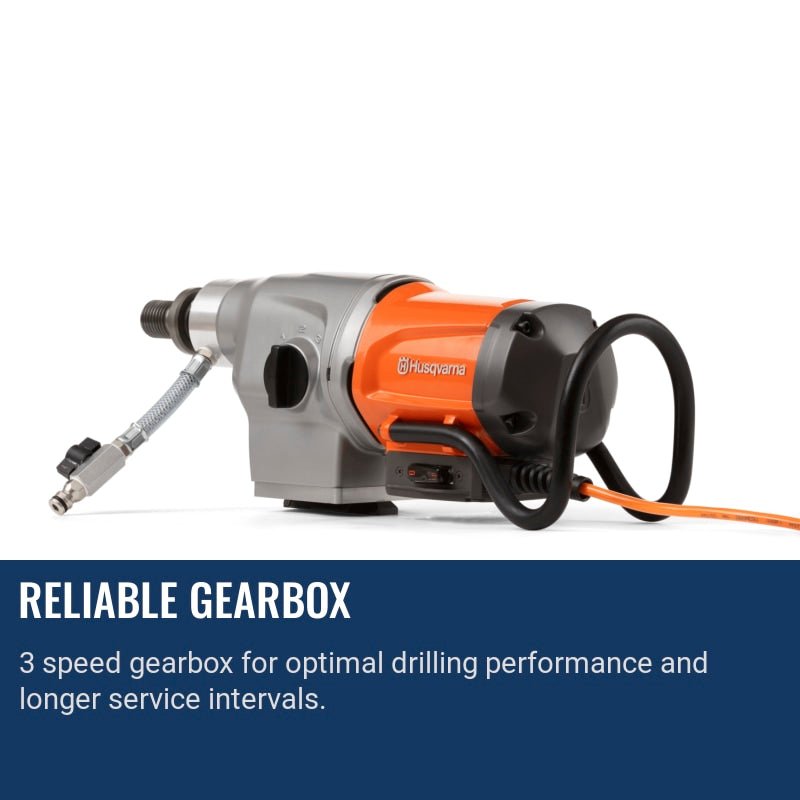

- Number of gearbox speeds: 3

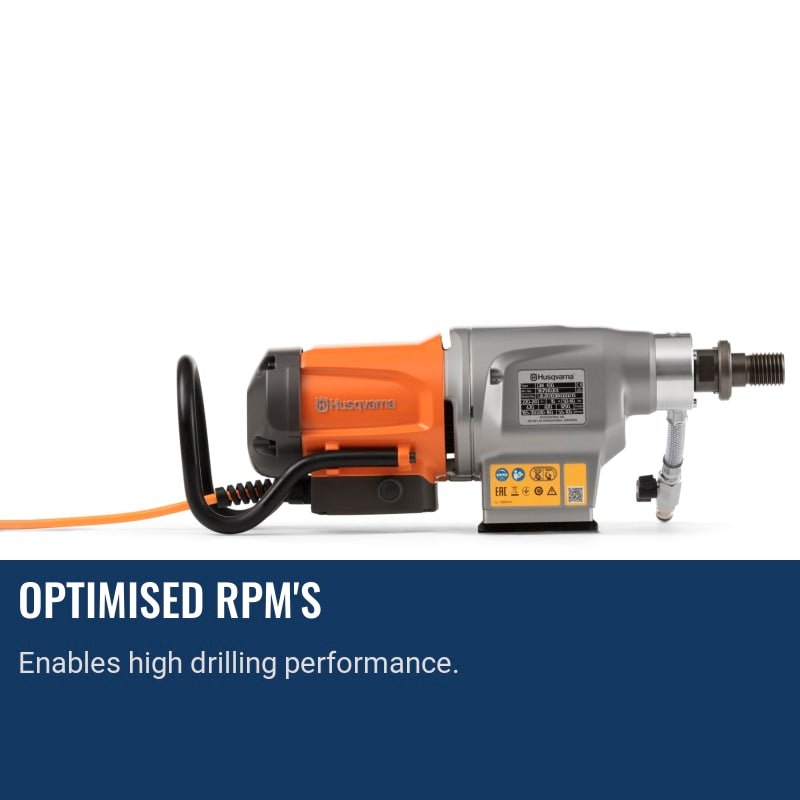

- Spindle speed unloaded gear 1: 420 rpm
- Spindle speed unloaded gear 2: 820 rpm
- Spindle speed unloaded gear 3: 1,250 rpm
- Water connector: G 1 / 4"
- Water pressure, max: 43.5 psi
- Spindle thread, outer: 1 1/4" 7 UNC
- Product size length: 21.5 in
- Product size width: 5.5 in
- Product size height: 7.3 in
- Weight: 31 lbs
- Packaging length (Calc): 24.606 in
- Packaging width (Calc): 10.039 in
- Packaging height (Calc): 11.811 in
- Article gross weight (Calc): 36.597 lbs
- Sound power level, guaranteed (LWA): 112 dB(A)
- Sound power level, measured: 110 dB(A)
- Sound pressure level at operators ear: 92 dB(A)
- Warranty: 2 year limited
- WooCommerce SKU: 967910303
- Store Title: Husqvarna DM 400
- Core Drill Motor
- Collection: Core Drilling
- Brand: Husqvarna Construction
- Included: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
| Weight | 36.599 lbs |
|---|---|
| Brand | Husqvarna Construction |
| Product Type | Core Drill |
