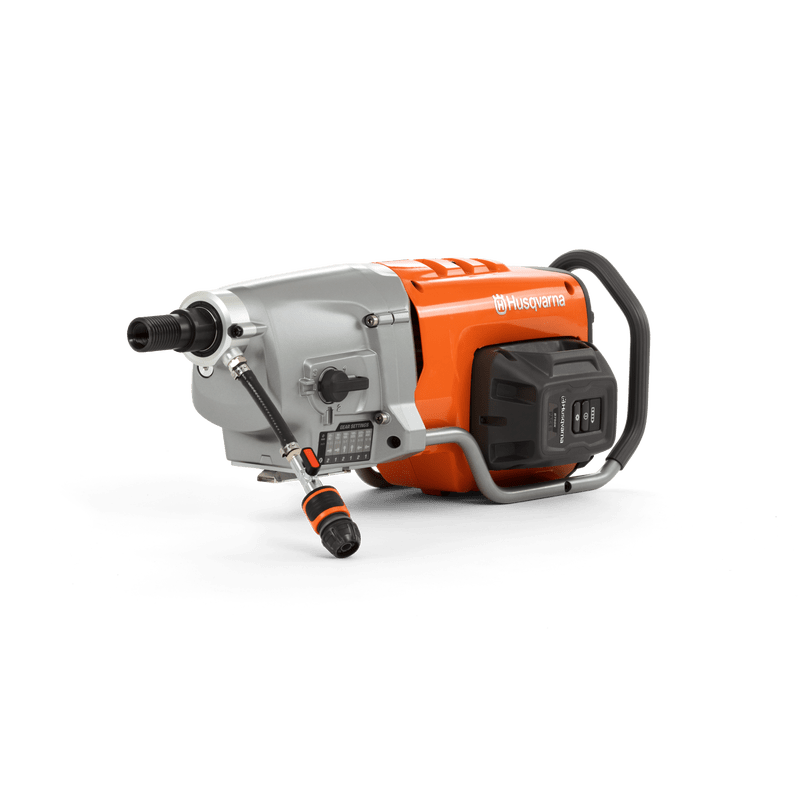

Husqvarna DM 1 PACE | Core Drill Motor
$1,549.60
Husqvarna DM 1 PACE | Core Drill Motor is a Husqvarna Construction rig-mounted core drill motor for contractors who need accurate cores, clear power requirements, and verified model-level specifications before ordering. Verified configuration for model Husqvarna DM 1 PACE: Power: 3.2 hp, Voltage/source: PACE 94 V, Capacity: 16", Speed: 234 rpm, Mount: Rig-Mounted.
Husqvarna DM 1 PACE | Core Drill Motor is organized for concrete and construction crews comparing drill capacity, power source, mounting style, spindle compatibility, water control, and transport details before purchase. The product record is tied to Equipment Broker Group SKU 970602506 and verified model Husqvarna DM 1 PACE, with manufacturer and retailer/source URLs retained for traceability. This rig-mounted core drill motor is suited to stand-mounted concrete coring, large utility penetrations, reinforced concrete openings, and production drilling with controlled feed. Key buying details include Power: 3.2 hp, Voltage/source: PACE 94 V, Capacity: 16", Speed: 234 rpm, Mount: Rig-Mounted. Included items are recorded as: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated. Confirm voltage/phase, bit diameter, stand compatibility, batteries, hydraulic power requirements, freight handling, and current warranty terms before checkout.
Key Features
- 3.2 hp power configuration matched to the verified product source
- PACE 94 V power/drive requirement captured for jobsite planning
- 16" drilling or boring capacity for selecting the right bit and setup
- 234 rpm speed range or gearbox detail supports bit-size control
- 1 1/4" -7 UNC spindle/thread detail helps confirm bit and adapter compatibility
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Built for professional coring in concrete, masonry, stone, and reinforced slabs
Specifications
- Max Bit Diameter: 16"
- Power Source: Battery
- Recommended Bit Diameter: 1" – 16"
- Tool Mount: Rig-Mounted
- Wet/Dry Use: Wet/Dry

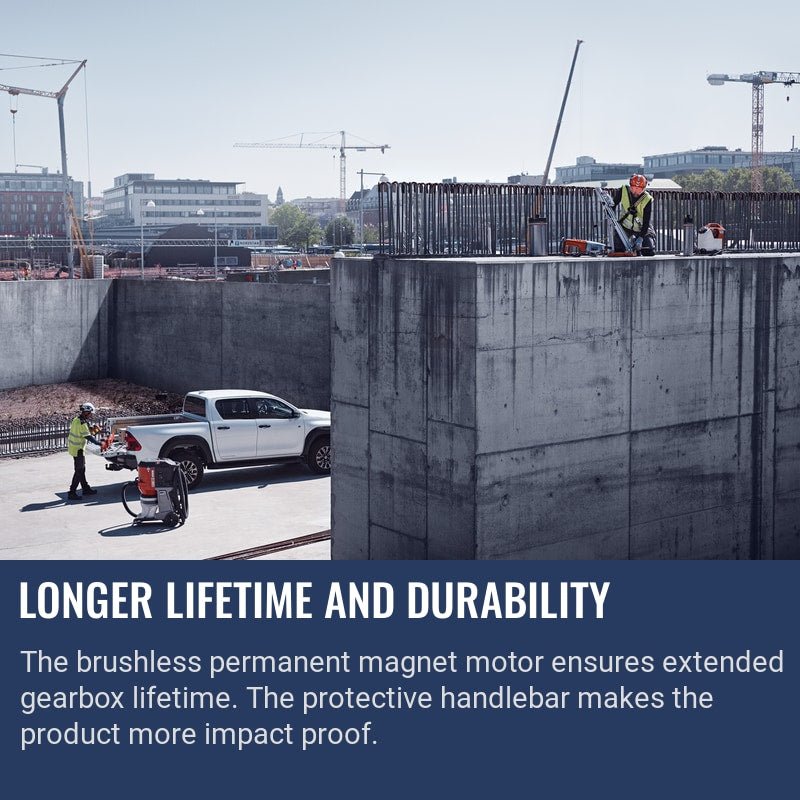

- Motor Type: BLDC (brushless)
- Output Power: 3.2 hp

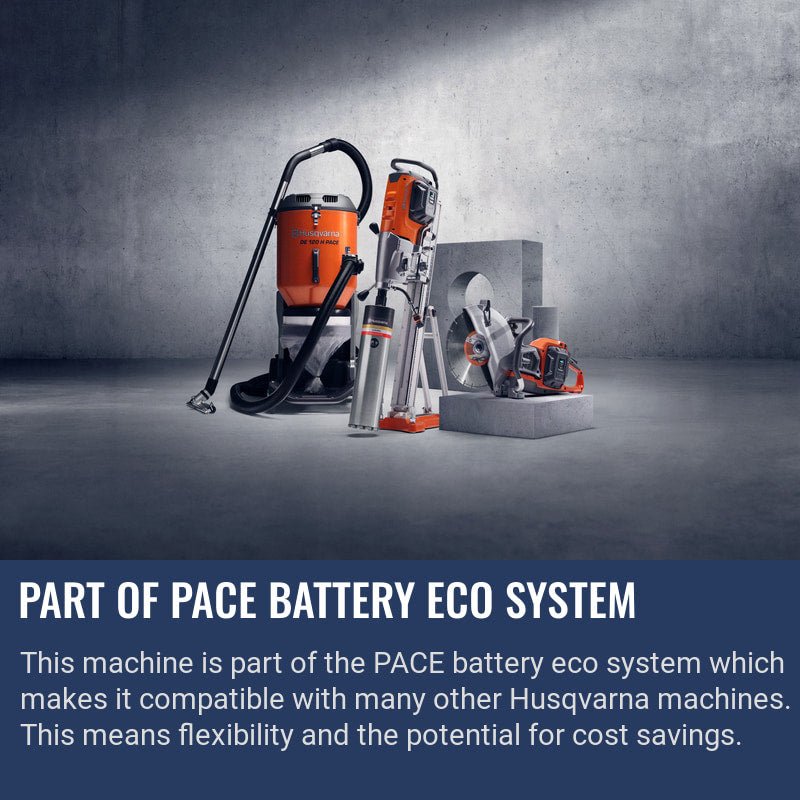

- Battery eco system: PACE
- Drill bit diameter with stand, max: 16 in
- Recommended drill bit diameter, min: 1 in
- Number of gearbox speeds: 3
- Numbers of electronical gearbox speeds: 2
- Spindle speed unloaded gear 1: 234 rpm
- Spindle speed unloaded gear 2: 431 rpm
- Spindle speed unloaded gear 3: 888 rpm
- Water connector: Gardena Male
- Water pressure, max: 43.5 psi
- Spindle thread, inner: G 1/2"
- Spindle thread, outer: 1 1/4" -7 UNC
- Product size length: 26.5 in
- Product size width: 6.8 in
- Product size height: 9.3 in
- Weight: 26 lbs
- Packaging length (Calc): 30.315 in
- Packaging width (Calc): 10.039 in
- Packaging height (Calc): 13.189 in
- Article gross weight (Calc): 33.51 lbs
- Sound power level, guaranteed (LWA): 109.1 dB(A)
- Sound power level, measured: 109.1 dB(A)
- Sound pressure level at operators ear: 93.4 dB(A)
- Warranty: 2 year limited
- WooCommerce SKU: 970602506
- Store Title: Husqvarna DM 1 PACE
- Core Drill Motor
- Collection: Core Drilling
- Brand: Husqvarna Construction
- Verified Manufacturer Model: Husqvarna DM 1 PACE
- Battery System: PACE 94 V
- Compatible Stand: DS 500 drill stand
- Included: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
| Weight | 33.510 lbs |
|---|---|
| Brand | Husqvarna Construction |
| Product Type | Core Drill |
