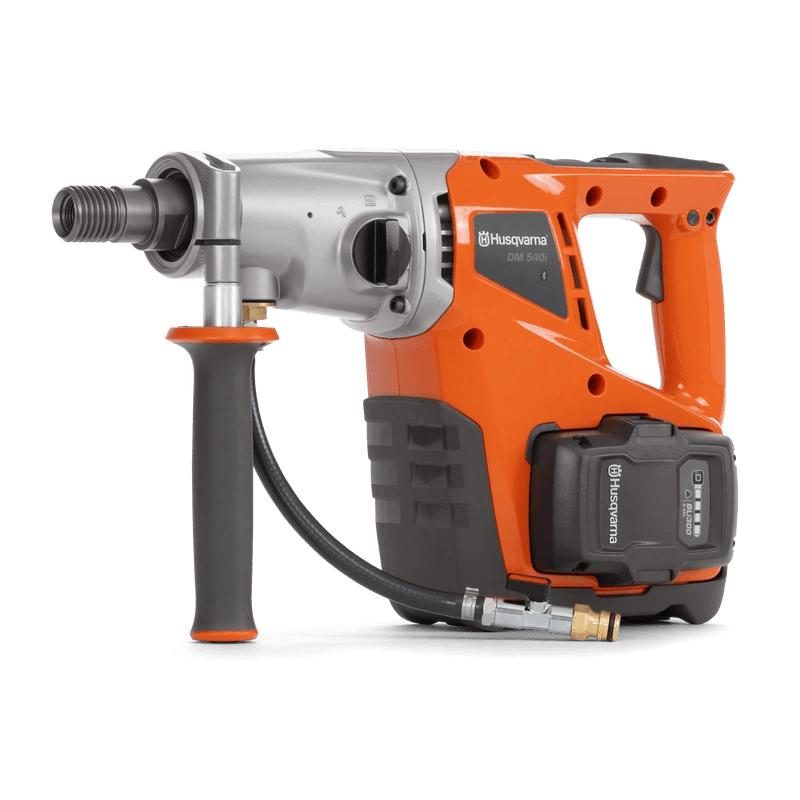

Husqvarna DM 540i | Handheld Core Drill
$2,390.05
Husqvarna DM 540i | Handheld Core Drill is a Husqvarna Construction hand-held core drill for contractors who need accurate cores, clear power requirements, and verified model-level specifications before ordering. Verified configuration for model Husqvarna DM 540i: Power: 1.88 hp per manufacturer battery product listing, Voltage/source: BLi-X, Capacity: 4", Speed: 1,400 rpm, Mount: Hand-Held.
Husqvarna DM 540i | Handheld Core Drill is organized for concrete and construction crews comparing drill capacity, power source, mounting style, spindle compatibility, water control, and transport details before purchase. The product record is tied to Equipment Broker Group SKU 970493706 and verified model Husqvarna DM 540i, with manufacturer and retailer/source URLs retained for traceability. This hand-held core drill is suited to wet or dry hand-held penetrations, small cores, plumbing, electrical, ventilation, and stand-assisted light coring. Key buying details include Power: 1.88 hp per manufacturer battery product listing, Voltage/source: BLi-X, Capacity: 4", Speed: 1,400 rpm, Mount: Hand-Held. Included items are recorded as: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated. Confirm voltage/phase, bit diameter, stand compatibility, batteries, hydraulic power requirements, freight handling, and current warranty terms before checkout.
Key Features
- 1.88 hp per manufacturer battery product listing power configuration matched to the verified product source
- BLi-X power/drive requirement captured for jobsite planning
- 4" drilling or boring capacity for selecting the right bit and setup
- 1,400 rpm speed range or gearbox detail supports bit-size control
- 1 1/4" 7 UNC spindle/thread detail helps confirm bit and adapter compatibility
- Hand-Held mount/system configuration supports correct rig pairing
- Hand-held format supports fast setup for smaller penetrations and repair work
- Wet/dry or water connection details help crews plan slurry and dust control
Specifications
- Max Bit Diameter: 4"
- Power Source: Battery
- Recommended Bit Diameter: 0.59" – 4"
- Tool Mount: Hand-Held
- Wet/Dry Use: Wet/Dry
- Illustrated part list: Illustrated part list IPL. DM 540i. 2021-09 PDF ANY
- Available Variants: Bare tool; kit with 2 x BLi300 batteries and QC500 charger

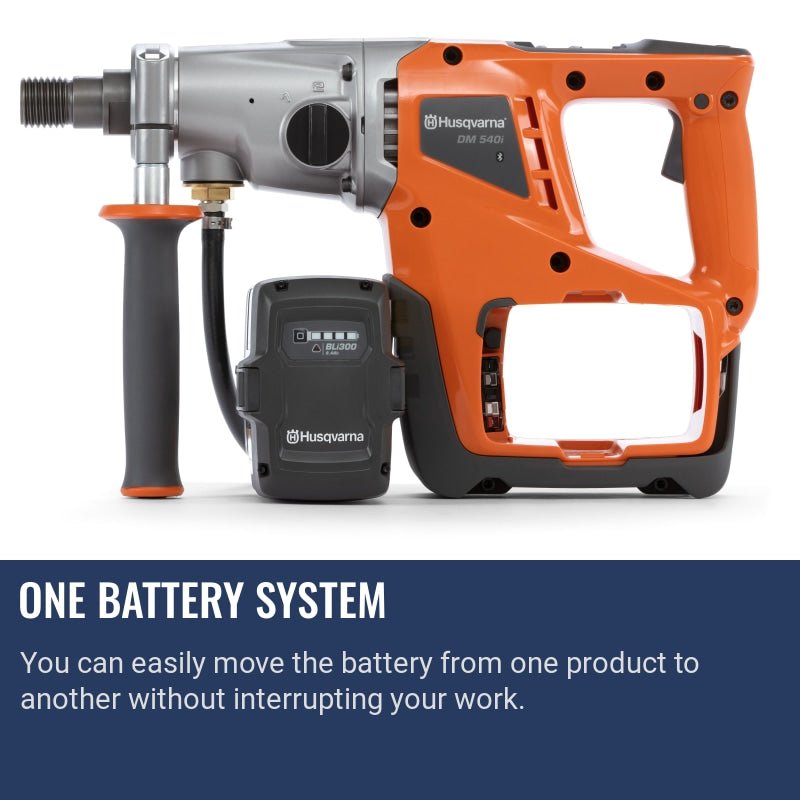

- Battery eco system: BLi-X
- Drill bit diameter handheld, max: 3 in

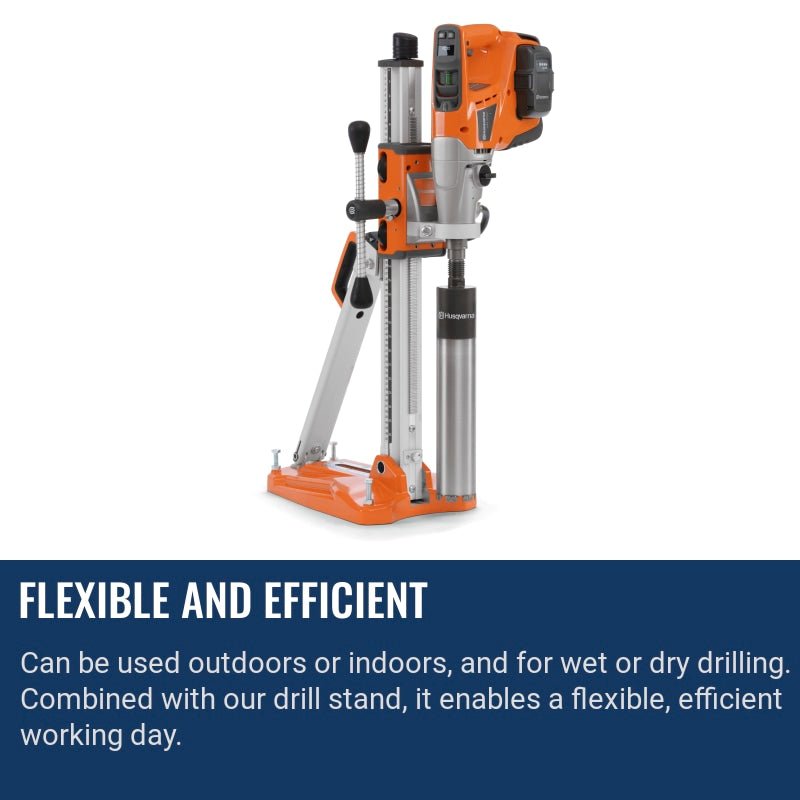

- Drill bit diameter with stand, max: 4 in
- Recommended drill bit diameter, min: 0.59 in
- Coolant: Wet /dry
- Number of gearbox speeds: 2
- Numbers of electronical gearbox speeds: 2
- Spindle speed unloaded gear 1: 1,400 rpm
- Spindle speed unloaded gear 2: 4,450 rpm
- Water connector: Gardena Male
- Water pressure, max: 43.5 psi
- Mounting collar: 2.36 in
- Spindle thread, inner: G 1/2"
- Spindle thread, outer: 1 1/4" 7 UNC
- Product size length: 17.32 in
- Product size width: 4.33 in
- Product size height: 10.83 in
- Weight: 10.8 lbs
- Packaging length (Calc): 23.622 in
- Packaging width (Calc): 8.661 in
- Packaging height (Calc): 15.748 in
- Article gross weight (Calc): 27.117 lbs
- Sound power level, guaranteed (LWA): 97 dB(A)
- Sound power level, measured: 86 dB(A)
- Sound pressure level at operators ear: 86 dB(A)
- Warranty: 2 year limited
- WooCommerce SKU: 970493706
- Store Title: Husqvarna DM 540i
- Handheld Core Drill
- Collection: Core Drilling
- Brand: Husqvarna Construction
- Verified Manufacturer Model: Husqvarna DM 540i
- Output Power: 1.88 hp per manufacturer battery product listing
- Battery System: BLi-X
- Included: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
| Weight | 39.240 lbs |
|---|---|
| Brand | Husqvarna Construction |
| Product Type | Core Drill |
