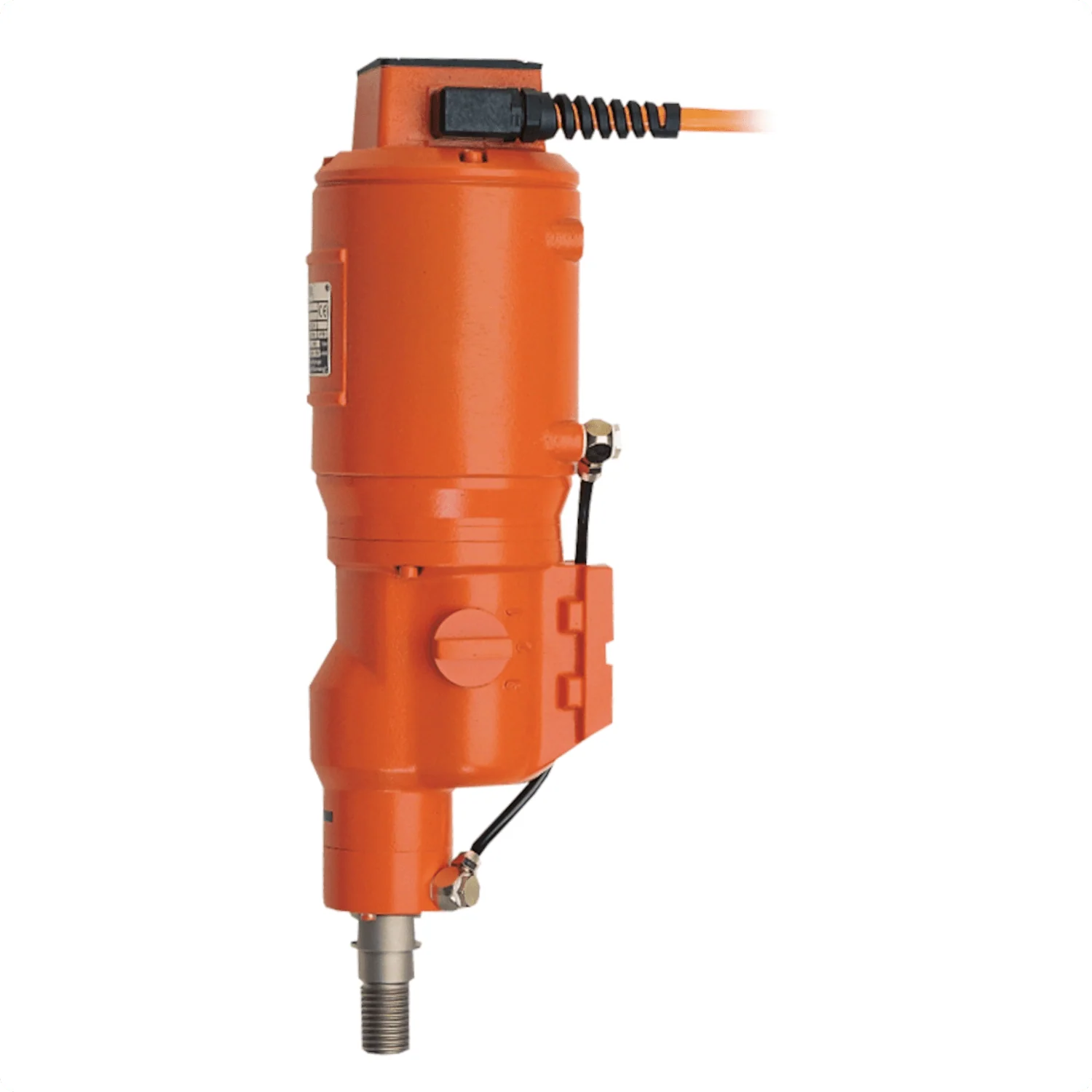

WEKA DK32F Core Drill Motor

Weka DK32F Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The DK32F configuration pairs Electric power source, 2300 W output power, and 13 lb weight.

Key differentiators

• 230V power/drive requirement captured for jobsite planning
• <=18" drilling or boring capacity for selecting the right bit and setup
• 720 RPM speed range or gearbox detail supports bit-size control
• 1.250"-7 spindle/thread detail helps confirm bit and adapter compatibility
• Quick-Release mount/system configuration supports correct rig pairing
• Rig-mounted format supports controlled feed and larger diameter core work

Specifications

Tool Mount

Rig-Mounted

Available Variants

DK32F 230 V 15 A; DK32F 110 V 30 A

Model #

DK32F

SKU/Part #

4244121

Product Type

Core Drill

Product Subtype

Drill Motor

Product Mount

Quick-Release

Engine/Motor

Electric Motor

Horse Power

Heavy Duty

Power Source

Electric

Voltage

230V

Amperage

15 AMP

Power Phase

1PH

Variable Speed

3-Speed

Speed 1 Max RPM

230 RPM

Speed 2 Max RPM

480 RPM

Speed 3 Max RPM

720 RPM

Max Speed RPM

720 RPM

Recommended Bit Diameter

2" – 16"

Max Bit Diameter

<=18"

Drilling Depth per Pass

User-Dependent

Spindle Features

1.250"-7

Dust Collection System

Not applicable

Weight (lbs)

13 lb

Shipping Weight

33.2

Clutch

Slip

Leveling Bubbles

2

Compact Design

Yes

Applications

Concrete, Masonry, Stone

Dry/Wet

Wet

Power Compatibility

Standard Electric Supply

Product Warranty

1 Year

WooCommerce SKU

44292

Store Title

WEKA DK32F Core Drill Motor

Manufacturer Part Number

4244121 for listed 230 V DK32F variant

Nominal Power

3200 W

Output Power

2300 W

Manufacturer Drilling Diameter

55 – 350 mm for DK32 family

Included

Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated

Best-fit applications

The DK32F is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Electric power source, 2300 W output power, and 13 lb weight.

• Site utility or fuel: 230V
• Tooling or working setup: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
• Handling reference: 13 lb
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
