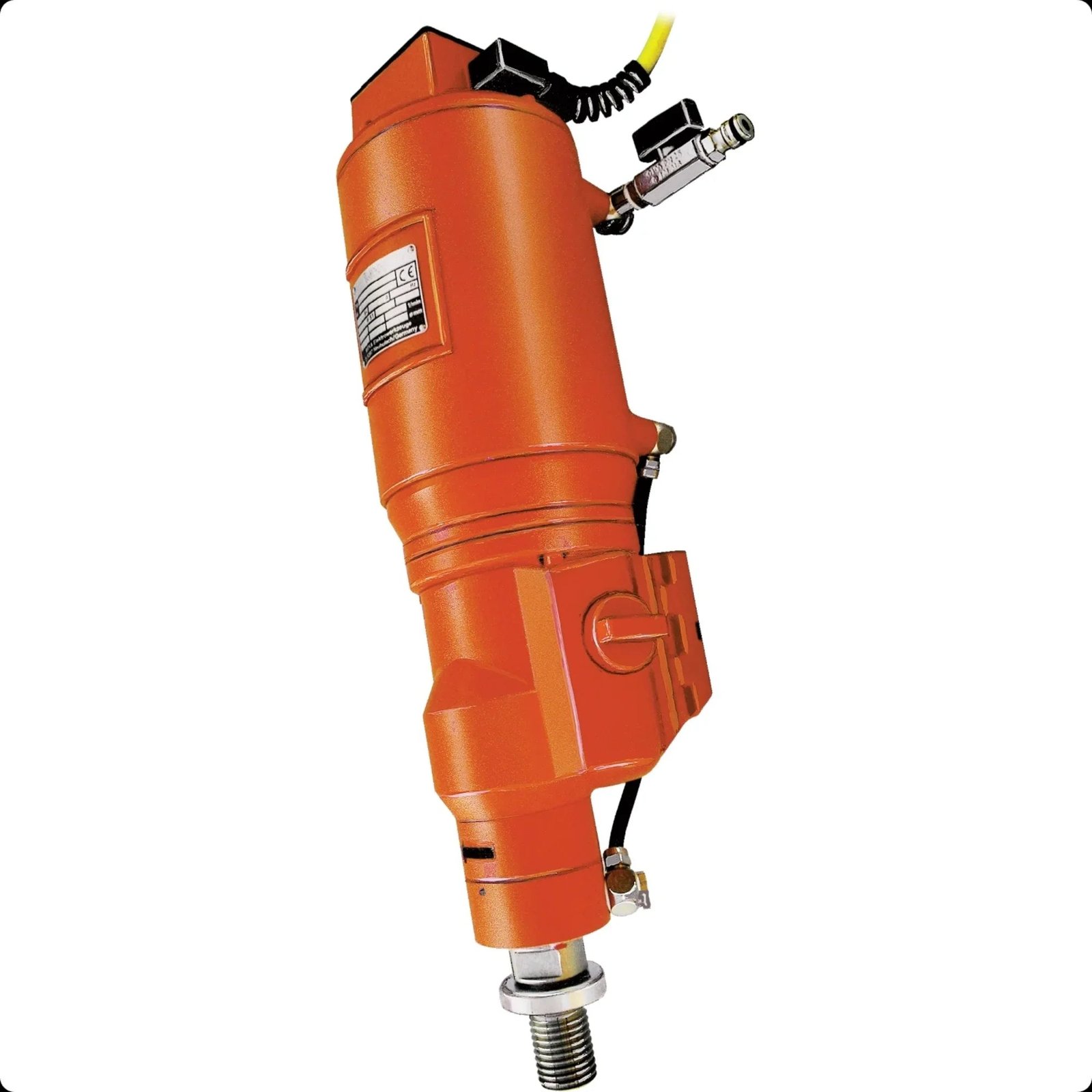

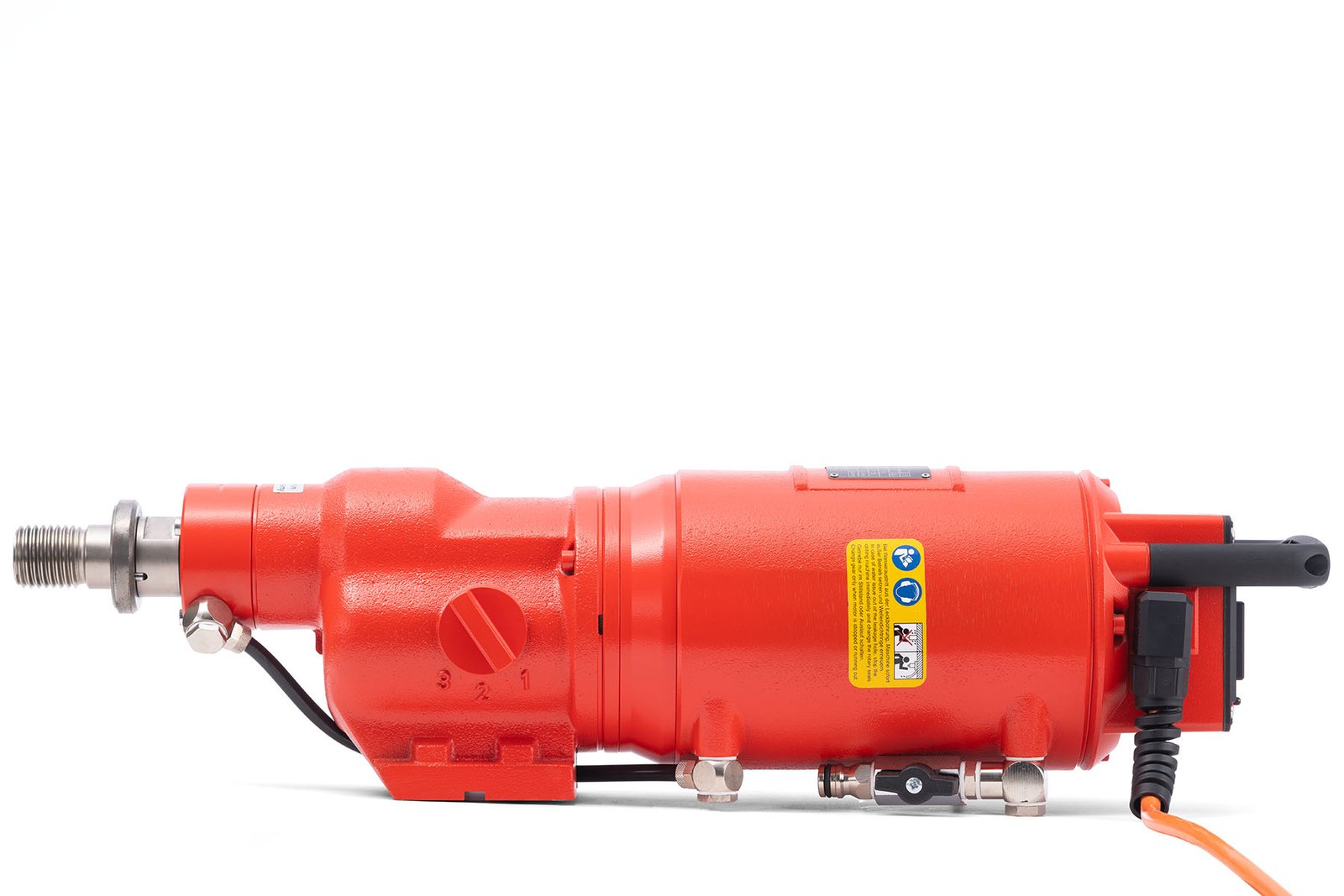

WEKA DK52 Core Drill Motor
$3,704.35
Weka DK52 Core Drill is configured for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. Key configuration: Electric power source, 4000 W output power, and 13 lb weight.
Description
Weka DK52 Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The DK52 configuration pairs Electric power source, 4000 W output power, and 13 lb weight.
Key differentiators
- 230V power/drive requirement captured for jobsite planning
- <=24" drilling or boring capacity for selecting the right bit and setup
- 440 RPM speed range or gearbox detail supports bit-size control
- 1.250"-7 spindle/thread detail helps confirm bit and adapter compatibility
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
Specifications
- Tool Mount
- Rig-Mounted
- Available Variants
- DK52 230 V 3PH; DK52 460 V 3PH
- Model #
- DK52
- SKU/Part #
- 4244061
- Product Type
- Core Drill
- Product Subtype
- Drill Motor
- Product Mount
- Rig-Mounted
- Engine/Motor
- Electric Motor
- Horse Power
- Heavy Duty
- Power Source
- Electric
- Voltage
- 230V
- Amperage
- 18 AMP
- Power Phase
- 1PH
- Variable Speed
- 3-Speed
- Speed 1 Max RPM
- 150 RPM
- Speed 2 Max RPM
- 290 RPM
- Speed 3 Max RPM
- 440 RPM
- Max Speed RPM
- 440 RPM
- Recommended Bit Diameter
- 3" – 20"
- Max Bit Diameter
- <=24"
- Drilling Depth per Pass
- User-Dependent
- Spindle Features
- 1.250"-7
- Dust Collection System
- Not applicable
- Weight (lbs)
- 13 lb
- Shipping Weight
- 59.1
- Clutch
- Slip
- Compact Design
- Yes
- Applications
- Concrete, Masonry, Stone
- Dry/Wet
- Wet
- Power Compatibility
- Standard Electric Supply
- Product Warranty
- 1 Year
- WooCommerce SKU
- 48023
- Store Title
- WEKA DK52 Core Drill Motor
- Manufacturer Part Number
- 4244061 for listed 230 V variant
- Nominal Power
- 5200 W
- Output Power
- 4000 W
- Manufacturer Drilling Diameter
- 110 – 500 mm
- Manufacturer Weight
- 22.9 kg without cable
- Included
- Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
Best-fit applications
The DK52 is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Electric power source, 4000 W output power, and 13 lb weight.
- Site utility or fuel: 230V
- Tooling or working setup: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
- Handling reference: 13 lb
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Additional information
| Weight | 47.999 lbs |
|---|---|
| Brand | Weka |
| Product Type | Core Drill |
