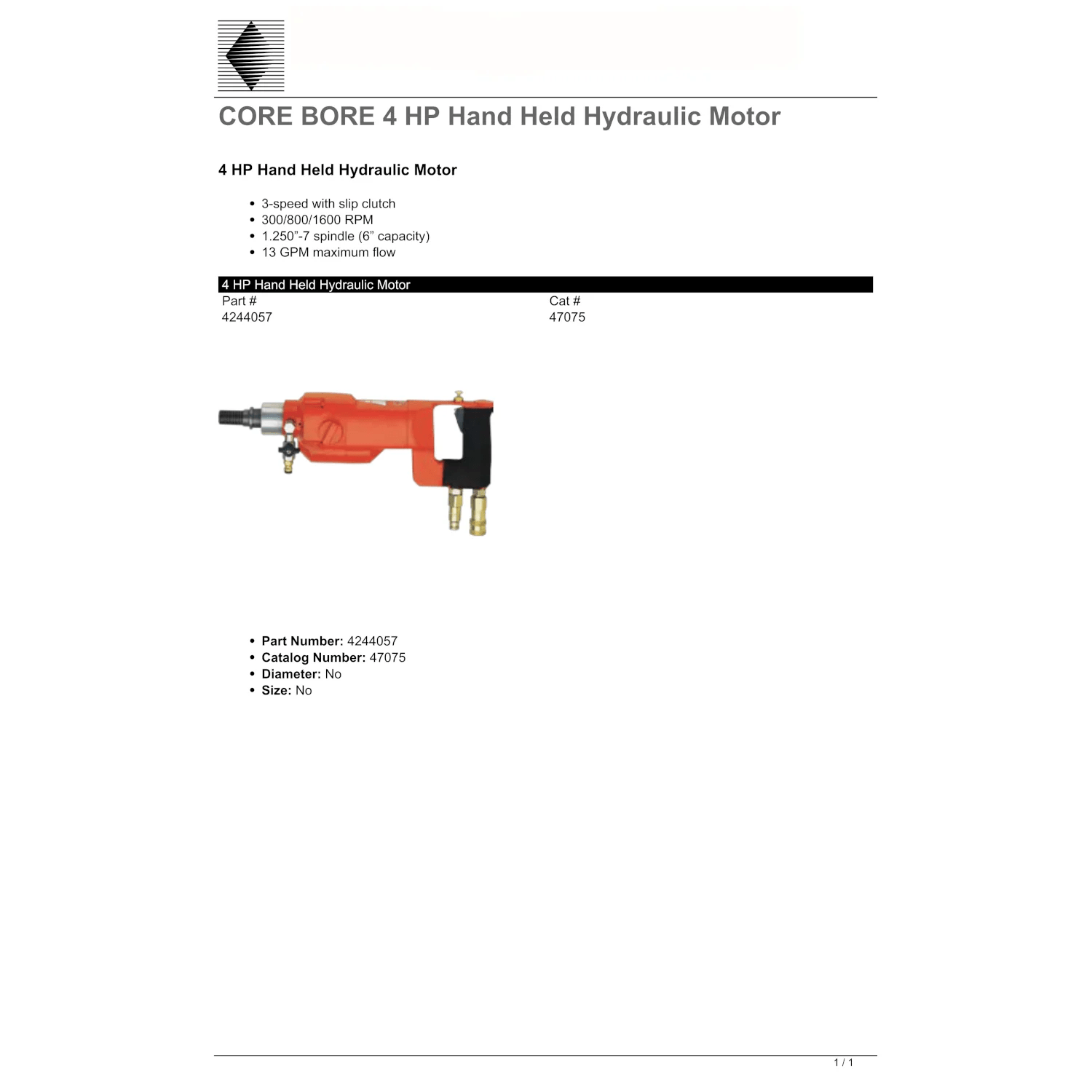

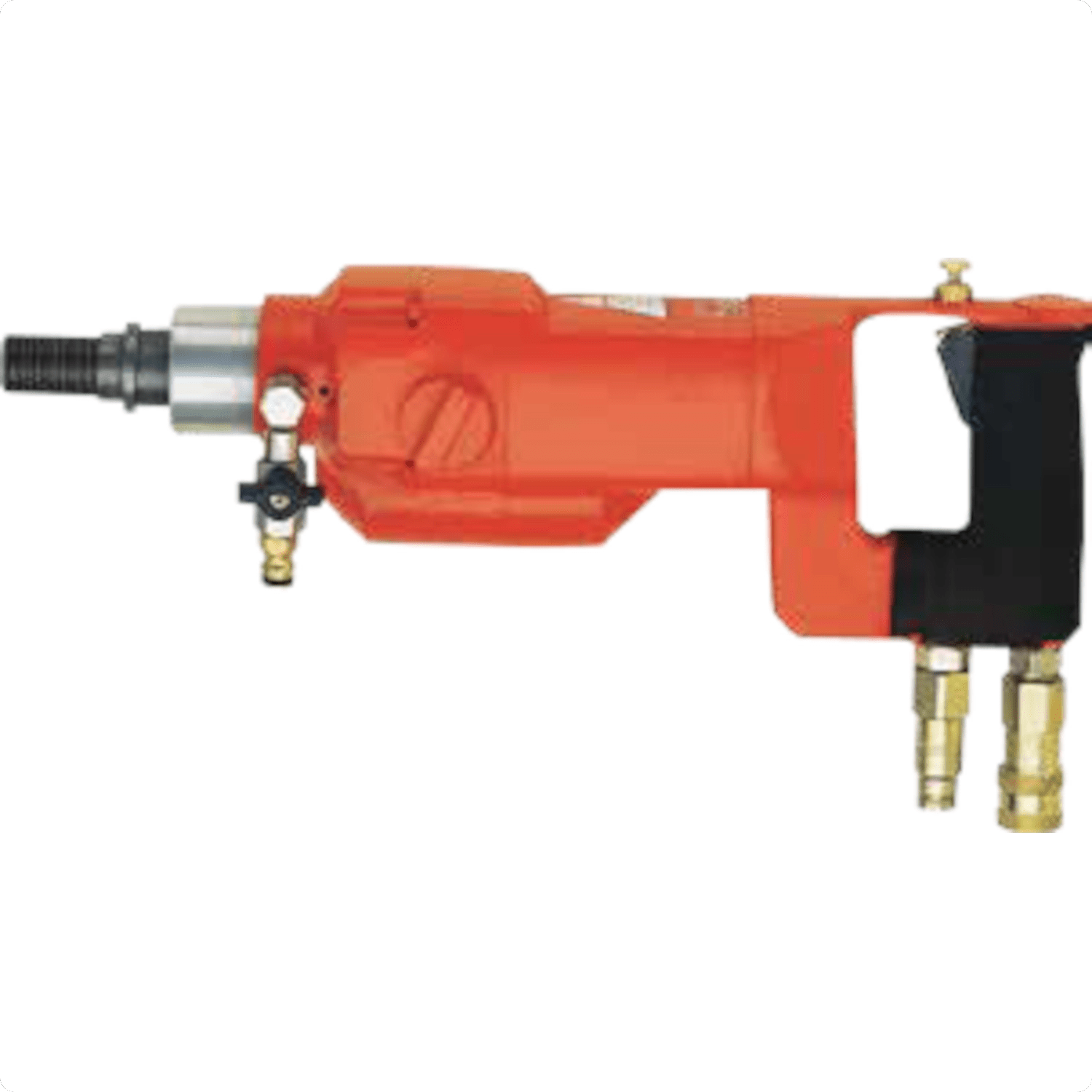

Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held
$5,250.05
Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held is a Core Bore hand-held core drill for contractors who need accurate cores, clear power requirements, and verified model-level specifications before ordering. Verified configuration for model Core Bore 4 HP hand-held hydraulic motor: Power: 4 HP hydraulic, Voltage/source: 13 GPM maximum, Capacity: 6", Speed: 300 / 800 / 1600 RPM, Mount: Hand-Held.
Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held is organized for concrete and construction crews comparing drill capacity, power source, mounting style, spindle compatibility, water control, and transport details before purchase. The product record is tied to Equipment Broker Group SKU 4244057 and verified model Core Bore 4 HP hand-held hydraulic motor, with manufacturer and retailer/source URLs retained for traceability. This hand-held core drill is suited to wet or dry hand-held penetrations, small cores, plumbing, electrical, ventilation, and stand-assisted light coring. Key buying details include Power: 4 HP hydraulic, Voltage/source: 13 GPM maximum, Capacity: 6", Speed: 300 / 800 / 1600 RPM, Mount: Hand-Held. Included items are recorded as: Hydraulic drill motor in listed configuration; power pack, hoses, and core bits sold separately unless stated. Confirm voltage/phase, bit diameter, stand compatibility, batteries, hydraulic power requirements, freight handling, and current warranty terms before checkout.
Key Features
- 4 HP hydraulic power configuration matched to the verified product source
- 13 GPM maximum power/drive requirement captured for jobsite planning
- 6" drilling or boring capacity for selecting the right bit and setup
- 300 / 800 / 1600 RPM speed range or gearbox detail supports bit-size control
- 1.250"-7 spindle/thread detail helps confirm bit and adapter compatibility
- Hand-Held mount/system configuration supports correct rig pairing
- Hand-held format supports fast setup for smaller penetrations and repair work
- Wet/dry or water connection details help crews plan slurry and dust control
Specifications
- Max Bit Diameter: 6"
- Power Source: Hydraulic
- Tool Mount: Hand-Held
- Wet/Dry Use: Wet
- Manufacturer: Core Bore
- Model #: CORE BORE 4HP
- SKU/Part #: 4244057
- Product Type: Core Drill
- Product Subtype: Hand-Held
- Product Mount: Hand-Held
- Engine/Motor: Hydraulic Motor
- Flow: 13 GPM maximum
- Variable Speed: 3-Speed
- Speed 1 Max RPM: 300 RPM
- Speed 2 Max RPM: 800 RPM
- Speed 3 Max RPM: 1600 RPM
- Max Speed RPM: 1600 RPM
- Drilling Depth per Pass: User-Dependent
- Spindle Features: 1.250"-7
- Dust Collection System: Not applicable
- Weight (lbs): 15
- Clutch: Slip
- Applications: Concrete, Masonry, Stone
- Dry/Wet: Wet
- Power Compatibility: Hydraulic
- Product Warranty: 1 Year
- WooCommerce SKU: 4244057
- Store Title: Core Bore Drill 6″ – Hydraulic 13 GPM Max – Hand-Held
- Collection: Core Drilling
- Brand: Core Bore
- Verified Manufacturer Model: Core Bore 4 HP hand-held hydraulic motor
- Power: 4 HP hydraulic
- Speed: 300 / 800 / 1600 RPM
- Spindle Thread: 1.250"-7
- Weight: UNVERIFIED – Equipment Broker Group/CTD lists 15 lb; CESSCO retailer lists 20 lb
- Included: Hydraulic drill motor in listed configuration; power pack, hoses, and core bits sold separately unless stated
| Weight | 21.499 lbs |
|---|---|
| Brand | Core Bore |
| Product Type | Core Drill |
