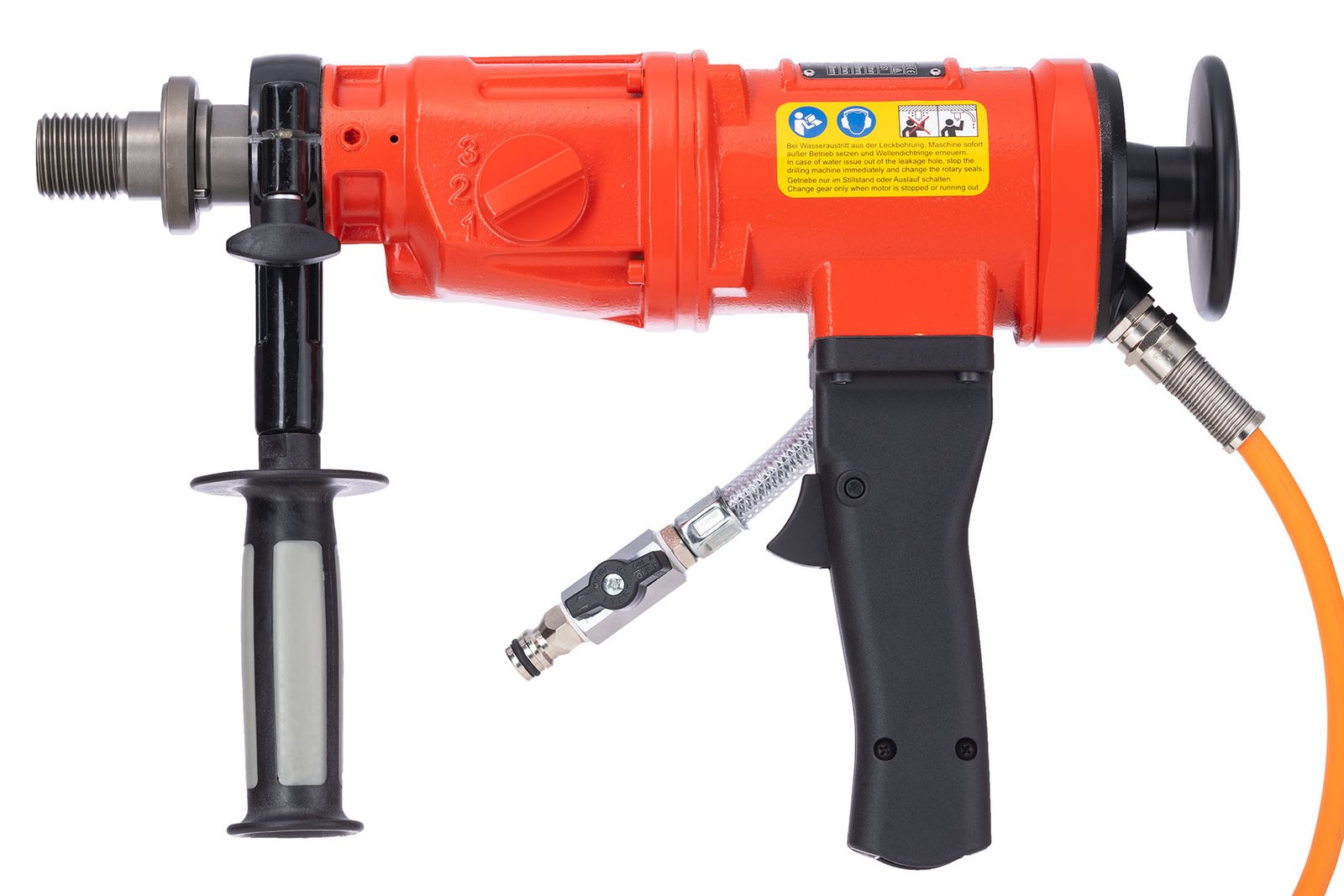

Core Bore Drill 3″-6″ – 16AMP|1PH – Hand-Held
$2,525.25

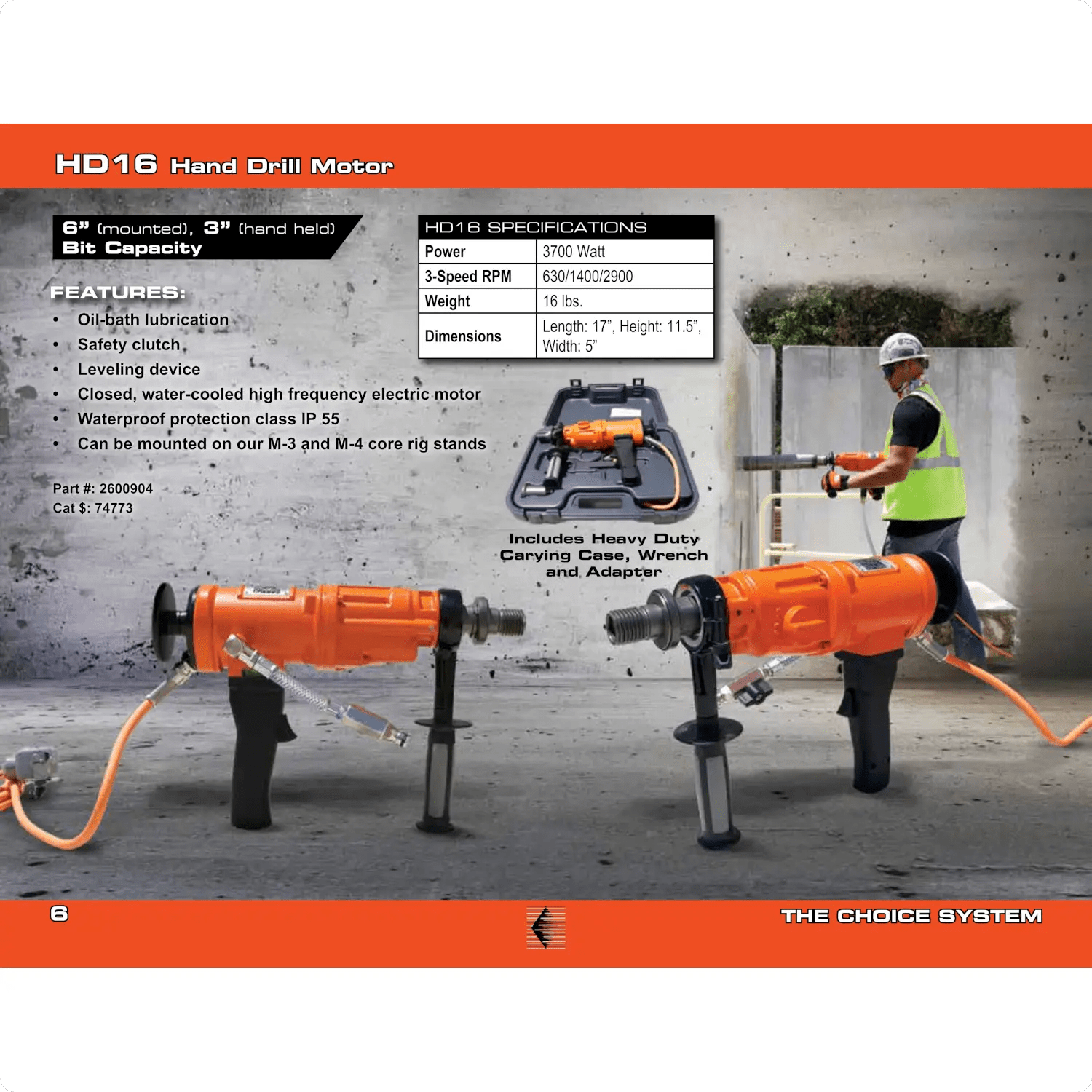

Core Bore Drill 3″-6″ – 16AMP|1PH – Hand-Held is a Core Bore hand-held core drill for contractors who need accurate cores, clear power requirements, and verified model-level specifications before ordering. Verified configuration for model WEKA HD16 / Diamond Products Weka HD16: Power: 2800 W, Capacity: 6" mounted / 3" hand-held, Speed: 630 / 1400 / 2900 RPM, Mount: Hand-Held, Weight: 16 lb in Diamond Products/CTD source; WEKA lists 6.2 kg without cable.
Core Bore Drill 3″-6″ – 16AMP|1PH – Hand-Held is organized for concrete and construction crews comparing drill capacity, power source, mounting style, spindle compatibility, water control, and transport details before purchase. The product record is tied to Equipment Broker Group SKU 2600904 and verified model WEKA HD16 / Diamond Products Weka HD16, with manufacturer and retailer/source URLs retained for traceability. This hand-held core drill is suited to wet or dry hand-held penetrations, small cores, plumbing, electrical, ventilation, and stand-assisted light coring. Key buying details include Power: 2800 W, Capacity: 6" mounted / 3" hand-held, Speed: 630 / 1400 / 2900 RPM, Mount: Hand-Held, Weight: 16 lb in Diamond Products/CTD source; WEKA lists 6.2 kg without cable. Included items are recorded as: HD16 drill motor with tool set/carrying case per manufacturer source; bits and stand sold separately unless stated. Confirm voltage/phase, bit diameter, stand compatibility, batteries, hydraulic power requirements, freight handling, and current warranty terms before checkout.
Key Features
- 2800 W power configuration matched to the verified product source
- 6" mounted / 3" hand-held drilling or boring capacity for selecting the right bit and setup
- 630 / 1400 / 2900 RPM speed range or gearbox detail supports bit-size control
- Hand-Held mount/system configuration supports correct rig pairing
- Hand-held format supports fast setup for smaller penetrations and repair work
- Wet/dry or water connection details help crews plan slurry and dust control
- Included configuration: HD16 drill motor with tool set/carrying case per manufacturer source; bits and stand sold separately unless stated
- Warranty/source note: 1 Year
Specifications
- Amperage: 16 AMP
- Max Bit Diameter: 6" mounted / 3" hand-held
- Power Phase: 1PH
- Power Source: Electric
- Recommended Bit Diameter: 3" (Hand-Held) / 6" (Mounted)
- Tool Mount: Hand-Held
- Wet/Dry Use: Wet
- Manufacturer: Weka
- Model #: HD16
- SKU/Part #: 2600904
- Product Type: Core Drill
- Product Subtype: Hand-Held
- Product Mount: Hand-Held
- Engine/Motor: High
- Frequency: Electric Motor
- Horse Power: ~5 HP (3700W)
- Variable Speed: 3-Speed
- Speed 1 Max RPM: 630 RPM
- Speed 2 Max RPM: 1400 RPM
- Speed 3 Max RPM: 2900 RPM
- Max Speed RPM: 2900 RPM
- Drilling Depth per Pass: User-Dependent
- Dust Collection System: Not applicable
- Weight (lbs): 16
- Clutch: Slip
- Compact Design: Yes
- Applications: Concrete, Masonry, Stone
- Dry/Wet: Wet
- Power Compatibility: Standard Electric Supply
- Product Warranty: 1 Year
- WooCommerce SKU: 2600904
- Store Title: Core Bore Drill 3″-6″ – 16AMP
- 1PH – Hand-Held
- Collection: Core Drilling
- Brand: Core Bore
- Verified Manufacturer Model: WEKA HD16 / Diamond Products Weka HD16
- Nominal Power: 3700 W
- Output Power: 2800 W
- Speed: 630 / 1400 / 2900 RPM
- Protection Class: IP55
- Weight: 16 lb in Diamond Products/CTD source; WEKA lists 6.2 kg without cable
- Included: HD16 drill motor with tool set/carrying case per manufacturer source; bits and stand sold separately unless stated
| Weight | 34.000 lbs |
|---|---|
| Brand | Core Bore |
| Product Type | Core Drill |
