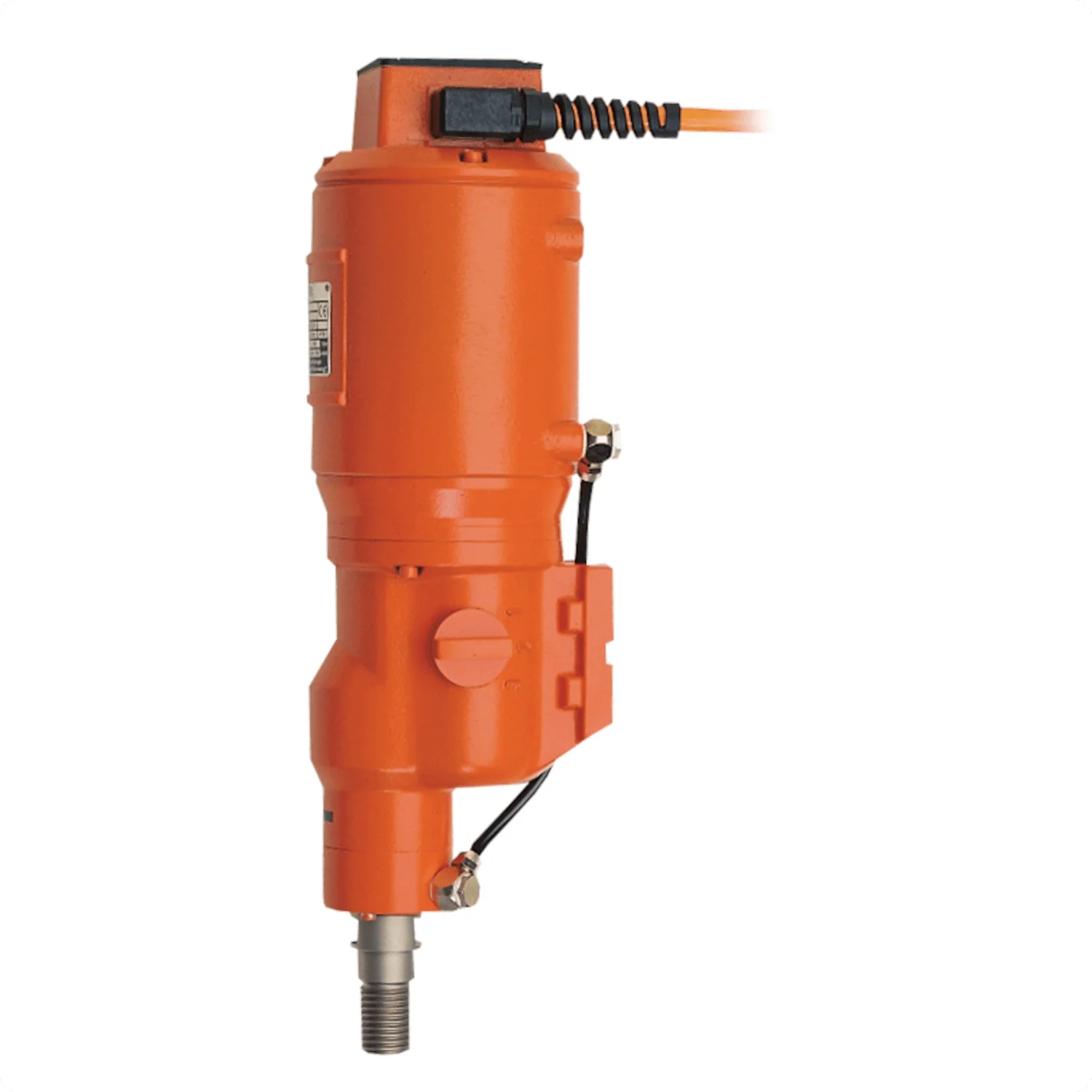

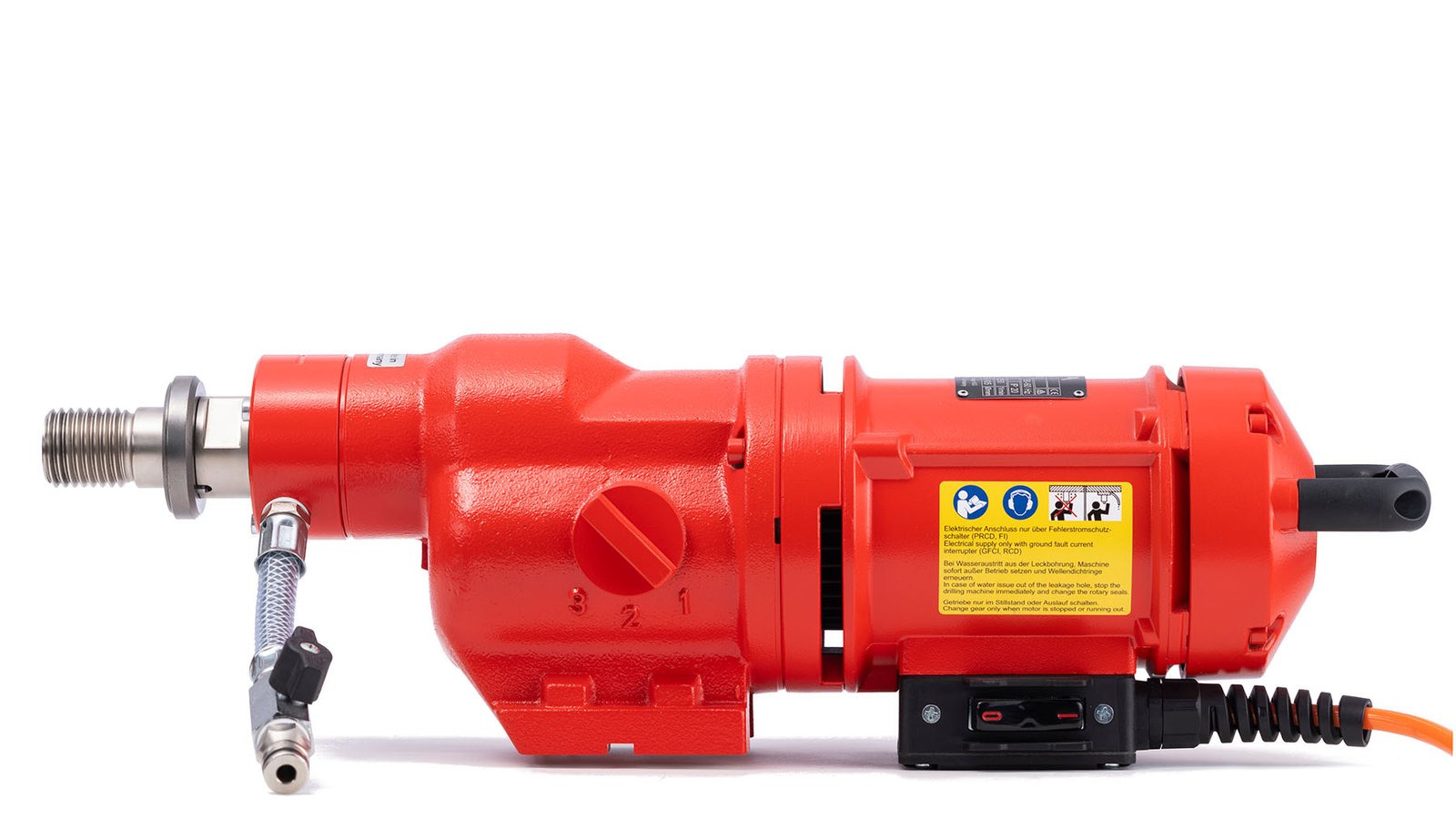

WEKA DK32 Core Drill Motor
$2,708.55
Weka DK32 Core Drill is configured for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. Key configuration: Electric power source, 2300 W output power, and 13 lb weight.
Description
Weka DK32 Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The DK32 configuration pairs Electric power source, 2300 W output power, and 13 lb weight.
Key differentiators
- 230V power/drive requirement captured for jobsite planning
- <=18" drilling or boring capacity for selecting the right bit and setup
- 720 RPM speed range or gearbox detail supports bit-size control
- 1.250"-7 spindle/thread detail helps confirm bit and adapter compatibility
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
Specifications
- Tool Mount
- Rig-Mounted
- Available Variants
- DK32 230 V 15 A; DK32 110 V 30 A
- Model #
- DK32
- SKU/Part #
- 4244058
- Product Type
- Core Drill
- Product Subtype
- Drill Motor
- Product Mount
- Rig-Mounted
- Engine/Motor
- Electric Motor
- Horse Power
- Heavy Duty
- Power Source
- Electric
- Voltage
- 230V
- Amperage
- 15 AMP
- Power Phase
- 1PH
- Variable Speed
- 3-Speed
- Speed 1 Max RPM
- 230 RPM
- Speed 2 Max RPM
- 480 RPM
- Speed 3 Max RPM
- 720 RPM
- Max Speed RPM
- 720 RPM
- Recommended Bit Diameter
- 2" – 16"
- Max Bit Diameter
- <=18"
- Drilling Depth per Pass
- User-Dependent
- Spindle Features
- 1.250"-7
- Dust Collection System
- Not applicable
- Weight (lbs)
- 13 lb
- Shipping Weight
- 33.6
- Clutch
- Slip
- Compact Design
- Yes
- Applications
- Concrete, Masonry, Stone
- Dry/Wet
- Wet
- Power Compatibility
- Standard Electric Supply
- Product Warranty
- 1 Year
- WooCommerce SKU
- 47071
- Store Title
- WEKA DK32 Core Drill Motor
- Manufacturer Part Number
- 4244058 for listed 230 V DK32 variant
- Nominal Power
- 3200 W
- Output Power
- 2300 W
- Manufacturer Drilling Diameter
- 55 – 350 mm
- Included
- Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
Best-fit applications
The DK32 is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Electric power source, 2300 W output power, and 13 lb weight.
- Site utility or fuel: 230V
- Tooling or working setup: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
- Handling reference: 13 lb
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Additional information
| Weight | 110.000 lbs |
|---|---|
| Brand | Weka |
| Product Type | Core Drill |
