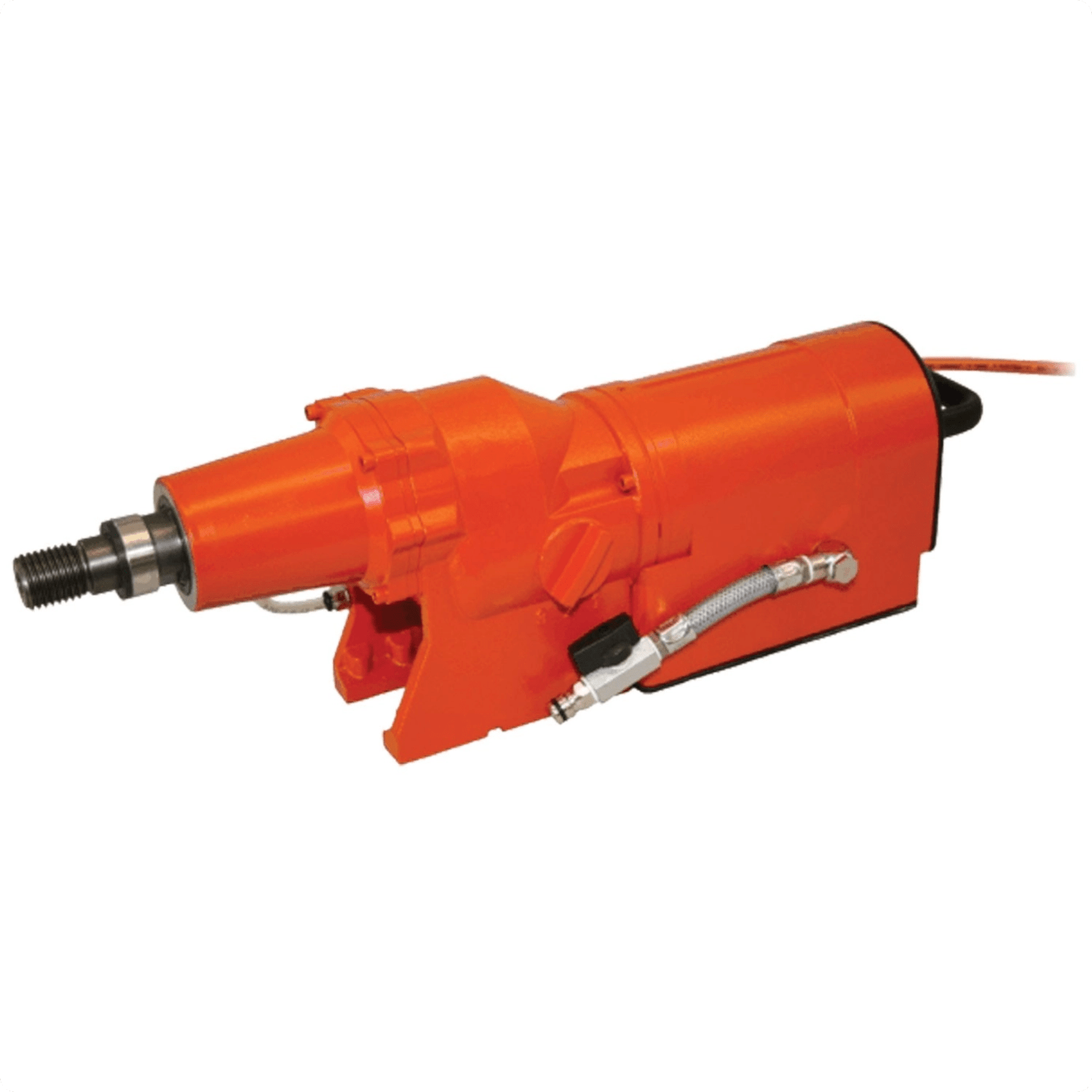

Weka SR75S Core Drill 26″ – 14AMP|3PH|480V – Rig-Mounted
$5,133.70
Weka SR75S Core Drill 26″ – 14AMP|3PH|480V – Rig-Mounted is a Weka rig-mounted core drill motor for contractors who need accurate cores, clear power requirements, and verified model-level specifications before ordering. Verified configuration for model WEKA SR75S / SR75 product family: Power: 7.5 HP (7500W), Voltage/source: 480V, Capacity: 26", Speed: 15-Speed, Mount: Rig-Mounted.
Weka SR75S Core Drill 26″ – 14AMP|3PH|480V – Rig-Mounted is organized for concrete and construction crews comparing drill capacity, power source, mounting style, spindle compatibility, water control, and transport details before purchase. The product record is tied to Equipment Broker Group SKU 4244117 and verified model WEKA SR75S / SR75 product family, with manufacturer and retailer/source URLs retained for traceability. This rig-mounted core drill motor is suited to stand-mounted concrete coring, large utility penetrations, reinforced concrete openings, and production drilling with controlled feed. Key buying details include Power: 7.5 HP (7500W), Voltage/source: 480V, Capacity: 26", Speed: 15-Speed, Mount: Rig-Mounted. Included items are recorded as: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated. Confirm voltage/phase, bit diameter, stand compatibility, batteries, hydraulic power requirements, freight handling, and current warranty terms before checkout.
Key Features
- 7.5 HP (7500W) power configuration matched to the verified product source
- 480V power/drive requirement captured for jobsite planning
- 26" drilling or boring capacity for selecting the right bit and setup
- 15 speed range or gearbox detail supports bit-size control
- 1.250"-7 spindle/thread detail helps confirm bit and adapter compatibility
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
- Built for professional coring in concrete, masonry, stone, and reinforced slabs
Specifications
- Amperage: 14 AMP
- Max Bit Diameter: 26"
- Power Phase: 3PH
- Power Source: Electric
- Recommended Bit Diameter: 5" – 24"
- Tool Mount: Rig-Mounted
- Wet/Dry Use: Wet
- Manufacturer: Weka
- Model #: SR75S
- SKU/Part #: 4244117
- Product Type: Core Drill
- Product Subtype: Drill Motor
- Product Mount: Rig-Mounted
- Engine/Motor: Electric Motor
- Horse Power: 7.5 HP (7500W)
- Voltage: 480V
- Variable Speed: 15-Speed
- Drilling Depth per Pass: User-Dependent
- Spindle Features: 1.250"-7
- Dust Collection System: Not applicable
- Weight (lbs): 13
- Shipping Weight: 51.9
- Leveling Bubbles: 2
- Compact Design: Yes
- Applications: Concrete, Masonry, Stone
- Dry/Wet: Wet
- Power Compatibility: Standard Electric Supply
- Product Warranty: 1 Year
- WooCommerce SKU: 4244117
- Store Title: Weka SR75S Core Drill 26″ – 14AMP
- 3PH
- 480V – Rig-Mounted
- Collection: Core Drilling
- Brand: Weka
- Verified Manufacturer Model: WEKA SR75S / SR75 product family
- Nominal Power: 7500 W
- U.S. Configuration: 480 V, 3 ph, 14 AMP
- Number of Gears: 15
- Spindle Thread: 1.250"-7
- Included: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
| Weight | 13.001 lbs |
|---|---|
| Brand | Weka |
| Product Type | Core Drill |
