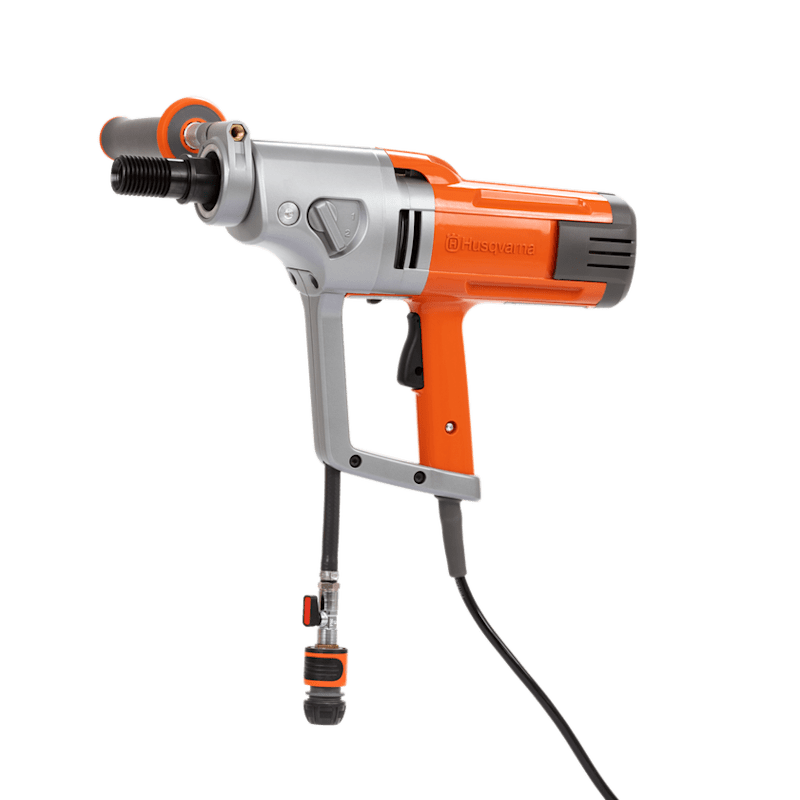

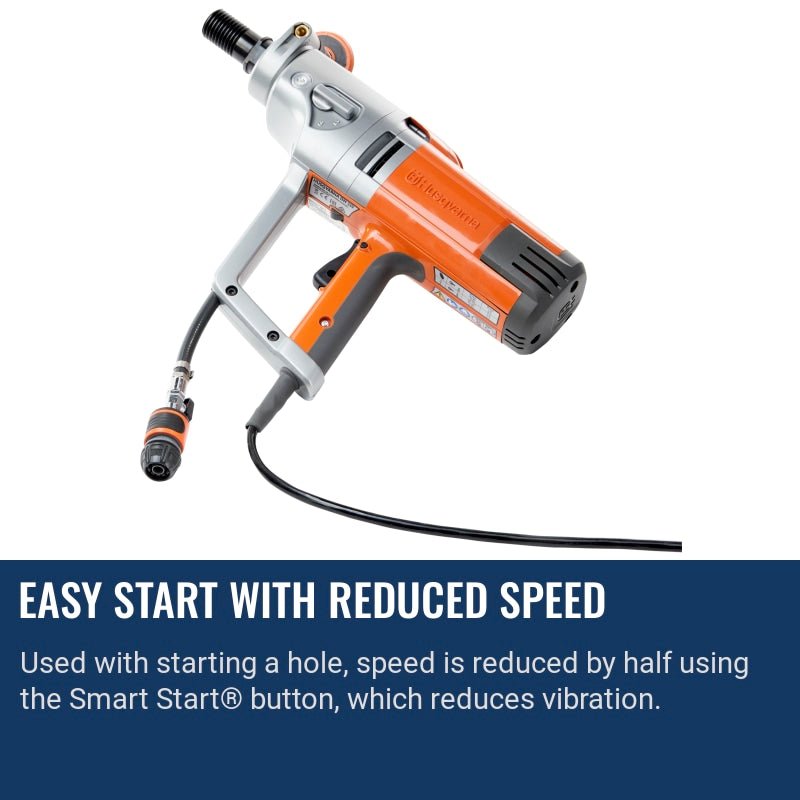

Husqvarna DM 230 | Handheld Core Drill

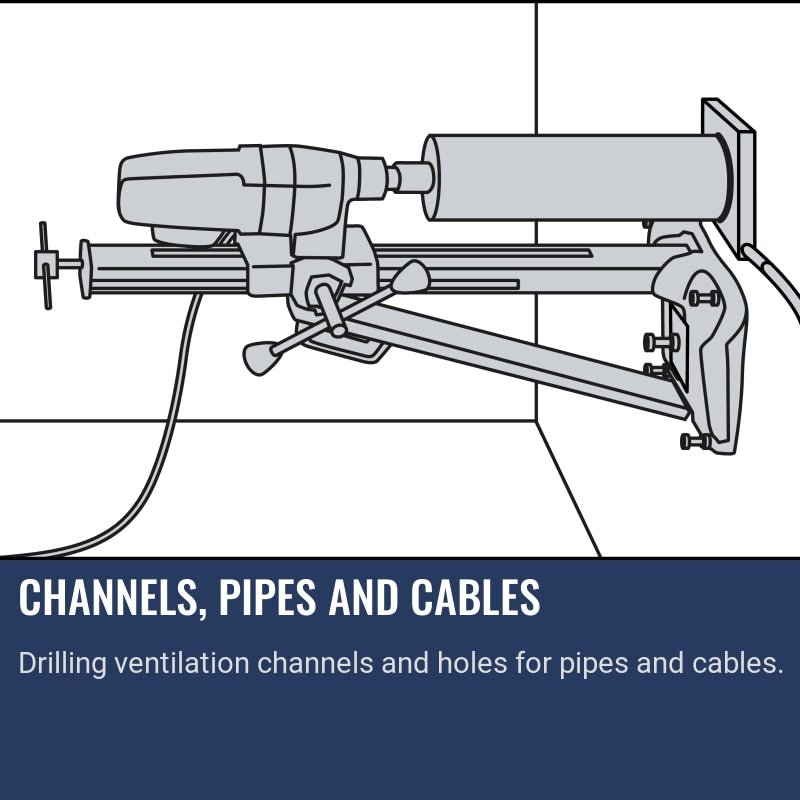

Husqvarna DM 230 Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The DM 230 configuration pairs Corded power source, 2.5 hp rated input power, and 15.4 lbs weight.

Key differentiators

• 100-120 V power/drive requirement captured for jobsite planning
• 6" drilling or boring capacity for selecting the right bit and setup
• 730 rpm speed range or gearbox detail supports bit-size control
• 1 1/4" 7 UNC spindle/thread detail helps confirm bit and adapter compatibility
• Hand-Held mount/system configuration supports correct rig pairing
• Hand-held format supports fast setup for smaller penetrations and repair work

Specifications

Max Bit Diameter

6"

Power Phase

1PH

Power Source

Corded

Recommended Bit Diameter

1" – 6"

Tool Mount

Hand-Held

Wet/Dry Use

Wet

WASHER QUICK RELEASE/COPPER D

SKU: 543052878 Husqvarna Drill motor keys Accessories SKU: 531140951

Rated input power

2.5 hp

Frequency

60 Hz

Voltage

100-120 V

Phases

1 ph

Drill bit diameter handheld, max

3 in

Drill bit diameter with stand, max

6 in

Recommended drill bit diameter, min

1 in

Coolant

Wet

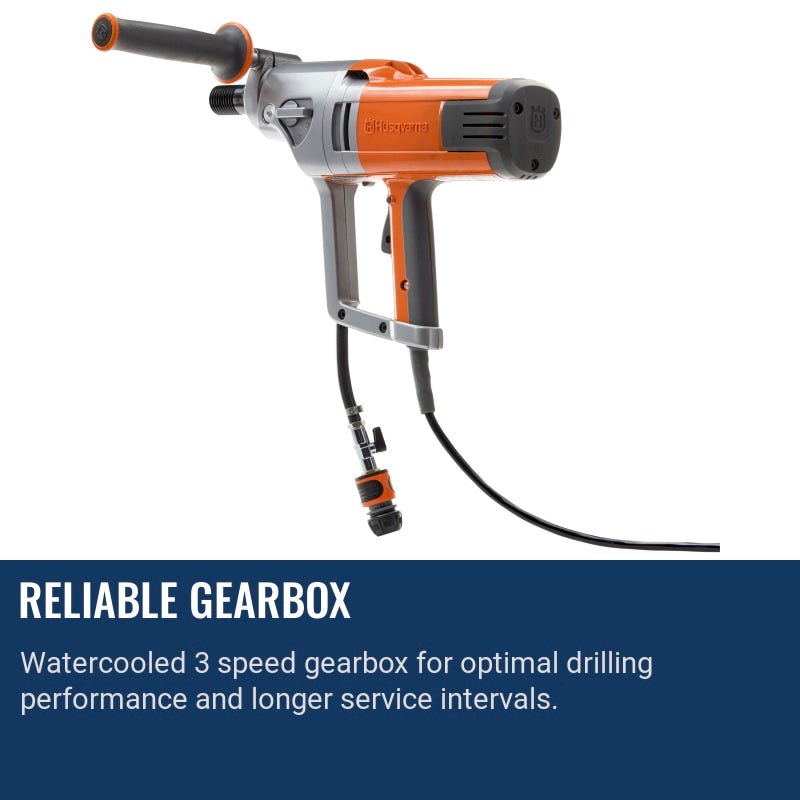

Number of gearbox speeds

3

Spindle speed unloaded gear 1

730 rpm

Spindle speed unloaded gear 2

1,700 rpm

Spindle speed unloaded gear 3

3,600 rpm

Water connector

G 1 / 4"

Water pressure, max

116 psi

Mounting collar

2.36 in

Spindle thread, inner

5/8" 11 UNC

Spindle thread, outer

1 1/4" 7 UNC

Product size length

17.5 in

Product size width

4.2 in

Product size height

13.6 in

Weight

15.4 lbs

Packaging length (Calc)

25.984 in

Packaging width (Calc)

20.472 in

Packaging height (Calc)

5.906 in

Article gross weight (Calc)

26.676 lbs

Sound power level, guaranteed (LWA)

108 dB(A)

Sound power level, measured

107 dB(A)

Sound pressure level at operators ear

93 dB(A)

Warranty

2 year limited

WooCommerce SKU

968411301

Store Title

Husqvarna DM 230

Included

Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated

Best-fit applications

The DM 230 is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Corded power source, 2.5 hp rated input power, and 15.4 lbs weight.

• Site utility or fuel: 100-120 V
• Tooling or working setup: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
• Handling reference: 15.4 lbs
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
