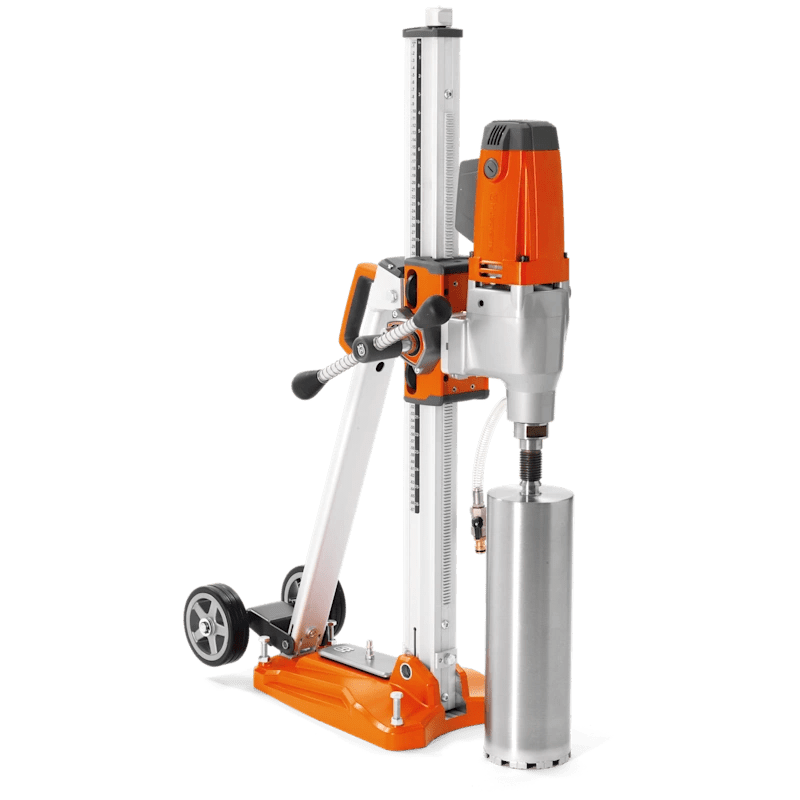

Husqvarna DMS 240 | Core Drill With Stand

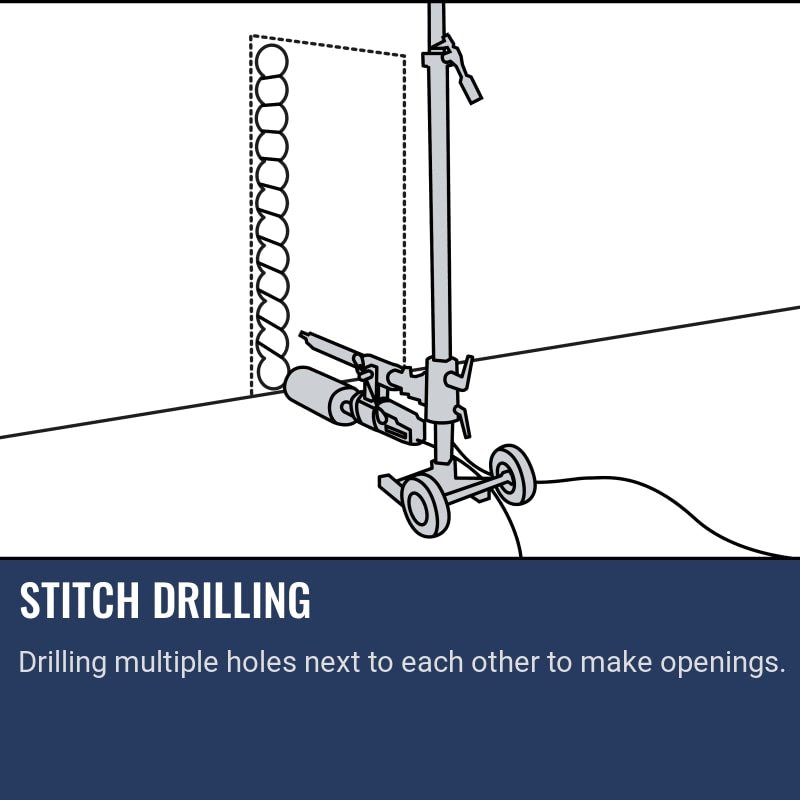

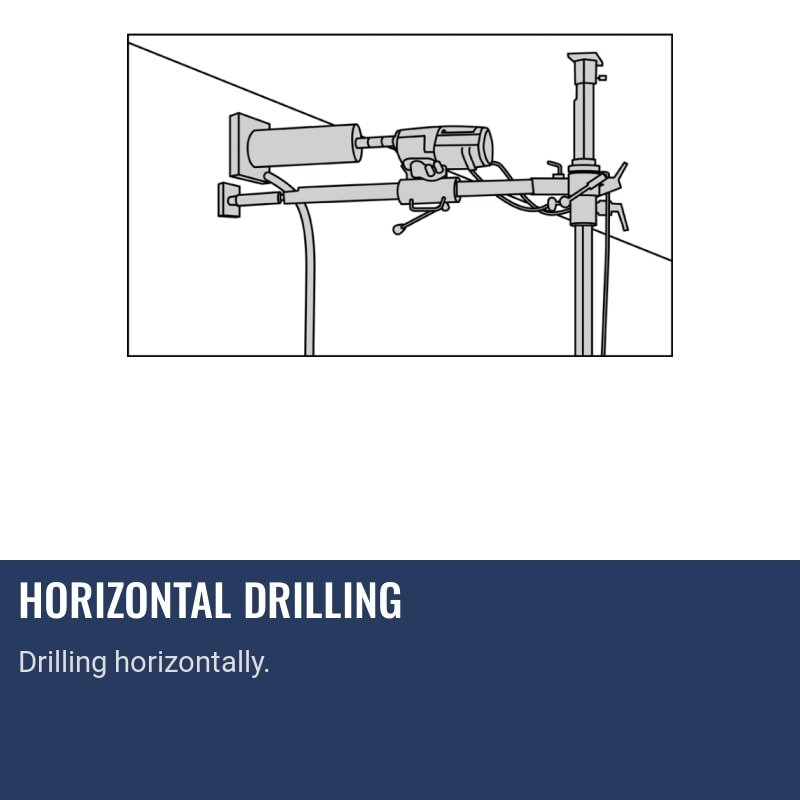

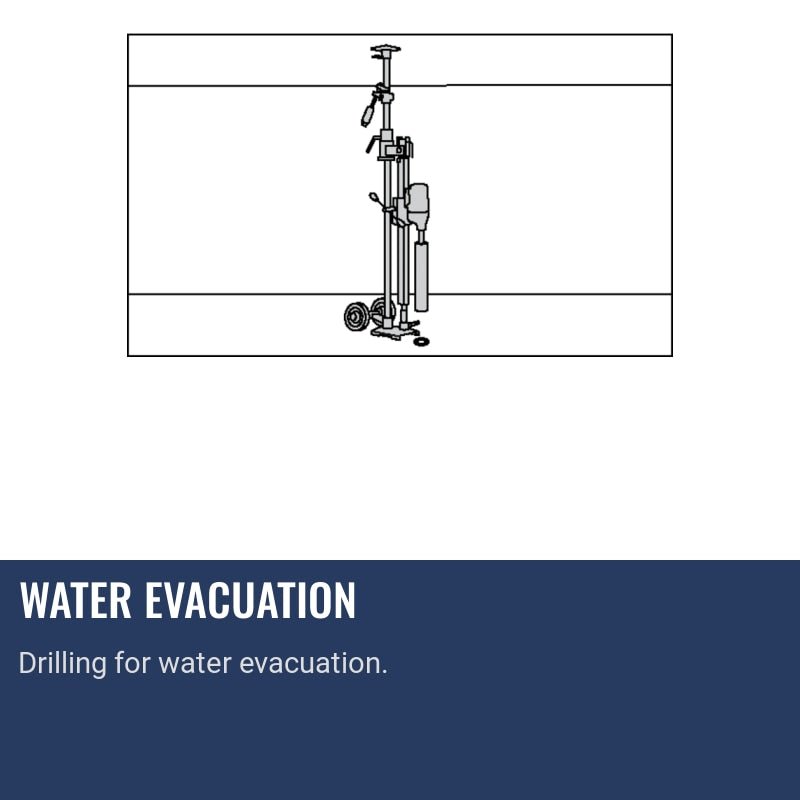

Husqvarna DMS 240 | Core Drill With Stand is organized for concrete and construction crews comparing drill capacity, power source, mounting style, spindle compatibility, water control, and transport details before purchase. The product record is tied to Equipment Broker Group SKU 965173601 and verified model Husqvarna DMS 240, with manufacturer and retailer/source URLs retained for traceability. This core drilling system is suited to wall, floor, roof, plumbing, HVAC, water evacuation, stitch drilling, and medium-to-heavy concrete coring. Key buying details include Power: 3.3 hp, Voltage/source: 100-120 V, Capacity: 10 in, Mount: DMS 240 drill motor and stand; pump only for pump variant, Weight: 61 lbs. Included items are recorded as: Core drill motor and matched drill stand in listed DMS configuration; pump only for pump variant where selected. Confirm voltage/phase, bit diameter, stand compatibility, batteries, hydraulic power requirements, freight handling, and current warranty terms before checkout.

Key Features

• 3.3 hp power configuration matched to the verified product source
• 100-120 V power/drive requirement captured for jobsite planning
• 10 in drilling or boring capacity for selecting the right bit and setup
• 1 1/4" 7 UNC spindle/thread detail helps confirm bit and adapter compatibility
• DMS 240 drill motor and stand; pump only for pump variant mount/system configuration supports correct rig pairing
• Integrated motor-and-stand system reduces compatibility decisions

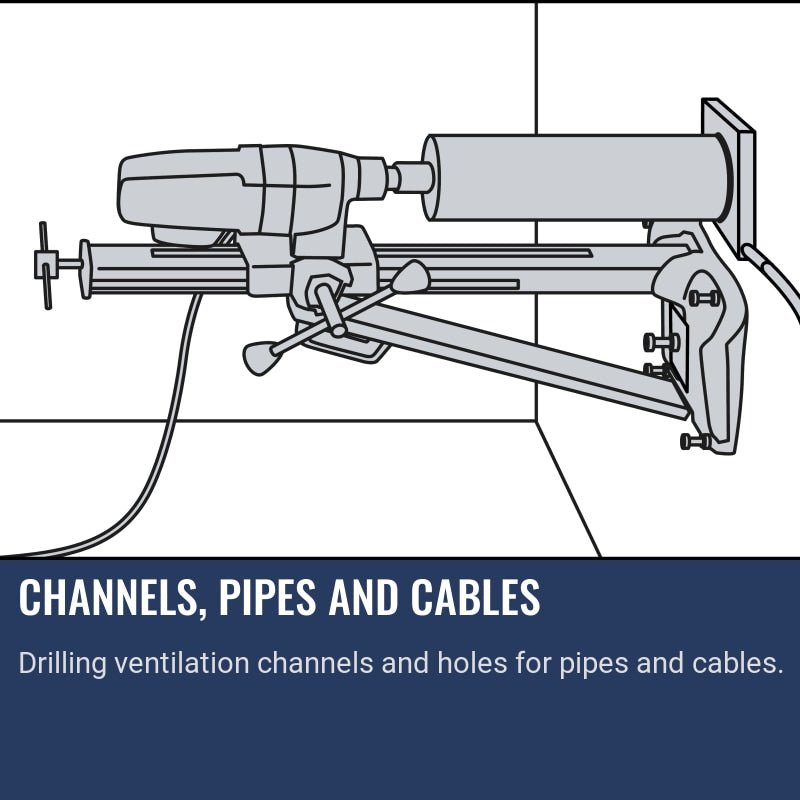

• Designed for contractors drilling openings for utilities, ventilation, plumbing, and drainage
• Included configuration: Core drill motor and matched drill stand in listed DMS configuration; pump only for pump variant where selected

Specifications

• auto: promo
• WASHER QUICK RELEASE/COPPER D: SKU: 543052878 Husqvarna Drill motor keys Accessories SKU: 531140951
• Available Variants: DRILL MOTOR DMS 240 100-120 V 1-ph 60 Hz US DRILL MOTOR DMS 240 100-120 V 1-ph 60 Hz US
• incl pump
• Rated input power: 3.3 hp
• Frequency: 60 Hz
• Voltage: 100-120 V
• Phases: 1 ph
• Power Source: Corded
• Recommended drill bit diameter, min: 0 in
• Drill bit diameter, max: 10 in
• Coolant: Wet

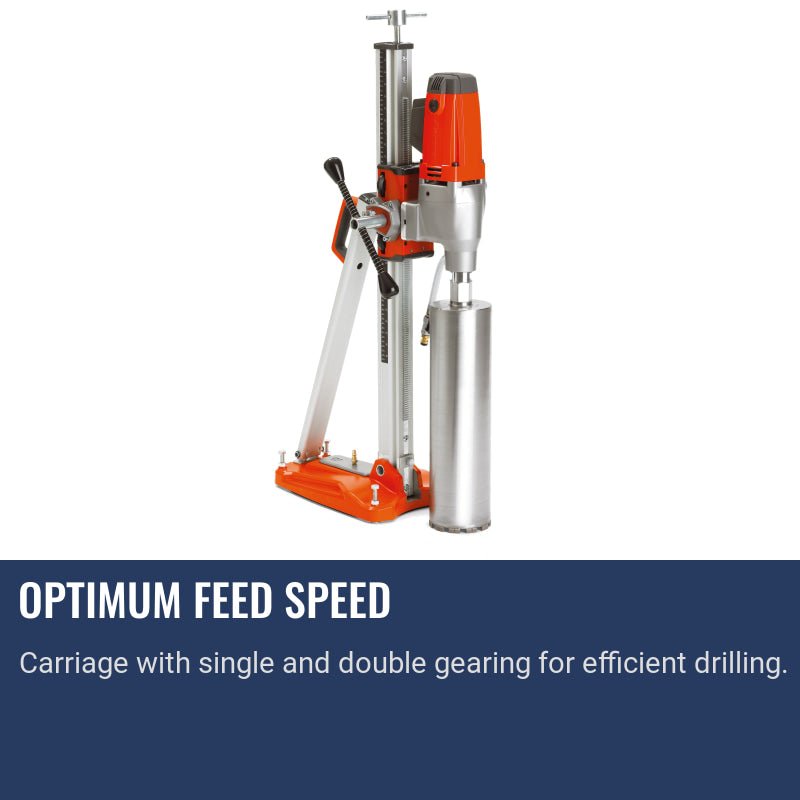

• Number of gearbox speeds: 2
• Water connector: G 1 / 4"
• Water pressure, max: 116 psi
• Spindle thread, inner: 5/8" 11 UNC
• Spindle thread, outer: 1 1/4" 7 UNC

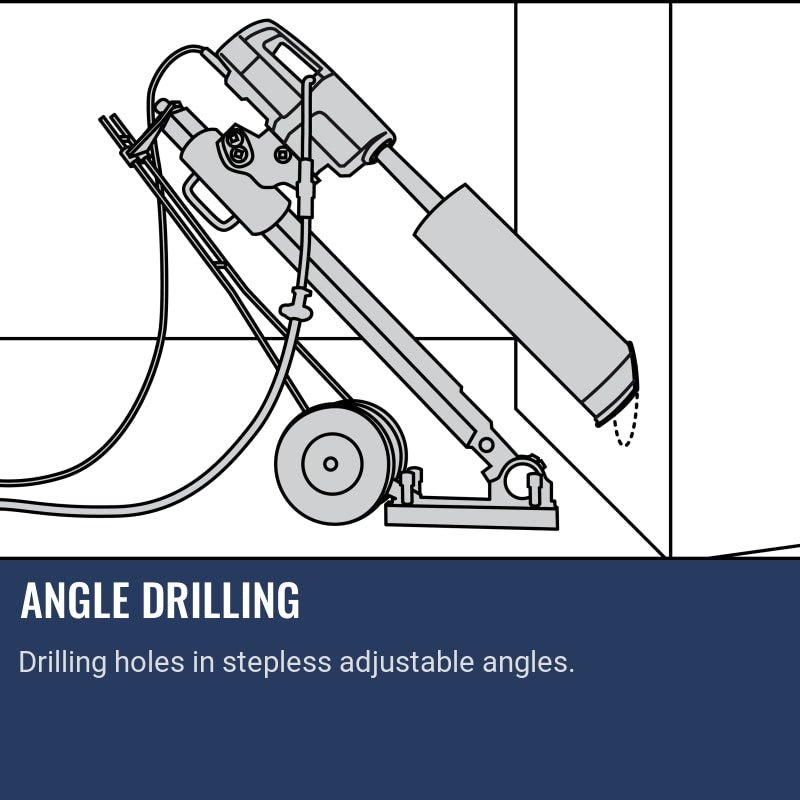

• Column's Angling: 0-60º
• Column installation: Tiltable
• Rated current: 20 A
• Travel length, max: 27 in
• Product size length: 21.5 in
• Product size width: 10.5 in
• Product size height: 41.4 in
• Weight: 61 lbs
• Packaging length (Calc): 45.276 in
• Packaging width (Calc): 20.866 in
• Packaging height (Calc): 12.992 in
• Article gross weight (Calc): 74.957 lbs
• Sound power level, guaranteed (LWA): 106 dB(A)
• Sound power level, measured: 106 dB(A)
• Sound pressure level at operators ear: 90 dB(A)
• Warranty: 2 year limited
• WooCommerce SKU: 965173601
• Store Title: Husqvarna DMS 240
• Core Drill With Stand
• Collection: Core Drilling
• Brand: Husqvarna Construction
• Verified Manufacturer Model: Husqvarna DMS 240
• Max Drilling Diameter: 10 in
• System Components: DMS 240 drill motor and stand; pump only for pump variant
• Included: Core drill motor and matched drill stand in listed DMS configuration; pump only for pump variant where selected
