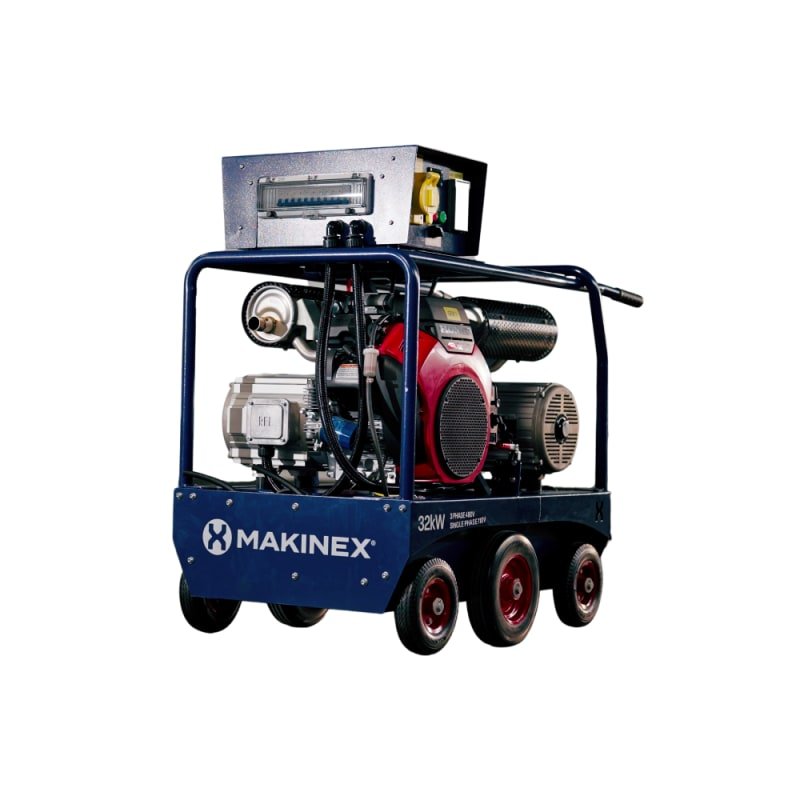

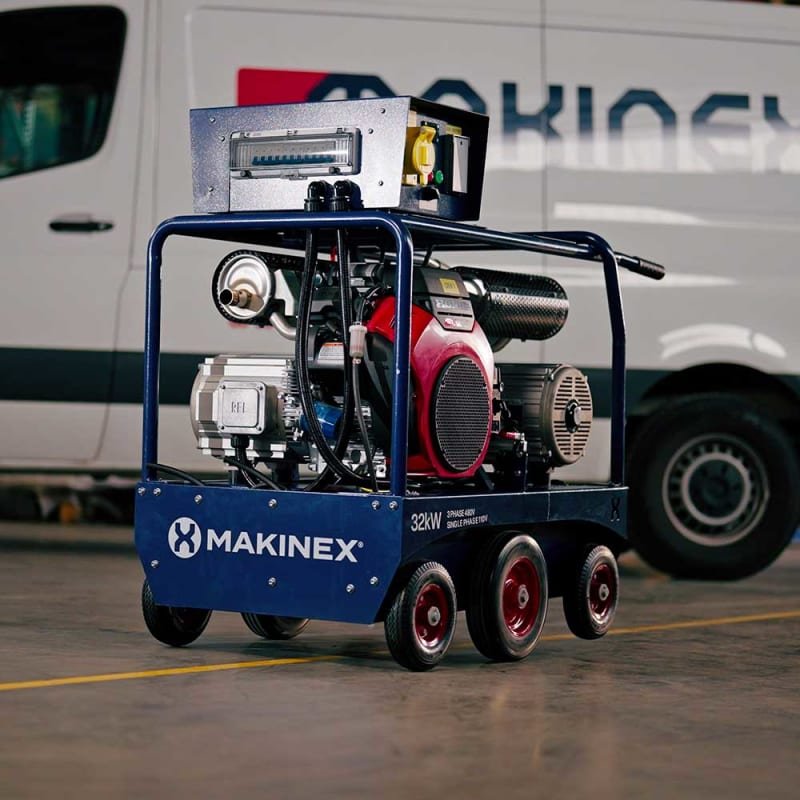

Generator 32kW | Honda | 480V USA-Spec

Makinex Generator 32kW Generator is a generator designed for portable or standby jobsite power for tools, lighting, and equipment. The Generator 32kW configuration pairs 32 kW output class, 110V single phase; 480V three phase voltage, and 60 Hz frequency.

Key differentiators

• Compact 480V three-phase generator class built for concrete and flooring crews.
• Dual Honda GX690 engines support high-output portable power without a tow-behind format.
• Independent single-phase auxiliary and 480V three-phase output can run mixed loads.
• Radial flux alternator technology is designed to improve usable output from the engine package.
• Large 13.2 gal tank supports commercial jobsite run time.
• 772 lb dry weight is significant but compact versus towable generator setups.

Specifications

Store SKU

GPE211039

Manufacturer Product Code

GEN-32P-US-V2

Equipment Type

Portable dual-phase gasoline generator

Output Class

32 kW

Voltage

110V single phase; 480V three phase

Frequency

60 Hz

Three-Phase Power

Max 28 kW / continuous 25.2 kW

Single-Phase Auxiliary Power

Max 2.2 kW / continuous 2 kW

Three-Phase Current

Max 33.8 A / continuous 30.55 A

Single-Phase Current

Max 20 A / continuous 18 A

Engine Type

Twin-cylinder air-cooled petrol

Engine Model

Honda GX690 x 2

Displacement

1,376 cc

Starting System

Electric key start

Fuel Economy

2.6 gal/hr at 50% load

Fuel Tank

13.2 gal

Noise Level

72-76 dB at 7 m

Dry Weight

772 lb

Dimensions

43 x 24.8 x 40.3 in

Warranty

1-year Makinex warranty listed on generator pages

Best-fit applications

The Generator 32kW is best matched to portable or standby jobsite power for tools, lighting, and equipment where the job requires 32 kW output class, 110V single phase; 480V three phase voltage, and 60 Hz frequency.

• Site utility or fuel: 110V single phase; 480V three phase
