Generator 23kW | VanGuard | 480V

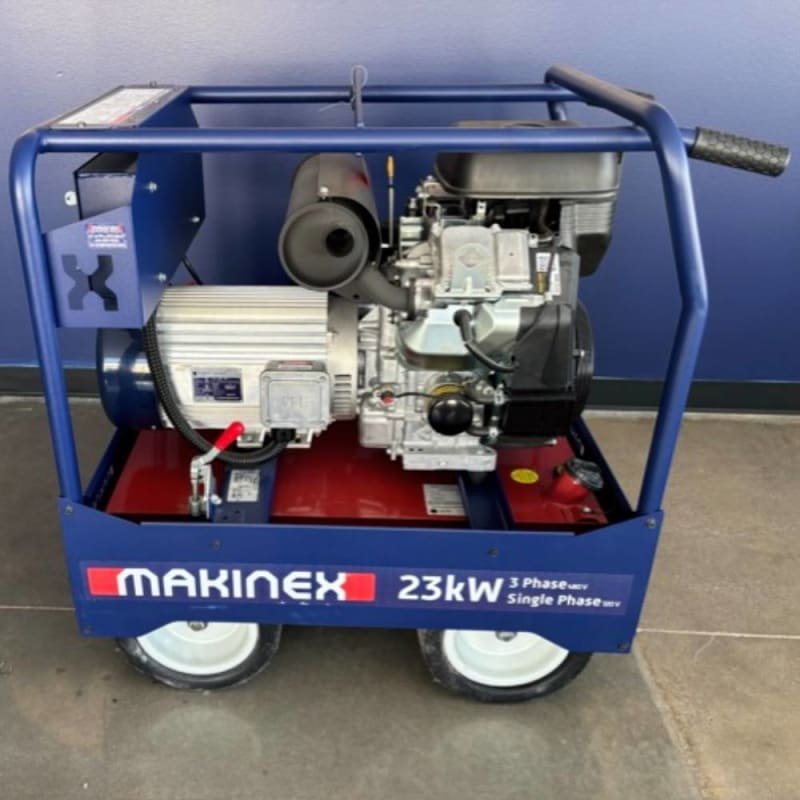

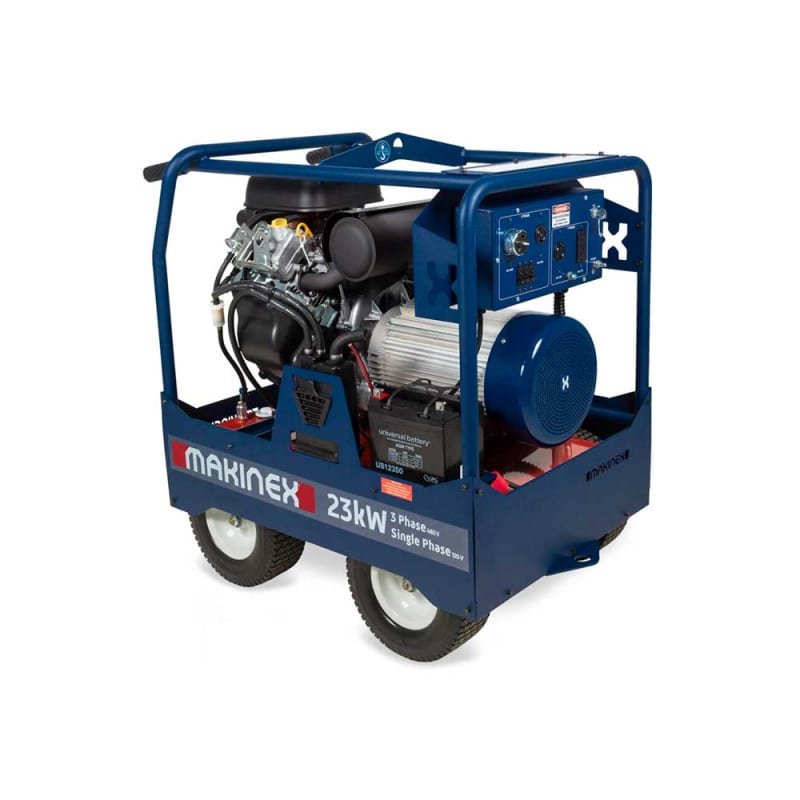

Makinex Generator 23kW Generator is a generator designed for portable or standby jobsite power for tools, lighting, and equipment. The Generator 23kW configuration pairs 23 kW output class, 110V single phase; 480V three phase voltage, and 60 Hz frequency.

Key differentiators

• Compact 480V three-phase generator for concrete and flooring equipment.

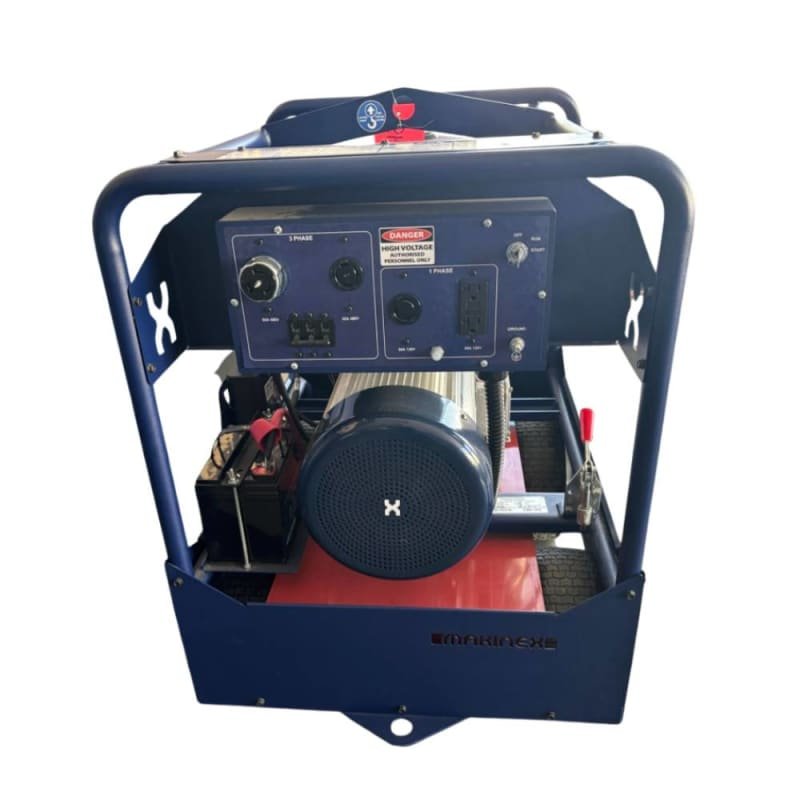

• Independent 110V auxiliary and 480V circuits allow simultaneous mixed-load use.

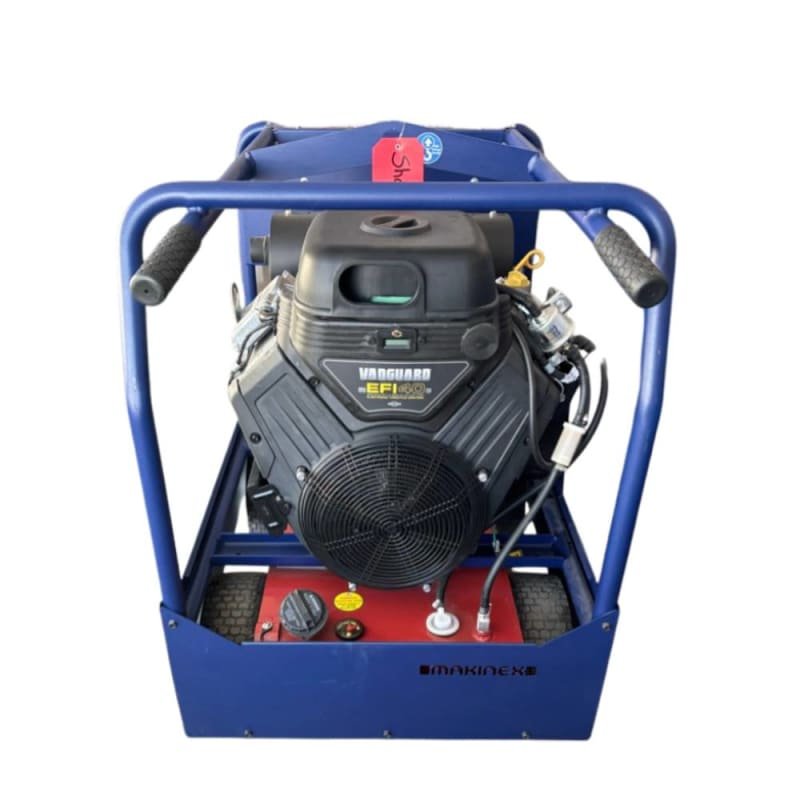

• Vanguard V-Twin engine and radial flux alternator support high output in a compact frame.
• Four-wheel portable design fits into tighter work areas than tow-behind units.
• 13.2 gal tank and 573 lb dry weight support commercial jobsite planning.
• No voltage selection is needed for the appropriate outlets.

Specifications

Store SKU

GPE211037

Manufacturer Product Code

GEN-23P-MS-480

Equipment Type

Portable dual-phase gasoline generator

Output Class

23 kW

Voltage

110V single phase; 480V three phase

Frequency

60 Hz

Three-Phase Power

Max 25 kW / continuous 22.5 kW

Single-Phase Auxiliary Power

Max 2.2 kW / continuous 2 kW

Three-Phase Current

Max 30 A / continuous 27 A

Single-Phase Auxiliary Current

Max 20 A / continuous 18 A

Engine Type

Twin-cylinder air-cooled petrol

Engine Model

Vanguard 61G277

Displacement

993 cc

Starting System

Electric key start

Fuel Economy

1.59 gal/hr at 50% load

Fuel Tank

13.2 gal

Noise Level

72 dB no-load at 7 m

Dry Weight

573 lb

Dimensions

43 x 25 x 40 in

Warranty

3-year warranty listed by Makinex for 23kW generators

Best-fit applications

The Generator 23kW is best matched to portable or standby jobsite power for tools, lighting, and equipment where the job requires 23 kW output class, 110V single phase; 480V three phase voltage, and 60 Hz frequency.

• Site utility or fuel: 110V single phase; 480V three phase
