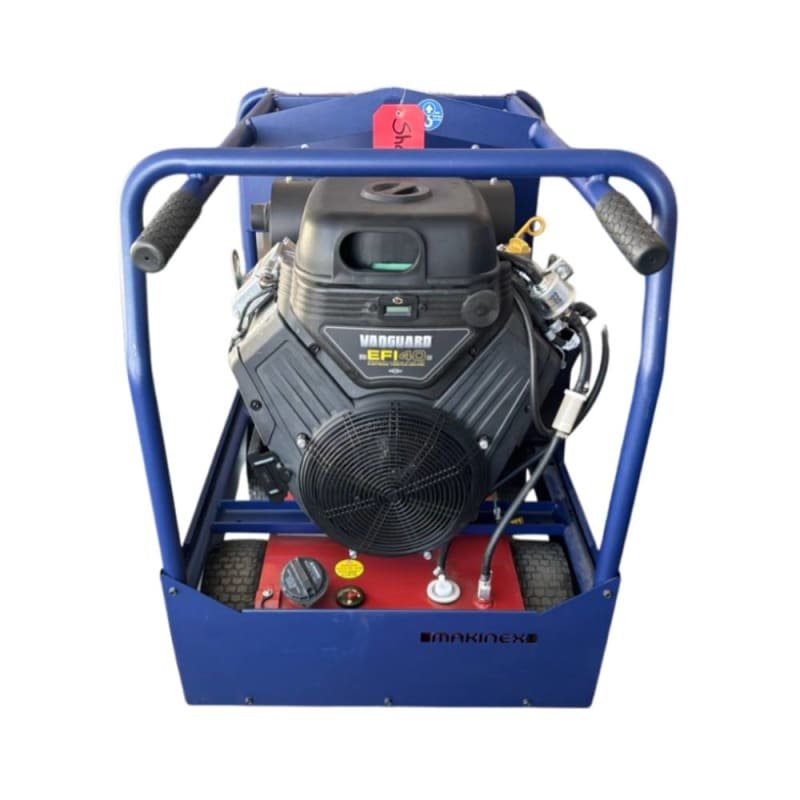

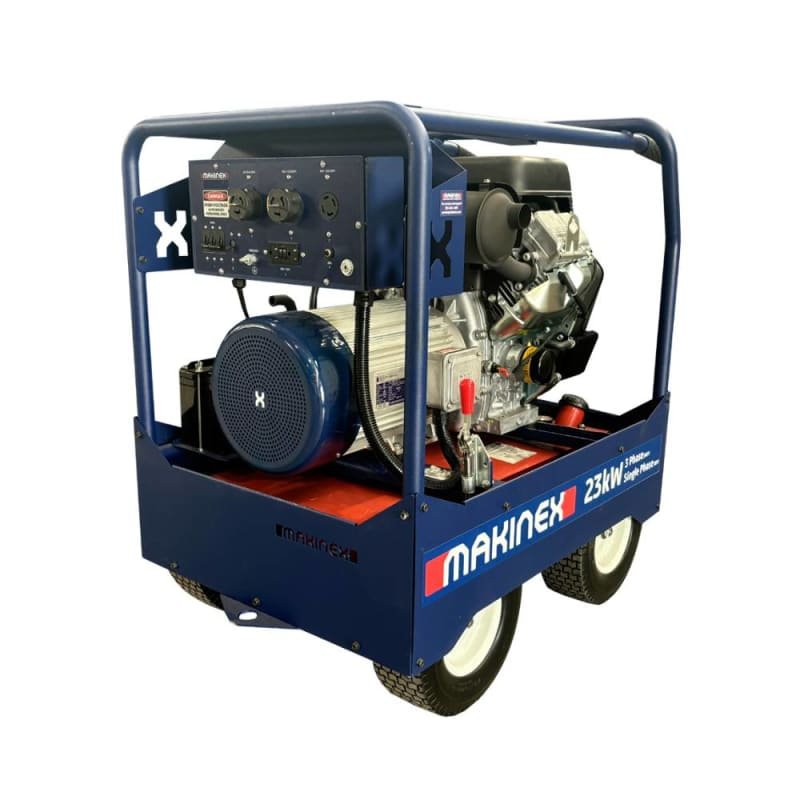

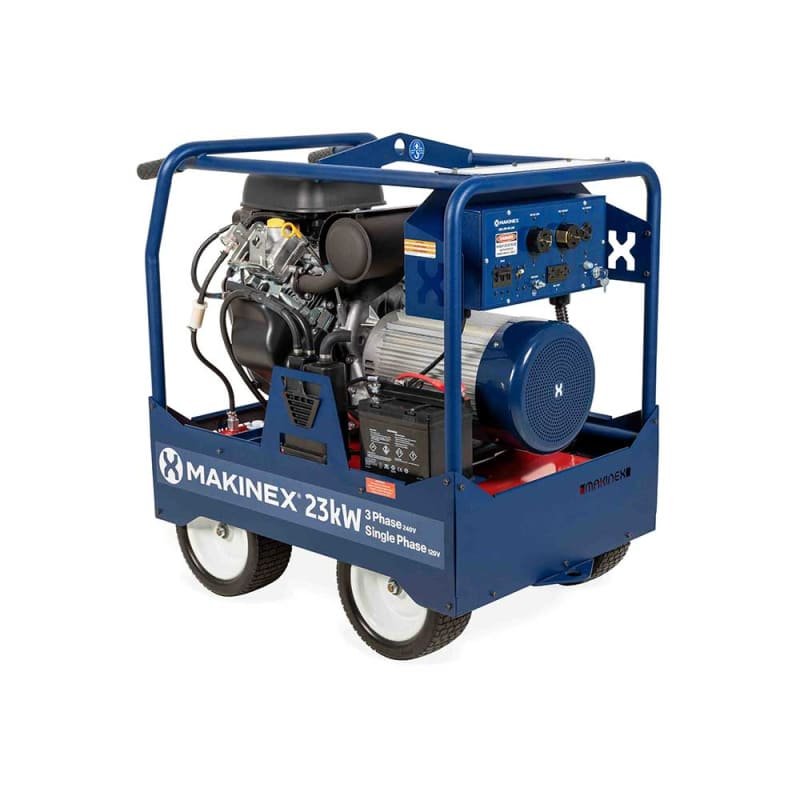

Generator 23kW | VanGuard | 240V

Makinex Generator 23kW Generator is a generator designed for portable or standby jobsite power for tools, lighting, and equipment. The Generator 23kW configuration pairs 23 kW output class, 120V single phase; 240V three phase voltage, and 60 Hz frequency.

Key differentiators

• 240V three-phase output supports flooring, concrete, welding, and compressor loads.
• Runs single-phase and three-phase equipment from one compact generator.
• Permanent-magnet brushless alternator provides independent 120V and 240V circuits.
• Four-wheel portable design keeps power closer to the work area.
• Vanguard V-Twin engine is paired with Makinex radial flux alternator technology.
• CARB-compliant listing supports sales/use across all 50 states.

Specifications

Store SKU

GPE211038

Manufacturer Product Code

GEN-23P-MS-240

Equipment Type

Portable dual-phase gasoline generator

Output Class

23 kW

Voltage

120V single phase; 240V three phase

Frequency

60 Hz

Three-Phase Power

Max 22 kW / continuous 20 kW

Three-Phase Current

Max 53 A / continuous 48 A

Single-Phase Current

Max 30 A / continuous 27.7 A

Engine Type

Twin-cylinder air-cooled petrol

Engine Model

Vanguard 61G277

Displacement

993 cc

Starting System

Electric key start

Fuel Economy

1.59 gal/hr at 50% load

Fuel Tank

13.2 gal

Noise Level

72 dB no-load at 7 m

Dry Weight

573 lb

Dimensions

43 x 25 x 40 in

CARB Compliance

50-state CARB compliant per Makinex page

Warranty

3-year warranty listed by Makinex for 23kW generators

Best-fit applications

The Generator 23kW is best matched to portable or standby jobsite power for tools, lighting, and equipment where the job requires 23 kW output class, 120V single phase; 240V three phase voltage, and 60 Hz frequency.

• Site utility or fuel: 120V single phase; 240V three phase
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
