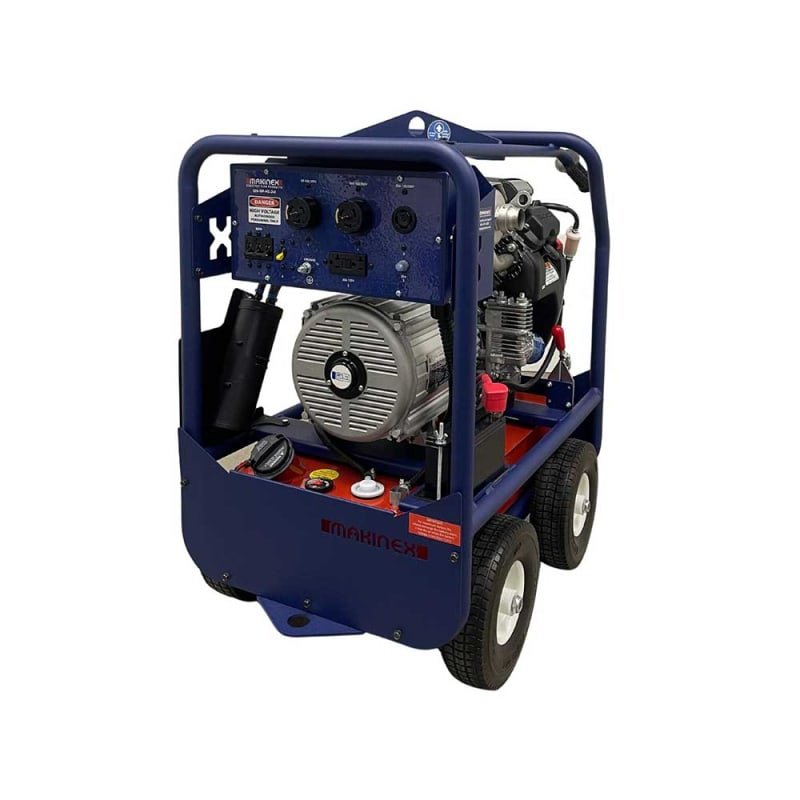

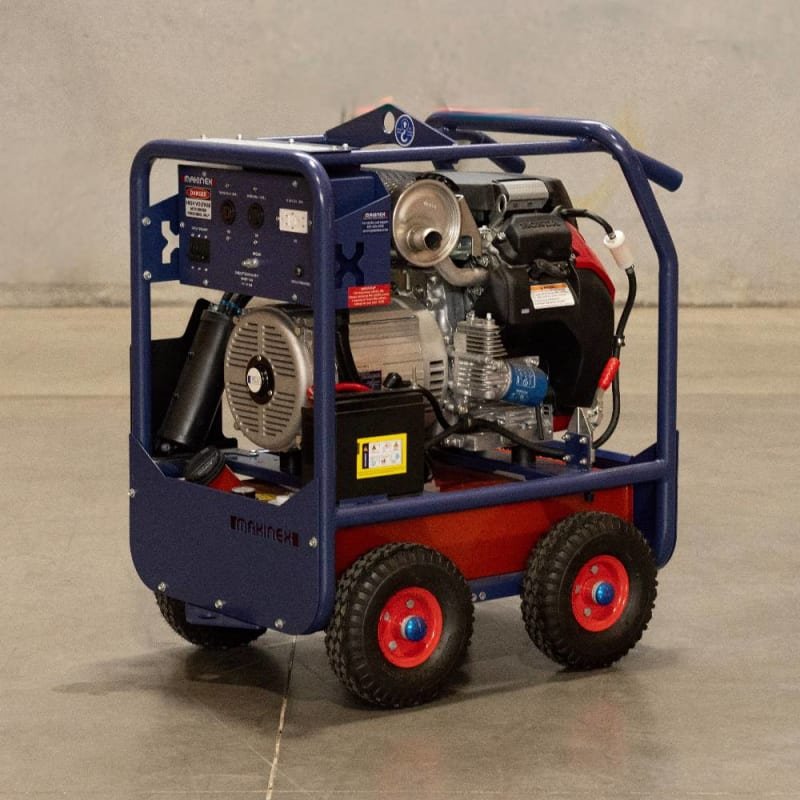

Generator 16kW | Honda | 480V USA-Spec

Makinex Generator 16kW Generator is a generator designed for portable or standby jobsite power for tools, lighting, and equipment. The Generator 16kW configuration pairs 16 kW output class, 110V single phase; 480V three phase voltage, and 60 Hz frequency.

Key differentiators

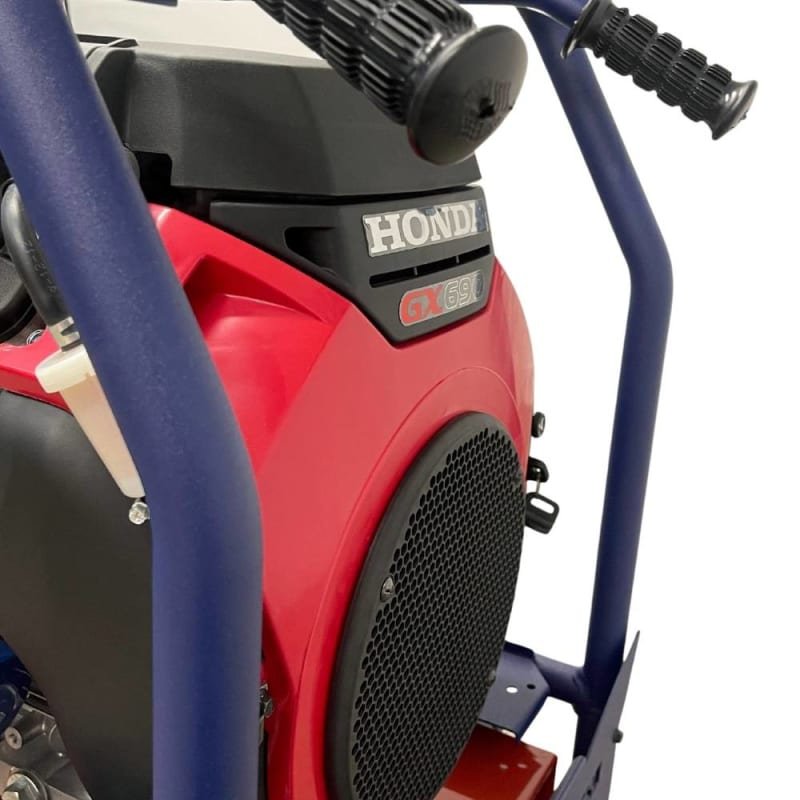

• Honda GX690 engine gives contractors a widely supported commercial engine platform.
• Dual-phase output can support 480V three-phase and 110V single-phase equipment.
• 342 lb dry weight is portable compared with larger towable generator options.
• Radial flux alternator helps deliver usable power in a smaller frame.
• CARB-compliant listing supports use across all 50 states.
• RCD and RCBO protection are highlighted by Makinex for user and equipment safety.

Specifications

Store SKU

GPE211036

Manufacturer Product Code

GEN-16P-MS-480

Equipment Type

Portable dual-phase gasoline generator

Output Class

16 kW

Voltage

110V single phase; 480V three phase

Frequency

60 Hz

Three-Phase Power

Max 13 kW / continuous 11.5 kW per current Makinex page

Single-Phase Auxiliary Power

Max 2.2 kW / continuous 2 kW

Three-Phase Current

Max 16.9 A / continuous 15 A

Single-Phase Current

Max 30 A / continuous 30 A

Engine Type

Twin-cylinder air-cooled petrol

Engine Model

Honda GX690

Displacement

688 cc

Starting System

Electric key start

Fuel Economy

0.92 gal/hr at 50% load

Fuel Tank

9.0 gal

Noise Level

72 dB no-load at 7 m

Dry Weight

342 lb

Dimensions

30.4 x 20.8 x 35.5 in

CARB Compliance

50-state CARB compliant per Makinex page

Warranty

1-year warranty listed by Makinex

Best-fit applications

The Generator 16kW is best matched to portable or standby jobsite power for tools, lighting, and equipment where the job requires 16 kW output class, 110V single phase; 480V three phase voltage, and 60 Hz frequency.

• Site utility or fuel: 110V single phase; 480V three phase
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
