Challenger CLHM-190 ALI Mobile HD Column Lifts (Set of 2)

Product Overview

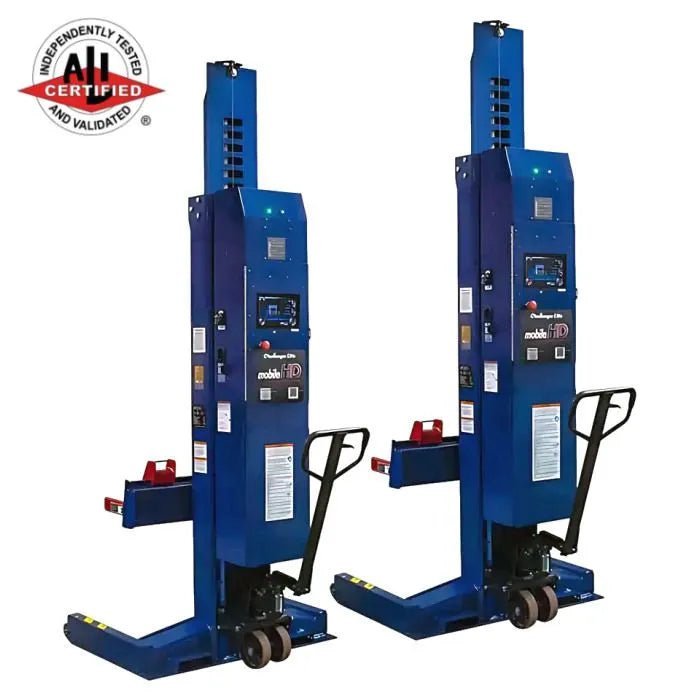

Challenger CLHM-190 ALI Mobile HD Column Lifts (Set of 2)

The Challenger CLHM-190 mobile column lift system delivers 38,000 lbs. total lifting capacity (set of 2) with unmatched flexibility and power for professional shops working on everything from passenger cars to heavy-duty trucks, transit vehicles, and municipal equipment. This ALI-certified, wireless lifting system eliminates the need for fixed bay installations, allowing you to transform virtually any solid surface—indoors or outdoors—into a fully functional lift bay. Expand your shop's capability without the cost or commitment of permanent equipment.

Engineered with robust hydraulic operation, each CLHM-190 column provides 19,000 lbs. lifting capacity per column, and the system is scalable to accommodate up to 8 columns for a maximum combined capacity of 152,000 lbs. Featuring integrated 110V battery charging, wireless controls, and a state-of-the-art 10" Android-based touch screen console, these mobile columns offer precision, safety, and ease of use that redefine portable lifting. Easily maneuverable with a heavy-duty tow handle and spring-loaded wheels, the CLHM-190 is designed for shops that demand maximum versatility, durability, and performance.

Key Advantages of the CLHM-190 Mobile Column System

• 19,000 lbs. capacity per column Tackle a wide range of vehicles from sedans to Class 5-6 trucks and municipal equipment with ease.

• Wireless operation with 12 radio frequencies Enjoy a clutter-free workspace with no cables to connect, trip over, or replace. Wide channel range (100-120) prevents radio interference.

• Integrated 110V charging system and 25 VDC operation Deep cycle battery operation means no power cords cluttering your bay. Multi-stage charger keeps your columns ready for action.

• 10" Android touch screen console Intuitive control interface provides real-time lifting height and weight per column, plus on-board training videos and manuals for instant reference.

• ALI Gold Label Certified Meets or exceeds the stringent safety and performance standards set by the Automotive Lift Institute.

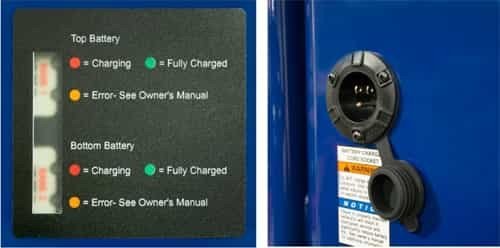

Integrated Charging System

Each CLHM-190 column features a 110V built-in multi-stage charging system designed for battery-powered wireless operation. The integrated charging status light provides real-time battery updates so you can plan your workload with confidence and avoid downtime. Effective May 2025, all CLHM series lifts ship with upgraded AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt, offering superior performance, faster charging, and enhanced reliability. These AGM batteries are backed by a 2-year free replacement warranty, ensuring long-term peace of mind and reduced maintenance costs.

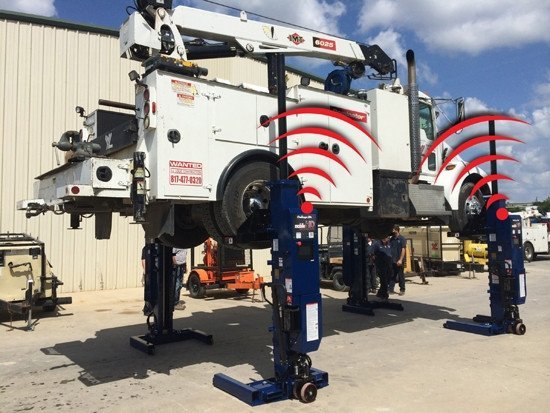

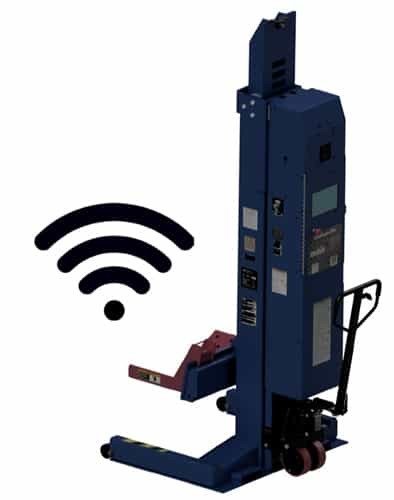

Wireless Operation for a Clutter-Free Shop

The wireless operation system on the CLHM-190 eliminates tangled cables and hazardous trip points in your bay. There are no power cables to connect, navigate around, roll over, or replace—just wireless freedom. The system utilizes 12 radio frequencies with a wide channel range ( 100 to 120 channels per frequency ), ensuring interference-free communication even in busy, equipment-dense shops. This advanced wireless technology not only enhances safety but also speeds up setup and tear-down, letting your technicians focus on the job, not the equipment.

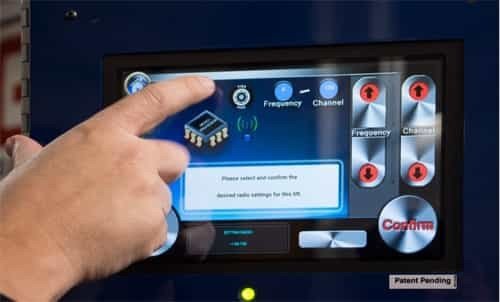

NEW 10" Android Touch Screen Control Console

Control your entire lifting system with the intuitive 10" Android-based touch screen console. This advanced interface offers easy-to-use controls and displays precise, real-time measurements of lifting height and lifting weight per column, giving operators complete visibility and control at all times. The console features an internal CPU and fully functional web browser, so you can access additional resources, documentation, or diagnostic information on the fly. Even better, on-board training videos and manuals are preloaded, ensuring that new operators can get up to speed quickly and safely without leaving the work area.

Safety Features and Reliability

The CLHM-190 mobile column lift prioritizes operator and vehicle safety with industry-leading features:

• Linear position transducers maintain precise system synchronization across all columns, ensuring maximum reliability and balanced lifting.

• Integrated weight gauges on each column help prevent overloading and verify lock engagement, giving operators instant feedback on load distribution and safety status.

• Heavy-duty hydraulic operation with a maximum operating pressure of 2,600 psi delivers smooth, consistent lifting with minimal operator input.

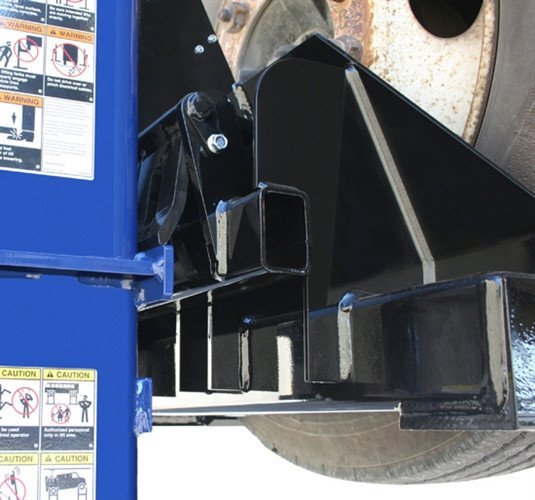

• Adjustable wheel carriages accommodate a wide range of wheel diameters ( 5" to 24.5" ), making the system adaptable to everything from compact cars to heavy commercial vehicles.

• Robust design and spring-loaded wheels ensure that each column is easy to position and align, even under load, with minimal physical effort.

Video Overview

Watch the Challenger CLHM-190 mobile column lifts in action. See how easy it is to move, position, and operate these powerful lifting systems in real-world shop environments:

Scalable Lifting Solutions

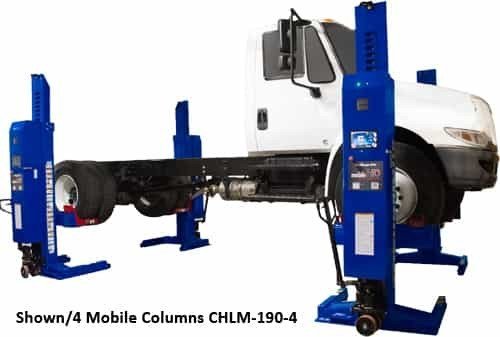

The CLHM-190 is available in flexible configurations from 1, 2, 4, 6, or 8 column sets, allowing you to tailor your lifting capacity to match your shop's needs. Whether you're working on light-duty vehicles or heavy commercial equipment, the system scales with you. Each column delivers 19,000 lbs. of lifting capacity, so a 2-column set provides 38,000 lbs., a 4-column set delivers 76,000 lbs., and an 8-column configuration reaches a massive 152,000 lbs. total lifting capacity. Multiply the number of columns by the lifting capacity per column to calculate your overall system capacity.

This versatility means you can service small passenger cars, mid-size trucks, and even large transit and municipality vehicles all with one adaptable lifting system. Add optional accessory support stands to further expand your capabilities and accommodate multiple lift bays with a single lift system.

Performance Specifications at a Glance

• Lift capacity per column: 19,000 lbs.

• Maximum lift height (4 or more units): 69" (1,753 mm)

• Maximum lift height (2 units – Normal Mode): 32" (813 mm)

• Lift speed at max load: 60" per minute (1,524 mm)

• Height of lift unit: 88.5" (2,248 mm)

• Height at full rise: 157.125" (3,991 mm)

• Width of lift unit: 44.25" (1,124 mm)

• Weight per column: 1,500 lbs. (685 kg)

• Operating voltage: 25 VDC Nominal

• Charger requirements: 120 VAC @ 60 Hz, 1.3 Amps

• Operating peak power: 4HP

• Turning radius: 47" (1,194 mm) for easy maneuverability

• Footprint per lift unit: 560 in² (3,613 sq cm)

• Certification: ALI/ETL Certified

Limited Time Rebate Offer

Receive a $750 Rebate Per Column
Valid for purchases made between July 28th through September 30th, 2025.

Features Diagram

Only Available in Blue. CLHM Series Wireless/Battery Operated Mobile Columns available in 1, 2, 4, 6 and 8 column configurations with 14,000 lb. and 19,000 lb. per column capacity.

Product Features

• Hydraulic operated unites provide heavy duty lifting capacity from 28,000/38,000 lbs. (set of 2) to 112,000/152,000 lbs. (set of 8) enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.

• 110 volt built in multi-stage charging system

• Adjustable wheel carriages fits a range of wheels

• Integrated touch screen control console provides easy-to-use and precise operating.

• Precise balanced design, heavy-duty tow handle and spring loaded wheels make moving and aligning individual lift units simple and easy with little effort.

• Operates with 12 volt deep cycle batteries to eliminate the need for power source hook ups and provide 24 volt operation

• Meets stringent ALI Gold Label standards

• Safety Features

• Linear position transducers maintains system synchronization and ensures maximum reliability

• Integrated weight gauges help prevent column overloading and verifies lock engagement

• Wireless system for clutter free work area without cables to connect, navigate around, roll-over or replace

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Model

CLHM-140
CLHM-190
CLHM-190W

Lift Capacity Per Column

14,000 lbs.

19,000 lbs.

A Height of Lift Unit

88.5" (2,248 mm)

B Height of Lift Unit at Full Rise

157.125" (3,991 mm)

C Width of Lift Unit

44.25" (1,124 mm)

49" (1,245 mm)

D Length of Lift Unit

53.625" (1,362 mm)

E Maximum Lift Height
(4 or more units)

69" (1,753 mm)

Maximum Lift Height
(2 units – Normal Mode)

32" (813 mm)

F Min-Max Wheel Diameter

5" – 24.5" (127 -622mm)

4" – Max det. by tire size

Max. Hydraulic System Operating Pressure

2,180 psi

2,600 psi

Lift Speed (Max Load)

60" per min. (1524 mm)

Weight of Lift Unit

1,485 lbs (674 kg)

1,500 lbs (685 kg)

1,565 lbs (714 kg)

Footprint of Lift Unit

560" 2 (3,613 sq cm)

600" 2 (3,870 sq cm)

Ground Pressure for Each Lift
(Max. Load)

27.7 psi

36.6 psi

34.3 psi

Turning Radius of Lift Unit

47" (1194 mm)

Operating Peak Power

4HP

Operating Voltage

24 VDC Nominal

25 VDC Nominal

26 VDC Nominal

Charger Voltage Required

120 VAC @ 60 Hz

Charger Amps Required

1.3 Amps

ALI/ETL Certified

Yes

*CLHM Series Wireless/Battery Operated Mobile Columns available in 1, 2, 4, 6 and 8 column configurations with 14,000 lb and 19,000 lb. per column capacity.

1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.

Only Available in Blue

Key Features

• Published product configuration: Challenger CLHM-190 ALI Mobile HD Column Lifts (Set of 2) The Challenger CLHM-190 mobile column lift system delivers 38,000 lbs. total lifting capacity (set of 2) with unmatched flexibility and power for professional shops working on everything from passenger cars to heavy-duty trucks, transit vehicles, and municipal
• Exact manufacturer model or part number: CLHM-190-2
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 3 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model CLHM-190-2, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
