AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs ~ ONLY Ships from CA

Product Overview

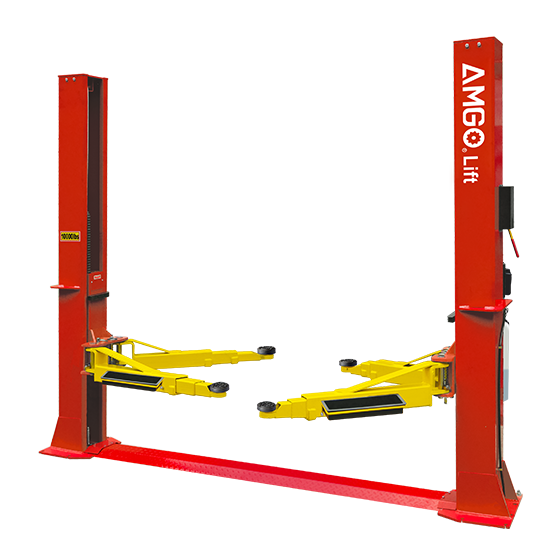

AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs

Professional-Grade Lifting Power for Low-Ceiling Workshops

The AMGO® Hydraulics BP-10 is a rugged, chain-driven two post lift engineered to deliver exceptional performance in both professional and home garage environments. With a robust 10,000 lbs lifting capacity, this floor base-plate design eliminates overhead obstructions—making it the ideal solution for low-ceiling workshops where maximizing headroom is critical. Built with high-quality materials, advanced features, and innovative technology, the BP-10 meets the demanding standards of today's automotive service professionals while remaining accessible for serious enthusiasts.

AMGO BP Series base plate two post lifts are engineered to be stronger and more convenient to operate than most competitive lifts on the market. The BP-10 combines durability, safety, and versatility—allowing you to service a wide range of vehicles with confidence. Whether you're performing routine maintenance, inspections, or complex repairs, this lift provides the stability and lifting height you need to work efficiently and safely.

Super-Asymmetric® Arm Design: Maximum Versatility

The Super-Asymmetric® arm configuration is one of the standout features of the BP-10. Unlike traditional lifts that lock you into a single loading position, the Super-Asymmetric design allows you to load vehicles in either asymmetric or symmetric configurations—eliminating the need to own two different types of lifts. This flexibility means you can adjust arm positioning to accommodate various vehicle sizes, weights, and center-of-gravity requirements.

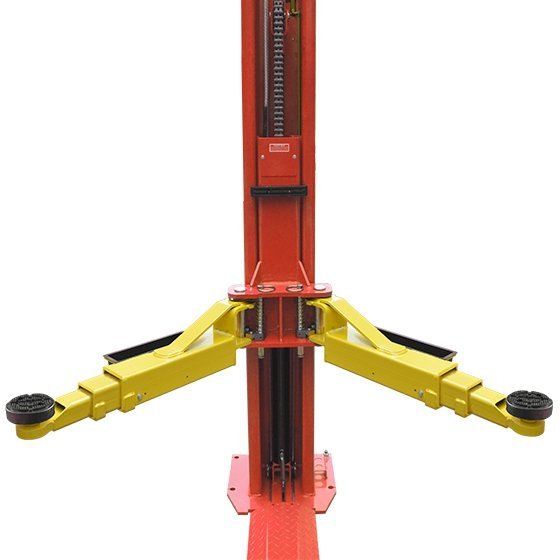

The lift features three-stage front arms and two-stage rear arms, providing extended reach and easy entry and exit from the vehicle when needed. Automatic arm restraints keep the arms securely locked in their proper positions during operation, ensuring consistent, safe lifting every time. Self-lubricating UHMW polyethylene sliders and bronze bushings reduce friction and wear, extending the lifespan of moving components while ensuring smooth, quiet operation. Rubber door guards protect your vehicle's finish from accidental contact.

Single-Point Safety Release & Dual Locking System

Safety is paramount when working beneath a lifted vehicle. The BP-10 incorporates a single-point safety release that allows the operator to unlock the safety locks from both columns simultaneously—saving time and simplifying operation. This intuitive design makes it easier and faster to lower vehicles safely without walking back and forth between columns.

In addition to the single-point release, the BP-10 features a dual locking system for enhanced safety. Two locks, one release only available from AMGO. The high-strength gear rack and lifting arm lock automatic release device work together to provide exceptional stability and redundancy, ensuring your vehicle remains securely supported throughout the service process. This combination of convenience and safety gives you peace of mind every time you use the lift.

Built for Reliability & Performance

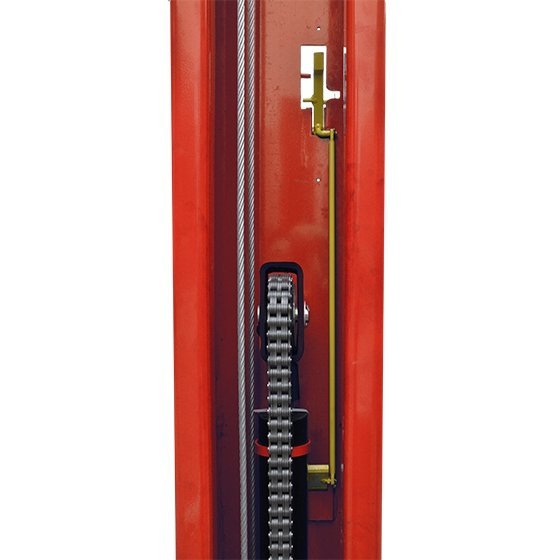

AMGO Hydraulics manufactures the BP-10 according to rigorous quality standards, with careful selection of critical materials and components. Aircraft-quality cable is used for synchronization between columns, ensuring smooth, balanced lifting throughout the full range of motion. The lift's robust construction and precision engineering deliver dependable performance day after day, year after year.

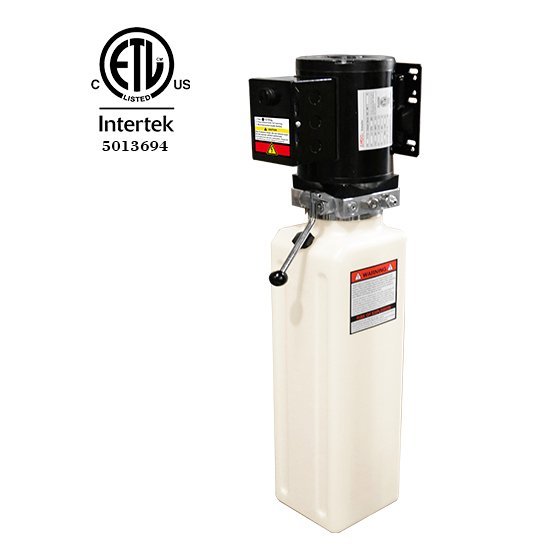

The BP-10 is powered by a 2.0 HP, 220V, 60Hz single-phase motor, providing reliable lifting power with a 62-second lifting time. The base-plate design eliminates overhead beams, giving you unobstructed access and increased headroom—ideal for garages with low ceilings. The detachable foot guard and tool tray keep your workspace organized and clutter-free, allowing you to focus on the job at hand.

Key Highlights

• 10,000 lbs lifting capacity handles a wide range of passenger vehicles, light trucks, and SUVs

• Base-plate design with no overhead obstructions perfect for low-ceiling garages and workshops

• Super-Asymmetric® arms load vehicles in asymmetric or symmetric positions for maximum versatility

• Single-point safety release and dual locking system convenient, safe operation with redundant safety features

• Self-lubricating UHMW polyethylene sliders and bronze bushings smooth, quiet, long-lasting performance

• Aircraft-quality synchronization cable balanced, reliable lifting every time

What's Included

The AMGO BP-10 comes complete with everything you need to start lifting vehicles safely and efficiently:

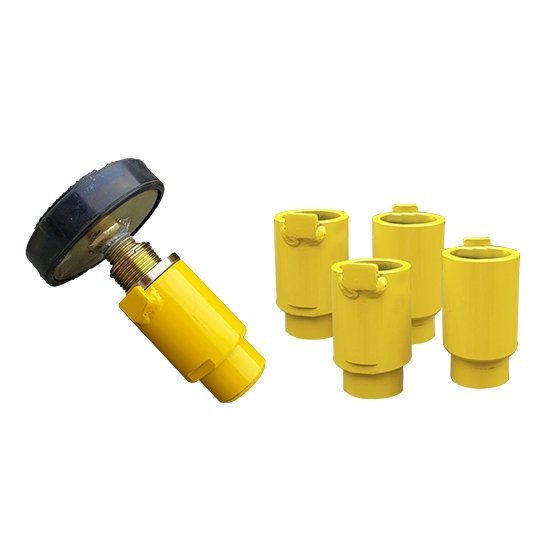

• Stackable rubber pads protect vehicle lift points and provide stable support

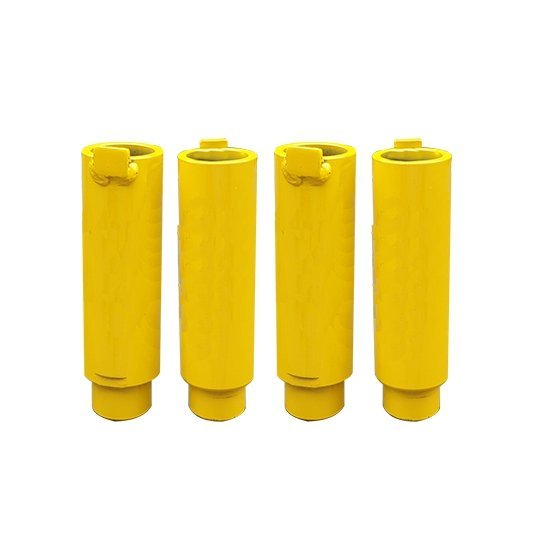

• 3" extension adapters accommodate various vehicle lift point heights and configurations

• Detachable foot guard and tool tray keep your workspace safe and organized

Optional Accessories: For extended reach and versatility, consider adding the 2 Piece Base Extension Kit #20903, available separately to further customize your lift setup for specialized applications.

Product Images

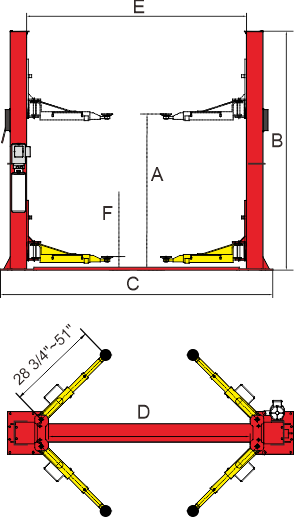

BP-10 Specification Diagram – Lifting height, drive-thru clearance, and overall dimensions

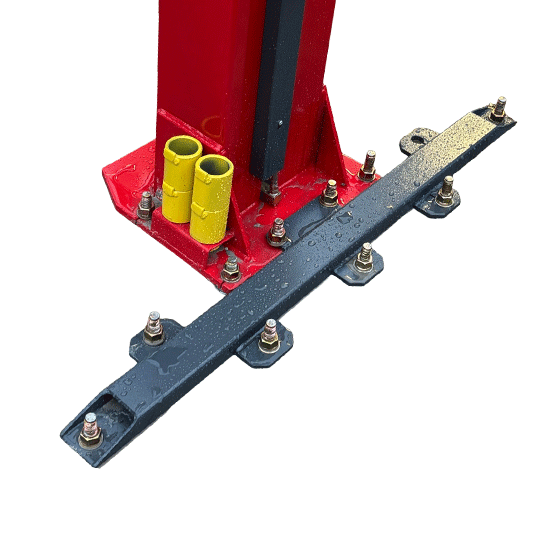

Optional 2 Piece Base Extension Kit #20903 – Extend your lift's versatility

⚠ WARNING: Cancer and Reproductive Harm

Product Features

• ONLY Ships from CA

• 10,000 lbs Lifting capacity

• Two standard installation widths to fit various service senarios

• Commercial grade with enhanced structure, designed for professional workshops and home garages

• Symmetric four 3-stage retractable arms are suitable for more vehicles;

• Automatic arms restraint

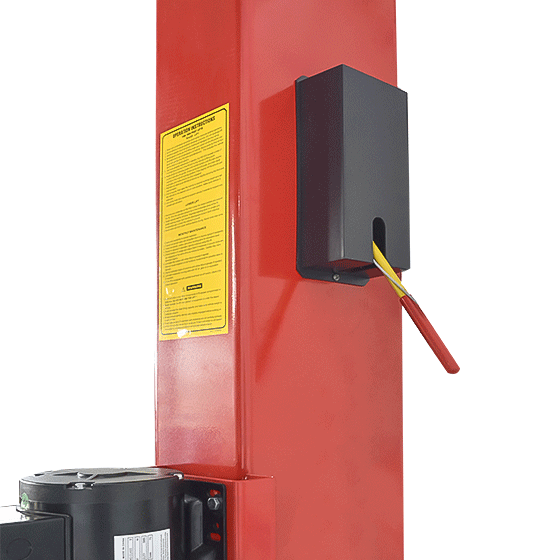

• Single-point manual safety lock release, simultaneously unlocks both columns from one side

• Dual-safety lock structure guarantees more security

• Self-lubricating UHMW polyethylene sliders

• Areo sync cables come as standard

• Comes with detachable toe guard and tool tray

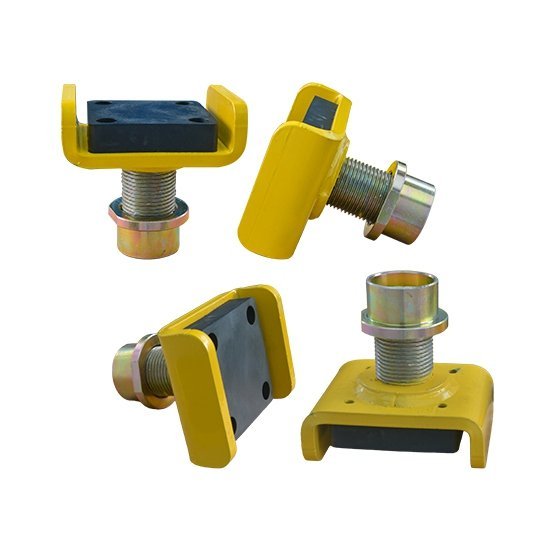

• Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.

Product Specifications

Specifications
BP-10

Lifting Capacity
10,000 lbs

A Max Lifting Height w/o Adapters
76 3/8" ~ 78 1/4"

A Max Lifting Height w/Adapters
79 3/8" ~ 81 1/4"

A Max Lock Height w/o Adapters
74 13/16" ~ 76 11/16"

A Max Lock Height w/Adapters
77 13/16" ~ 79 11/16"

B Overall Height
111 7/8"

C Overall Width
139 1/8" & 145 1/16"

D Drive-Thru Clearance
100 3/4" & 106 11/16"

E Width Between Columns
112 1/4" & 118 1/8"

F Minimum Pad Height
3 9/16"

Lifting Time
62 S

Motor
2 HP / 220V

Gross Weight
1,697 lbs

Key Features

• Published product configuration: AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 lbs Professional-Grade Lifting Power for Low-Ceiling Workshops The AMGO® Hydraulics BP-10 is a rugged, chain-driven two post lift engineered to deliver exceptional performance in both professional and home garage environments. With a robust
• Exact manufacturer model or part number: BP-10CA
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model BP-10CA, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
