Challenger CLHM-140 ALI Mobile HD Column Lifts (Set of 4)

Product Overview

Challenger CLHM-140 ALI Mobile HD Column Lifts (Set of 4)

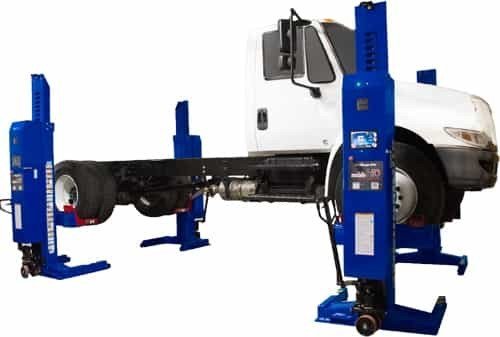

The Challenger CLHM-140 mobile column lift system delivers professional-grade heavy-duty lifting with unmatched versatility and convenience. With a robust 14,000 lbs. capacity per column, this set of four columns provides a combined lifting capacity of 56,000 lbs., making it ideal for a wide range of vehicles—from passenger cars to medium-duty trucks and fleet vehicles. Designed to operate on almost any solid surface, indoors or outdoors, these wireless, battery-powered mobile columns eliminate the need for fixed installation or power hookups, giving you maximum flexibility across multiple bays and service locations.

Each column features an integrated 110V multi-stage charging system, Android-based 10" touch screen control console, and advanced wireless operation technology for a clutter-free, cable-free work environment. Precision-engineered for reliability and safety, the CLHM-140 system is ALI/ETL Certified and meets stringent industry standards. With adjustable wheel carriages, real-time weight monitoring, and linear position transducers for synchronized lifting, this system provides the control and confidence you need for safe, efficient heavy-duty lifting operations.

Key Advantages of the CLHM-140 Mobile Column Lift System

• Maximum Mobility and Flexibility: Wireless, battery-powered operation allows you to move columns easily across your shop floor or between service bays without fixed installations or trailing cables. Precise balanced design with heavy-duty tow handle and spring-loaded wheels makes positioning effortless.

• High Lifting Capacity: Each column delivers 14,000 lbs. capacity for a total system capacity of 56,000 lbs. (set of 4). Expandable configurations allow you to add more columns for even heavier vehicles—up to 112,000 lbs. with 8 columns.

• Advanced Touch Screen Control: The new 10" Android-based integrated touch screen provides intuitive operation with real-time height and weight measurements per column. Built-in web browser, on-board training videos, and manuals make operation simple and accessible for all technicians.

• Wireless Technology for a Clean Workspace: 12 radio frequencies with a wide channel range (100–120) ensure reliable, interference-free wireless communication. No cables to connect, trip over, or replace—just fast, safe, synchronized lifting.

• Integrated Charging and Battery Management: Built-in 110V multi-stage charging system operates on standard shop power. Charging status light provides real-time battery updates for efficient job planning. Effective May 2025, all CLHM-140 lifts include AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt with a 2-year free replacement warranty.

• Enhanced Safety and Reliability: Linear position transducers maintain precise system synchronization. Integrated weight gauges help prevent overloading and verify lock engagement. Meets ALI Gold Label standards and is ALI/ETL Certified for maximum safety and compliance.

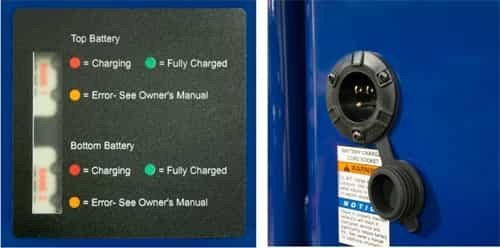

Integrated Charging System

Built-In 110V Multi-Stage Charging System: Each CLHM-140 column includes an integrated multi-stage charger that plugs into standard 120 VAC @ 60 Hz shop power. The system operates on 12 volt deep cycle batteries to deliver reliable 24 VDC nominal operation, eliminating the need for external power source hookups during lifting operations.

The integrated charging status light provides real-time battery level updates, allowing you to plan service jobs efficiently and ensure your lift system is always ready for use. With the new AGM battery technology (effective May 2025), you get improved performance, faster charging, and the confidence of a 2-year free replacement warranty.

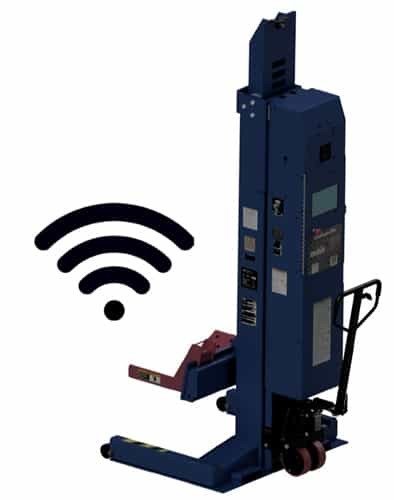

Wireless Operation Technology

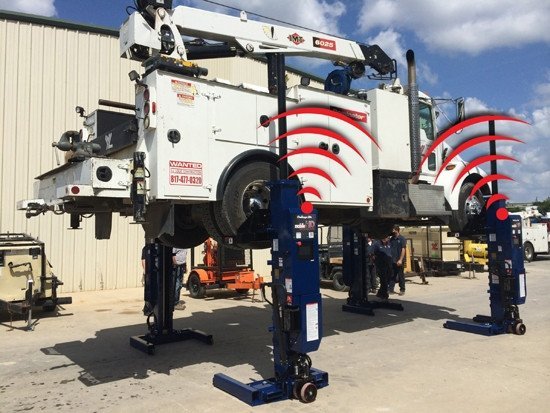

Cable-Free, Clutter-Free Operation: The wireless operation system on the CLHM-140 allows for a completely clutter-free work area without cables to connect, navigate around, roll over, or replace. This not only improves shop safety but also speeds up setup and repositioning, letting your technicians focus on the job at hand.

With 12 radio frequencies and a wide channel range from 100 to 120 for each frequency, the system prevents radio noise and interference, ensuring consistent, reliable communication between columns. The result is synchronized, safe lifting every time.

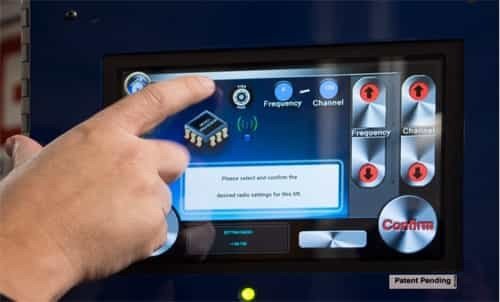

NEW 10" Touch Screen Control Console

Intuitive Control at Your Fingertips: The new 10" Android-based integrated touch screen control console provides easy-to-use, precise control over all lifting operations. The large, high-resolution display shows real-time measurements of lifting height and lifting weight per column, giving you full visibility and control during every lift.

Built-In Resources: The console features an internal CPU and fully functional web browser, providing instant access to troubleshooting guides, technical support, and manufacturer resources. On-board training videos and manuals are stored directly on the system, so your team can quickly reference operational procedures and safety protocols without leaving the shop floor.

Performance Highlights

• Lifting Capacity Per Column: 14,000 lbs. (Total system: 56,000 lbs. for set of 4)

• Maximum Lift Height (4+ columns): 69" (1,753 mm)

• Lift Speed at Max Load: 60" per minute (1,524 mm/min)

• Operating Voltage: 24 VDC Nominal (12V deep cycle AGM batteries with 2-year warranty)

• Charger Requirements: 120 VAC @ 60 Hz, 1.3 Amps

• Min-Max Wheel Diameter: 5" – 24.5" (127 – 622 mm)

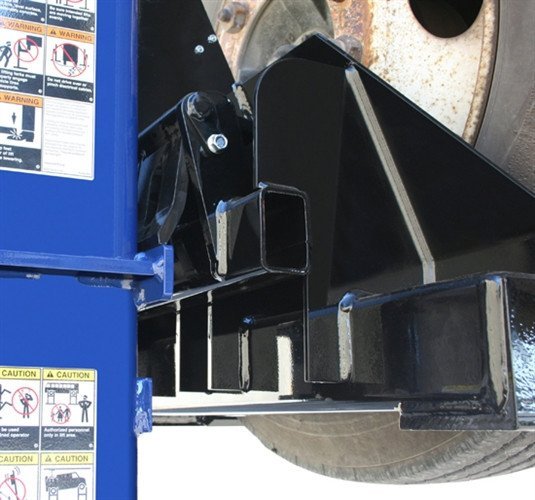

• Adjustable Wheel Carriages: Fits a wide range of wheel sizes and types

• Weight Per Column: 1,485 lbs. (674 kg)

• Turning Radius: 47" (1,194 mm) for easy maneuverability

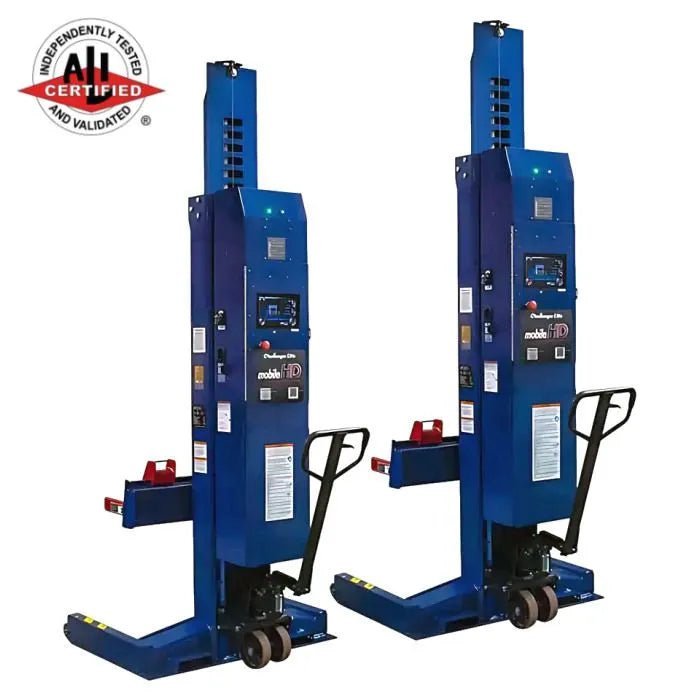

• ALI/ETL Certified and meets ALI Gold Label standards

Advanced Safety Features

Safety is paramount in any heavy-duty lifting operation. The Challenger CLHM-140 system incorporates multiple layers of safety technology to protect your equipment, your vehicles, and your technicians:

• Linear Position Transducers: Maintain precise system synchronization across all columns, ensuring maximum reliability and preventing uneven lifting.

• Integrated Weight Gauges: Real-time weight monitoring helps prevent column overloading and verifies proper lock engagement before the vehicle is fully supported.

• Wireless System Reliability: Eliminates the hazards of cables and power cords on the shop floor—no tripping, no rolling over cables, and no wear-related failures.

• Hydraulic Safety: Maximum hydraulic system operating pressure of 2,180 psi with precision-engineered pressure relief for safe, controlled operation.

• Low Ground Pressure: Ground pressure of 27.7 psi per column at max load allows safe operation on standard shop floors without damage.

Video Resources

Watch the Challenger CLHM Series in action. These videos demonstrate the system's mobility, ease of operation, and advanced features:

Expandable Configurations for Any Shop

The CLHM Series is available in flexible configurations to match your shop's needs. Whether you're working on light-duty vehicles or heavy commercial trucks, you can configure the system with 1, 2, 4, 6, or 8 columns. Available models include the CLHM-140 (14,000 lbs. per column) and the CLHM-190 (19,000 lbs. per column), providing lifting capacities from 28,000 lbs. (set of 2) up to 152,000 lbs. (set of 8 with CLHM-190).

This versatility allows you to lift multiple vehicles across multiple bays with a single lift system. Optional accessory support stands further expand your capabilities, accommodating a wide variety of vehicle types and service procedures.

Limited Time Rebate Offer

Additional Resources

Product Features

• Hydraulic operated unites provide heavy duty lifting capacity from 28,000/38,000 lbs. (set of 2) to 112,000/152,000 lbs. (set of 8) enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.

• 110 volt built in multi-stage charging system

• Adjustable wheel carriages fits a range of wheels

• Integrated touch screen control console provides easy-to-use and precise operating.

• Precise balanced design, heavy-duty tow handle and spring loaded wheels make moving and aligning individual lift units simple and easy with little effort.

• Operates with 12 volt deep cycle batteries to eliminate the need for power source hook ups and provide 24 volt operation

• Meets stringent ALI Gold Label standards

• Safety Features

• Linear position transducers maintains system synchronization and ensures maximum reliability

• Integrated weight gauges help prevent column overloading and verifies lock engagement

• Wireless system for clutter free work area without cables to connect, navigate around, roll-over or replace

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Model

CLHM-140
CLHM-190
CLHM-190W

Lift Capacity Per Column

14,000 lbs.

19,000 lbs.

A Height of Lift Unit

88.5" (2,248 mm)

B Height of Lift Unit at Full Rise

157.125" (3,991 mm)

C Width of Lift Unit

44.25" (1,124 mm)

49" (1,245 mm)

D Length of Lift Unit

53.625" (1,362 mm)

E Maximum Lift Height
(4 or more units)

69" (1,753 mm)

Maximum Lift Height
(2 units – Normal Mode)

32" (813 mm)

F Min-Max Wheel Diameter

5" – 24.5" (127 -622mm)

4" – Max det. by tire size

Max. Hydraulic System Operating Pressure

2,180 psi

2,600 psi

Lift Speed (Max Load)

60" per min. (1524 mm)

Weight of Lift Unit

1,485 lbs (674 kg)

1,500 lbs (685 kg)

1,565 lbs (714 kg)

Footprint of Lift Unit

560" 2 (3,613 sq cm)

600" 2 (3,870 sq cm)

Ground Pressure for Each Lift
(Max. Load)

27.7 psi

36.6 psi

34.3 psi

Turning Radius of Lift Unit

47" (1194 mm)

Operating Peak Power

4HP

Operating Voltage

24 VDC Nominal

25 VDC Nominal

26 VDC Nominal

Charger Voltage Required

120 VAC @ 60 Hz

Charger Amps Required

1.3 Amps

ALI/ETL Certified

Yes

*CLHM Series Wireless/Battery Operated Mobile Columns available in 1, 2, 4, 6 and 8 column configurations with 14,000 lb and 19,000 lb. per column capacity.

1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.

Only Available in Blue
