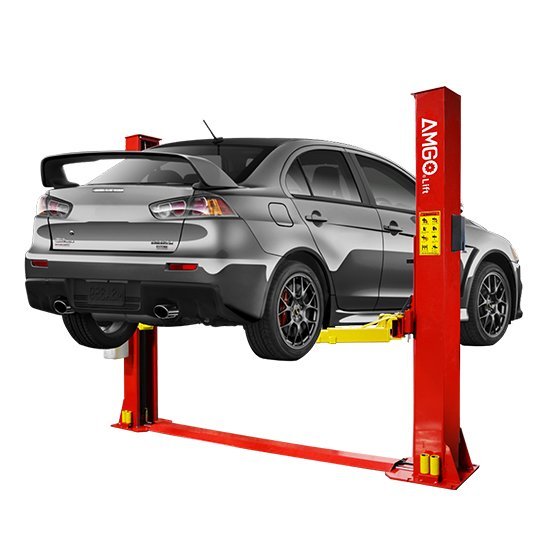

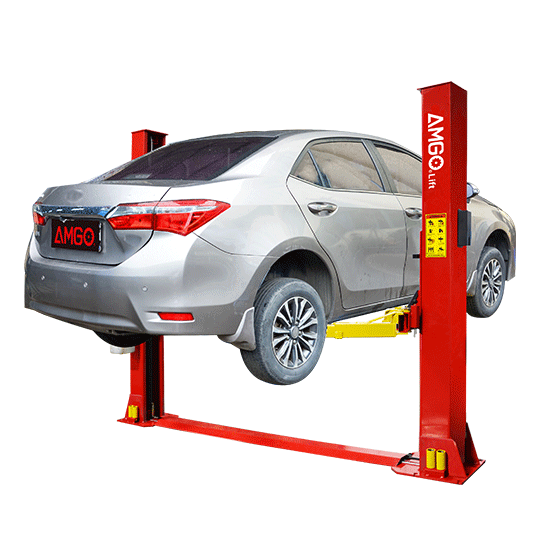

AMGO® Hydraulics BP-9 Floor Base-Plate 2 Post Lift 9,000 lbs

Product Overview

AMGO® Hydraulics BP-9 Floor Base-Plate 2 Post Lift 9,000 lbs

Professional-Grade Low Ceiling Solution

The AMGO® Hydraulics BP-9 is a commercial-grade floor base-plate two post lift engineered specifically for shops and garages with limited overhead clearance. With a 9,000 lb lifting capacity and a compact 108-inch overall height, this lift delivers professional performance without requiring high ceilings. Whether you're operating a busy professional shop or a dedicated home garage, the BP-9 is designed to fit low ceiling workshop environments without overhead obstructions, making it ideal for facilities where traditional overhead lifts simply won't work.

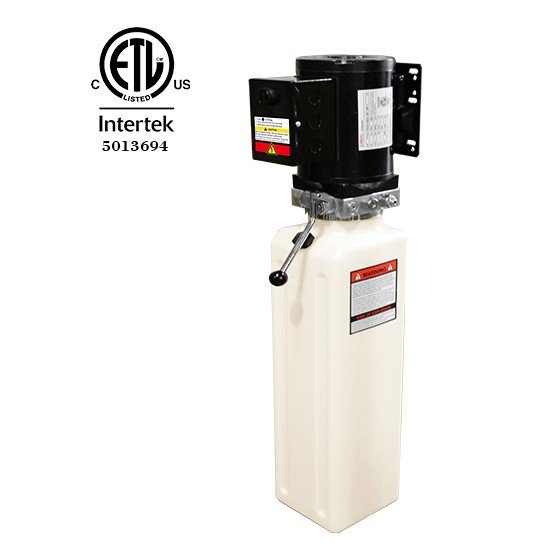

Built with robust construction and powered by a 2 HP, 220V/60Hz single-phase motor, the BP-9 lifts vehicles to a maximum height of 71 1/2" to 72 1/2" in just 45 seconds. The BP series base-plate two post lifts are stronger and more convenient to operate than most lifts in the world, providing reliability and ease of use that professional technicians demand every day.

Safety and Convenience Features

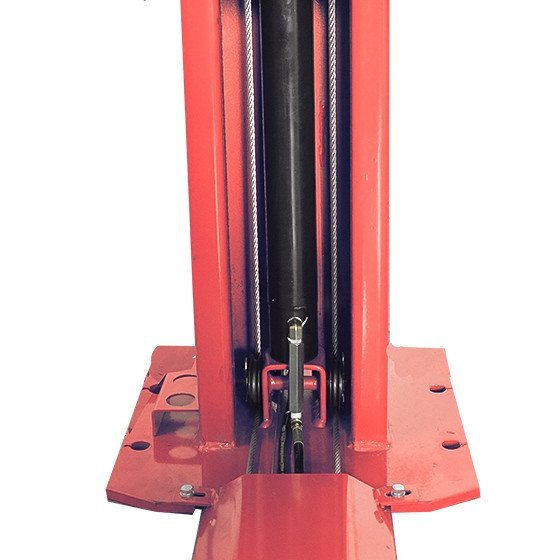

Safety is paramount in any lift, and the BP-9 delivers with a dual locking system for additional security and peace of mind. The innovative single-point safety release makes it easier for operators to unlock both column locks from one column simultaneously, streamlining workflow and reducing the time required to lower vehicles safely. The chain protection cover prevents the chain from slipping off, ensuring consistent, reliable operation shift after shift.

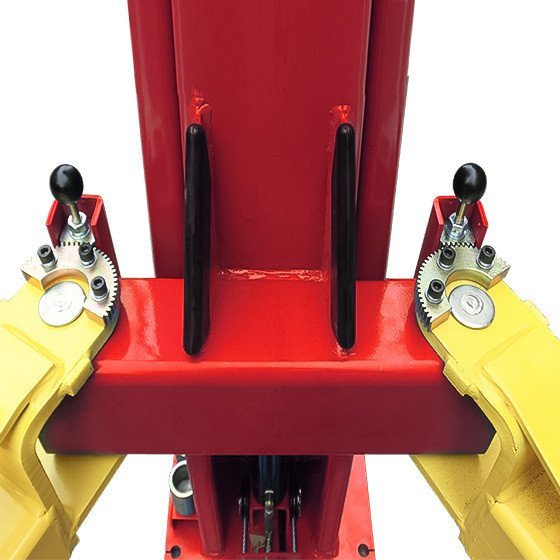

Automatic arm restraints keep the arms locked in their proper positions during operation, and the four three-stage arms are suitable for a wider variety of vehicles, from compact cars to light trucks. Self-lubricating UHMW Polyethylene sliders and bronze bushings reduce maintenance requirements while extending service life, and aircraft quality cable is used for synchronization to guarantee smooth, even lifting every time.

Additional conveniences include a detachable foot guard and tool tray that allow for a clutter-free workspace. With a generous 99-inch drive-thru clearance and 109 1/2-inch width between columns, the BP-9 accommodates a broad range of vehicle sizes and wheelbase configurations.

Key Selling Points

• 9,000 lb capacity handles a wide variety of passenger vehicles and light trucks

• Low ceiling design with only 108-inch overall height perfect for garages with limited clearance

• Single-point safety release unlocks both columns simultaneously for faster, safer operation

• Dual locking system and automatic arm restraints provide maximum safety and stability

• Fast 37-second lifting time keeps productivity high in busy shops

• 99-inch drive-thru clearance and four three-stage arms accommodate more vehicle types

Complete Package with Adapters and Accessories

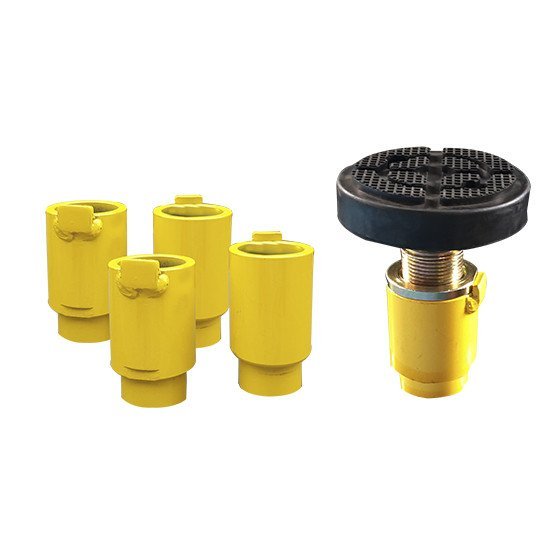

The BP-9 includes stackable rubber pads and a complete set of extension adapters ( 3" ) to ensure a secure fit on virtually any vehicle lifting point. These adapters provide flexibility and versatility, allowing you to safely lift vehicles with different frame configurations and undercarriage designs.

For shops requiring additional reach or clearance, an optional 2-Piece Base Extension Kit (#20801) is available to further customize your setup. With a minimum pad height of just 3 1/2 inches, the BP-9 can accommodate low-profile vehicles without difficulty.

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 9,000 lbs Lifting capacity

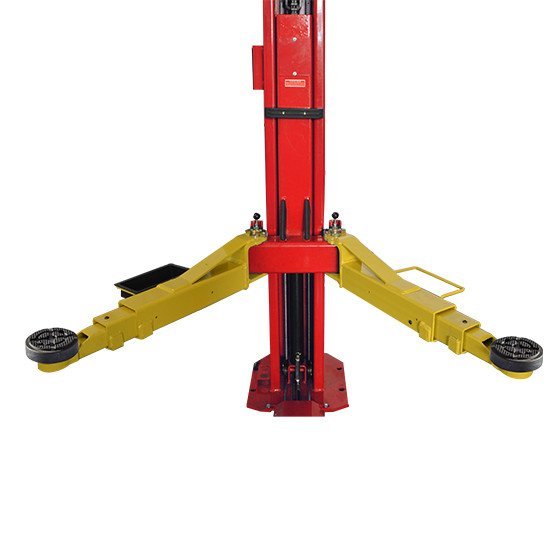

• Symmetric four 3-stage retractable arms are suitable for more vehicles

• Automatic arms restraint

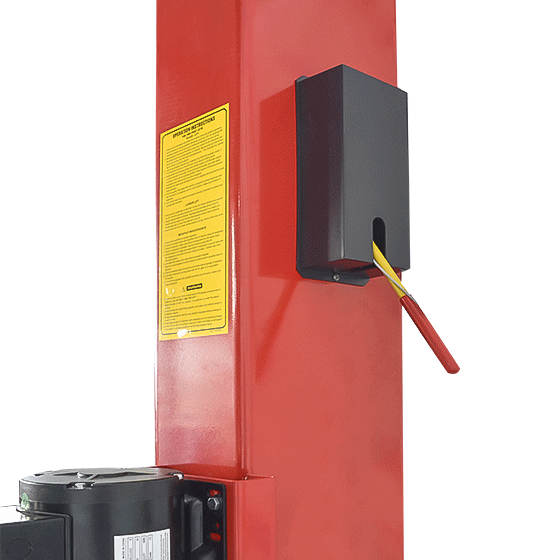

• Single-point manual safety lock release, simultaneously unlocks both columns from one side

• Dual-safety lock structure guarantees more security

• Self-lubricating UHMW polyethylene sliders

• Areo sync cables come standard

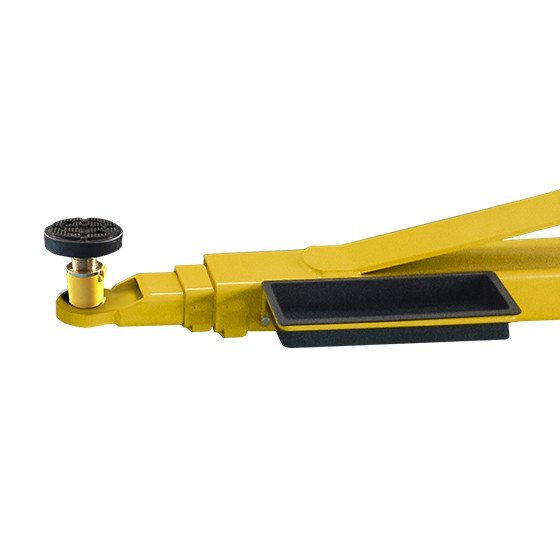

• Comes with detachable toe guard and tool tray

• Standard single-screw rubber pad (pin dia 1 1/2") with 3" extension adapters

Includes

• Stackable Rubber Pads

• 3" Extension Adapters

• Toe Guard & Tool Tray

Product Specifications

Specifications
BP-9

Lifting Capacity
9,000 lbs

A Max Lifting Height w/o Adapters
71 1/2" ~ 72 1/2"

A Max Lifting Height w/Adapters
74 3/16" ~ 75 1/2"

A Max Lock Height w/o Adapters
69 5/8" ~ 70 15/16"

A Max Lock Height w/Adapters
72 5/8" ~ 73 7/8"

B Overall Height
108"

C Overall Width
131 7/8"

D Drive-Thru Clearance
99"

E Width Between Columns
109 7/16"

F Minimum Pad Height
3 5/16"

Lifting Time
37 S

Motor
2 HP / 220V

Gross Weight
1,321 lbs

Key Features

• Published product configuration: AMGO® Hydraulics BP-9 Floor Base-Plate 2 Post Lift 9,000 lbs Professional-Grade Low Ceiling Solution The AMGO® Hydraulics BP-9 is a commercial-grade floor base-plate two post lift engineered specifically for shops and garages with limited overhead clearance. With a 9,000 lb lifting capacity and a compact 108-inch
• Exact manufacturer model or part number: BP-9
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model BP-9, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
