Challenger CLHM-140 ALI HD Mobile Column Lift 14,000 lbs – Single

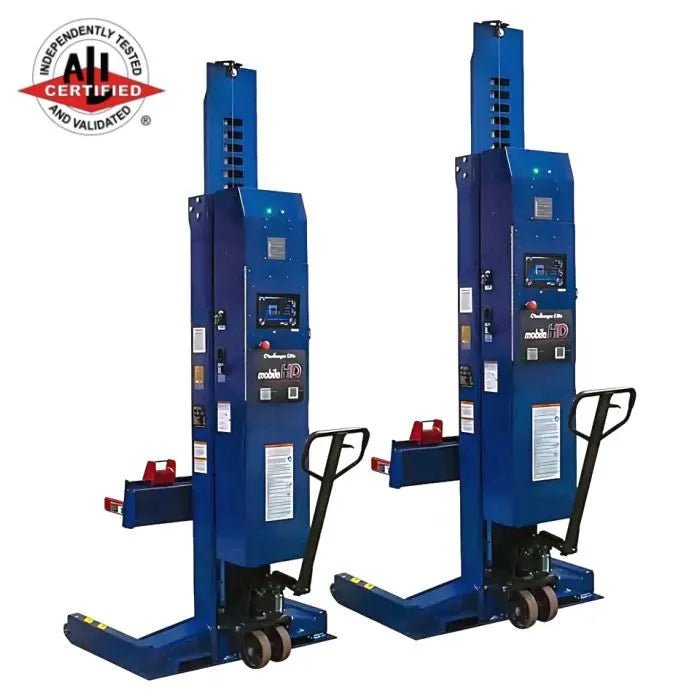

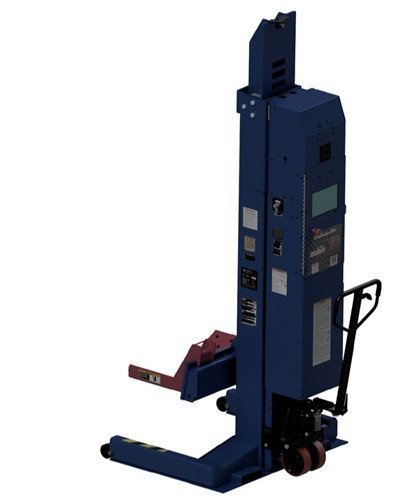

The Challenger CLHM-140 heavy-duty mobile column lift delivers 14,000 lbs of lifting capacity per column, combining professional-grade hydraulic power with wireless freedom and mobility. ALI Gold Label certified, this single column lift can be purchased individually and combined with up to 8 units for a maximum system capacity of 112,000 lbs ideal for light vehicles, heavy-duty trucks, transit buses, and municipal fleets. With an integrated 110V charging system, wireless operation, and advanced 10" touch screen console, the CLHM-140 provides a clutter-free workspace and precise, reliable lifting anywhere you need it.

Complete Mobility and Versatility

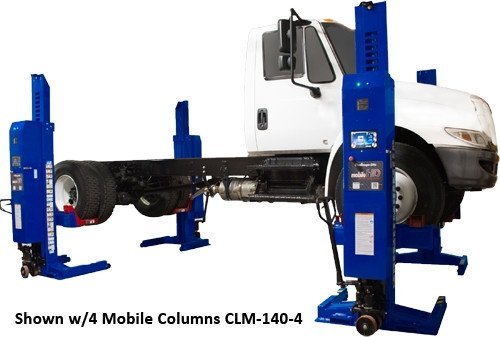

Our heavy-duty mobile lifting system, combined with optional accessory support stands, can accommodate multiple lift bays with a single lift system. The robust yet easily maneuverable mobile columns can be operated on almost any solid surface, indoors or outdoors. The CLHM Series is available in 14,000 lb (CLHM-140) and 19,000 lb (CLHM-190) capacity per column configurations — from 1, 2, 4, 6, or 8 column setups. The CLHM-140 model features wireless technology, an advanced touch screen control console, an integrated battery and charging system, and adjustable wheel carriages that fit a wide range of tire sizes.

The precise balanced design, heavy-duty tow handle, and spring-loaded wheels make moving and aligning individual lift units simple and effortless. Whether you're servicing passenger cars, commercial trucks, or heavy-duty municipal vehicles, the CLHM-140 adapts to your workflow and maximizes your shop's flexibility.

Integrated Battery and Charging System

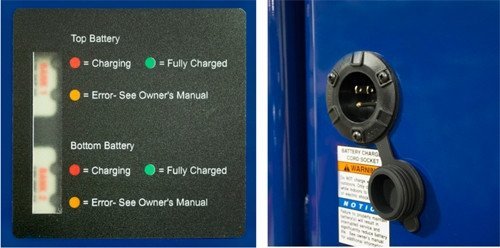

Integrated Charging System: The CLHM-140 features a 110V built-in multi-stage charging system that powers the 12-volt deep cycle batteries, delivering reliable 24 VDC nominal operation without the need for external power hookups. This enables truly mobile, cordless operation throughout your facility. A charging status light provides real-time battery updates to assist with job planning and proactive management, ensuring your lifts are always ready when you need them.

Effective May 2025, all Challenger CLHM model lifts include AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt, backed by a 2-year free replacement warranty for added peace of mind.

Wireless Operation for a Clutter-Free Shop

Wireless Operation: Say goodbye to tangled cables and trip hazards. The wireless operation system eliminates the need for cables to connect, navigate around, roll over, or replace. With 12 radio frequencies and a wide channel range (100 to 120) for each frequency, the system prevents radio noise from interrupting your service and ensures reliable communication between all columns. This advanced wireless technology means you can focus on the job at hand, not on managing wires.

Advanced 10" Touch Screen Control Console

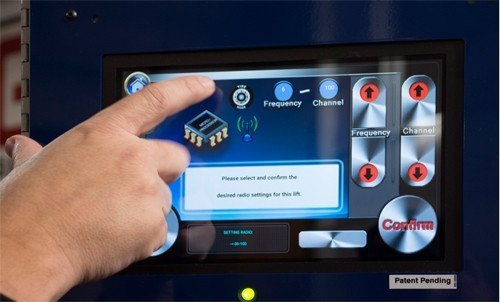

NEW 10" Touch Screen Control Console: The Android-based integrated touch screen control console provides intuitive, easy-to-use control with precise measurements of lifting height and lifting weight per column. The large, responsive display makes operation simple, even for first-time users.

Key Console Features:

• Internal CPU and fully functional web browser for system updates and diagnostics

• On-board training videos and manuals — get help right when you need it

• Real-time weight and height monitoring for every column

Safety and Reliability You Can Trust

The CLHM-140 meets stringent ALI Gold Label standards, ensuring every unit delivers top-tier performance and operator safety. Linear position transducers maintain system synchronization across all columns, ensuring maximum reliability and balanced lifting. Integrated weight gauges help prevent column overloading and verify lock engagement, giving you confidence that each lift is secure. The system's hydraulic operating pressure of 2,180 psi and lift speed of 60" per minute at maximum load provide fast, smooth, and consistent lifting performance on even the heaviest vehicles.

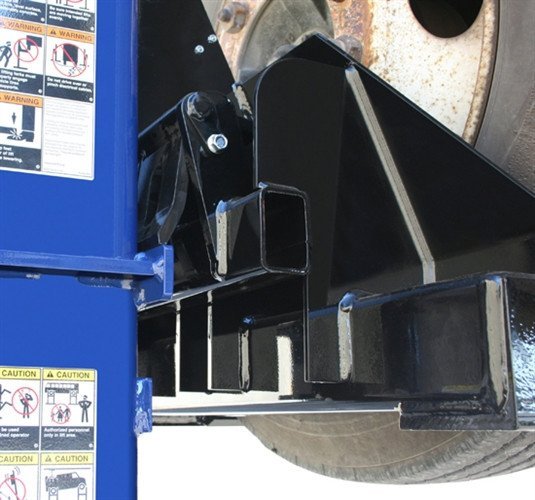

The CLHM-140's adjustable wheel carriages fit a wide range of wheel sizes (5" to 24.5" diameter), allowing you to adapt quickly to different vehicle types. With a maximum lift height of 69" when using 4 or more units, you get plenty of clearance for comprehensive undercarriage access.

Key Highlights at a Glance

• 14,000 lbs capacity per column expandable to 112,000 lbs with 8 units

• Wireless, battery-powered operation with integrated 110V charging system

• 10" Android touch screen console with on-board training and real-time data

• ALI Gold Label certified for maximum safety and compliance

• Spring-loaded wheels and balanced design for easy maneuvering and alignment

Watch the CLHM Series in Action

Limited Time Rebate Offer

Product Features

• Single column mobile lift. Connect up to 8 units together. Can be added to previous CLHM-140 lifts purchased

• Hydraulic operated unites provide heavy duty lifting capacity from 28,000/38,000 lbs. (set of 2) to 112,000/152,000 lbs. (set of 8) enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.

• 110 volt built in multi-stage charging system

• Adjustable wheel carriages fits a range of wheels

• Integrated touch screen control console provides easy-to-use and precise operating.

• Precise balanced design, heavy-duty tow handle and spring loaded wheels make moving and aligning individual lift units simple and easy with little effort.

• Operates with 12 volt deep cycle batteries to eliminate the need for power source hook ups and provide 24 volt operation

• Meets stringent ALI Gold Label standards

• Safety Features

• Linear position transducers maintains system synchronization and ensures maximum reliability

• Integrated weight gauges help prevent column overloading and verifies lock engagement

• Wireless system for clutter free work area without cables to connect, navigate around, roll-over or replace

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Model

CLHM-140
CLHM-190
CLHM-190W

Lift Capacity Per Column

14,000 lbs.

19,000 lbs.

A Height of Lift Unit

88.5" (2,248 mm)

B Height of Lift Unit at Full Rise

157.125" (3,991 mm)

C Width of Lift Unit

44.25" (1,124 mm)

49" (1,245 mm)

D Length of Lift Unit

53.625" (1,362 mm)

E Maximum Lift Height
(4 or more units)

69" (1,753 mm)

Maximum Lift Height
(2 units – Normal Mode)

32" (813 mm)

F Min-Max Wheel Diameter

5" – 24.5" (127 -622mm)

4" – Max det. by tire size

Max. Hydraulic System Operating Pressure

2,180 psi

2,600 psi

Lift Speed (Max Load)

60" per min. (1524 mm)

Weight of Lift Unit

1,485 lbs (674 kg)

1,500 lbs (685 kg)

1,565 lbs (714 kg)

Footprint of Lift Unit

560" 2 (3,613 sq cm)

600" 2 (3,870 sq cm)

Ground Pressure for Each Lift
(Max. Load)

27.7 psi

36.6 psi

34.3 psi

Turning Radius of Lift Unit

47" (1194 mm)

Operating Peak Power

4HP

Operating Voltage

24 VDC Nominal

25 VDC Nominal

26 VDC Nominal

Charger Voltage Required

120 VAC @ 60 Hz

Charger Amps Required

1.3 Amps

ALI/ETL Certified

Yes

*CLHM Series Wireless/Battery Operated Mobile Columns available in 1, 2, 4, 6 and 8 column configurations with 14,000 lb and 19,000 lb. per column capacity.

1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.

Only Available in Blue
