Challenger CLHM-125XF ALI 12.5K Extended Forks Mobile Column Lifts (Set of 4)

Product Overview

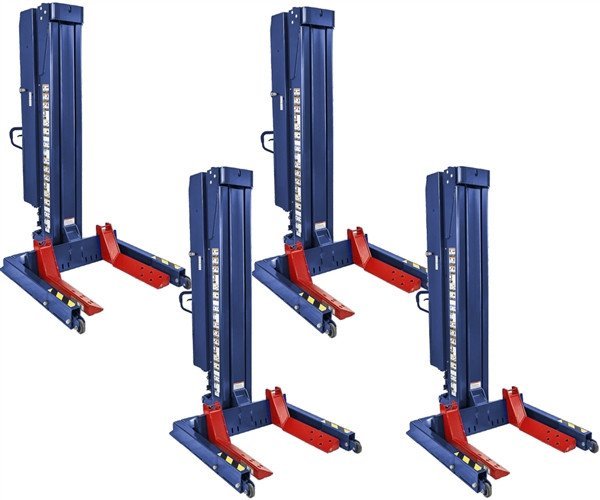

Challenger CLHM-125XF ALI 12.5K Extended Forks Mobile Column Lifts (Set of 4)

Introducing the Challenger CLHM-125XF Mobile Column Lifts the revolutionary, scalable solution for lifting vehicles in professional automotive workshops. This set of four mobile columns delivers a total lifting capacity of 50,000 lbs ( 12,500 lbs per column ), offering unparalleled versatility, portability, and efficiency for shops handling heavy-duty trucks, buses, RVs, and commercial vehicles.

What sets the CLHM-125XF apart is its extended 22-inch forks nearly double the length of standard 11-inch forks. This extended reach allows for full tire engagement on vehicles with recessed wheels, dual tires, or wide wheelbases, giving you the flexibility to work safely and confidently on a broader range of vehicles. The system accommodates wheel diameters from 5" to 24.5", making it a truly adaptable lifting tool for any modern shop.

Every Challenger CLHM-125XF mobile column features a rechargeable 24V battery system, completely eliminating the need for compressed air or constant electrical hookups during operation. Each column includes a retractable 25-foot cord reel that plugs into any standard 110V outlet for convenient charging between jobs. The wireless control system allows operators to control all four columns from any single unit, reducing cable clutter, eliminating tripping hazards, and improving overall shop safety and workflow efficiency.

Built for scalability, the CLHM-125XF system can be expanded up to eight columns working in tandem for a combined 100,000 lbs lifting capacity. These units can also be used in combination with Challenger's 14K (CLHM-140) and 19K (CLHM-190) models, allowing you to customize and expand your lifting capabilities as your shop grows or your service demands change. Whether you're lifting a single axle or raising an entire fleet vehicle, the CLHM-125XF offers the flexibility to adapt to your needs.

Starting May 2025, all Challenger CLHM / CLMM model lifts will be equipped with premium Group 27 AGM (Absorbed Glass Mat) 12-volt batteries, backed by a 2-year free replacement warranty. These advanced AGM batteries deliver superior performance, faster charging, longer life, and better resistance to vibration and deep discharge compared to traditional flooded batteries.

Key Advantages of the CLHM-125XF System

• Extended 22" forks provide superior reach for recessed wheels and dual-tire applications

• 50,000 lbs total capacity with four columns (12,500 lbs per column)

• Wireless operation from any column for maximum convenience and safety

• Rechargeable 24V battery system no compressed air required

• Expandable to 8 columns for up to 100,000 lbs lifting capacity

• Compatible with Challenger CLHM-140 and CLHM-190 models for hybrid configurations

• Maximum lift height of 69 inches with 4 or more units

• Adjustable for wheel diameters from 5" to 24.5"

• ALI Certified for safety and reliability

• Upgraded AGM batteries with 2-year free replacement warranty (effective May 2025)

Limited-Time Rebate Offer

Performance Highlights

The CLHM-125XF is engineered for professional-grade performance and reliability:

• Lift speed: 56.7 inches per minute at maximum load

• Hydraulic operating pressure: 2,100 psi for consistent, controlled lifting

• Operating peak power: 4HP per column

• Ground pressure: Only 19.6 psi at maximum load, minimizing floor stress

• Compact footprint: 719 sq. in. per column for maneuverability in tight spaces

• Turning radius: 54 inches for easy positioning and navigation

• Weight per unit: 1,557 lbs—solid construction for stability and durability

Wireless, Cordless, and Effortless

One of the standout features of the CLHM-125XF is its wireless control system. Operate all four columns from any single unit—no need to run back and forth or deal with tangled cords. The rechargeable 24V battery system provides hours of operation on a single charge, and the retractable 25-foot cord reel makes recharging quick and convenient. Simply plug into any 110V outlet when not in use, and your lifts are ready for the next job.

With no air compressor required, you eliminate the noise, maintenance, and energy costs associated with pneumatic systems. This makes the CLHM-125XF an ideal choice for shops looking to reduce overhead and improve the working environment.

Scalable and Compatible

Start with a set of 4 columns and expand as your business grows. The CLHM-125XF supports configurations of 1, 2, 4, 6, or 8 columns, allowing you to scale your lifting capacity from 12,500 lbs (single column) all the way up to 100,000 lbs (eight columns). You can also use the CLHM-125XF in tandem or combination with Challenger's CLHM-140 (14K) and CLHM-190 (19K) models, giving you the ultimate flexibility to handle any vehicle that rolls into your shop.

Whether you're servicing light-duty trucks, heavy-duty commercial vehicles, buses, or specialty equipment, the CLHM-125XF system adapts to your needs—making it a long-term investment that grows with your business.

Why Choose Challenger CLHM-125XF?

The Challenger CLHM-125XF Mobile Column Lift System represents the cutting edge in mobile lifting technology. From its extended 22-inch forks to its wireless battery-powered operation, every feature is designed with the professional technician in mind. The system's scalability, compatibility, and ease of use make it an essential tool for any shop that demands flexibility, safety, and performance.

Backed by ALI Certification and the trusted Challenger Lifts name, the CLHM-125XF delivers the reliability and durability you need to keep your operation running smoothly for years to come. And with the new AGM battery upgrade and 2-year warranty starting in May 2025, you're investing in technology that's built to last.

Product Configuration:

This listing is for a set of 4 mobile columns (Equipment Broker Group SKU: EBG-ASE-00920

Product Features

• Set of 4 ~ Totally Capacity 50,000 lbs (12,500 lbs Per Lift)

• Connect up to 8 column lifts

• Use in tandem or combination with our CLHM140 and CLHM 190 models

• 12,500 lbs. per column, up to 100,000 lbs. (with 8 columns)

• Operate from any column

• Rechargeable battery powered

• 110v charging system

• No air required

• Adjustable to fit wheel diameters from 5" to 24.5"

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Specifications
CLHM-125XF

Lift Capacity Per Column

12,500 lbs.

Height of Lift Unit
88 1/2"

Overall Height at Full Rise
13' 1-1⁄8"

Width of Lift Unit
44 1/4"

Length of Lift Unit
65.3"

Max. Lift Height 4+ Units
69"

Max. Lift Height (with 2 units)
32"

Wheel Diameter
Min. 5" – Max. 24-1/2"

Max. Hydraulic System Operating Pressure
2,100 psi

Lift Speed (Max. Load)
56.7" Per Minute

Ground Pressure/Lift (Max. Load)
19.6 psi

Turning Radius of Lift Unit
54"

Operating Peak Power
4HP

Operating Voltage
24 VDC Nominal

Charger Voltage Required
120-240 VAC @ 50-60 Hz

Operating Voltage
24 VDC Nominal

Charger Amps Required
2.8 amps

Footprint of Lift Unit
719 sq. in.

Weight of Lift Unit
1,557 lbs.

*CLHM-125XF Wireless/Battery Operated Mobile Column is available in 1, 2, 4, 6 and 8 column configurations with 12,500 lb per column capacity.

1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.

Only Available in Blue

Key Features

• Published product configuration: Challenger CLHM-125XF ALI 12.5K Extended Forks Mobile Column Lifts (Set of 4) Introducing the Challenger CLHM-125XF Mobile Column Lifts the revolutionary, scalable solution for lifting vehicles in professional automotive workshops. This set of four mobile columns delivers a total lifting capacity of 50,000 lbs ( 12,500
• Exact manufacturer model or part number: CLHM-125XF-4
• Cataloged for Lifts & Hoists: Car Lifts — Mobile Column Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model CLHM-125XF-4, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Manufacturer document 1
• Manufacturer document 2
