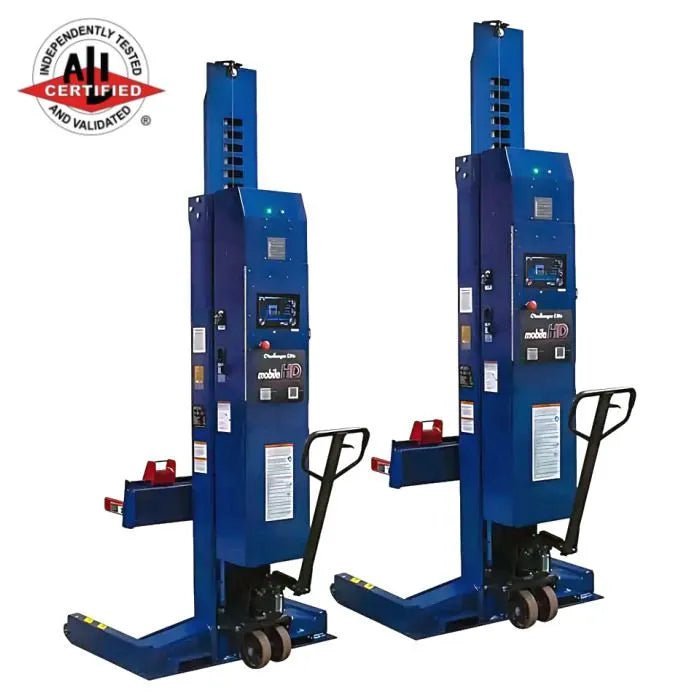

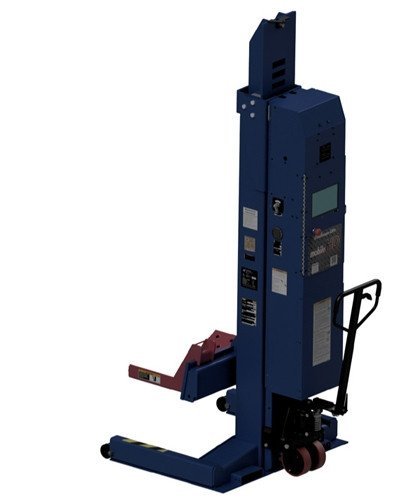

Challenger CLHM-190 ALI HD Mobile Column Lift – Single

Product Overview

Challenger CLHM-190 ALI HD Mobile Column Lift – Single

The Challenger CLHM-190 delivers the ultimate in mobile lifting versatility and heavy-duty performance for professional automotive and commercial vehicle service. With 19,000 lbs. of lifting capacity per column, this ALI/ETL Certified mobile lift can be configured in sets from 2 to 8 columns to handle everything from compact cars to large trucks, transit vehicles, and heavy-duty municipality equipment—achieving a maximum system capacity of 152,000 lbs with an 8-column setup. Each column operates independently on robust, battery-powered wireless technology, eliminating the clutter of cables and power cords while providing maximum flexibility to service vehicles indoors or outdoors on any solid surface.

Engineered for the demands of high-volume shops, fleet operations, and municipal service centers, the CLHM-190 features an integrated 110-volt multi-stage charging system, a state-of-the-art 10-inch Android touchscreen control console, and adjustable wheel carriages that accommodate a wide range of tire sizes. Spring-loaded wheels and a heavy-duty tow handle make positioning and aligning the columns effortless, while advanced safety features including linear position transducers, integrated weight gauges, and wireless synchronization ensure precise, safe lifting every time. This single column can be seamlessly added to your existing CLHM-190 fleet, providing scalable lifting power exactly where and when you need it.

Key Selling Points

• 19,000 lbs. per column capacity expandable to 152,000 lbs. total capacity with 8-column configurations for handling the heaviest commercial vehicles

• Wireless, battery-powered operation 12-volt deep cycle batteries (upgraded to AGM Group 27 batteries with 2-year free replacement warranty as of May 2025) deliver 24V operation without the need for power hookups or tangled cables

• 10-inch Android touchscreen console intuitive interface with on-board training videos, manuals, full web browser, and real-time height and weight readouts for each column

• ALI Gold Label Certified meets and exceeds stringent ALI/ETL safety standards with linear position transducers, integrated weight gauges, and synchronized lifting control

• Fully mobile and maneuverable precise balanced design with spring-loaded wheels and heavy-duty tow handle makes positioning and setup simple, even on uneven surfaces

Integrated Battery & Charging System

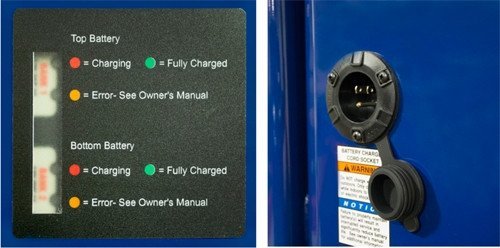

Each CLHM-190 column is equipped with a 110-volt built-in multi-stage charging system that keeps your lift ready for action. The charging status light provides real-time battery updates, allowing you to plan your workflow efficiently and avoid downtime. With the 12-volt deep cycle battery system delivering smooth 25 VDC nominal operation, you'll enjoy complete freedom from power cords and extension cables. Effective May 2025, all CLHM Series lifts ship with upgraded AGM (Absorbed Glass Mat) Group 27 batteries backed by a 2-year free replacement warranty for added peace of mind and superior performance.

Wireless Operation for a Clutter-Free Workspace

Say goodbye to tangled cables, connectors, and trip hazards. The CLHM-190 utilizes advanced wireless operation technology with 12 radio frequencies and a wide channel range ( 100 to 120 channels per frequency ) to prevent radio noise and interference from disrupting your service. This means a safer, more organized work area and faster setup—simply roll the columns into position and start lifting. The wireless system also eliminates the need to replace damaged cables, reducing long-term maintenance costs and downtime.

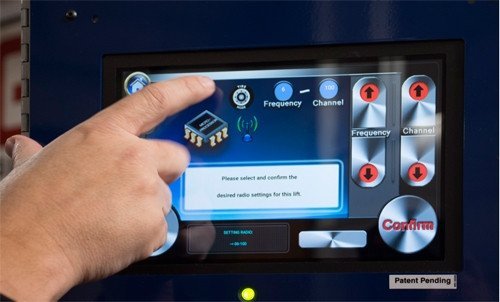

State-of-the-Art 10" Android Touchscreen Console

Take control with the new 10-inch Android-based integrated touchscreen control console. This intuitive, easy-to-use interface provides precise measurements of lifting height and weight per column in real time, ensuring balanced, safe lifts every time. The console's internal CPU and fully functional web browser allow you to access technical support, product information, and troubleshooting resources on the fly. Plus, on-board training videos and manuals keep your technicians up to speed without leaving the bay, reducing training time and increasing productivity.

Robust Safety & Reliability Features

Safety is paramount in any lifting application, and the CLHM-190 is engineered to exceed industry standards. Linear position transducers maintain perfect system synchronization across all columns, ensuring maximum reliability and preventing uneven lifting. Integrated weight gauges help you avoid column overloading and verify that mechanical locks are properly engaged before technicians work under the vehicle. With ALI Gold Label Certification and ETL compliance, you can trust that every lift meets the strictest safety requirements for professional automotive service.

Versatile Lifting Configurations & Scalability

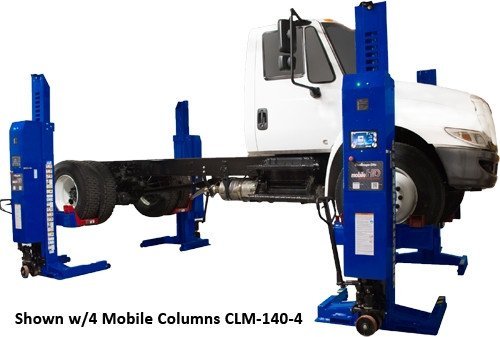

The CLHM-190 is available as a single column and can be purchased in configurations of 1, 2, 4, 6, or 8 columns to match your shop's unique needs. Whether you're lifting a compact sedan with two columns or a fully loaded transit bus with eight, the system scales effortlessly. Each additional column adds 19,000 lbs. of capacity, and the wireless synchronization technology ensures all columns lift and lower in perfect unison. You can even add this unit to your existing CLHM-190 fleet, providing ultimate flexibility as your business grows.

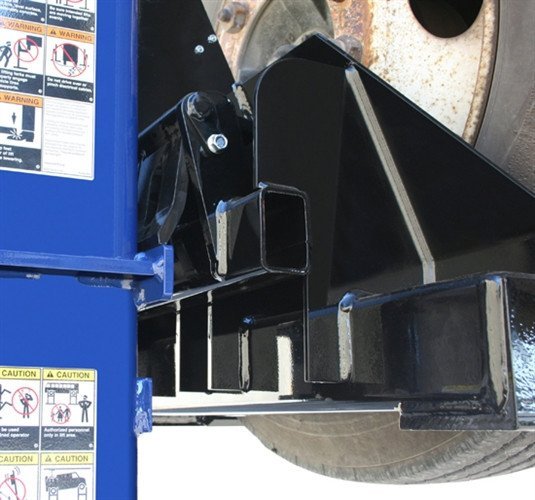

The adjustable wheel carriages accommodate wheel diameters from 5 inches to 24.5 inches, making it easy to securely lift a wide variety of vehicles. With a maximum lift height of 69 inches (using 4 or more columns) and a lift speed of 60 inches per minute at maximum load, you'll enjoy fast, efficient service without sacrificing safety or precision.

Performance & Specifications at a Glance

• Lift Capacity Per Column: 19,000 lbs.

• Maximum Lift Height (4+ columns): 69 inches (1,753 mm)

• Lift Speed at Max Load: 60 inches per minute (1,524 mm)

• Operating Voltage: 25 VDC Nominal

• Charger Voltage Required: 120 VAC @ 60 Hz / 1.3 Amps

• Weight of Lift Unit: 1,500 lbs. (685 kg)

• Footprint: 560 sq. inches (3,613 sq cm)

• Turning Radius: 47 inches (1,194 mm)

• Operating Peak Power: 4HP

• Certification: ALI/ETL Certified

Limited-Time Rebate Offer

Product Features

• Single column mobile lift. Connect up to 8 units together. Can be added to previous CLHM-190 lifts purchased

• Hydraulic operated unites provide heavy duty lifting capacity from 28,000/38,000 lbs. (set of 2) to 112,000/152,000 lbs. (set of 8) enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.

• 110 volt built in multi-stage charging system

• Adjustable wheel carriages fits a range of wheels

• Integrated touch screen control console provides easy-to-use and precise operating.

• Precise balanced design, heavy-duty tow handle and spring loaded wheels make moving and aligning individual lift units simple and easy with little effort.

• Operates with 12 volt deep cycle batteries to eliminate the need for power source hook ups and provide 24 volt operation

• Meets stringent ALI Gold Label standards

• Safety Features

• Linear position transducers maintains system synchronization and ensures maximum reliability

• Integrated weight gauges help prevent column overloading and verifies lock engagement

• Wireless system for clutter free work area without cables to connect, navigate around, roll-over or replace

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Model

CLHM-140
CLHM-190
CLHM-190W

Lift Capacity Per Column

14,000 lbs.

19,000 lbs.

A Height of Lift Unit

88.5" (2,248 mm)

B Height of Lift Unit at Full Rise

157.125" (3,991 mm)

C Width of Lift Unit

44.25" (1,124 mm)

49" (1,245 mm)

D Length of Lift Unit

53.625" (1,362 mm)

E Maximum Lift Height
(4 or more units)

69" (1,753 mm)

Maximum Lift Height
(2 units – Normal Mode)

32" (813 mm)

F Min-Max Wheel Diameter

5" – 24.5" (127 -622mm)

4" – Max det. by tire size

Max. Hydraulic System Operating Pressure

2,180 psi

2,600 psi

Lift Speed (Max Load)

60" per min. (1524 mm)

Weight of Lift Unit

1,485 lbs (674 kg)

1,500 lbs (685 kg)

1,565 lbs (714 kg)

Footprint of Lift Unit

560" 2 (3,613 sq cm)

600" 2 (3,870 sq cm)

Ground Pressure for Each Lift
(Max. Load)

27.7 psi

36.6 psi

34.3 psi

Turning Radius of Lift Unit

47" (1194 mm)

Operating Peak Power

4HP

Operating Voltage

24 VDC Nominal

25 VDC Nominal

26 VDC Nominal

Charger Voltage Required

120 VAC @ 60 Hz

Charger Amps Required

1.3 Amps

ALI/ETL Certified

Yes

*CLHM Series Wireless/Battery Operated Mobile Columns available in 1, 2, 4, 6 and 8 column configurations with 14,000 lb and 19,000 lb. per column capacity.

1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.

Only Available in Blue

Key Features

• Published product configuration: Challenger CLHM-190 ALI HD Mobile Column Lift – Single The Challenger CLHM-190 delivers the ultimate in mobile lifting versatility and heavy-duty performance for professional automotive and commercial vehicle service. With 19,000 lbs. of lifting capacity per column, this ALI/ETL Certified mobile lift can be configured
• Exact manufacturer model or part number: CLHM-190
• Cataloged for Lifts & Hoists: Car Lifts — Mobile Column Lifts
• 3 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model CLHM-190, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
