Challenger CLHM-125XF ALI 12.5K Extended Forks Mobile Column Lifts (Set of 2)

Product Overview

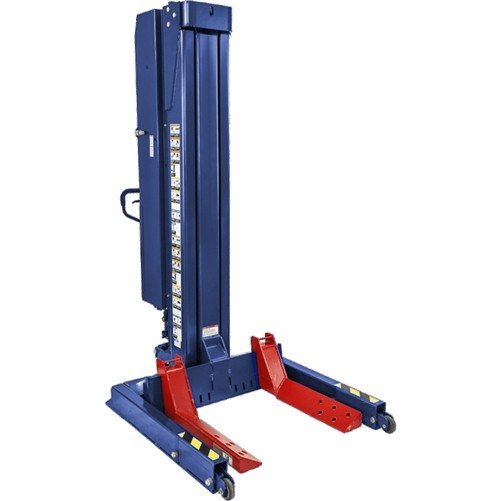

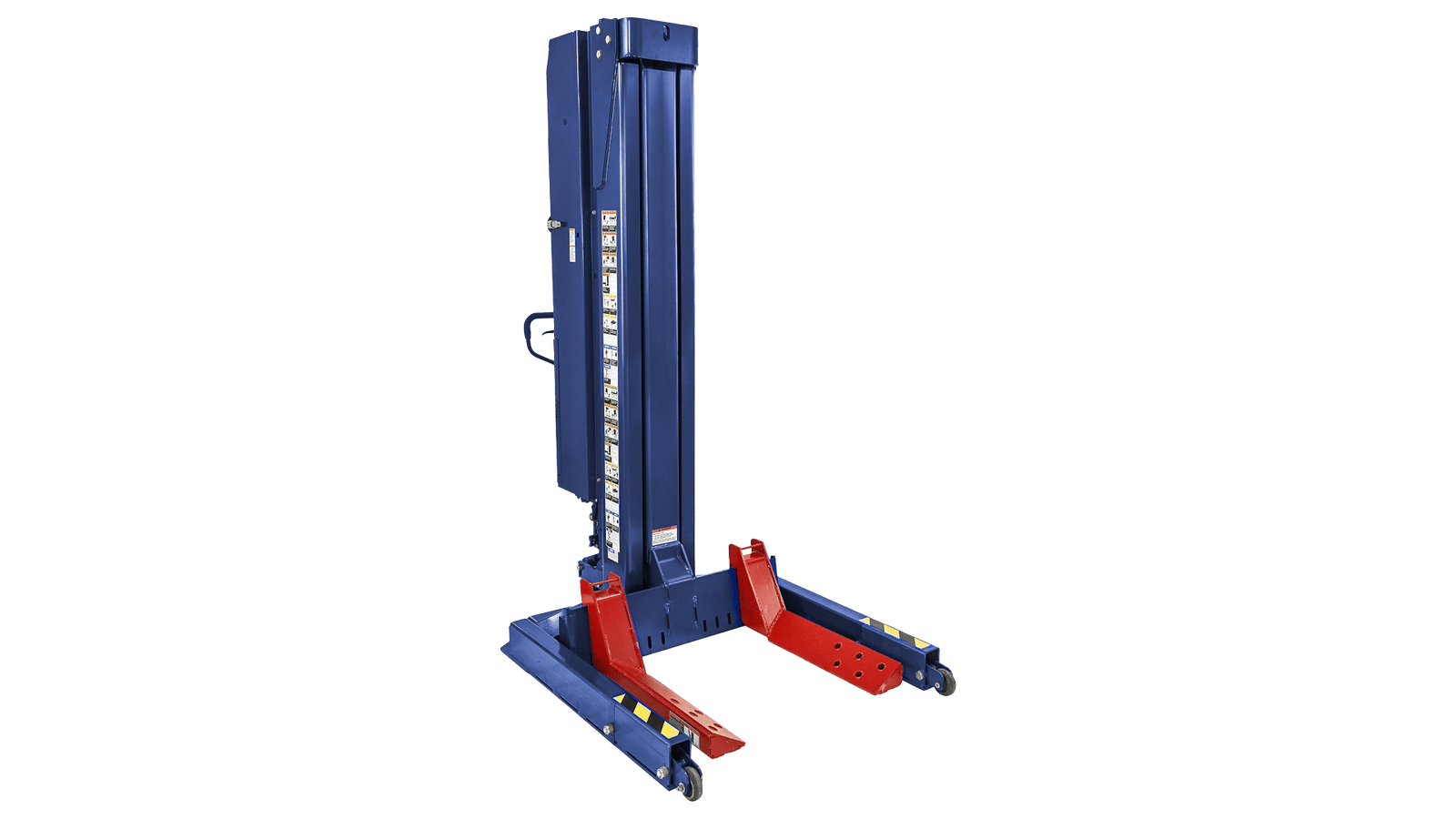

Challenger CLHM-125XF ALI 12.5K Extended Forks Mobile Column Lifts (Set of 2)

Introducing Challenger's CLHM-125XF Mobile Column Lifts, the revolutionary wireless lifting solution engineered for modern automotive workshops. This set of 2 columns delivers a combined 25,000 lbs. total capacity ( 12,500 lbs. per column ), giving you the versatility and power to handle everything from light-duty vehicles to heavy-duty trucks with ease. ALI certified for your peace of mind, these lifts represent the pinnacle of mobile column technology.

What sets the CLHM-125XF apart from standard mobile column lifts? The answer is in the extended forks. While traditional mobile columns feature 11-inch forks, the XF model boasts 22-inch extended forks that provide full tire engagement even on vehicles with deeply recessed wheels or dual tires. This makes the CLHM-125XF the ideal choice for shops working with commercial trucks, buses, RVs, and specialized vehicles where standard forks simply can't reach.

Unmatched Versatility and Scalability

The CLHM-125XF system is built to grow with your business. Start with this 2-column configuration and expand up to 8 columns working in tandem for a maximum lifting capacity of 100,000 lbs. Need even more flexibility? These lifts can be used in combination with our CLHM-140 (14K) and CLHM-190 (19K) models, allowing you to mix and match capacities to suit any job.

The system accommodates wheel diameters from 5 inches to 24.5 inches, making it an incredibly adaptable tool for any workshop environment. Whether you're lifting compact cars, full-size pickups, delivery vans, or heavy commercial vehicles, the CLHM-125XF adjusts to fit your needs with precision and reliability.

Wireless Control and Battery-Powered Convenience

All CLHM-125XF Mobile Columns feature a 24V rechargeable battery system that eliminates the need for trailing power cords during operation. A retractable 25-foot cord reel plugs into any standard 110V outlet for convenient charging when not in use. No air compressor required just pure hydraulic power, quietly and efficiently delivered.

The lifts can be controlled wirelessly from any column in the set, making them ideal for busy, fast-paced workshops. The wireless feature ensures that cords and cables don't clutter your work area, reducing tripping hazards and improving overall shop safety. Move freely around the vehicle, position columns where you need them, and operate the entire system from the most convenient location.

Effective May 2025, all Challenger CLHM/CLMM model lifts will come equipped with AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. These advanced batteries deliver superior performance, longer life, and enhanced reliability. Each AGM battery carries a 2-year free replacement warranty, giving you added confidence in your investment.

Key Features at a Glance

• Set of 2 columns with a combined 25,000 lbs. total capacity ( 12,500 lbs. per column )

• 22-inch extended forks for full tire engagement on recessed wheels and dual tires

• Connect up to 8 column lifts for maximum capacity of 100,000 lbs.

• Compatible with CLHM-140 and CLHM-190 models for mixed-capacity configurations

• Wireless operation control from any column in the system

• Rechargeable 24V battery powered with 110V charging system

• No air compressor required

• Adjustable forks fit wheel diameters from 5" to 24.5"

• AGM batteries (Absorbed Glass Mat) with 2-year free replacement warranty (effective May 2025)

• ALI certified for safety and reliability

• Available in blue only

Why Choose the CLHM-125XF?

Unparalleled Reach: The 22-inch extended forks provide access that standard mobile columns simply can't match. Lift vehicles with deeply recessed wheels, dual tires, or wide-set axles with confidence and stability.

Total Freedom of Movement: With wireless control and battery power, you can position columns anywhere in your shop without worrying about power outlets, air lines, or tangled cords. The 54-inch turning radius and smooth-rolling design make repositioning effortless.

Built to Expand: Start with 2 columns today and add more as your business grows. The modular design means your investment grows with you, and you're never locked into a fixed-capacity system.

Engineered for Heavy Duty: With a maximum hydraulic system operating pressure of 2,100 psi and a robust 4HP operating peak power, these lifts deliver reliable performance even under maximum load. The lift speed of 56.7 inches per minute ensures efficient operation without sacrificing safety.

Product Features

• Set of 2 ~ Totally Capacity 25,000 lbs (12,500 lbs Per Lift)

• Connect up to 8 column lifts

• Use in tandem or combination with our CLHM140 and CLHM 190 models

• 12,500 lbs. per column, up to 100,000 lbs. (with 8 columns)

• Operate from any column

• Rechargeable battery powered

• 110v charging system

• No air required

• Adjustable to fit wheel diameters from 5" to 24.5"

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Specifications
CLHM-125XF

Lift Capacity Per Column

12,500 lbs.

Height of Lift Unit
88 1/2"

Overall Height at Full Rise
13' 1-1⁄8"

Width of Lift Unit
44 1/4"

Length of Lift Unit
65.3"

Max. Lift Height 4+ Units
69"

Max. Lift Height (with 2 units)
32"

Wheel Diameter
Min. 5" – Max. 24-1/2"

Max. Hydraulic System Operating Pressure
2,100 psi

Lift Speed (Max. Load)
56.7" Per Minute

Ground Pressure/Lift (Max. Load)
19.6 psi

Turning Radius of Lift Unit
54"

Operating Peak Power
4HP

Operating Voltage
24 VDC Nominal

Charger Voltage Required
120-240 VAC @ 50-60 Hz

Operating Voltage
24 VDC Nominal

Charger Amps Required
2.8 amps

Footprint of Lift Unit
719 sq. in.

Weight of Lift Unit
1,557 lbs.

*CLHM-125XF Wireless/Battery Operated Mobile Column is available in 1, 2, 4, 6 and 8 column configurations with 12,500 lb per column capacity.

1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.

Only Available in Blue

Key Features

• Published product configuration: Challenger CLHM-125XF ALI 12.5K Extended Forks Mobile Column Lifts (Set of 2) Introducing Challenger's CLHM-125XF Mobile Column Lifts, the revolutionary wireless lifting solution engineered for modern automotive workshops. This set of 2 columns delivers a combined 25,000 lbs. total capacity ( 12,500 lbs. per column )
• Exact manufacturer model or part number: CLHM-125XF-2
• Cataloged for Lifts & Hoists: Car Lifts — Mobile Column Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model CLHM-125XF-2, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Manufacturer document 1
• Manufacturer document 2
