Auto Lift PL6K 6,600lb. Low-Rise Pit Lifts

Product Overview

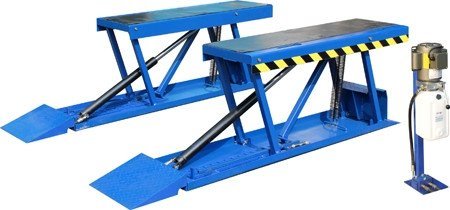

Auto Lift PL6K 6,600lb. Low-Rise Pit Lifts

Professional-Grade Low-Rise Lifting for Your Shop

The Auto Lift PL6K is engineered to provide professional-grade lifting performance in a compact, low-profile design that doesn't require an in-ground pit installation. With a robust 6,600 lb. lifting capacity, this versatile low-rise lift delivers reliable service for a wide range of vehicles, from sedans and SUVs to light trucks. The innovative open center design provides exceptional undercarriage access, making it ideal for routine maintenance, brake work, suspension repairs, and exhaust service.

Built for efficiency and ease of use, the PL6K features surface mounting that eliminates the need for expensive pit excavation while maintaining a professional, low-profile installation. The electric/hydraulic power system operates on standard 110V power, achieving full lift height in just 40 seconds. Automatic safety locks with pneumatic release provide secure positioning at multiple height levels, giving technicians confidence and flexibility during service operations.

The gear-driven valve system ensures smooth, controlled lifting action, while the absence of a crossmember maximizes clearance and accessibility. With adjustable runway spacing from 0 to 29-1/2" and 18" wide runways, the PL6K accommodates various vehicle wheelbases and configurations. Whether you're running a busy independent shop or upgrading your home garage, this lift combines professional performance with practical design.

Key Benefits That Set the PL6K Apart

• 6,600 lb. capacity handles a wide variety of vehicles including trucks and SUVs

• Low-profile surface mounting no expensive pit excavation required

• Open center design with no crossmember for maximum undercarriage access

• Multiple automatic safety locks with convenient pneumatic release for secure positioning

• Fast 40-second lifting speed powered by an efficient electric/hydraulic system on standard 110V power

What's Included with Your PL6K

The Auto Lift PL6K comes complete with everything you need for professional lifting performance right out of the box. Each lift includes a complete power unit and stand, along with high-density rubber blocks measuring 6 5/16" x 4 ¾" x 1 ½" for secure contact with vehicle lift points.

High-density rubber blocks included standard for secure vehicle contact

Optional Accessories to Enhance Your Lift

Customize your PL6K with optional accessories designed to expand its versatility and adapt to your specific service needs:

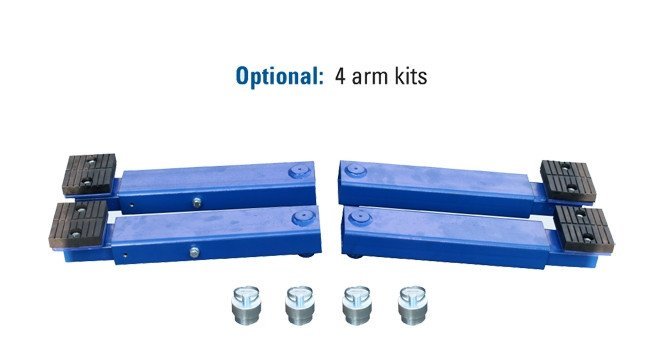

28" Arm Kit for Pit Lift (PL6K-ArmKit)

Extend your reach with longer lifting arms for enhanced positioning flexibility on longer-wheelbase vehicles.

Optional 28" arm kit extends lifting versatility

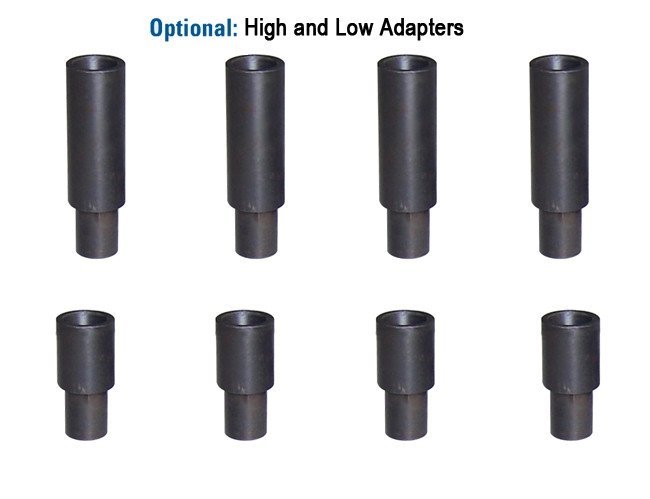

High and Low Adapters (PL6K-HeightAdapter)

Adjust your lifting height with precision using high adapters ( 5" ) and low adapters ( 2 5/8" ) for optimal contact with various vehicle lift points. With these adapters, achieve a maximum lifting height of 30".

High and low adapters for precise height adjustment

Product Features

• 6,600 lb. lifting capacity

• Surface mounting

• Open Center design

• Automatic safety locks with pneumatic release

• Low profile surface mounting

• Multiple locking positions

• Electric/hydraulic power system

• No crossmember

• Gear driven value for smoother lifting

Includes

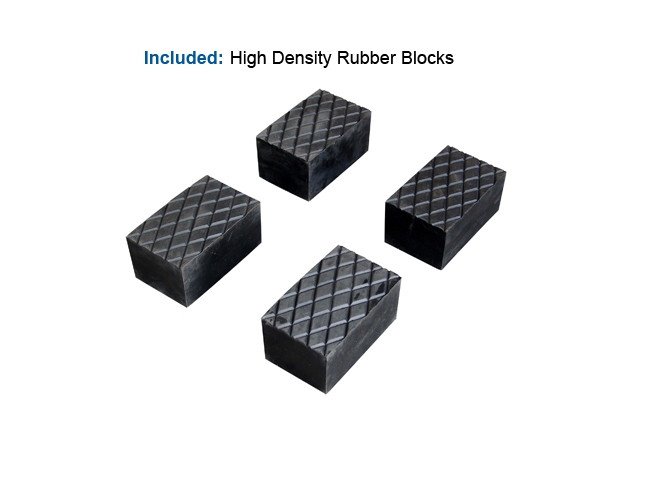

High Density Rubber Blocks
The Lift comes standard with the thin rubber blocks (6 5/16" x 4 ¾" x 1 ½")

Optional Items Available

28" Arm Kit for Pit Lift – PL6K-ArmKit

High and Low Adapters – PL6K-HeightAdapter
High adapters are 5" & Low adapters are 2 5/8"

Product Specifications

Specifications
PL6K

Capacity
6,600 lbs.

Overall Length
83-1/4”

Overall Width
66”

Lifting Height
28-1/2"

Min. Pad Height
4-1/4"

Lifting Height with Adapters
30"

Width Between Runways
0 to 29-1/2"

Width of Runways
18"

Lifting Speed
40 sec

Pad Length
53"

Standard Arms Length
25"

Power
110V – 15 Amp 1Ph

Ship Weight
770 lbs.

Key Features

• Published product configuration: Auto Lift PL6K 6,600lb. Low-Rise Pit Lifts Professional-Grade Low-Rise Lifting for Your Shop The Auto Lift PL6K is engineered to provide professional-grade lifting performance in a compact, low-profile design that doesn't require an in-ground pit installation. With a robust 6,600 lb. lifting capacity, this versatile
• Exact manufacturer model or part number: AL-PL6K
• Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model AL-PL6K, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
