Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs w/Ext Kit

Product Overview

Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs w/Ext Kit

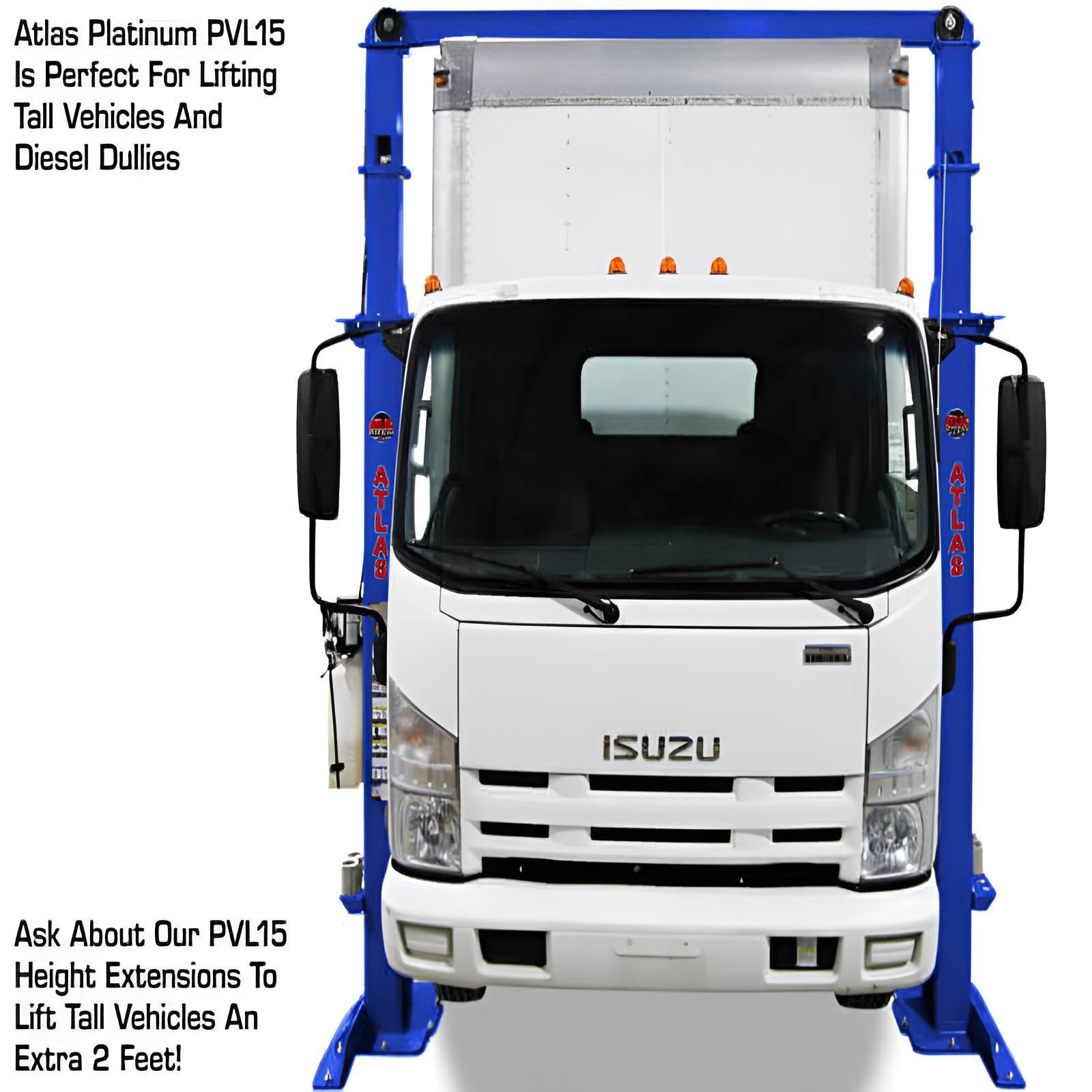

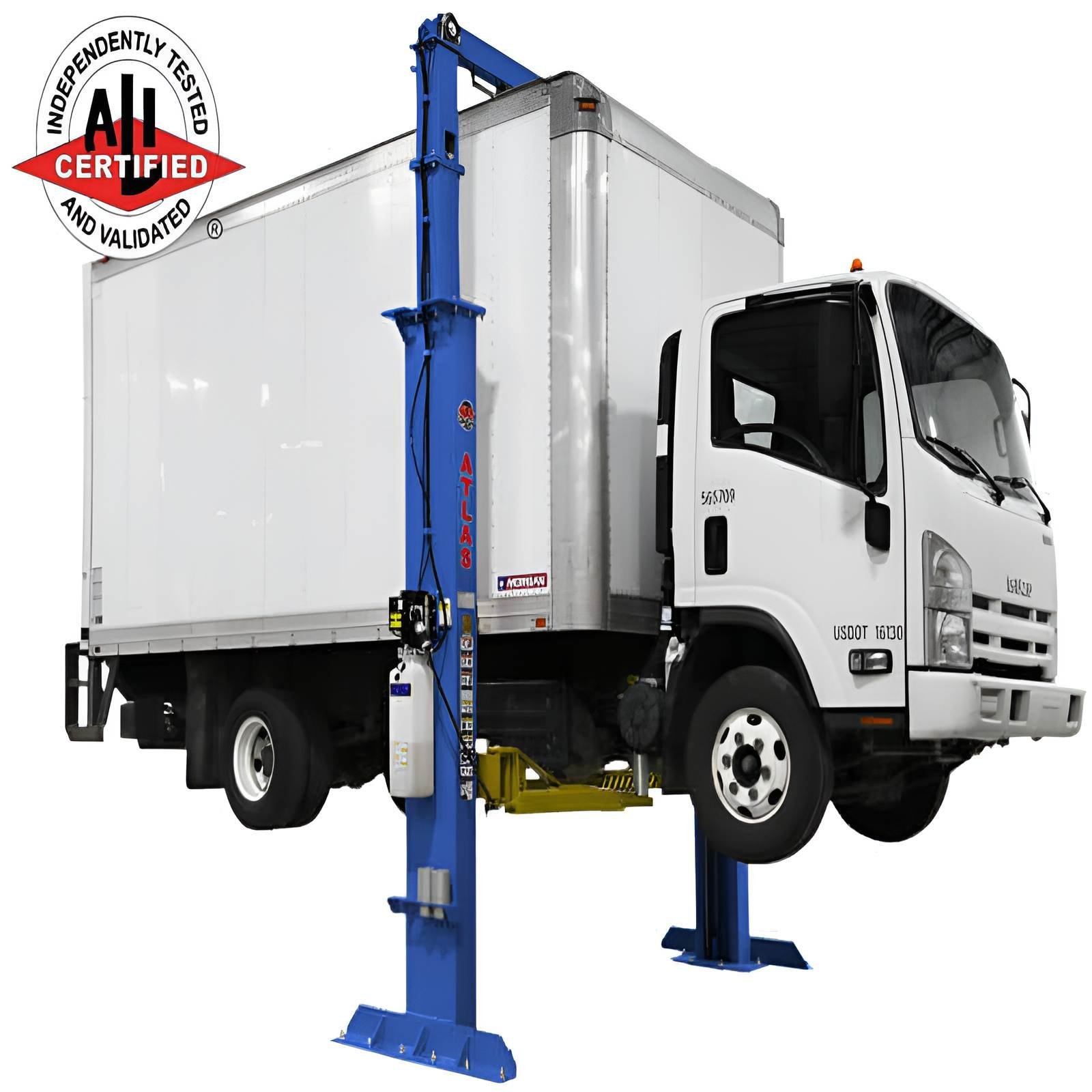

The Atlas® Platinum PVL15 is the ultimate solution for professional shops that need to handle everything from long wheelbase trucks to passenger cars with confidence and safety. This ALI CERTIFIED, commercial-grade overhead two-post lift is engineered with a robust 15,000 lb capacity and features an extra-tall design with an overall height of 174 1/2" (14' 6 1/2") perfect for accommodating lifted trucks, commercial vehicles, and fleet work. Included with this package is the AP-Z23A-00H1 Height Extension Kit, which adds an additional 2 feet of height, giving you the versatility to lift even taller vehicles with ease.

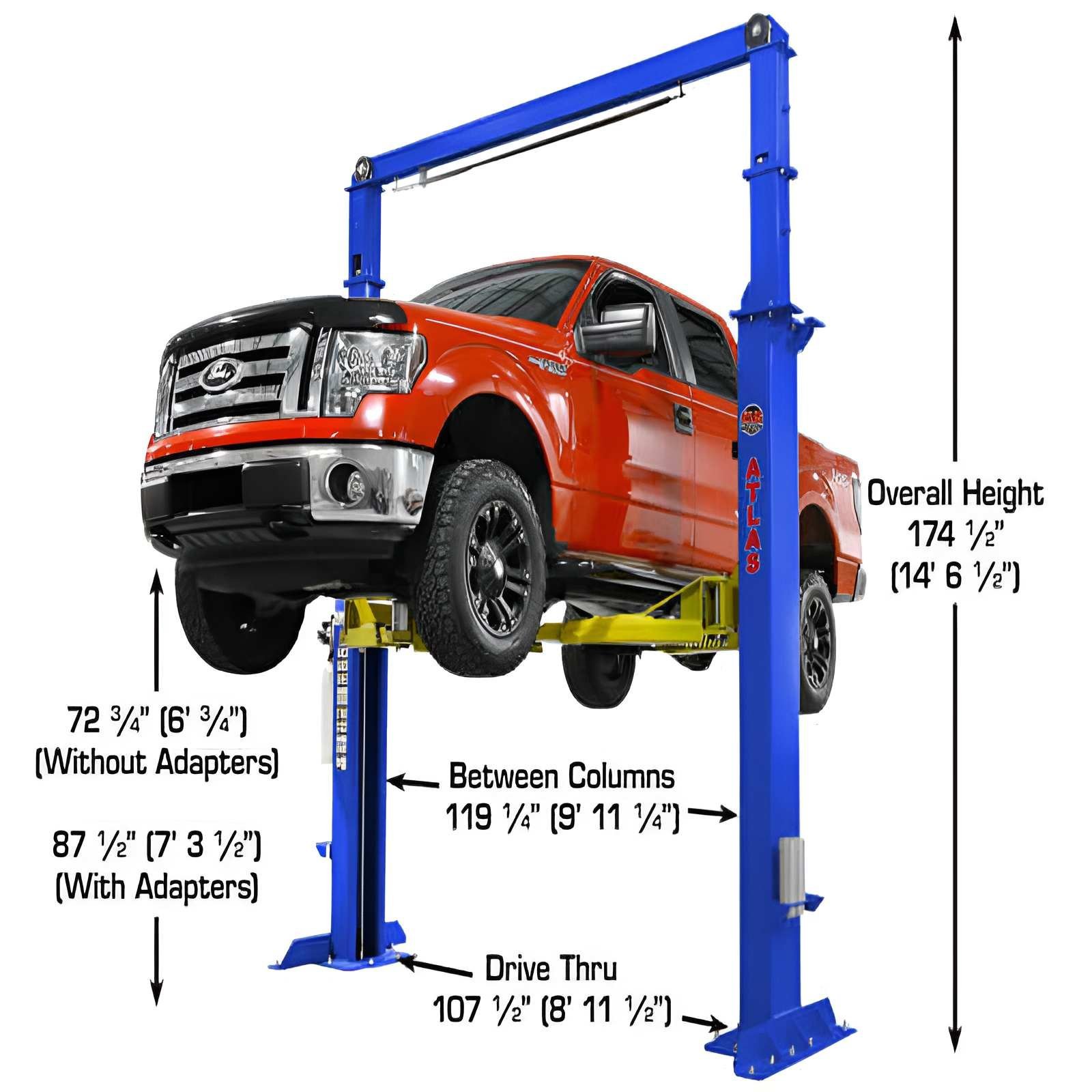

Built for durability and performance, the PVL15 features symmetric arms, padded carriages, and a professional-grade arm lock restraint system that ensures safe, stable operation under heavy loads. The dual direct-drive hydraulic cylinders provide smooth, powerful lifting, while the heavy-duty 3/8" equalization cables ensure balanced lift performance every time. With an inside column clearance of 119 1/4" and a drive-thru clearance of 107 1/2", this lift offers exceptional workspace for positioning vehicles and accessing undercarriages.

At the heart of the PVL15 is the premium ALLY Hydraulic AL2300 Power Unit, certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. This power unit is engineered with extra heavy-duty armatures and enhanced motor windings featuring increased silver metal content in the wires and connections. The result? Far less heat generation, constant torque throughout the lifting process, and superior reliability. Plus, the AL2300 is backed by an industry-leading two-year limited warranty for added peace of mind.

Key Features & Highlights

• 15,000 lb capacity handles heavy-duty trucks, commercial vehicles, and passenger cars

• Extra-tall & extra-wide design with an overall height of 174 1/2" and overall floor width of 148"

• Height Extension Kit included adds 2 feet of additional height for taller vehicles

• ALI CERTIFIED for safety and compliance with industry standards

• Premium ALLY AL2300 Power Unit with advanced heat management and constant torque performance

• Includes free 8-piece truck adapter set and 4 screw-up frame adapters

• 220V single-phase power requirement with 30 amp breaker

Height Extension Kit: AP-Z23A-00H1

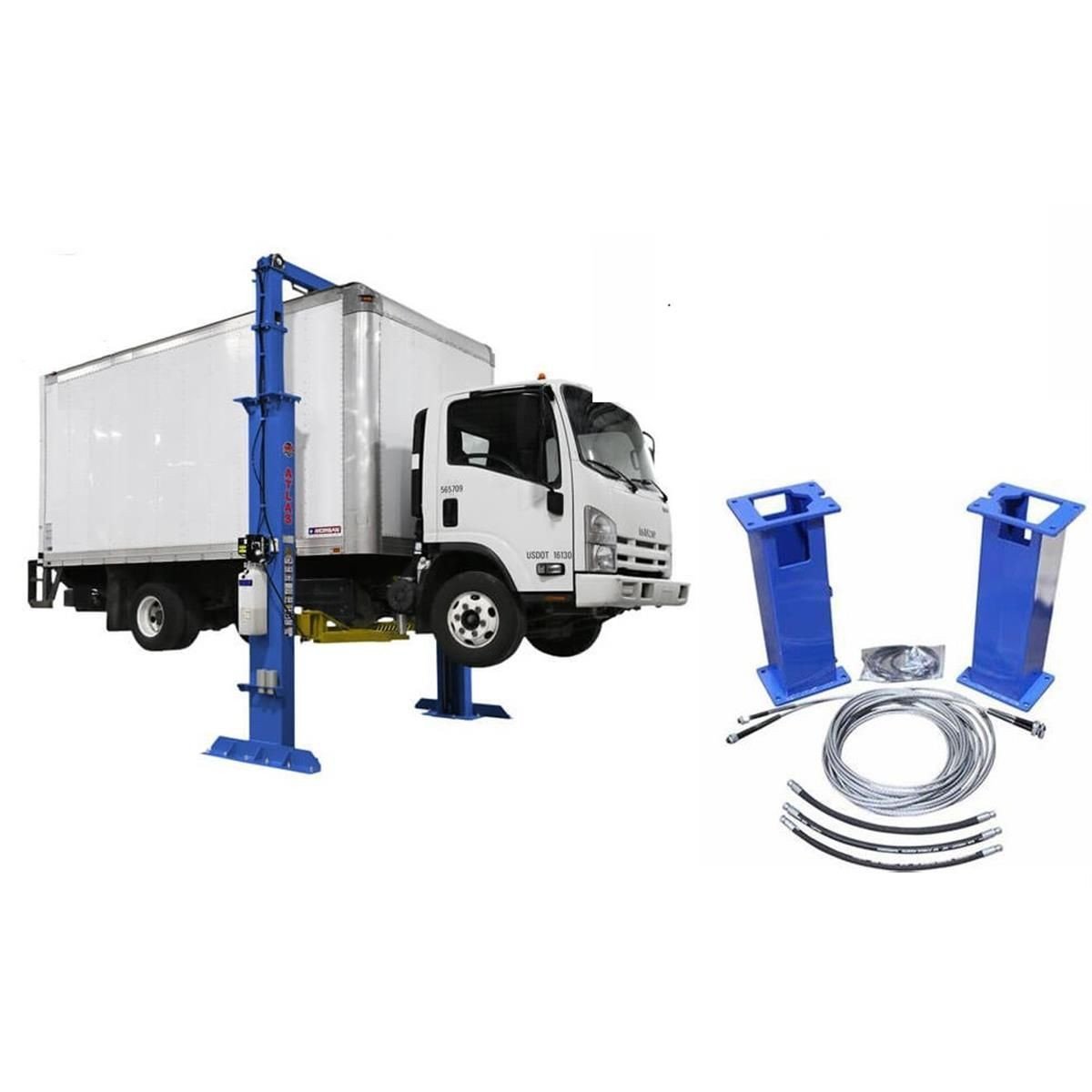

The Atlas® Platinum AP-Z23A-00H1 Height Extension Kit is included with this package and transforms your PVL15 by adding a full 2 feet to the overall height. This kit consists of precision-engineered column extensions, longer hydraulic hoses, and extended equalization cables — all designed to seamlessly integrate with your lift and maintain the same high standards of safety and performance. Whether you're working on lifted trucks, oversized commercial vehicles, or specialty builds, this extension kit gives you the clearance you need.

Note: This kit supersedes the ATTDP-APEX10H-STD-EXT-KIT.

What's Included

• 8-piece truck adapter set 4 each of 5" and 10" adapter heights

• 4 screw-up frame adapters for versatile vehicle lifting

• AP-Z23A-00H1 Height Extension Kit (column extensions, longer hoses, and cables)

• All mounting hardware for installation

• Professional-grade arm lock restraint system

• Padded carriages to protect vehicle components

Premium Power Unit Performance

The ALLY Hydraulic AL2300 Power Unit sets this lift apart from the competition. Certified by MET Laboratories Inc., this power unit features extra heavy-duty armatures and advanced motor windings with increased silver metal content. This engineering translates to significantly reduced heat generation, consistent torque delivery, and long-term reliability even under demanding commercial use. The AL2300 operates on 220V single-phase power and requires a 30 amp breaker. For complete power unit specifications and parts list,.

Built for Heavy-Duty Commercial Use

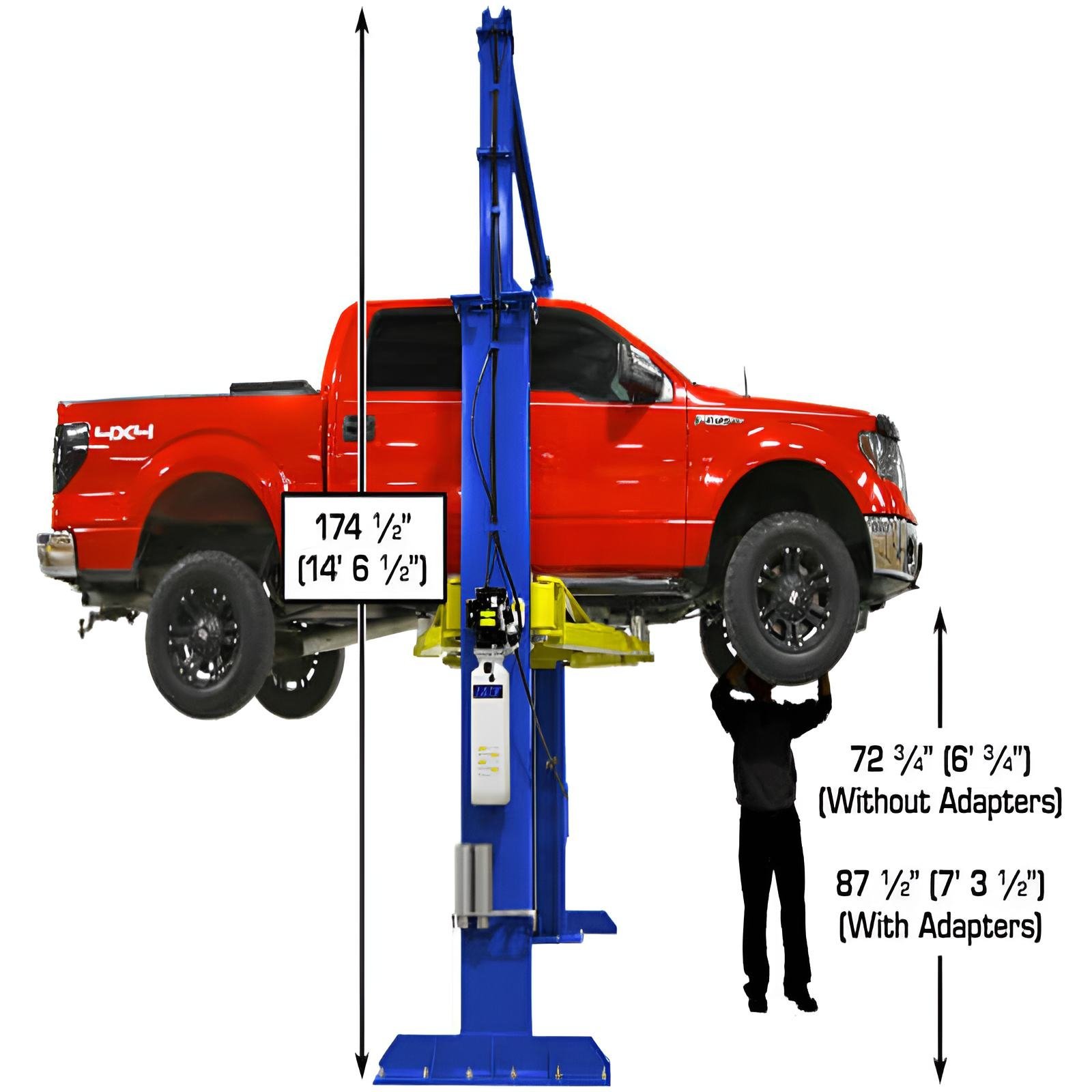

The PVL15 is designed to withstand the rigors of a busy commercial shop. With dual direct-drive hydraulic cylinders, you get fast, powerful lifts with a lifting time of approximately 80 seconds. The lift provides a maximum lift height with truck adapters of 87 1/2" and 72 3/4" without adapters, with a minimum arm height of just 6 inches for low-clearance vehicles. The robust 8" x 14 1/2" column size and heavy-duty construction ensure years of dependable service.

The lift requires 3-5 gallons of AW32/AW46 hydraulic oil (not included) and weighs approximately 2,600 lbs. With an outside column to outside column width of 135", this lift provides ample workspace while maintaining a compact enough footprint for most shop environments.

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 15,000 lb. Capacity

• Heavy Duty, Commercial Grade

• Extra Tall & Extra Wide

• Overall Height 174 1/2" (14' 6 1/2")

• Padded Carriages

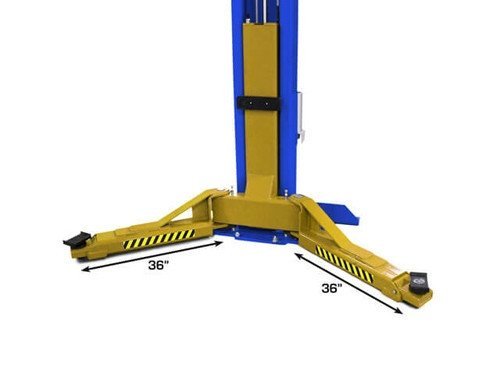

• Symmetric Arms

• Professional Grade Arm Lock Restraint System

• Dual Direct-Drive Hydraulic Cylinders

• Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters

• Heavy Duty 3/8" Equalization Cables

• Mounting Hardware Included

• Premium ALLY AL2300 Power Unit View Power Unit Specs

Includes

• Truck Adapter Set

• Mounting Hardware

AP-Z23A-00H1

• Adds 2 feet of height

Supersedes ATTDP-APEX10H-STD-EXT-KIT

Product Specifications

Specifications
PVL15-EXT

Capacity
15,000 lbs

Overall Height
174 1/2" (14' 6 1/2")

Overall Floor Width
148" (12' 4")

Outside Column to Outside Column
135" (11' 3")

Max Lift Height w/Truck Adapters
87 1/2" (7' 3 1/2")

Max Lift Height w/o Truck Adapters
72 3/4" (6' 3/4")

Minimum Arm Height
6"

Inside Columns
119 1/4" (9' 11 1/4")

Drive Thru
107 1/2" (8' 11 1/2")

Column Size
8" x 14 1/2"

Lifting Time
80S

Adapter Heights
4 ea 5" & 10"

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Motor/Electrical Requirement
220V single (1) phase / 30 amp breaker is required.

Weight
2,600 lbs

Key Features

• Published product configuration: Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs w/Ext Kit The Atlas® Platinum PVL15 is the ultimate solution for professional shops that need to handle everything from long wheelbase trucks to passenger cars with confidence and safety. This ALI CERTIFIED, commercial-grade overhead two-post lift is engineered
• Exact manufacturer model or part number: AP-PVL15-EXT
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Compatibility & Ordering Notes

Use the manufacturer model / part number AP-PVL15-EXT as the primary ordering reference. Before purchase, match the equipment model, serial-number range, mounting or connection details, and any size or electrical requirements shown in the listing. Compatibility is not implied beyond the verified information above.
