Atlas® PRO-9D Symmetric / Asymmetric 2 Post Lift 9,000 lbs

Product Overview

Atlas® PRO-9D Symmetric / Asymmetric 2 Post Lift 9,000 lbs

Wiring Instructions Available:
for this lift.

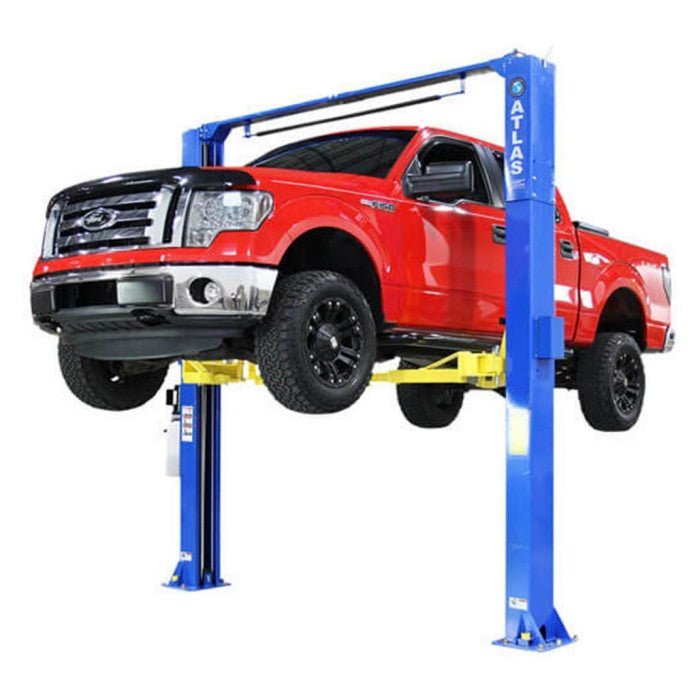

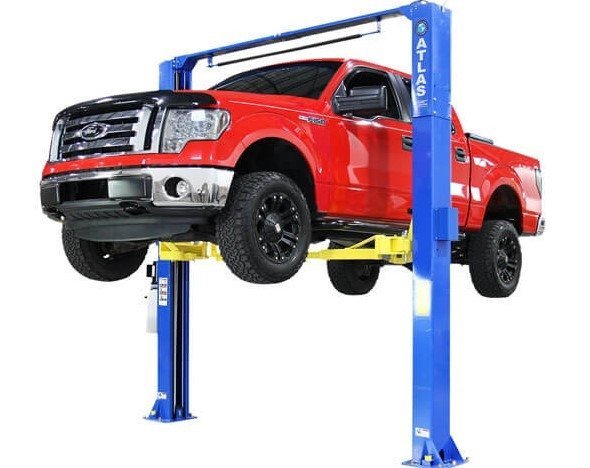

The Atlas® PRO-9D two post above ground lift delivers professional-grade lifting performance at an exceptional value. With a true 9,000 lb. capacity and a 12-foot overall height, this overhead, open-floor design lift is the perfect choice for smaller commercial repair facilities, professional technicians, and serious home garage enthusiasts who demand the highest quality without compromise.

Engineered with dual direct-drive cylinders and an innovative asymmetric/symmetric arm configuration, the PRO-9D offers unmatched versatility for servicing everything from compact cars with low pickup points to heavy-duty pickup trucks. The direct-drive system eliminates unnecessary moving parts, ensuring years of reliable, low-maintenance lifting service from your Atlas above ground hoist.

Overhead Open-Floor Design for Maximum Shop Efficiency

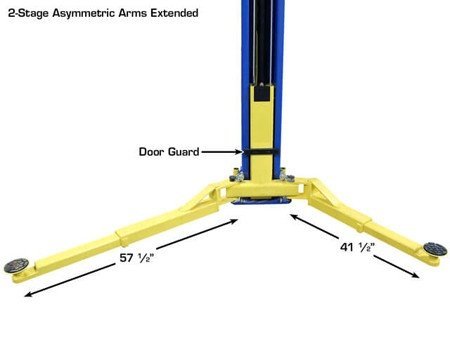

The Atlas® PRO-9D features symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. This dual-configuration capability gives you the flexibility to adapt to virtually any vehicle service scenario. In asymmetric mode, you gain optimum door clearance and superior weight distribution for most passenger vehicles. Switch to symmetric mode for truck work or vehicles where centered lifting is preferred.

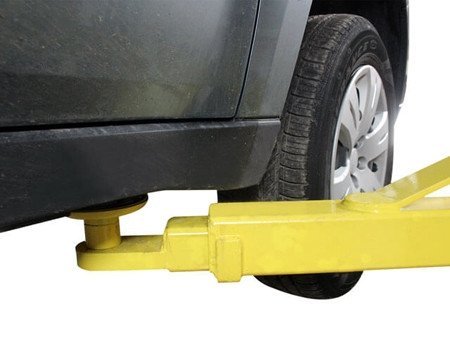

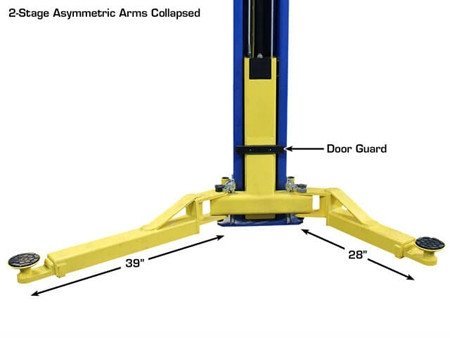

The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration, with a minimum arm height of just 4 1/2 inches. This low pad height allows operators to position the lift arms under most small cars with low pickup points as well as heavier pickup trucks—making the PRO-9D one of the most versatile two-post lifts in its class.

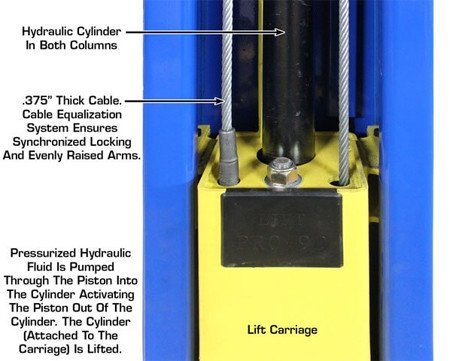

Dual Direct-Drive Cylinder System

The PRO-9D utilizes a dual direct-drive cylinder lifting system for superior reliability and performance. With fewer moving parts than traditional chain or cable systems, the direct-drive design reduces wear, minimizes maintenance requirements, and provides smooth, consistent lifting power. This proven system ensures years of excellent lifting service from your Atlas above ground hoist, with less downtime and lower operating costs.

The lift is powered by a 220V single-phase motor requiring a 30 amp breaker. It uses 3-5 gallons of AW32/AW46 hydraulic oil and features.375-inch diameter cables for maximum strength and safety. Heavy-duty construction includes 5mm column steel thickness, 6mm carriage steel, and 6mm arm steel for exceptional durability under demanding shop conditions.

Professional Features and Safety

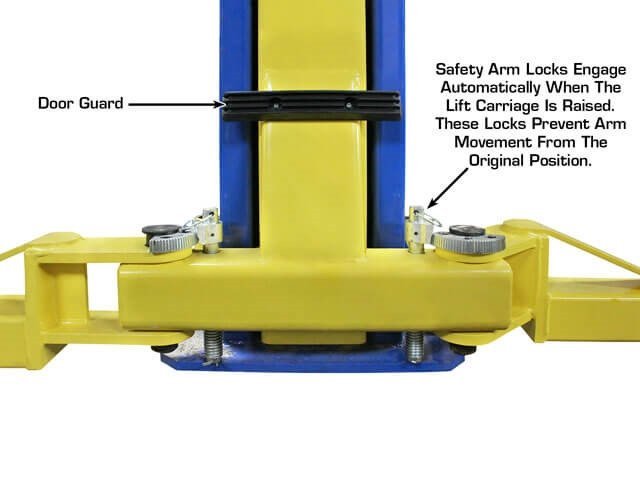

Every Atlas® PRO-9D comes equipped with professional-grade safety and convenience features designed to enhance productivity and protect your investment. The single-point lock release allows for fast, easy engagement and disengagement of the mechanical safety locks. Automatic arm restraints secure the lift arms in place during operation, preventing unwanted movement.

Rubber guards on carriages protect vehicle body and frame components from damage during lifting. The entire lift is finished with a durable powder coat finish that resists corrosion, chemicals, and shop wear. All mounting hardware is included, and the lift requires a minimum of 4 inches of concrete with 3000 psi for proper installation.

Key Highlights

• 9,000 lb. capacity handles a wide range of vehicles from compact cars to light trucks

• Dual configuration arms switch between symmetric and asymmetric positioning for maximum versatility

• Low 4 1/2" minimum arm height accommodates vehicles with low pickup points and ground clearance

• Dual direct-drive cylinders with fewer moving parts for reliable, low-maintenance operation

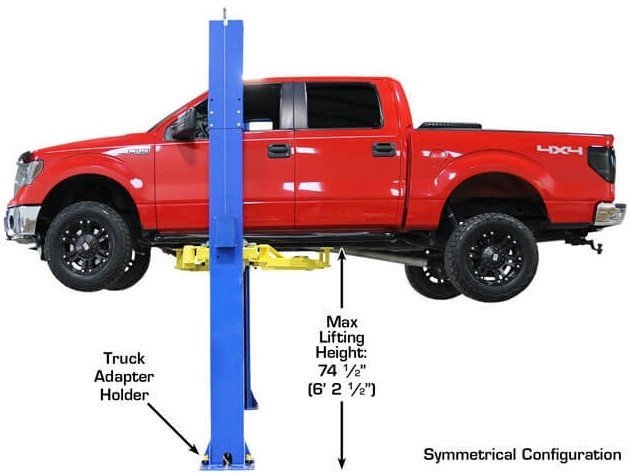

• Maximum lift height of 78 1/4 inches (with adapters) provides ample working clearance

• Includes truck adapter set for expanded vehicle compatibility right out of the box

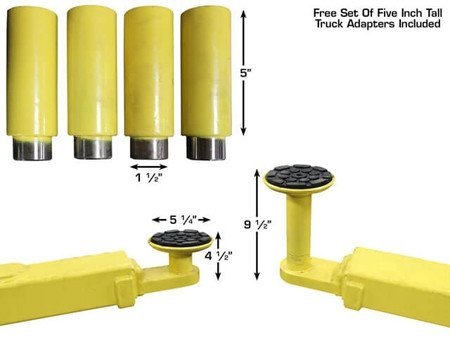

Included Truck Adapter Set

The PRO-9D comes complete with a truck adapter set, giving you the ability to safely lift trucks and vehicles with higher pickup points right from day one. These heavy-duty adapters extend your lifting capability and ensure secure contact with a variety of frame and chassis configurations.

Included truck adapter set for expanded vehicle compatibility

Watch the Atlas® PRO-9D in operation

Product Features

• 9,000 LB. Capacity

• Overhead, Open-Floor design

• Asymmetric/Symmetric Arms

• Automatic Arm Restraints

• Single-Point Lock Release

• Rubber Guards on Carriages

• Dual Direct-Drive Cylinders

• Powder Coat Finish

• Mounting Hardware Included

Includes

• Truck Adapter Set

Product Specifications

Specifications
PRO-9D

Capacity
9,000 lbs

Lifting Time
N/A

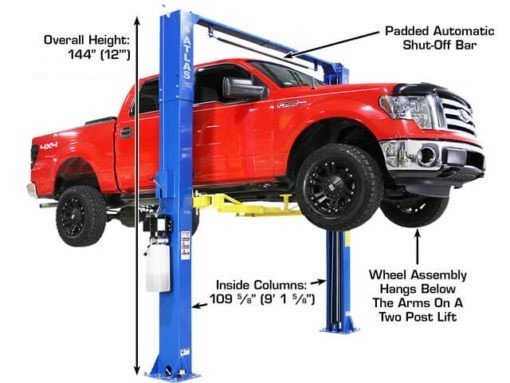

Overall Height
144" (12')

Overall Floor Width
134.6"

Outside Column To Outside Column
124 7/8" (10’ 4 7/8")

Max Lift Height w/o Adapters
68"

Max Lift Height w/Adapters
78 1/4"

Minimum Arm Height
4 1/2"

Inside Column
109 3/4"

Column Size
7 ¼" x 11"

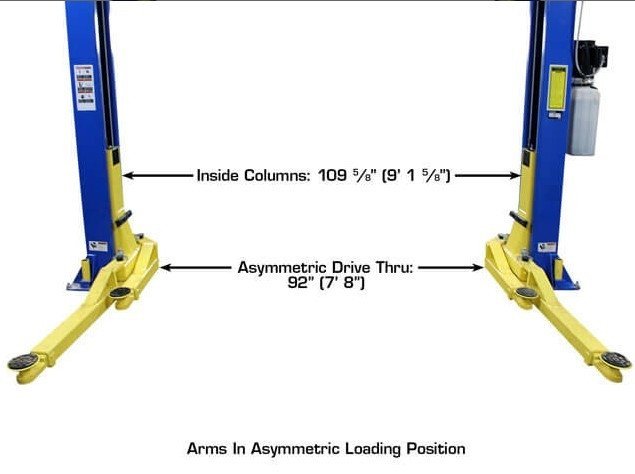

Drive Thru Arm Configuration
100" Symmetric/ 92 1/4" Asymmetric

Base of Lift
14 ¼" x 18"

Column Thickness of Steel
5mm

Carriage Thickness of Steel
6mm

Arms Thickness of Steel
6mm

Cable Diameter
.375"

Motor/Electrical Requirement
220V single (1) phase / 30 amp breaker is required.

Oil Requirement
3-5 Gallons AW32/AW46

Weight
1,450 LB.

Requires a minimum of 4" of concrete with 3000 psi

Key Features

• Published product configuration: Atlas® PRO-9D Symmetric / Asymmetric 2 Post Lift 9,000 lbs Wiring Instructions Available: for this lift. The Atlas® PRO-9D two post above ground lift delivers professional-grade lifting performance at an exceptional value. With a true 9,000 lb. capacity and a 12-foot overall height, this overhead, open-floor design
• Exact manufacturer model or part number: XH-PRO-9D
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• 3 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model XH-PRO-9D, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
