AMGO® Hydraulics AX-12A Scissor Alignment Lift 12,000 lbs.

Product Overview

AMGO® Hydraulics AX-12A Scissor Alignment Lift 12,000 lbs.

Professional Alignment Service Design

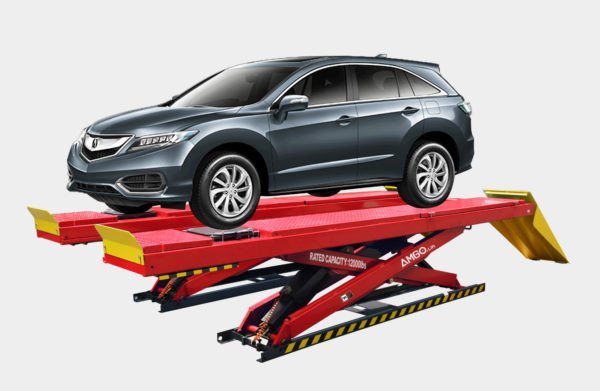

The AMGO AX-12A Alignment Scissor Lift is engineered to expand your shop's capacity for larger vehicles and handle greater workloads with its rugged design and increased dependability. With a hefty 12,000 lbs (6 ton) lifting capacity, this lift provides the heavy-duty performance mechanics need to increase efficiency and productivity for greater long-run profits.

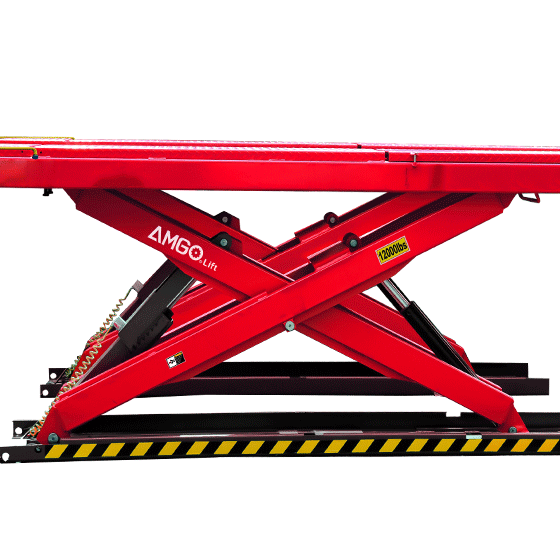

Designed specifically for alignment service, the AX-12A features a full-rise design that lifts vehicles to a maximum height of 72 13/16", offering a comfortable working experience underneath even the largest SUVs and trucks. The Robot X scissors heavy-duty structure provides superior performance and durability, ensuring this lift will be a reliable workhorse in your shop for years to come.

The electric-hydraulic power system with control power unit delivers smooth, consistent operation with a 75-second lifting time. Powered by a robust 2.0 HP motor, the lift operates efficiently while maintaining the precision needed for alignment work. Two groups of four hydraulic cylinders work in concert to assure equalization and safety across both platforms, providing stable, level lifting every time.

Advanced Safety & Versatility

Safety is paramount with the AX-12A. The lift features a dual safety system with both hydraulic lock and self-locking mechanical lock with air lock release, providing redundant protection for your technicians and vehicles. An automatic safety stop device comes standard, adding another layer of security during operation.

The non-slip long and wide platforms accommodate a diverse range of vehicles, from compact cars to full-size trucks and SUVs. With a width between runways of 40 15/16" and an overall width of 90 3/16", the lift provides excellent access for alignment work. The runway length of 197 9/16" and overall length of 258" (including ramps) ensure compatibility with longer wheelbase vehicles.

For alignment flexibility, the lift supports a minimum four-wheel alignment wheelbase of 81 15/16" and extends to a maximum four-wheel alignment of 167 15/16". Two-wheel alignment is supported up to 170 1/2", making this lift adaptable to virtually any alignment job your shop encounters.

Key Highlights

• 12,000 lbs capacity handles heavy-duty trucks, SUVs, and commercial vehicles with ease

• Full-rise design to 72 13/16" provides comfortable standing height for technicians working underneath

• Robot X scissors structure delivers superior durability and performance over conventional designs

• Dual safety system with hydraulic lock, mechanical lock, and automatic safety stop for maximum protection

• Wide alignment range accommodates wheelbases from 81 15/16" to 170 1/2" for maximum versatility

Important Note: Turn plates are NOT included as standard equipment with the AX-12A and must be purchased separately.

Product Images

Detailed specifications and dimensions diagram for the AMGO AX-12A

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 12,000lbs capacity;

• Alignment service design

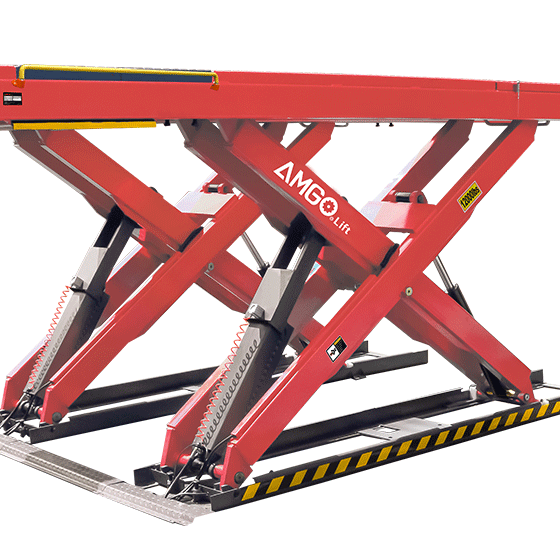

• Robot X scissors heavy duty structure, provides superior performance and durability

• Full rise design, offers comfortable experience work underneath

• Two groups of total 4 hydraulic cylinders are integrated to assure the equalization and safety of both platforms

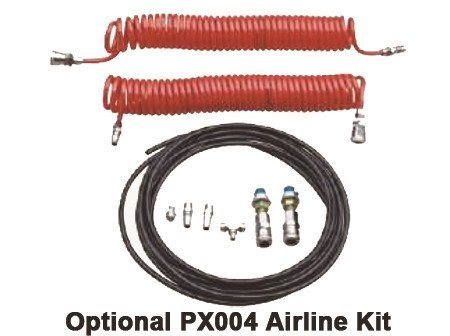

• Dual safety system feature both hydraulic lock and self-locking mechanical lock with air lock release

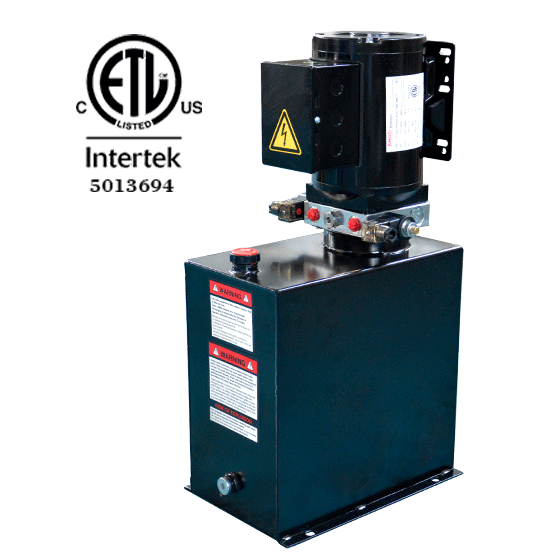

• Electric-hydraulic power system, with control power unit

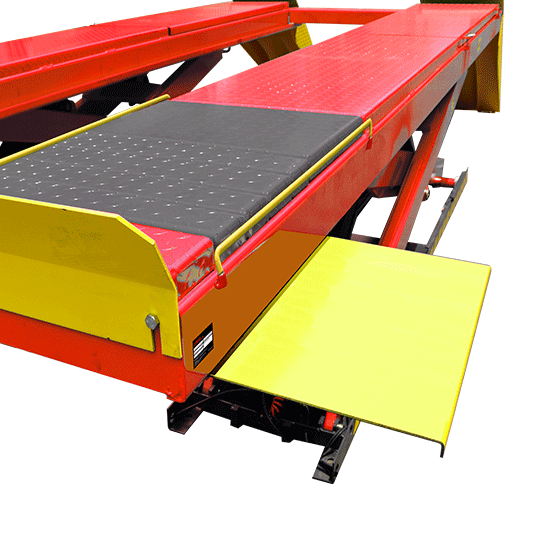

• Non-slip long and wide platforms accommodate various vehicles

• Automatic safety stop device come standard

• Turn plates are NOT standard. Must be purchased separately

Includes

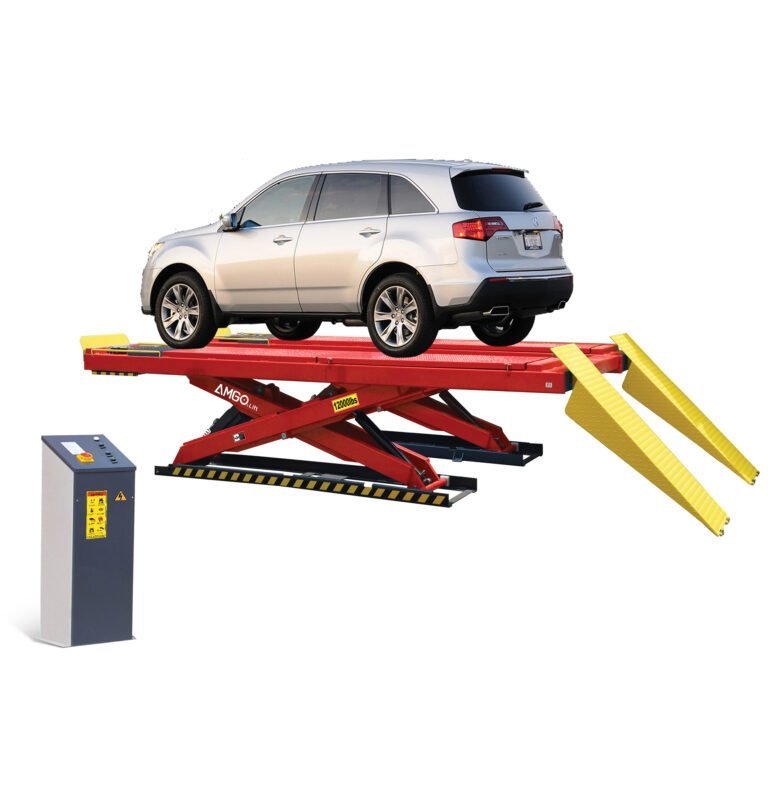

• Control Cabinet

Product Specifications

Specifications
AX-12A

Lifting Capacity
12,000 lbs

A Max Lifting Height
72 13/16"

A Max Lock Height
71 1/16"

A Min Height
12"

Lifting Time
75s

B Runway Length
197 9/16"

C Overall Width
90 3/16"

D Width Between Runways
40 15/16"

E Overall Length (Inc. Ramps)
258"

F Min. Four Wheel Align
81 15/16"

G Max. Four Wheel Align
167 15/16"

H Max. Two Wheel Align
170 1/2"

Motor
2.0 HP

Gross Weight
5,741 lbs

Key Features

• Published product configuration: AMGO® Hydraulics AX-12A Scissor Alignment Lift 12,000 lbs. Professional Alignment Service Design The AMGO AX-12A Alignment Scissor Lift is engineered to expand your shop's capacity for larger vehicles and handle greater workloads with its rugged design and increased dependability. With a hefty 12,000 lbs (6 ton)
• Exact manufacturer model or part number: AX-12A
• Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model AX-12A, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Manufacturer document 1
• Manufacturer document 2
