Whip Industries WFP30R Heavy-Duty Four Post Car Lift 30,000 lb.

Product Overview

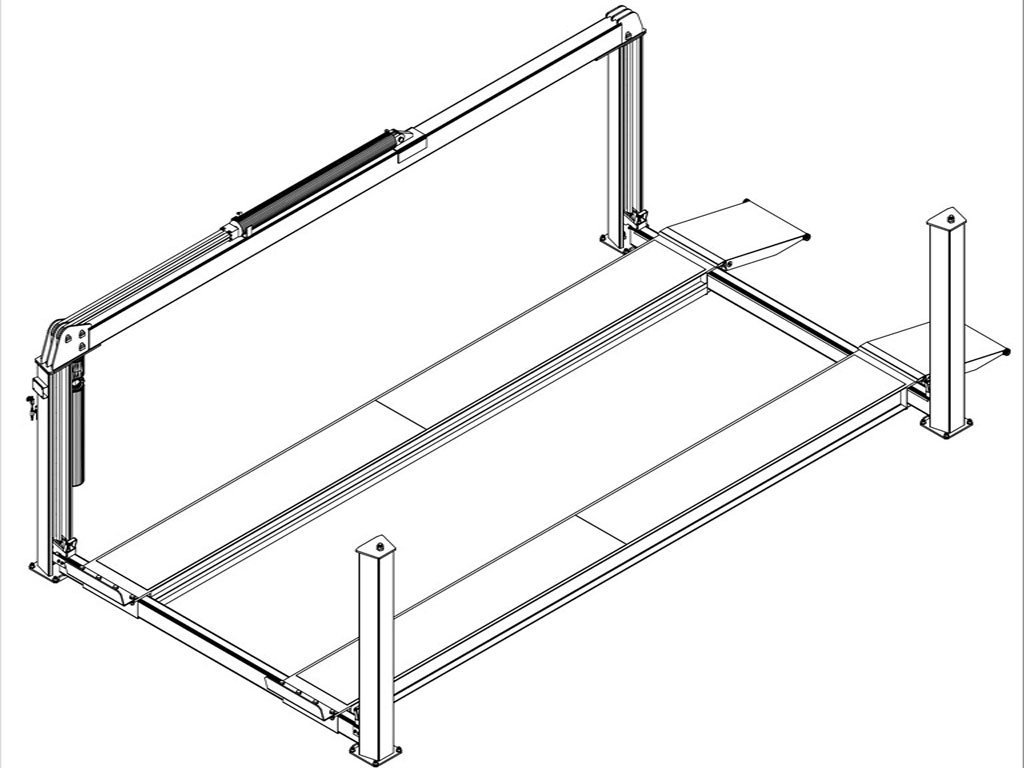

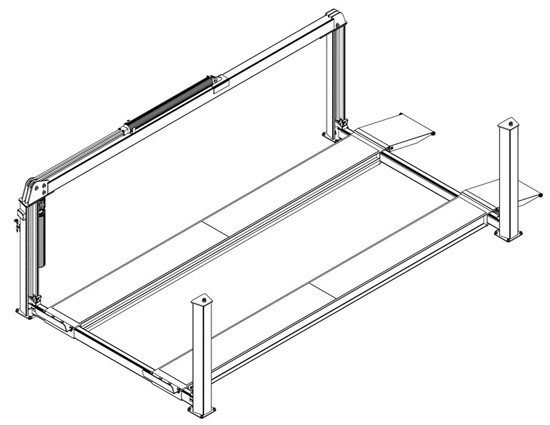

Whip Industries WFP30R Heavy-Duty Four Post Car Lift 30,000 lb.

The Whip Industries WFP30R is a professional-grade, 30,000 lb. capacity four post truck lift engineered for heavy-duty commercial and fleet applications. Built to handle the toughest jobs, this American-made lift features 24" wide runways and an impressive 230" wheelbase, making it ideal for servicing full-size trucks, commercial vehicles, and large equipment. With its robust construction, adjustable runways, and comprehensive safety features, the WFP30R delivers the reliability and performance that professional shops demand.

Heavy-Duty Performance and Versatility

Designed specifically for heavy-duty vehicle service, the WFP30R combines exceptional lifting capacity with practical features that enhance daily shop operations. The lift's adjustable runways accommodate a wide variety of vehicle widths, while the fold-down approach ramps with integrated jack rails provide convenient access for positioning vehicles and allow for safe jacking operations once the vehicle is elevated.

With a 68" rise height and 9" runway height, this lift offers ample working clearance for comprehensive undercarriage access. The 2HP motor operating on 208/230v single phase power raises the lift to full height in approximately 105 seconds, balancing speed with smooth, controlled operation. The lift's 6 position locking mechanism with single position pneumatic safety release ensures secure vehicle placement at multiple working heights.

Advanced Safety and Stability Features

Safety is paramount in heavy-duty lifting applications, and the WFP30R incorporates multiple safety systems to protect both operators and vehicles. The integrated anti-sway device minimizes lateral movement during lifting operations, providing enhanced stability when working with tall or top-heavy vehicles. The pneumatic safety release system allows for controlled, single-position lowering, while the 6 position locking system provides secure engagement at each height setting.

The lift's substantial 295.5" overall length and 149.5" overall width provide a stable footprint for lifting operations. With an overall height of 92", the lift fits comfortably in facilities with standard commercial ceiling heights. The lift requires a minimum bay size of 186" x 360" and must be installed on concrete flooring with 3,000 PSI rating, 4" thickness, and steel reinforcement to ensure proper structural support.

Key Advantages of the WFP30R

• 30,000 lb. lifting capacity handles full-size trucks, commercial vehicles, and heavy equipment

• 24" wide runways provide stable support for wide-stance vehicles

• 230" maximum wheelbase accommodates extended-wheelbase trucks and work vehicles

• Adjustable runway width ranges from 54" to 75" between runways for maximum versatility

• Fold-down approach ramps with jack rails simplify vehicle loading and enable safe jacking operations

• Anti-sway device enhances stability during lifting and lowering

• Made in USA quality and construction standards

Built-to-Order Quality

Each Whip Industries WFP30R is manufactured to order, ensuring you receive a lift built specifically to meet exacting quality standards. This build-to-order process allows for thorough quality control and precision fabrication, but it also means these lifts are custom-manufactured for your shop. Please note: Due to the built-to-order nature of this product, a 50% cancellation fee applies.

Important Maintenance Information

Product Features

• 30,000 lb. lifting capacity

• 230" wheelbase

• 24" wide runways

• Fold down approach ramps, with jack rails

• There is a 50% Canceling Fee Due to these are Built to Order

Product Specifications

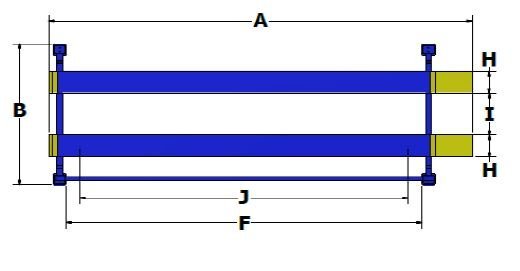

Specifications
WFP30R

Capacity
30,000 lbs.

A Overall Length
295.5"

B Overall Width
149.5"

c Overall Height
92"

D Rise Height
68"

E Inside Columns
132.5"

F Between Columns
233.75"

G Height of Runways
9"

H Width of Runways
24"

I Width Between Runways
54.00" – 75.00"

J Max. Wheelbase
230"

Max. Wheelbase 2 Wheel Align
N/A

Max. Wheelbase 4 Wheel Align
N/A

Speed of Rise
105 sec.

Min. Bay Size
186.00" x 360.00"

Floor Installation Requirement
Concrete, 3,000 PSI, 4" Thick, Steel Reinforced

Motor
2HP

Voltage
208/230v Single Phase

Amps
30

Key Features

• Published product configuration: Whip Industries WFP30R Heavy-Duty Four Post Car Lift 30,000 lb. The Whip Industries WFP30R is a professional-grade, 30,000 lb. capacity four post truck lift engineered for heavy-duty commercial and fleet applications. Built to handle the toughest jobs, this American-made lift features 24" wide runways and an impressive
• Exact manufacturer model or part number: Whip-WFP30R
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model Whip-WFP30R, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Manufacturer document 1
• Manufacturer document 2
