6 Cu Ft Concrete Mixer | Crown | Steel Drum | Honda Gas | Towable
$3,135.00
Crown Equipment C6 Series Towable Concrete Mixer is configured for high-volume concrete or mortar mixing with towable jobsite mobility. Key configuration: Gasoline power source, Honda 5.5-8 HP gas or Baldor 1.5 HP electric power, and 6 ft³ drum capacity.

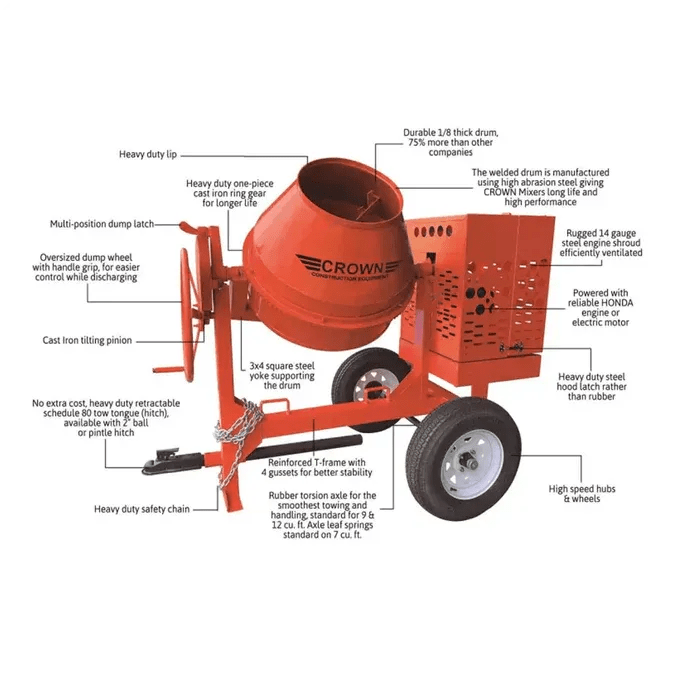

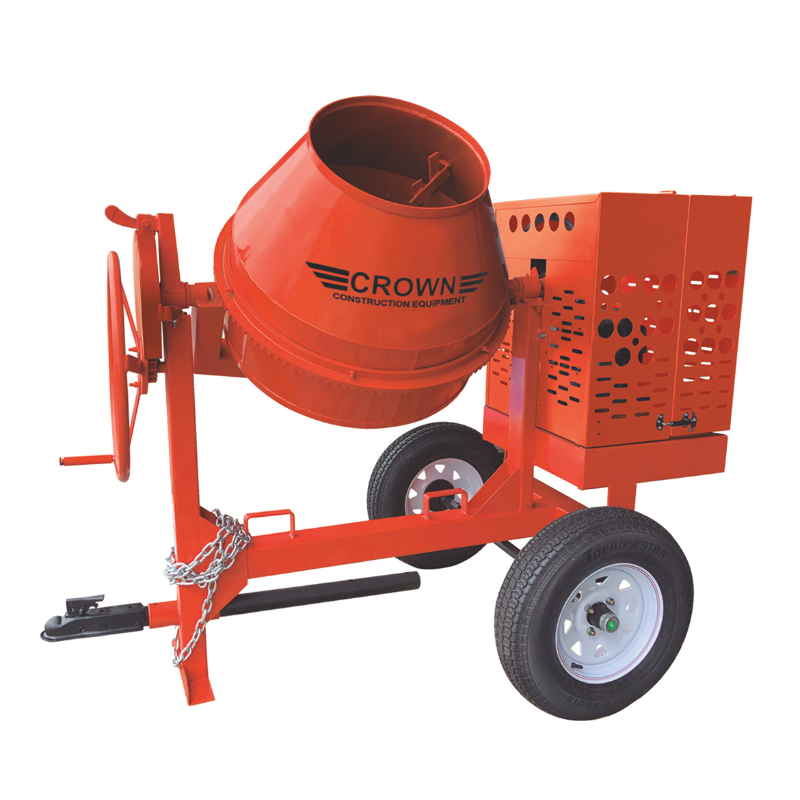

Crown Equipment C6 Series Towable Concrete Mixer is a towable concrete mixer designed for high-volume concrete or mortar mixing with towable jobsite mobility. The C6 Series configuration pairs Gasoline power source, Honda 5.5-8 HP gas or Baldor 1.5 HP electric power, and 6 ft³ drum capacity.
Key differentiators
- 6 ft³ batch/output detail helps crews plan mix cycles
- Honda GX160 power package matched to the SKU configuration
- Steel drum construction selected for jobsite wear and cleanup
- Pinions & Gear Rings drive system for consistent material turnover
- Towable mixer format supports concrete crews moving between pours
- Drum and paddle design supports consistent concrete, mortar, grout, or stucco mixes
Specifications
- Drum Capacity
- 6 ft³
- Drum Material
- Steel drum
- Horse Power
- 5.5 HP per SKU source; manufacturer family supports 5.5-8 HP
- Power Source
- Gasoline
- Weight
- 790 lb approx
- Product Type
- Concrete Mixer
- Product Subtype
- Highway
- Model/Series
- C6 Series
- Part #
- 609856
- frame
- )
- Mixing Blades
- Steel
- Engine/Motor

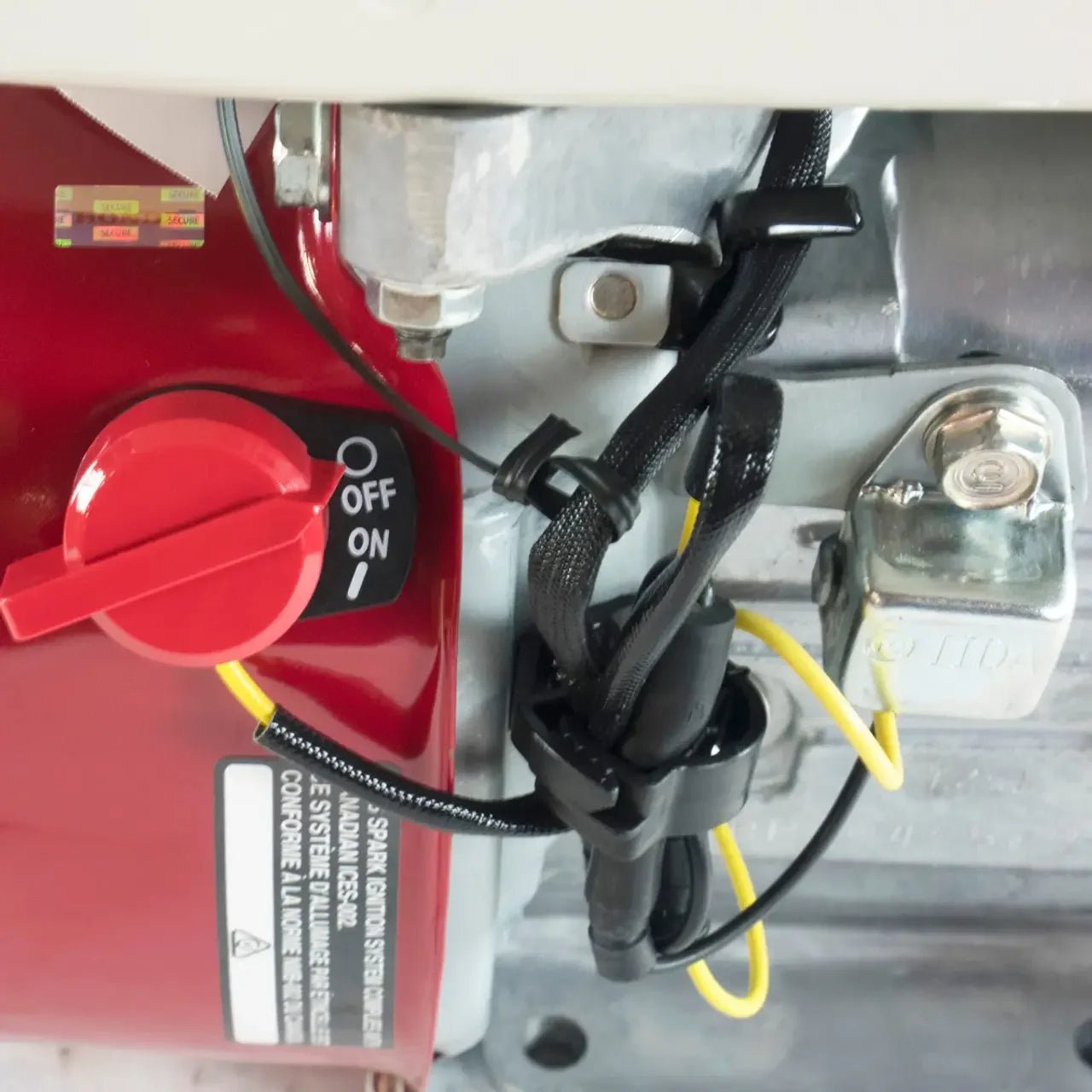

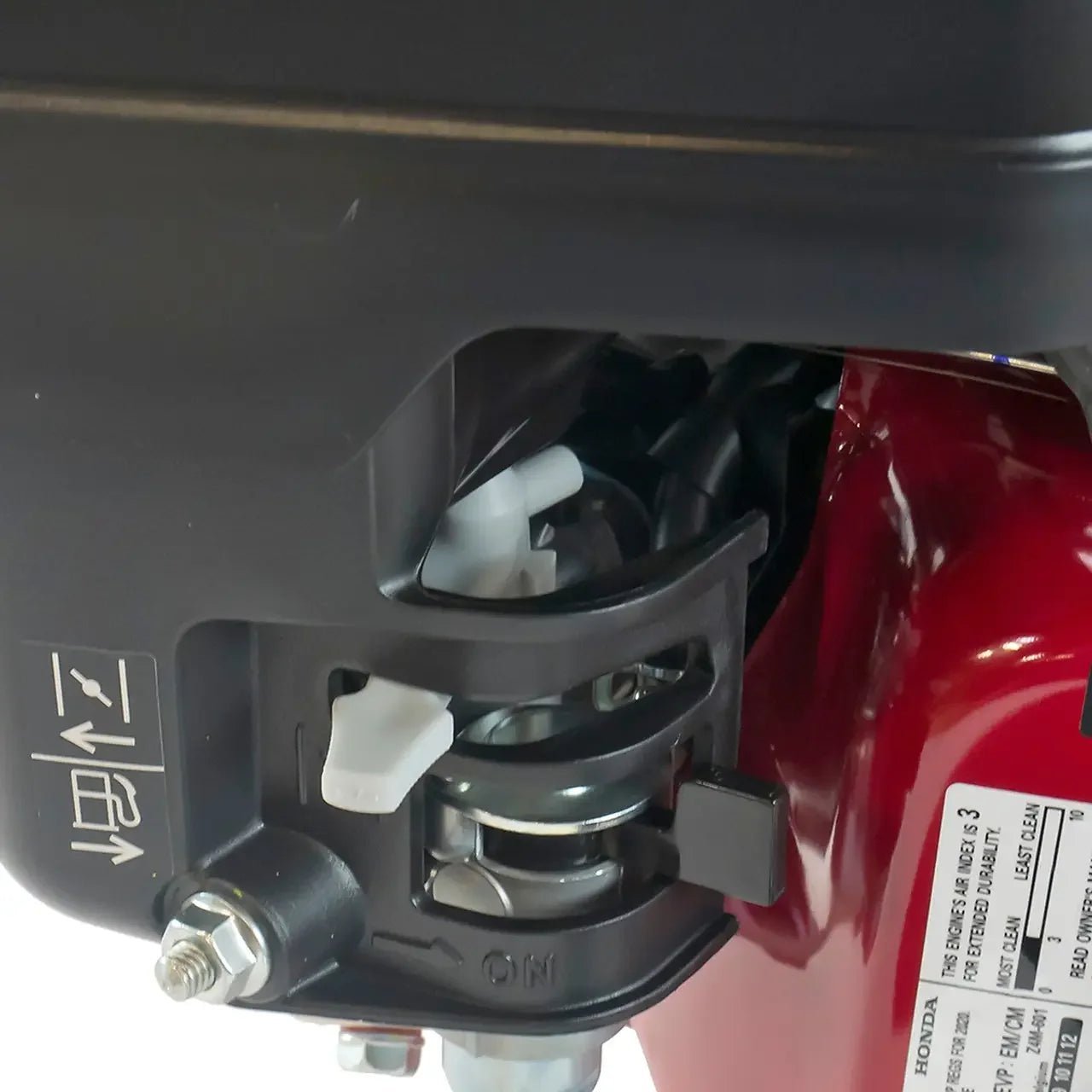

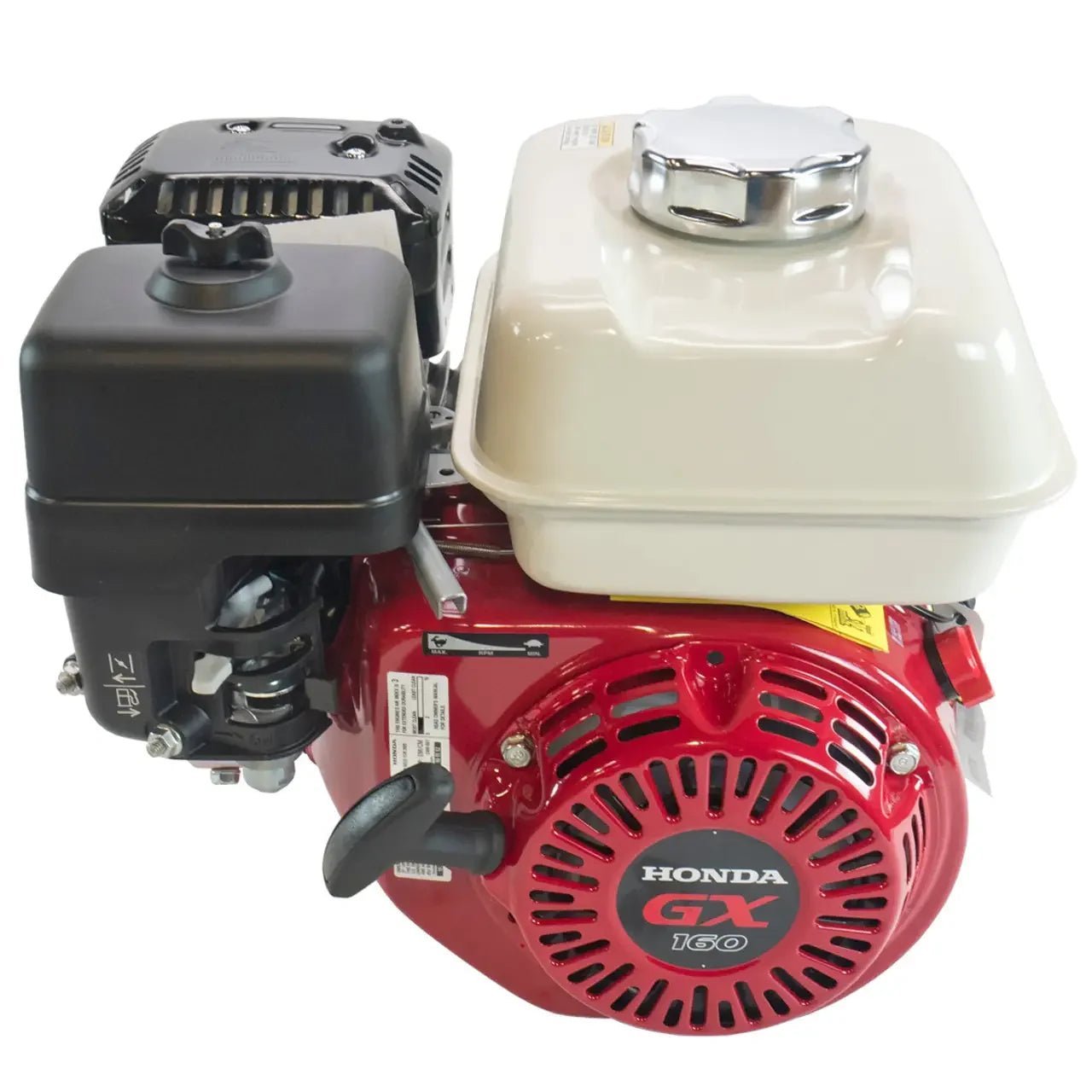

- Honda GX160
- Drive Type
- Cast Iron
- Drive
- Pinions & Gear Rings
- Drum Diameter Opening
- 18"
- Batch Input
- 0.5 – 1 bag
- Batch Output
- 6 ft³
- Charging Height
- 30"
- Batch Materials
- Concrete
- Axle Type
- Heavy-Duty w/ High-Speed Taper Rolling Bearings
- Wheel Size
- 5.3" x 12"
- Wheel Type
- Pneumatic
- Forklift Pockets
- Yes (2
- Stand Type
- High-Strength
- Removable Drum
- Yes (the drum can be interchanged with other drum sizes using the same
- Width (in)
- 51.5"
- Operating Length (in)
- 71.5"
- Towing Length (in)
- 90.5"
- Height (in)
- 58.5"
- Warranty
- 1 year limited
- Manufacturer family
- C6 Concrete Mixer
- Manufacturer family capacity
- 7 cu ft; Equipment Broker Group/retailer title lists 6 cu ft output/capacity
- Batch Capacity Bags
- 0.5-1 bag
- Power
- Honda 5.5-8 HP gas or Baldor 1.5 HP electric
- Drive System
- V-belt to gears
- Tires
- 4.8 x 12 pneumatic
- Overall Width
- 48"
- Overall Length
- 83" tow pole in
- Overall Height
- 58" drum down
- Drum thickness
- 1/8 in / 10 steel gauge
- Included
- Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
Best-fit applications
The C6 Series is best matched to high-volume concrete or mortar mixing with towable jobsite mobility where the job requires Gasoline power source, Honda 5.5-8 HP gas or Baldor 1.5 HP electric power, and 6 ft³ drum capacity.
- Site utility or fuel: Gasoline
- Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
- Handling reference: 790 lb approx
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
| Weight | 850.001 lbs |
|---|---|
| Brand | Crown Construction Equipment |
| Product Type | Towable Concrete Mixer |
