9 Cu Ft Cement Mixer | Crown | Poly Drum | Honda Gas | Towable

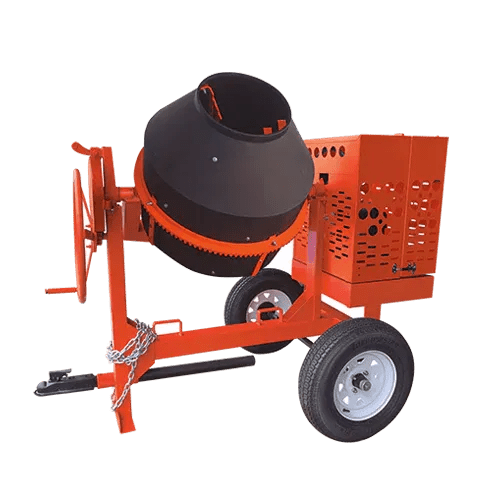

Crown Equipment C9 Eliminator Series Towable Concrete Mixer is a towable concrete mixer designed for high-volume concrete or mortar mixing with towable jobsite mobility. The C9 Eliminator Series configuration pairs Gasoline power source, Honda 8 HP gas or Baldor 1.5 HP electric power, and 9 cu ft drum capacity.

Key differentiators

• 9 ft³ batch/output detail helps crews plan mix cycles

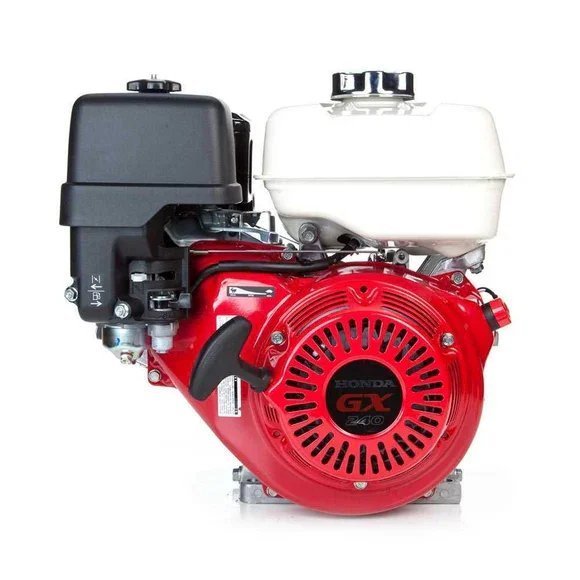

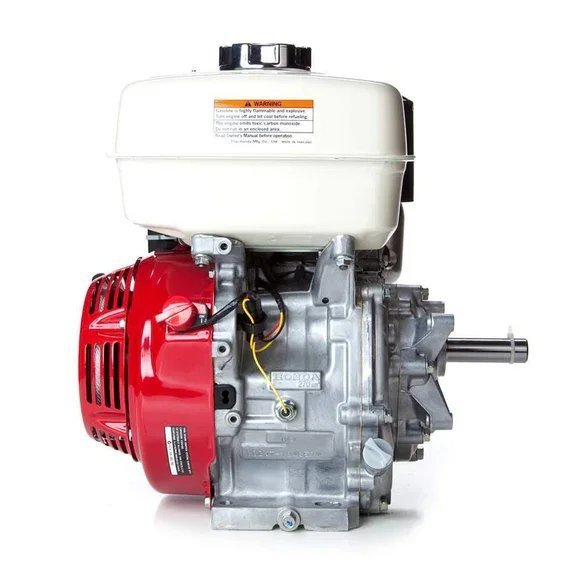

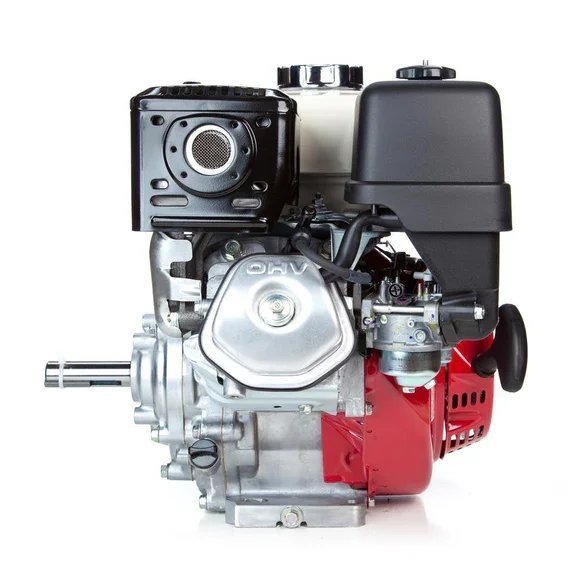

• Honda GX240 power package matched to the SKU configuration
• Poly / polyethylene drum construction selected for jobsite wear and cleanup
• Pinions & Gear Rings drive system for consistent material turnover
• Towable mixer format supports concrete crews moving between pours
• Drum and paddle design supports consistent concrete, mortar, grout, or stucco mixes

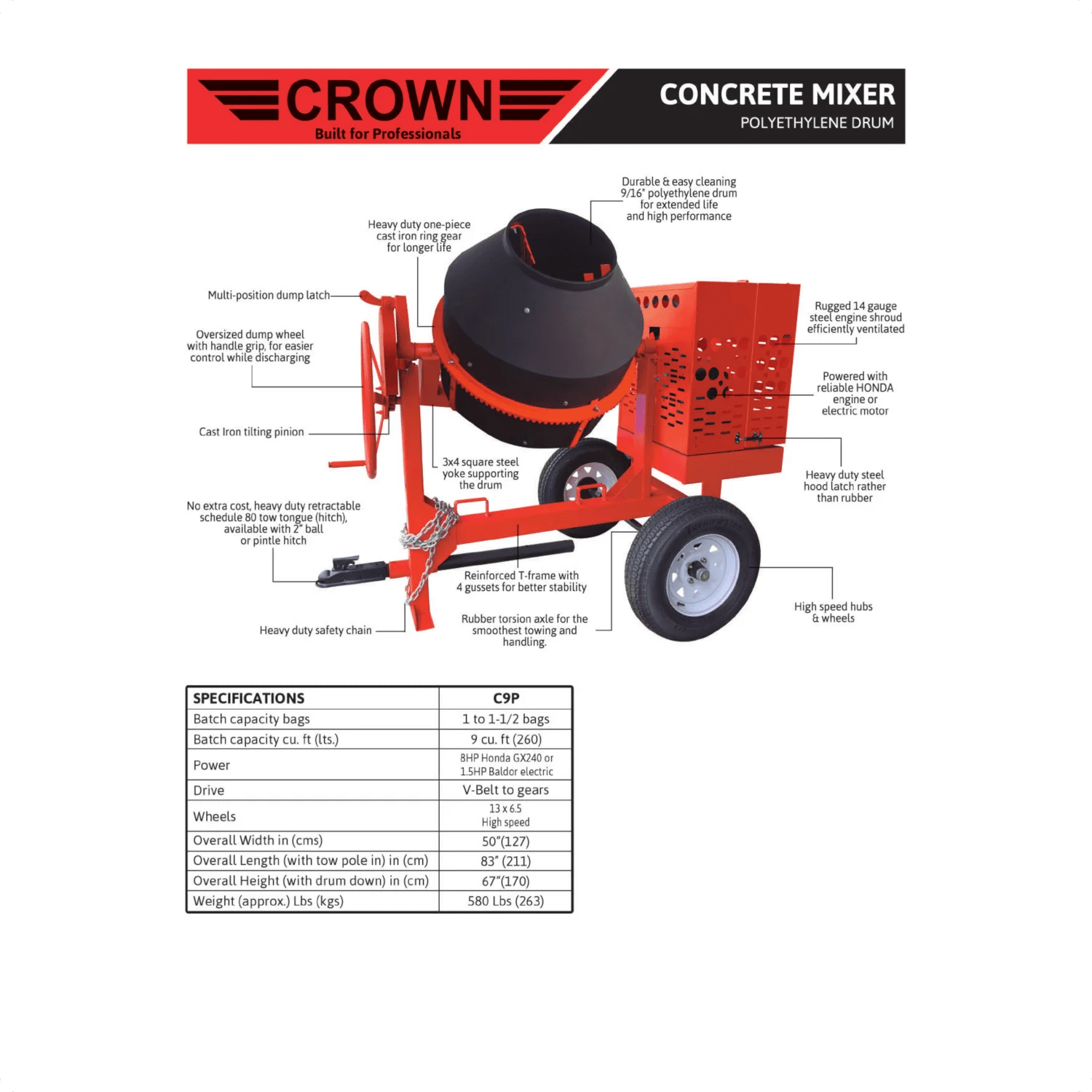

Specifications

Drum Capacity

9 cu ft

Drum Material

Poly / polyethylene drum

Horse Power

8 HP

Power Source

Gasoline

Weight

580 lb approx

Product Type

Concrete Mixer

Product Subtype

Highway

Model/Series

C9 Eliminator Series

Part #

609872

frame

).

Mixing Blades

Steel

Engine/Motor

Honda GX240

Drive Type

Cast Iron

Drive

Pinions & Gear Rings

Drum Diameter Opening

19"

Batch Input

1 – 1.5 bags

Batch Output

9 ft³

Charging Height

31"

Batch Materials

Concrete

Axle Type

Rubber Torsion Suspension System

Wheel Size

B78 x 13"

Wheel Type

Pneumatic

Forklift Pockets

Yes (2

Stand Type

High-Strength

Removable Drum

Yes (the drum can be interchanged with other drum sizes using the same

Width (in)

51.5"

Operating Length (in)

78"

Towing Length (in)

98"

Height (in)

63.5"

Warranty

1 year limited

Manufacturer family

C9P Concrete Mixer

Batch Capacity Bags

1-1.5 bags

Power

Honda 8 HP gas or Baldor 1.5 HP electric

Drive System

V-belt to gears

Tires

175/70R13 pneumatic

Overall Width

50"

Overall Length

83" tow pole in

Overall Height

67" drum down

Drum thickness

9/16" poly

Included

Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant

Best-fit applications

The C9 Eliminator Series is best matched to high-volume concrete or mortar mixing with towable jobsite mobility where the job requires Gasoline power source, Honda 8 HP gas or Baldor 1.5 HP electric power, and 9 cu ft drum capacity.

• Site utility or fuel: Gasoline
• Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
• Handling reference: 580 lb approx
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
