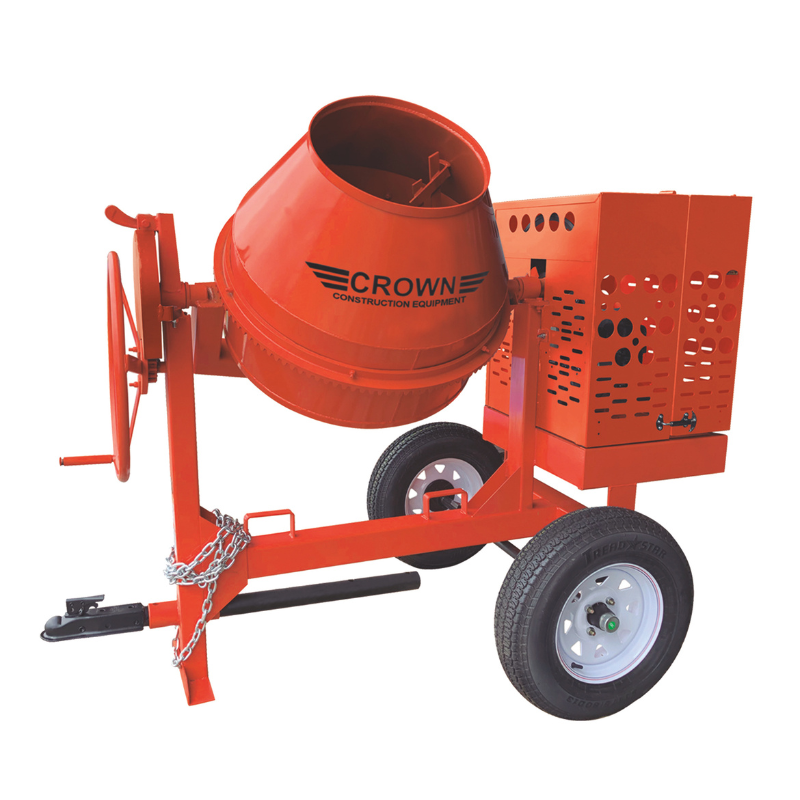

6 Cu Ft Concrete Mixer | Crown | Steel Drum | Baldor Electric | Towable

Crown Equipment C6 Series Towable Concrete Mixer is a towable concrete mixer designed for high-volume concrete or mortar mixing with towable jobsite mobility. The C6 Series configuration pairs AC-powered power source, Honda 5.5-8 HP gas or Baldor 1.5 HP electric power, and 6 ft³ drum capacity.

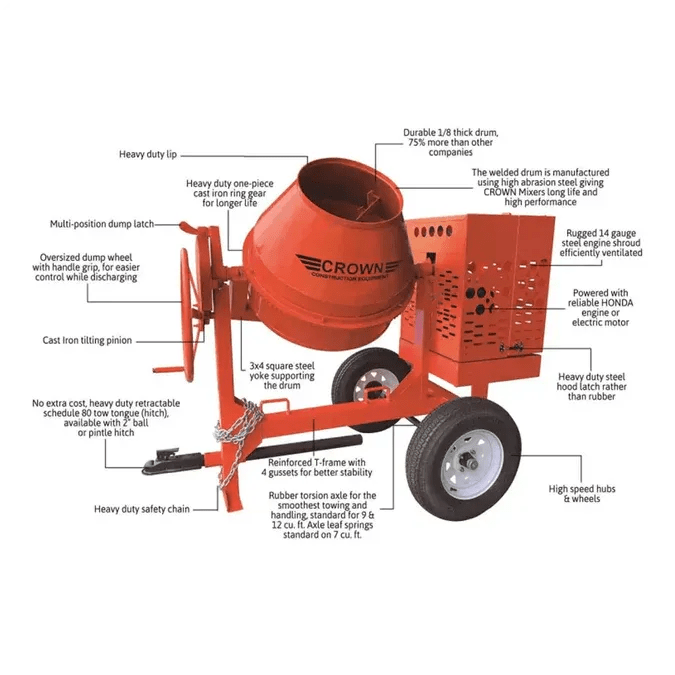

Key differentiators

• 6 ft³ batch/output detail helps crews plan mix cycles
• Baldor electric motor power package matched to the SKU configuration
• Steel drum construction selected for jobsite wear and cleanup
• Pinions & Gear Rings drive system for consistent material turnover
• Towable mixer format supports concrete crews moving between pours
• Drum and paddle design supports consistent concrete, mortar, grout, or stucco mixes

Specifications

Drum Capacity

6 ft³

Drum Material

Steel drum

Horse Power

1.5 HP manufacturer family spec; retailer SKU source lists 2.0 HP

Power Source

AC-powered

Weight

790 lb approx

Product Type

Concrete Mixer

Product Subtype

Highway

Model/Series

C6 Series

Part #

609842

Frame

High Strength

Mixing Blades

Steel

Engine/Motor

Baldor electric motor

Gearbox Drive Type

Cast Iron

Drive

Pinions & Gear Rings

Drum Diameter Opening

18"

Batch Input

0.5 – 1 bag

Batch Output

6 ft³

Charging Height

30"

Batch Materials

Concrete

Axle Type

Heavy-Duty w/ High-Speed Taper Rolling Bearings

Wheel Size

5.3" x 12"

Wheel Type

Pneumatic

Stand Type

High-Strength

Width (in)

51.5"

Operating Length (in)

71.5"

Towing Length (in)

90.5"

Height (in)

58.5"

Warranty

1 year limited

Manufacturer family

C6 Concrete Mixer

Manufacturer family capacity

7 cu ft; Equipment Broker Group/retailer title lists 6 cu ft output/capacity

Batch Capacity Bags

0.5-1 bag

Power

Honda 5.5-8 HP gas or Baldor 1.5 HP electric

Drive System

V-belt to gears

Tires

4.8 x 12 pneumatic

Overall Width

48"

Overall Length

83" tow pole in

Overall Height

58" drum down

Drum thickness

1/8 in / 10 steel gauge

Included

Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant

Best-fit applications

The C6 Series is best matched to high-volume concrete or mortar mixing with towable jobsite mobility where the job requires AC-powered power source, Honda 5.5-8 HP gas or Baldor 1.5 HP electric power, and 6 ft³ drum capacity.

• Site utility or fuel: AC-powered
• Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
• Handling reference: 790 lb approx
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
