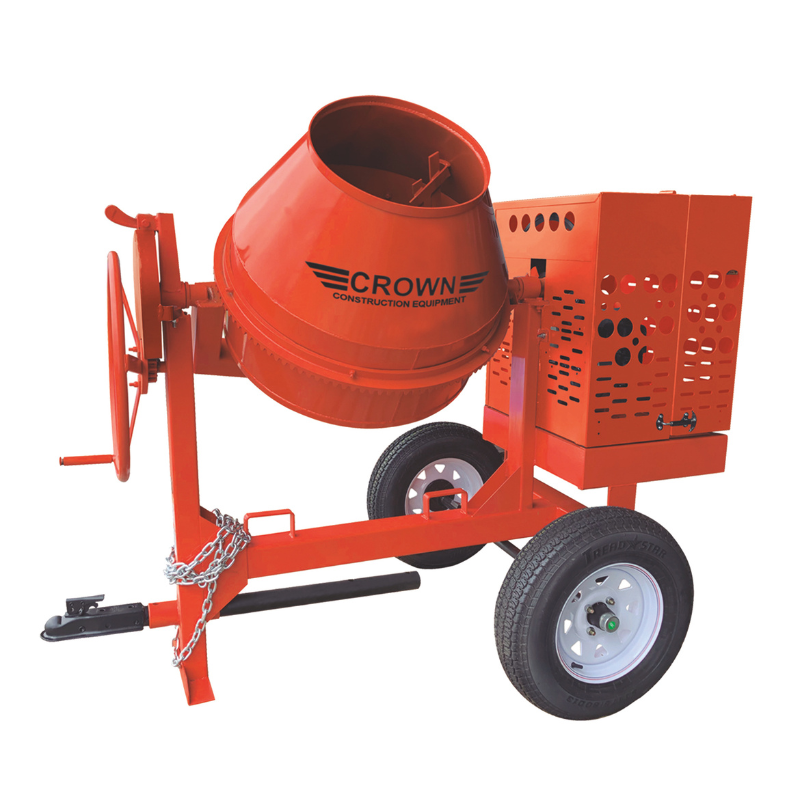

9 Cu Ft Concrete Mixer | Crown | Steel Drum | Baldor Electric | Towable

Crown Equipment C9 Series Towable Concrete Mixer is a towable concrete mixer designed for high-volume concrete or mortar mixing with towable jobsite mobility. The C9 Series configuration pairs AC-powered power source, Honda 8 HP gas or Baldor 1.5 HP electric power, and 9 cu ft drum capacity.

Key differentiators

• 9 ft³ batch/output detail helps crews plan mix cycles
• Baldor electric motor power package matched to the SKU configuration
• Steel drum construction selected for jobsite wear and cleanup
• Pinions & Gear Rings drive system for consistent material turnover
• Towable mixer format supports concrete crews moving between pours
• Drum and paddle design supports consistent concrete, mortar, grout, or stucco mixes

Specifications

Drum Capacity

9 cu ft

Drum Material

Steel drum

Horse Power

1.5 HP

Power Source

AC-powered

Weight

868 lb approx

Product Type

Concrete Mixer

Product Subtype

Highway

Model/Series

C9 Series

Part #

609944

Frame

High Strength

Mixing Blades

Steel

Engine/Motor

Baldor electric motor

Gearbox Drive Type

Cast Iron

Drive

Pinions & Gear Rings

Drum Diameter Opening

19"

Batch Input

1 – 1.5 bags

Batch Output

9 ft³

Charging Height

31"

Batch Materials

Concrete

Axle Type

Rubber Torsion Suspension System

Wheel Size

B78 x 13"

Wheel Type

Pneumatic

Stand Type

High-Strength

Width (in)

51.5"

Operating Length (in)

78"

Towing Length (in)

98"

Height (in)

63.5"

Warranty

1 year limited

Manufacturer family

C9 Concrete Mixer

Batch Capacity Bags

1-1.5 bags

Power

Honda 8 HP gas or Baldor 1.5 HP electric

Drive System

V-belt to gears

Tires

175/70R13 pneumatic

Overall Width

50"

Overall Length

83" tow pole in

Overall Height

63" drum down

Drum thickness

1/8 in / 10 steel gauge

Included

Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant

Best-fit applications

The C9 Series is best matched to high-volume concrete or mortar mixing with towable jobsite mobility where the job requires AC-powered power source, Honda 8 HP gas or Baldor 1.5 HP electric power, and 9 cu ft drum capacity.

• Site utility or fuel: AC-powered
• Tooling or working setup: Mixer unit in listed engine/motor and drum configuration; hitch, paddle/blade, and delivery options follow selected variant
• Handling reference: 868 lb approx
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
