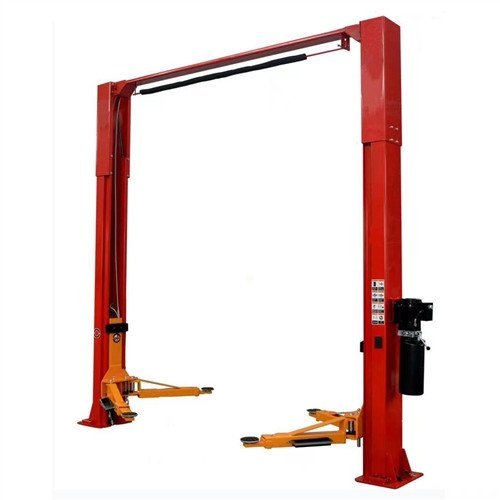

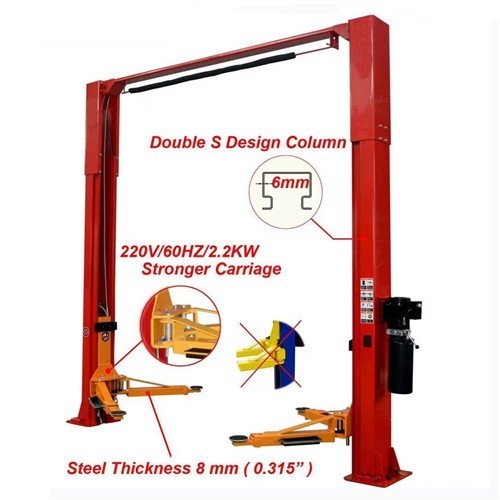

Katool KT-M120 Symmetric 2 Post Clear-Floor Car Lift 12,000 lbs

Product Overview

Katool KT-M120 Symmetric 2 Post Clear-Floor Car Lift 12,000 lbs

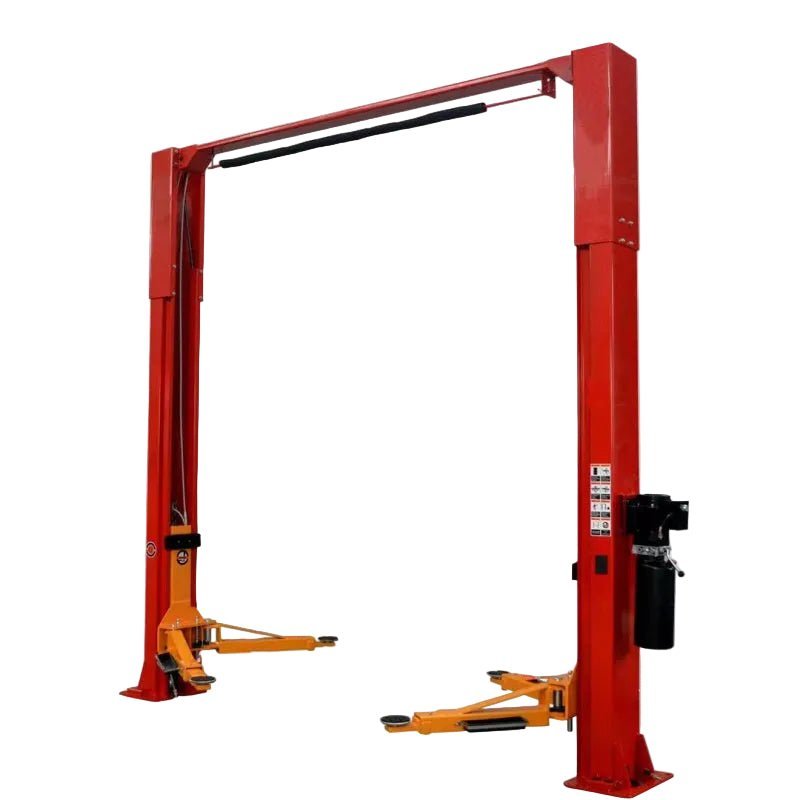

The Katool KT-M120 is a professional-grade symmetric two-post automotive lift engineered for serious workshops and garages demanding heavy-duty performance and exceptional safety. With a robust 12,000 lb lifting capacity, this clear-floor design lift handles everything from sedans and trucks to SUVs and commercial vehicles with ease. CE Approved and Certified, the KT-M120 has been rigorously tested to 115% dynamic loading capacity and 150% static loading capacity standards, ensuring reliable, safe operation day after day.

This industrial-capacity lift features heavy-duty construction capable of safely raising vehicles up to 70.75 inches (1800mm), with an impressive overall height of 166.75 inches (4235mm) to accommodate larger vehicles. The dual hydraulic chain-drive cylinders deliver smooth, balanced lifting performance, while the symmetric arm configuration provides optimal vehicle positioning and weight distribution. A generous 117.75-inch drive-thru clearance ensures easy vehicle access and maneuverability in your workspace.

Safety First – Comprehensive Protection Systems

Safety is paramount with the KT-M120. The lift incorporates multiple layers of protection to keep your team and vehicles secure. Manual safety release from two sides provides convenient emergency lowering capability from either column. The overhead safety shutoff bar prevents over-lifting accidents, automatically stopping the lift before contact with the vehicle. Rubber pad door opening protection safeguards vehicle doors and panels during lifting operations, while feet-protection safety guardrails with integrated tool box create a safe work zone around the lift base.

The clear-floor design eliminates tripping hazards and maximizes workspace efficiency, allowing technicians to move freely around the lifted vehicle. Every component is engineered with operator safety in mind, from the robust column construction to the precision-engineered locking mechanisms.

Versatile Lifting for Every Vehicle

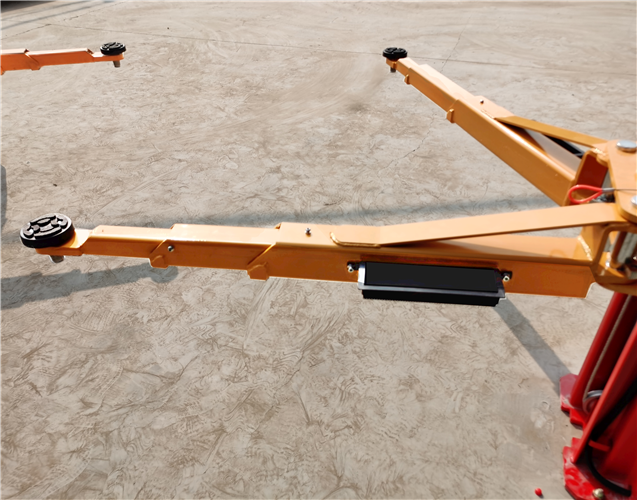

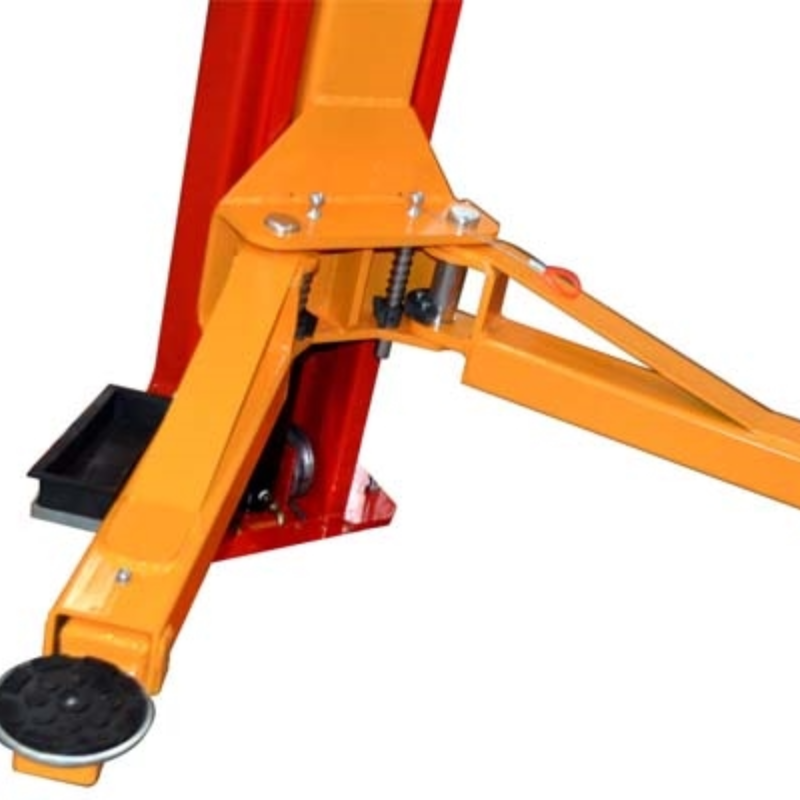

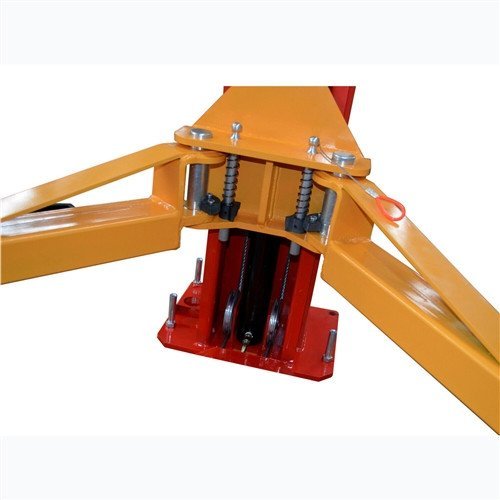

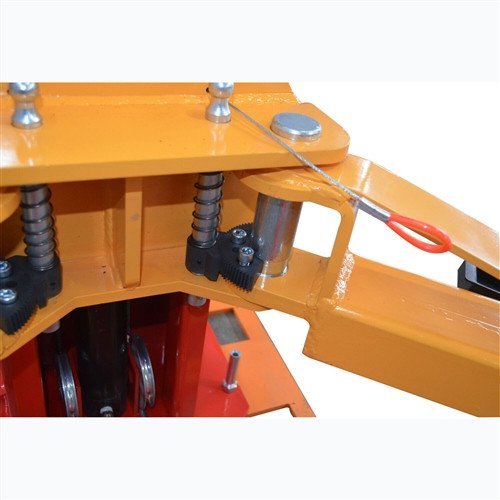

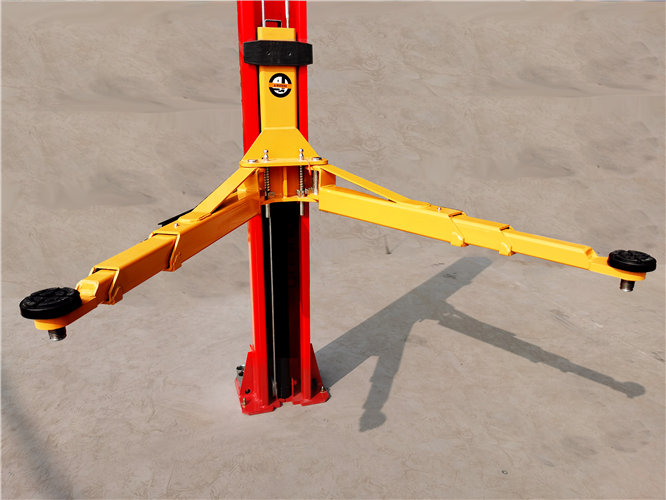

The symmetric arm design provides maximum flexibility for positioning vehicles of various sizes and configurations. With screw-on pad and extension support adapter sets (+30mm & +120mm included), you can precisely adjust lifting points to accommodate different vehicle chassis designs and wheelbases. The minimum height of just 4.25 inches (110mm) allows you to lift low-profile sports cars, while the generous maximum height handles lifted trucks and SUVs with ease.

The 130-inch inside column clearance and 151.25-inch outside column clearance provide ample room for a wide range of vehicle sizes, while the overall width of 165.5 inches ensures stable operation without compromising shop floor space efficiency.

Professional-Grade Hydraulic System

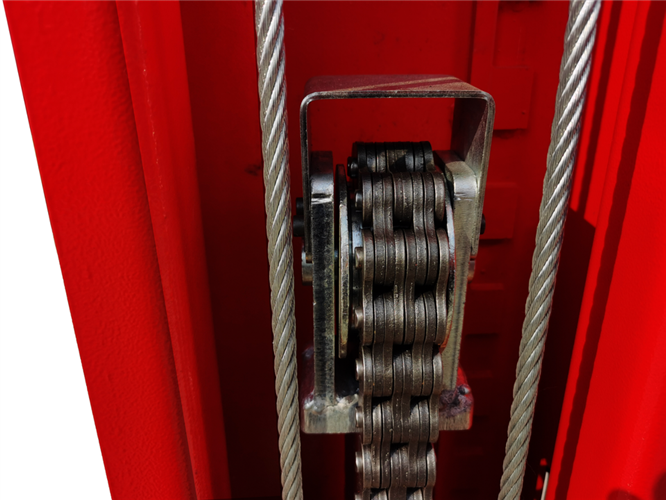

At the heart of the KT-M120 is a top-level hydraulic system powered by a 220VAC / 60Hz / 1Ph motor (with 110V/60Hz/1Ph available as an option). The advanced dual hydraulic chain-drive cylinder configuration ensures perfectly synchronized lifting, preventing vehicle tilt and maintaining precise balance throughout the entire range of motion. This chain-driven system provides superior reliability compared to cable systems, with reduced maintenance requirements and extended service life.

Key Highlights

• 12,000 lb capacity handles trucks, SUVs, and commercial vehicles with confidence

• CE Certified meets rigorous European safety standards with 115% dynamic and 150% static load testing

• Clear-floor symmetric design maximizes workspace efficiency and safety

• 70.75-inch max lift height provides excellent working clearance for comprehensive vehicle service

• Dual hydraulic chain-drive system ensures smooth, balanced lifting with minimal maintenance

• Comprehensive safety features including dual manual releases, overhead shutoff, and door protection

Important Installation Requirements

⚠ Critical Foundation Requirements

Concrete thickness must be at least 5.9 inches (150mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

The KT-M120 includes a complete set of extension support adapters to get you started. With a net weight of 1,653 lbs (750kg), this lift combines substantial construction with manageable installation requirements. For detailed weight capacity information and guidance on selecting the right lift for your specific needs, refer to the "Understanding Two-Post Lift Weight Capacities" resource available in the Product Features tab.

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 12,000lbs lifting capacity

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

• Manual safety release from two sides

• Symmetric arms

• Clear Floor design

• Dual Hydraulic Chain-Drive Cylinders

• Rubber pad door opening protection

• Screw-on pad and extension support adaptor sets +30mm & +120mm

• Overhead safety shutoff bar

• Feet-protection safety guardrails with tools box

• Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)

Includes

• Set of Extension Support Adapters

Product Specifications

Specifications
KT-M120

Lifting Capacity
12,000 lbs.

Max. Lifting Height
70.75" / 1800mm

Min. Height
4.25" / 110mm

Height Overall
166.75" / 4235mm

Width Overall
165.5" / 4204mm

Outside Column
151.25" / 3840mm

Inside Column
130" / 3390mm

Drive-Thru Clearance
117.75" / 2990mm

Motor
220VAC / 60HZ / 1PH

Net Weight
1,653 lbs / 750KG

*Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Key Features

• Published product configuration: Katool KT-M120 Symmetric 2 Post Clear-Floor Car Lift 12,000 lbs The Katool KT-M120 is a professional-grade symmetric two-post automotive lift engineered for serious workshops and garages demanding heavy-duty performance and exceptional safety. With a robust 12,000 lb lifting capacity, this clear-floor design lift
• Exact manufacturer model or part number: KT-M120-V001
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model KT-M120-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
