Katool KT-M110 Symmetric 2 Post Clear-Floor Car Lift 11,000 lbs

Product Overview

Katool KT-M110 Symmetric 2 Post Clear-Floor Car Lift 11,000 lbs

Professional-Grade Lifting Power for Your Shop

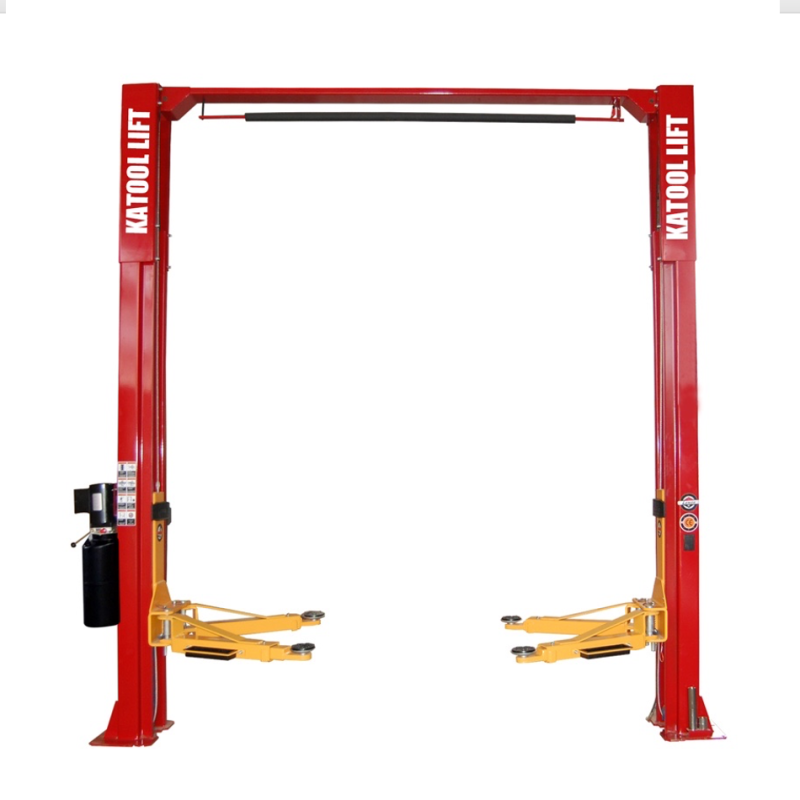

The Katool KT-M110 is a professional 11,000 lb capacity symmetric two-post automotive lift designed for shops and garages that demand reliable performance, safety, and value. CE Approved and Certified, this lift has been rigorously tested to meet 115% dynamic loading capacity standards and passed 150% static loading capacity testing, ensuring it can handle heavy-duty workloads with confidence.

Featuring a clear-floor design, the KT-M110 eliminates obstacles between the columns, giving you unobstructed access to work on vehicles from all angles. The symmetric two-stage arms provide exceptional adjustability, with a front and rear arm reach ranging from 30.75" minimum to 50.5" maximum, accommodating a wide variety of vehicle sizes and wheelbases. Whether you're working on compact cars or full-size trucks, this lift adapts to your needs.

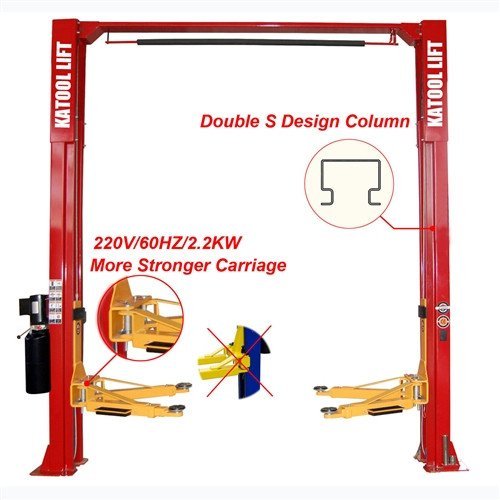

Powered by dual hydraulic chain-drive cylinders, the lift delivers smooth, stable, and synchronized lifting every time. The system is driven by a top-level hydraulic motor (220V/60Hz/1PH, 2.2KW), with an optional 110V/60Hz/1PH configuration available for different power requirements. Raising vehicles to a maximum lifting height of 70.75" (1800mm), the KT-M110 gives you ample clearance for undercarriage work, inspections, and repairs.

Safety Features You Can Trust

Safety is at the core of the KT-M110's design. A manual safety release accessible from both sides of the lift allows operators to safely lower vehicles in the event of a power failure or emergency. The lift is also equipped with rubber pad door opening protection, preventing damage to vehicle doors during positioning and lifting.

An added overhead safety shutoff bar provides an extra layer of protection, automatically stopping the lift if it reaches maximum height. Feet-protection safety guardrails with an integrated tool box protect operators from accidental contact with moving parts, while keeping essential tools close at hand. These features combine to create a safer working environment for every lift operation.

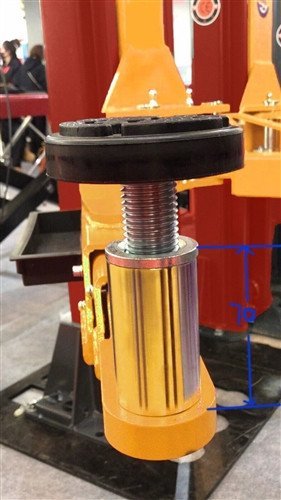

The lift includes screw-on pad and extension support adapters in +30mm and +120mm sizes, allowing you to safely lift vehicles with different ground clearances and frame configurations. A complete set of extension support adapters is included with your purchase, giving you versatility right out of the box.

Key Advantages at a Glance

• 11,000 lbs lifting capacity handles a wide range of passenger vehicles and light trucks

• Clear-floor design unobstructed workspace between columns for easy vehicle access

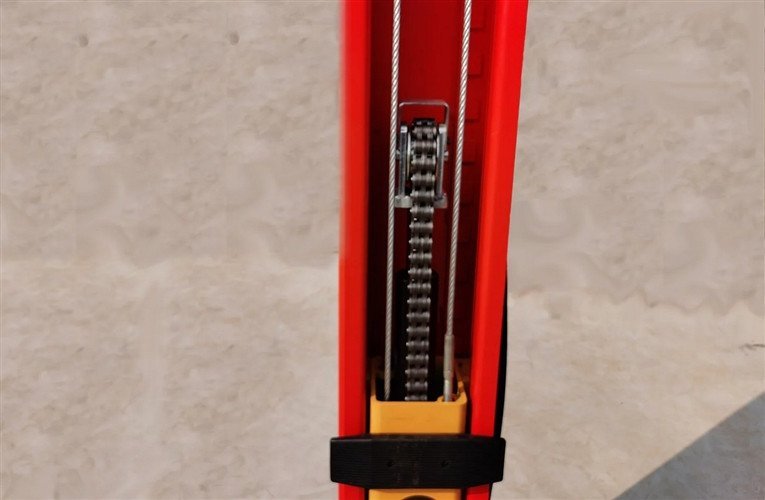

• Dual hydraulic chain-drive cylinders ensures smooth, synchronized lifting and lowering

• CE Approved and Certified tested to 115% dynamic and 150% static load capacity standards

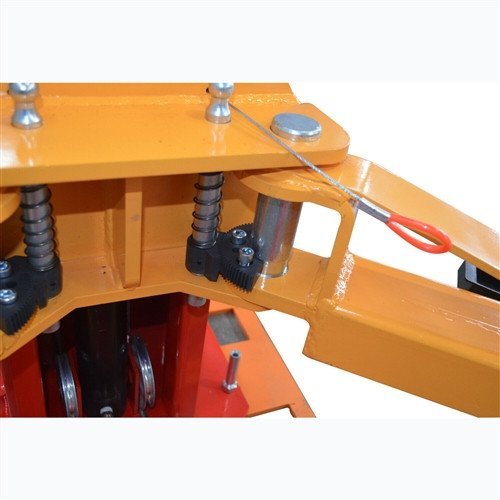

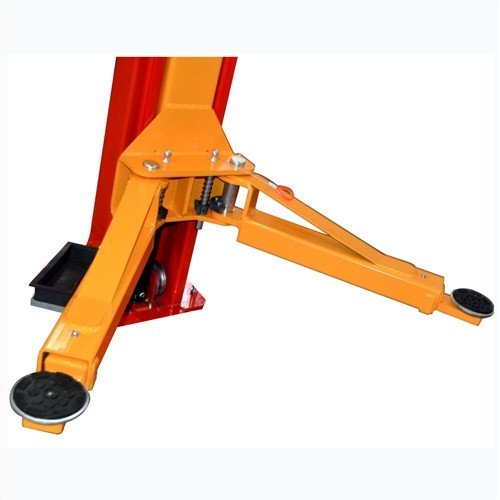

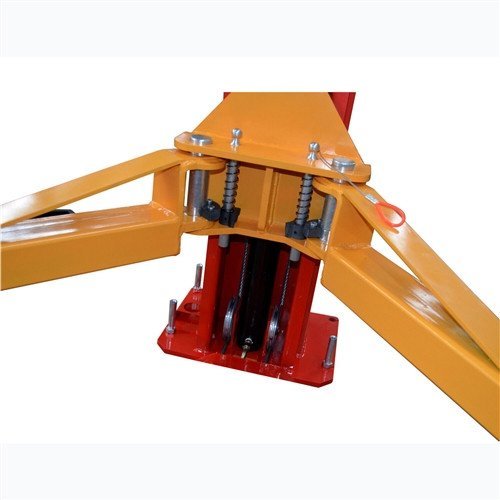

• Two-stage symmetric arms with adjustable reach from 30.75" to 50.5" – accommodates various wheelbases

• Manual safety release from both sides convenient emergency lowering access

• Overhead safety shutoff bar and foot-protection guardrails multiple layers of operator safety

• Included extension support adapters (+30mm and +120mm) ready to lift different vehicle types

Designed for Real-World Shops

The KT-M110 is built with the working technician in mind. With a drive-thru clearance of 94.5" (2400mm) and an inside column distance of 110.25" (2800mm), the lift provides generous space for positioning vehicles and moving around the workspace. The minimum height of just 4.25" (110mm) allows low-clearance vehicles to drive onto the lift without scraping, while the overall height of 141.25" (3587mm) fits comfortably in most standard garage bays.

Weighing in at a net weight of 1,367 lbs (620 kg), the lift is substantial enough to provide stability during operation, yet still manageable for installation. The overall width is 142.25" (3614mm), with an outside column measurement of 128" (3250mm), making it suitable for professional shop environments.

Important Installation Requirement:

Concrete thickness must be at least 5.9" (150mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

Understanding Your Lift's Capacity

To ensure safe operation and get the most from your KT-M110, it's important to understand how two-post lift weight capacities work. Different vehicle configurations, weight distributions, and lifting points all affect how much weight your lift can safely handle. Katool provides a detailed guide to help you understand these critical factors.

Understanding Two-Post Lift Weight Capacities

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 11,000lbs lifting capacity

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

• Manual safety release from two sides

• Symmetric arm, 2 stages

• Clear Floor design

• Dual Hydraulic Chain-Drive Cylinders

• Rubber pad door opening protection

• Screw-on pad and extension support adaptor sets +30mm and +120mm

• Added overhead safety shutoff bar

• Feet-protection safety guardrails with tools box

• Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)

Includes

• Set of Extension Support Adapters

Product Specifications

Specifications
KT-M110

Lifting Capacity
11,000 lbs.

Max. Lifting Height
70.75" / 1800mm

Min. Height
4.25" / 110mm

Height Overall
141.25" / 3587mm

Width Overall
142.25" / 3614mm

Outside Column
128" / 3250mm

Inside Column
110.25" / 2800mm

Drive-Thru Clearance
94.5" / 2400mm

Front Arm Reach (Max)
50.5" / 1280mm (2 stages)

Front Arm Reach (Min)
30.75" / 780mm (2 stages)

Rear Arm Reach (Max)
50.5" / 1280mm (2 stages)

Rear Arm Reach (Min)
30.75" / 780mm (2 stages)

Motor
220VAC / 60HZ / 1PH / 2.2KW

Net Weight
1,367 lbs / 620KG

*Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Key Features

• Published product configuration: Katool KT-M110 Symmetric 2 Post Clear-Floor Car Lift 11,000 lbs Professional-Grade Lifting Power for Your Shop The Katool KT-M110 is a professional 11,000 lb capacity symmetric two-post automotive lift designed for shops and garages that demand reliable performance, safety, and value. CE Approved and Certified, this
• Exact manufacturer model or part number: KT-M110-V001
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model KT-M110-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
