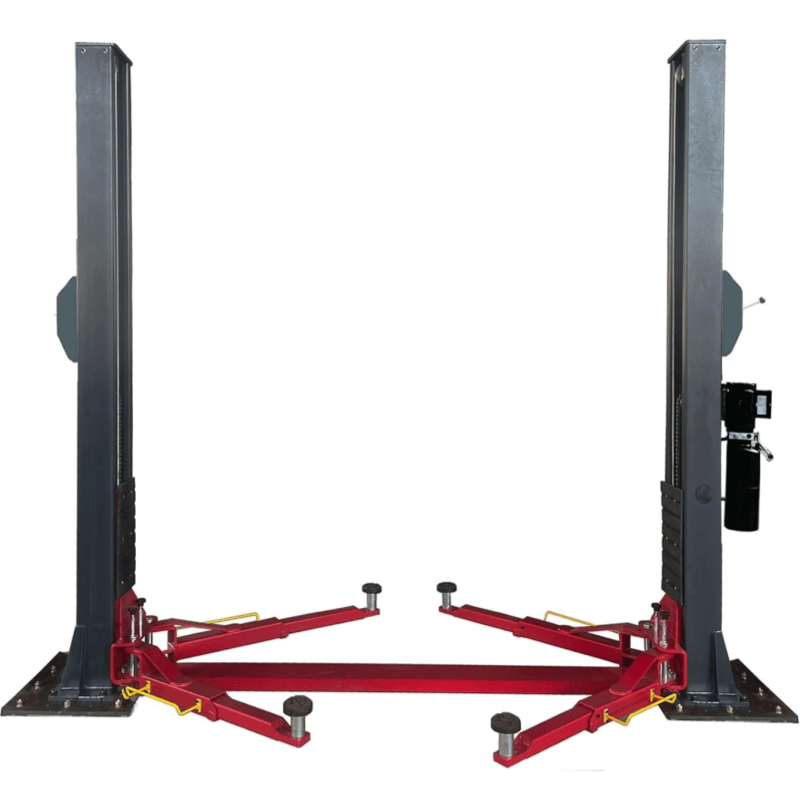

Katool KT-H120D Symmetric 2 Post Floor-Plate Car Lift 12,000 lbs

Product Overview

Katool KT-H120D Symmetric 2 Post Floor-Plate Car Lift 12,000 lbs

Heavy-Duty Performance for Commercial and Residential Use

Upgrade your garage or auto shop with the Katool KT-H120D, a high-capacity two-post lift engineered to handle trucks, SUVs, and large vehicles with confidence. With a robust 12,000 lb. lifting capacity and a maximum lifting height of 75 inches, this symmetric floor-plate lift delivers the power and precision you need for professional-grade service and maintenance work.

Built to CE safety standards and powered by a 3.0 kW motor running on 220V/60Hz/1PH, the KT-H120D features a dual hydraulic chain-drive system that provides smooth, reliable, and wobble-free lifting. Its symmetric arm and baseplate design ensures optimal balance and stability during lifting operations, making it ideal for heavy-duty commercial workloads and demanding personal garage projects alike.

A single-point manual safety release offers quick and secure operation, giving you full control while prioritizing user safety. Integrated foot-protection guardrails help prevent accidental damage to your vehicle and provide a convenient built-in tool storage box. With rubber pad door-opening protection, your vehicle doors remain safe throughout the lifting process, and included screw-on pads with 100mm extension adapters offer versatile support for a wide range of vehicle sizes and frame configurations.

The KT-H120D is designed for efficiency and ease of use. It reaches full lift in just 50 seconds, while maintaining a low profile with a minimum height of only 4.3 inches perfect for low-clearance vehicles. Weighing 1,230 lbs, this lift provides the structural integrity and long-term durability required in busy shop environments.

Key Highlights

• 12,000 lb. capacity handles trucks, SUVs, and large vehicles with ease

• Single-point manual safety release quick, secure operation with enhanced user safety

• Symmetric arm and floor-plate design delivers balanced, stable lifting for long-term reliability

• Dual hydraulic chain-drive cylinders smooth, efficient, and low-maintenance lifting performance

• Fast 50-second lifting time maximizes productivity in busy shop environments

What's Included

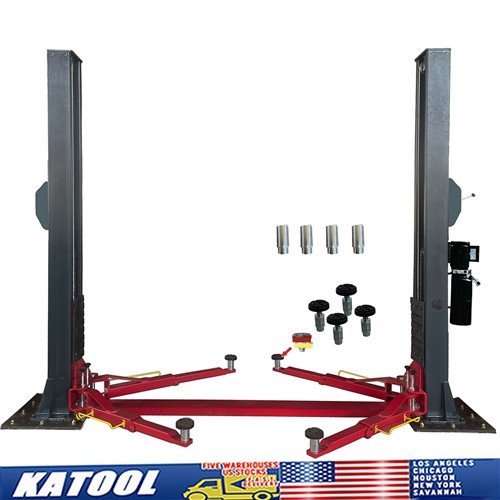

The Katool KT-H120D comes complete with a full set of drop-in adapters, allowing you to quickly and safely position lift arms under a variety of vehicle types and configurations. Screw-on pads and 100mm (3.94") extension support adapters are also included, providing additional versatility for different vehicle frame designs and lift point requirements.

Important Installation Requirements

⚠ CRITICAL: Concrete thickness must be at least 5.9" (150 mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

Need More Information?

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 12,000 lb. Capacity

• Single-point Release: Offers easy operation with added safety for the user

• Symmetric Arm Design: Ensures stability and balance during lifting operations

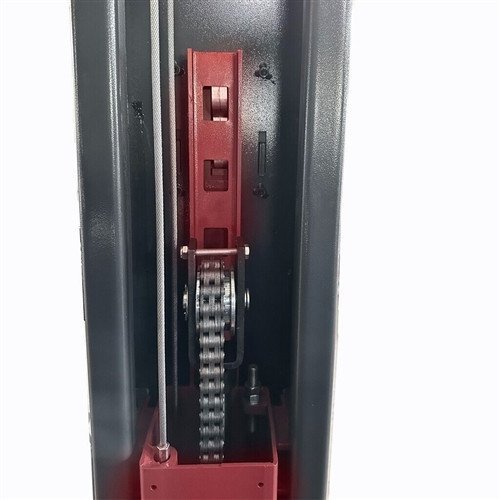

• Dual Hydraulic Chain-Drive Cylinders: Provides reliable, smooth, and efficient lifting

• High-performance hydraulic system

• Screw-on pad and extension support adaptor sets +100mm (3.94")

• Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)

Includes

• Set of Drop-in Adapters

Product Specifications

Specifications
KT-H120D

Lifting Capacity
12,000 lbs.

Max. Lifting Height
75" / 1900mm

Height Overall
111" / 2820mm

Min Height
4.3" / 110mm

Overall Width w/o Motor
130" / 3310mm

Outside Column
125" / 3170mm

Inside Column
110" / 2800mm

Lifting Time
50s

Motor
220VAC / 60HZ / 1PH / 3.0Kw

Net Weight
1,230 lbs / 560KG

*Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Key Features

• Published product configuration: Katool KT-H120D Symmetric 2 Post Floor-Plate Car Lift 12,000 lbs Heavy-Duty Performance for Commercial and Residential Use Upgrade your garage or auto shop with the Katool KT-H120D, a high-capacity two-post lift engineered to handle trucks, SUVs, and large vehicles with confidence. With a robust 12,000 lb. lifting
• Exact manufacturer model or part number: KT-H120D-V001
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model KT-H120D-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
