iDeal Lift TP10KAC-DX 10K 2 Post Bi-Symmetrical Car Lift ALI-ETL Certified

Product Overview

iDeal Lift TP10KAC-DX 10K 2 Post Bi-Symmetrical Car Lift ALI-ETL Certified

The iDeal TP10KAC-DX is a premium 10,000 lb capacity ALI Certified two-post automotive lift designed for professional shops and serious enthusiasts who demand versatility, safety, and durability. This bi-symmetric design clear floor lift combines the best of both worlds—offering both asymmetric and symmetric lifting configurations to accommodate a wide range of vehicles from compact cars to light trucks.

Engineered with offset three-stage short arms and an impressively low pad height of just 4 inches, the TP10KAC-DX provides exceptional ground clearance access for low-profile sports cars, sedans, SUVs, and trucks alike. The adjustable spin-up pads allow precise positioning under vehicle lift points, ensuring safe and balanced lifts every time. With a maximum lifting height of 71 inches (up to 76.5 inches with the tallest adapter ), you'll have plenty of working room underneath for maintenance, repairs, and inspections.

Built for Performance and Reliability

The iDeal TP10KAC-DX features a rigid single-piece column construction that eliminates flexing and ensures rock-solid stability under load. The direct pull hydraulic cylinder provides smooth, consistent lifting power with an operating pressure of 3,050 PSI, raising vehicles to full height in approximately 50 seconds. The clear floor design means no base plates or tripping hazards—just clean, open workspace that's easy to sweep and maintain.

Safety is paramount with the single point lock release system, allowing quick and intuitive engagement and disengagement of the mechanical safety locks. The lift is equipped with rubber door guards to protect vehicle doors and panels during positioning. Each arm is rated to handle up to 2,500 lbs, and truck adapters are included for added versatility when lifting larger vehicles with higher ground clearance.

Key Highlights

• 10,000 lb lifting capacity handles a wide variety of vehicles from sports cars to light-duty trucks

• Bi-symmetric arm design offers both asymmetric and symmetric configurations for maximum flexibility

• Low 4-inch pad height with offset three-stage short arms reaches modern low-profile vehicles with ease

• ALI Certified and ETL listed for proven safety and compliance with industry standards

• Clear floor design with no base plates—clean workspace and easy vehicle positioning

• Single point lock release for fast, user-friendly safety lock operation

• Rigid single-piece column construction with direct pull hydraulic cylinder for dependable performance

• Adjustable spin-up pads and included truck adapters accommodate diverse vehicle types and lift points

• Requires only 12-foot minimum ceiling height, making it ideal for many garage and shop environments

• Backed by 1-year parts warranty and 5-year structural warranty for long-term peace of mind

Space and Installation

With an overall width of 137 3/16 inches (145.5 inches with power lift unit) and an overall height of 144 inches, the TP10KAC-DX fits comfortably in most professional and home garage spaces with a 12-foot ceiling. The generous 104-inch drive-through width and 116-inch width between columns provide ample clearance for vehicles to be driven on and positioned easily.

Installation requires a minimum concrete thickness of 4.25 inches with 3,000 PSI strength. The lift operates on standard 220V, 20 AMP, single-phase power, making electrical setup straightforward in most facilities. The unit ships in a compact configuration with dimensions of 140" L x 19" W x 40" H and a shipping weight of 1,750 lbs.

Professional-Grade Performance
The TP10KAC-DX is one of iDeal Lift's most popular models, trusted by professional technicians and automotive enthusiasts for its robust construction, versatile bi-symmetric design, and intuitive operation. Whether you're servicing daily drivers, performance vehicles, or light trucks, this lift delivers the reliability and features you need.

Product Images

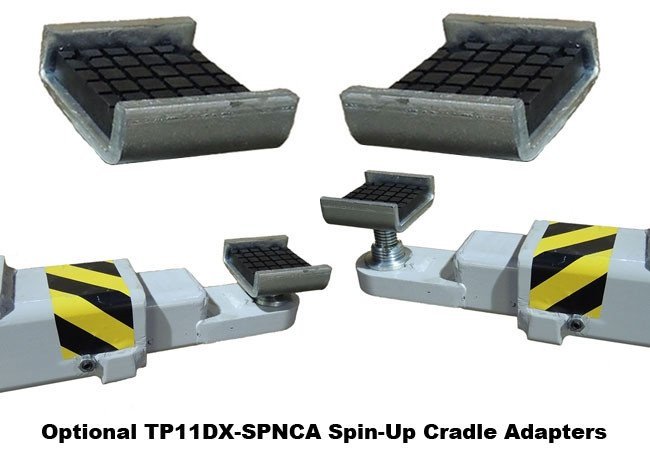

iDeal TP10KAC-DX offset three-stage short arms with adjustable spin-up pads

Product Features

• ALI certified

• 10,000 lb lifting capacity

• Bi-Symmetric Arm Design

• Offset Three Stage Short Arm

• Low Profile Lifting Arms

• Adjustable Spin Up Pads

• Single Point Lock Release

• Rigid Single Piece Column

• Direct Pull Hydraulic Cylinder

• Rubber Door Guards

• Truck Adapters Included

• Warranty: 1 Year Parts / 5 Year Structural

Product Specifications

Specifications
TP10KAC-DX

Capacity
10,000 lbs.

Overall Height
144"

Width Overall
137 3/16"

Width Overall W/Power Lift
145 1/2"

Min Ceiling Height
12'

Max Lift Height
71"

With Tallest Adapter
76 1/2"

Low Pad Height
4"

Drive thru Width
104"

Width Between Columns
116"

Floor to Overhead Shutoff
136"

Arm Reach Front
23" – 45"

Arm Reach Rear
41" – 57"

Ma Load Per Arm
2,500 lbs

Lifting Speed
50 sec

Asymmetric / Symmetric
Both (Bi-Symmetric)

Clear Floor / Floor Plate
Clear Floor

Minimum Concrete Requirements
4 1/4" / 3000 PSI

Operating Pressure
3,050 PSI

Power
220V – 20 AMP – 1 PH

Shipping Dimensions
140" L x 19" W x 40" H

Ship Weight
1,750 lbs.

Specifications subject to change without notice or liability

Key Features

• Published product configuration: iDeal Lift TP10KAC-DX 10K 2 Post Bi-Symmetrical Car Lift ALI-ETL Certified The iDeal TP10KAC-DX is a premium 10,000 lb capacity ALI Certified two-post automotive lift designed for professional shops and serious enthusiasts who demand versatility, safety, and durability. This bi-symmetric design clear floor lift
• Exact manufacturer model or part number: TP10KAC-DX
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts — 2 Post Heavy Duty Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model TP10KAC-DX, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
