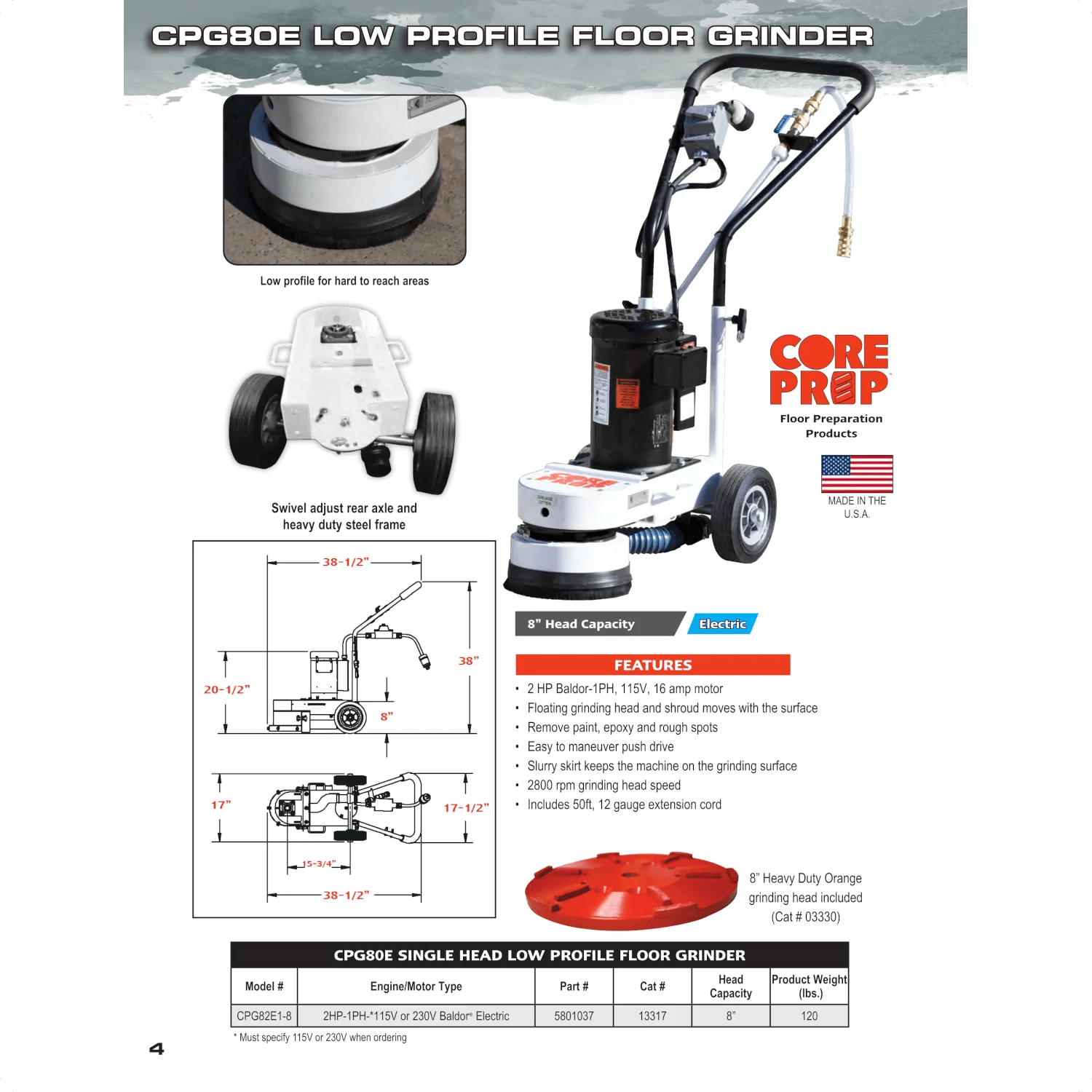

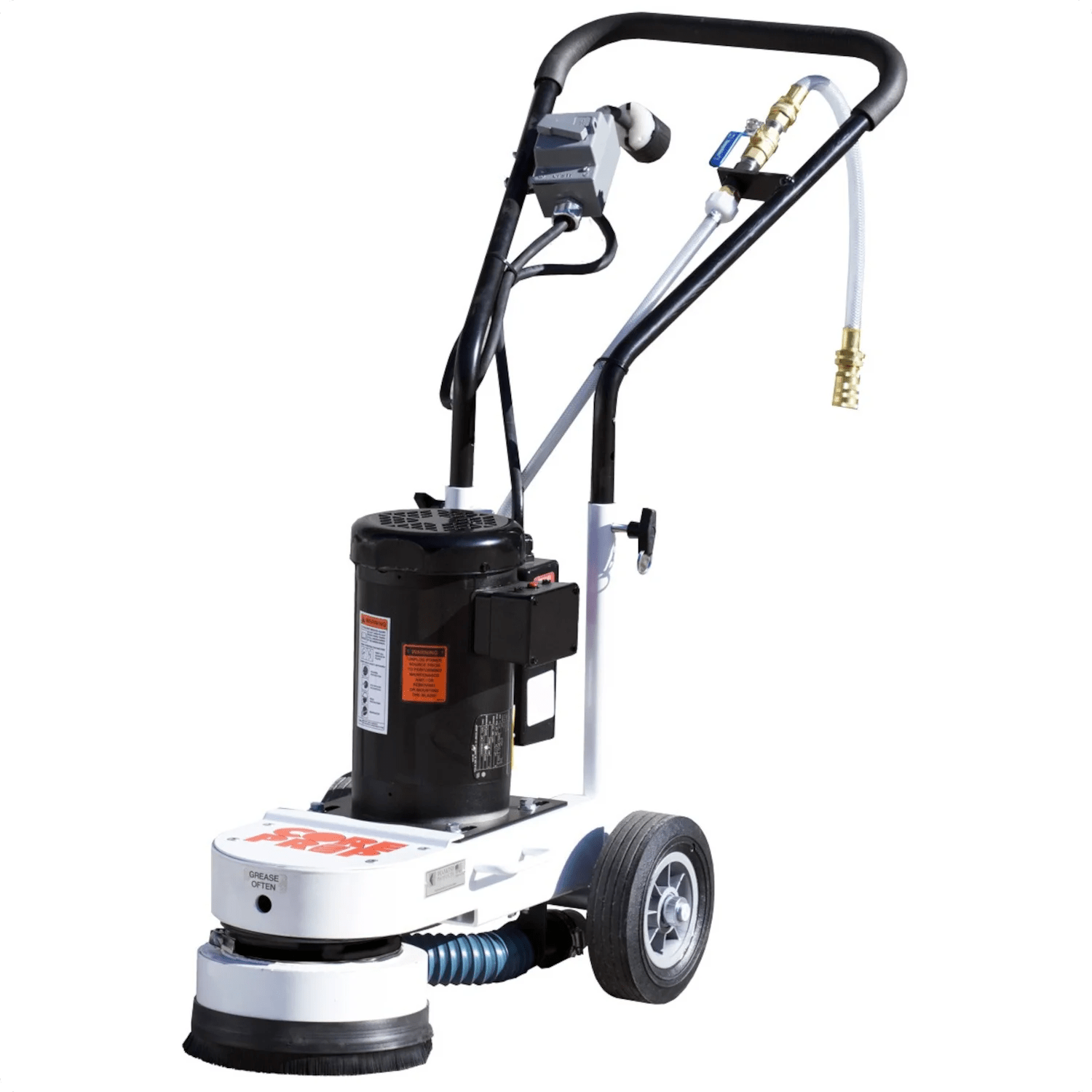

Concrete Surface Grinder – Core Prep CPG80E – Single Head – 8″

Diamond Products CPG80E(115V) Single-Disc Floor Grinder is a single-disc floor grinder designed for coating removal, slab preparation, concrete polishing, and floor-profile correction. The CPG80E(115V) configuration pairs Electric power source, & Performance power, and 8″ grinding width.

Key differentiators

• 8″ working path sized for professional surface preparation
• 2800 rpm operating speed range for controlled material removal
• Electric drive is suited to indoor or power-available projects
• Designed for grinding, polishing, coating removal, and slab preparation
• Dust or water compatibility supports cleaner surface prep workflows
• 120 machine weight supports stable contact on the slab

Specifications

Grinding Speed

2800 rpm

Grinding Width

8″

Horse Power

2 HP

Engine Type

Baldor

Operation Type

Push Drive

Power Source

Electric

Model #

CPG80E(115V)

Part #

5801037

Product Type

Concrete Grinder

Product Subtype

Single Head

Power

& Performance

Engine/Motor

Baldor Motor

Power Phase

1PH

Voltage

115V or 230V Options

Speed

Head

Power Output – Cycles

60 Hz

Drive

Grinding Specifications

Head Capacity

8"

Width

8" Variable

Dust Collection System

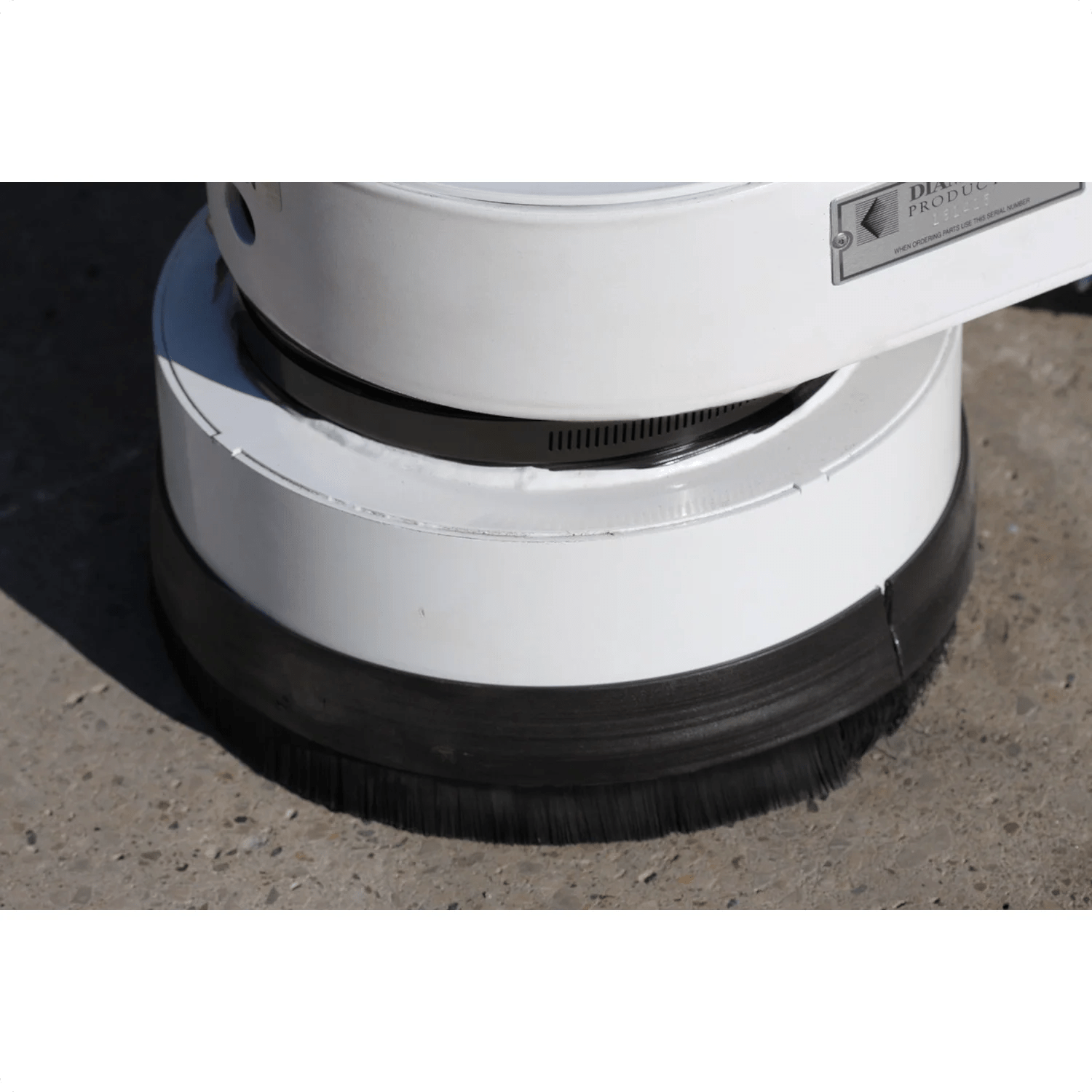

Slurry Skirt

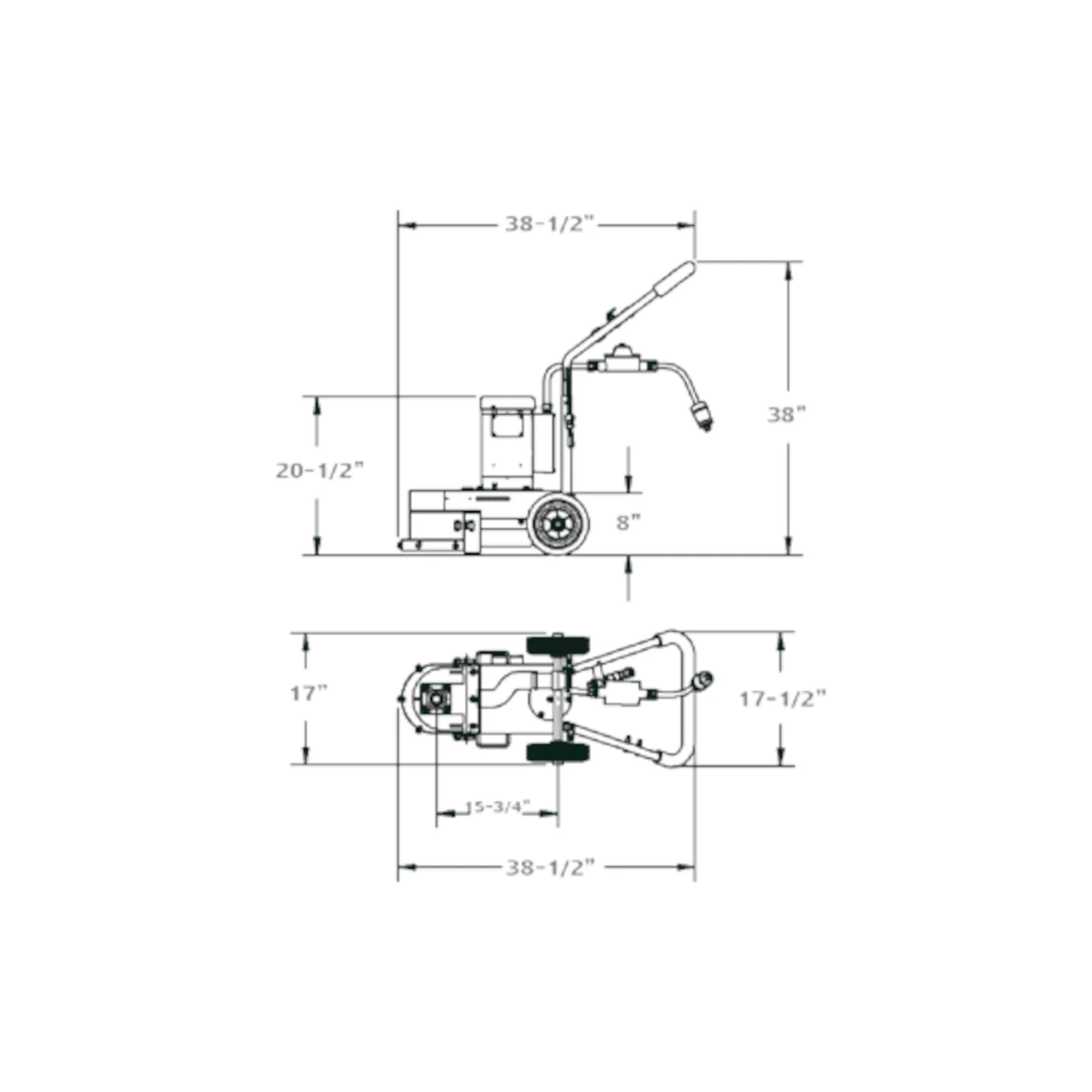

Length

50 ft

Height

38"

Weight (lbs)

120 lb

Diameter

8"

Includes

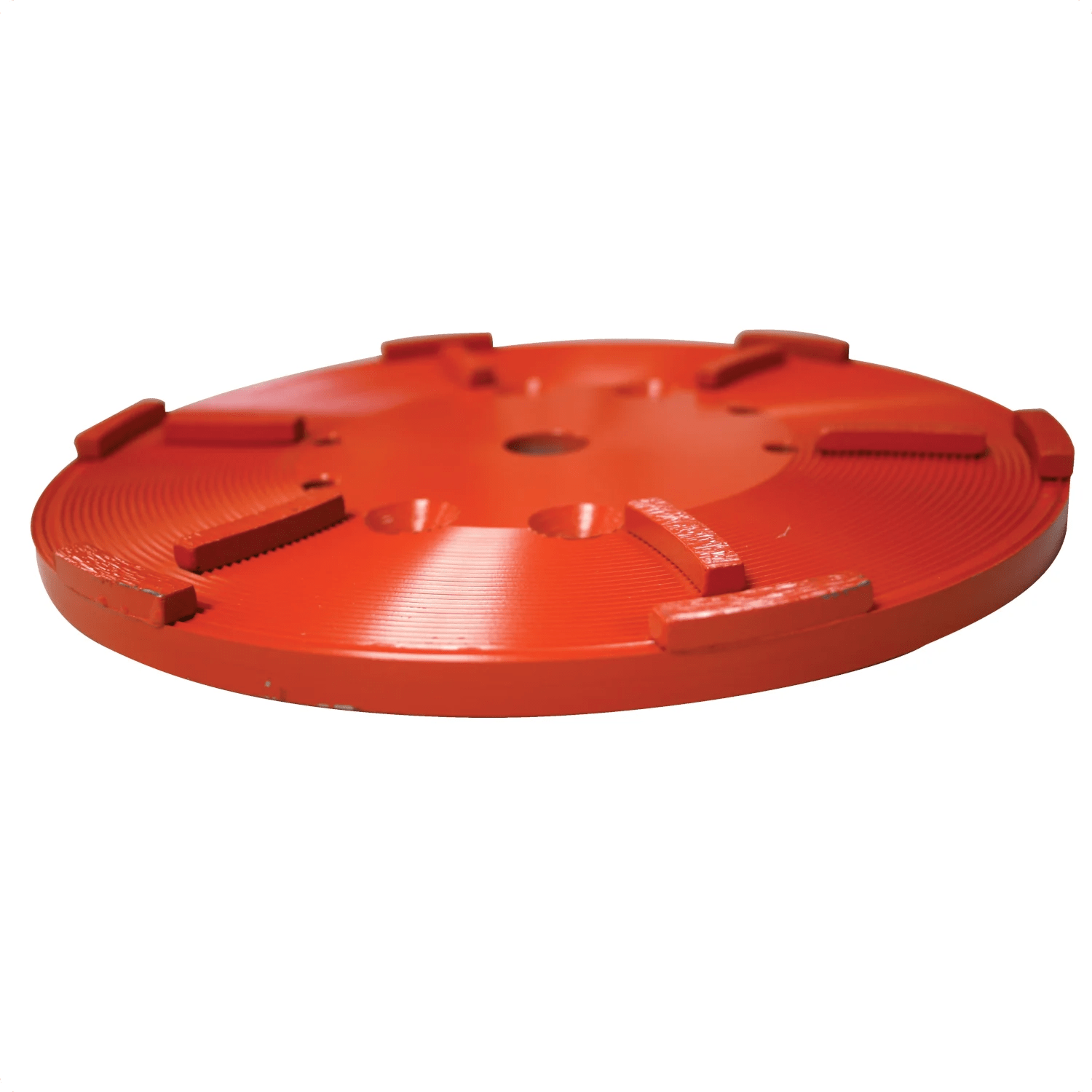

8" Heavy Duty Orange grinding head

Warranty

Warranty Product Warranty 1 Year Warranty Engine Warranty –

Catalog Number

13317

Best-fit applications

The CPG80E(115V) is best matched to coating removal, slab preparation, concrete polishing, and floor-profile correction where the job requires Electric power source, & Performance power, and 8″ grinding width.

• Site utility or fuel: 115V or 230V Options
• Tooling or working setup: 8″
• Handling reference: 120 lb
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
