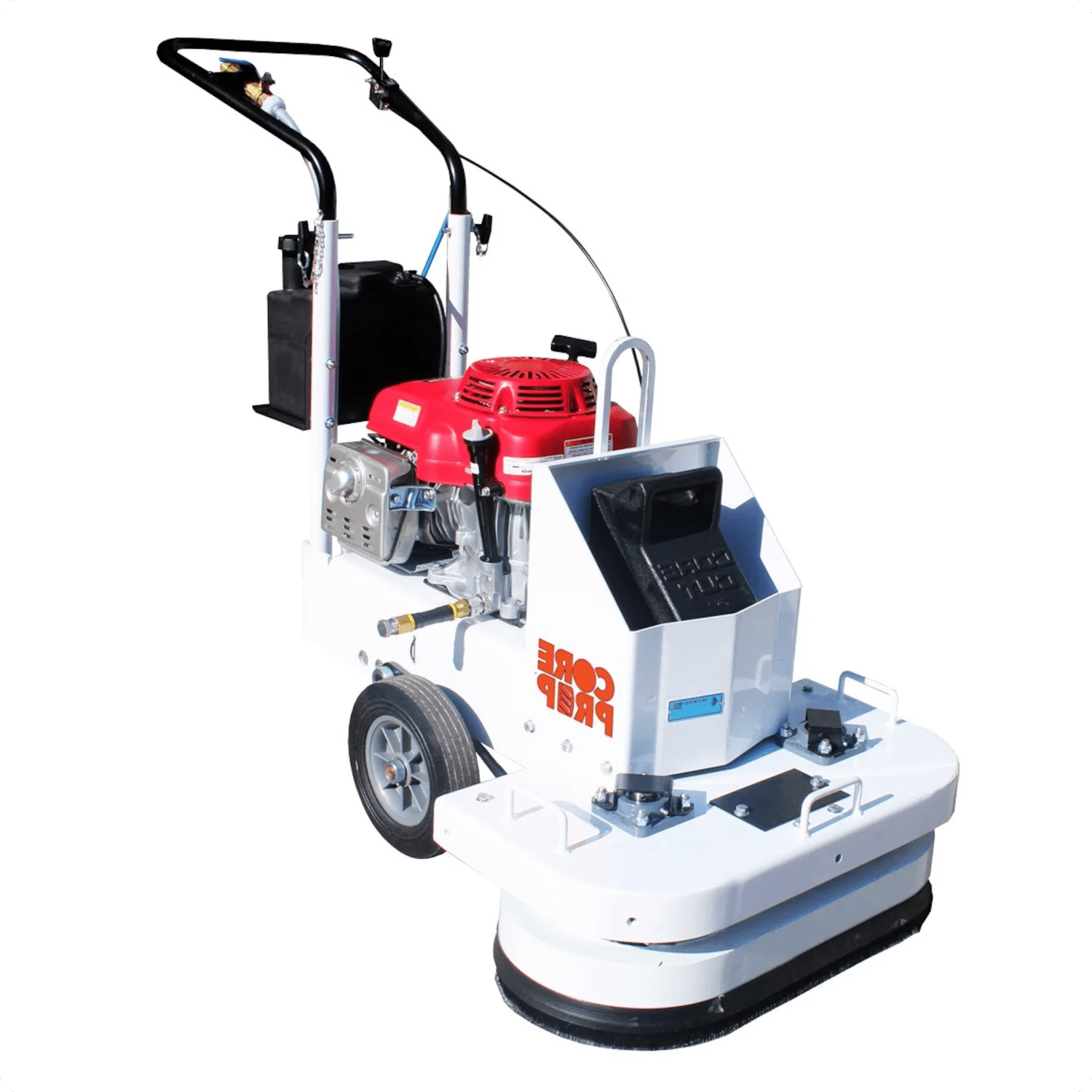

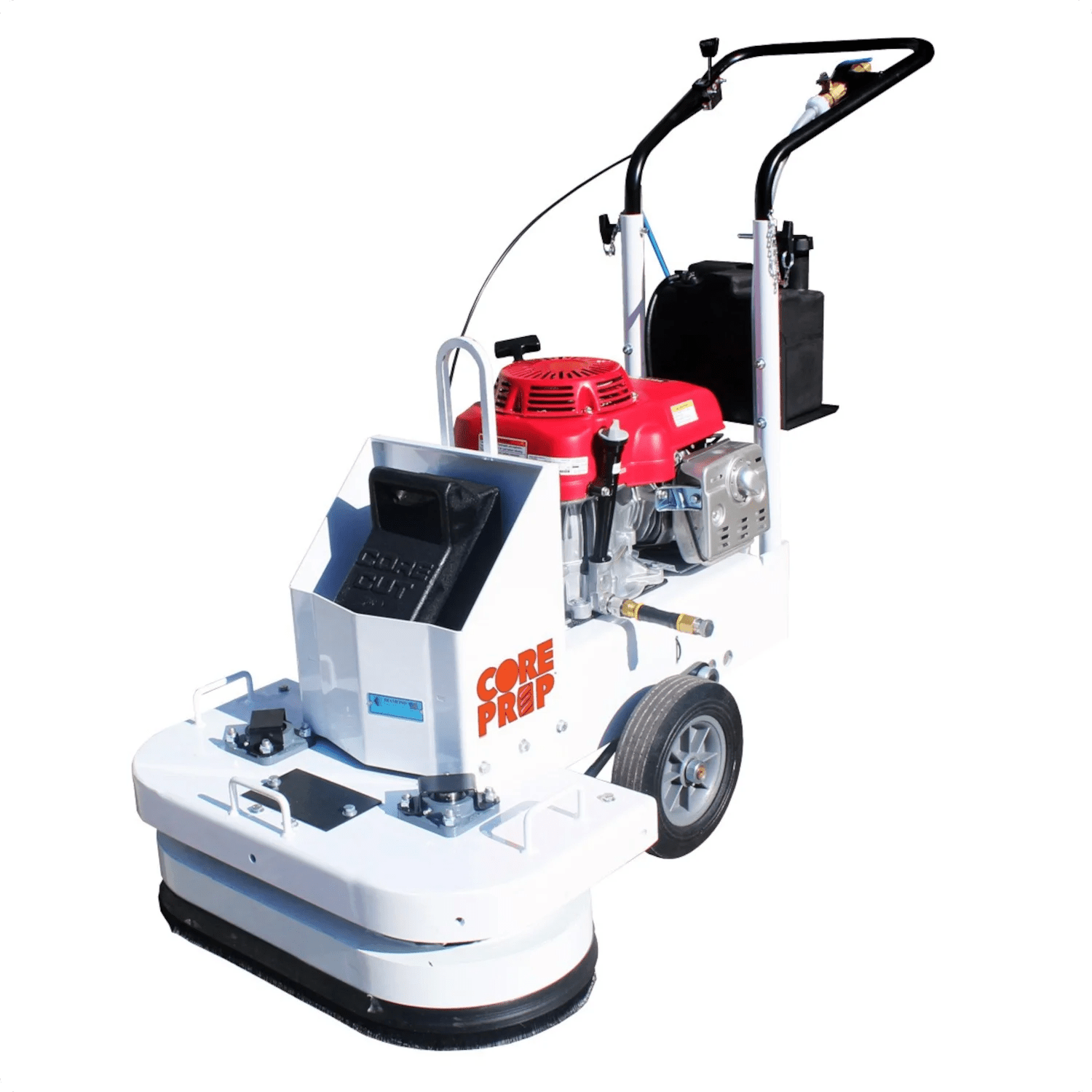

Concrete Surface Grinder – Core Prep CPG202E1 – Dual Head – 10″/12″ – Electric

Diamond Products CPG202E1(115V) Concrete Surface Grinder is a concrete surface grinder designed for coating removal, slab preparation, concrete polishing, and floor-profile correction. The CPG202E1(115V) configuration pairs Electric power source, & Performance power, and 24″ grinding width.

Key differentiators

• 24″ working path sized for professional surface preparation
• 205 rpm operating speed range for controlled material removal
• Electric drive is suited to indoor or power-available projects
• Designed for grinding, polishing, coating removal, and slab preparation
• Dust or water compatibility supports cleaner surface prep workflows
• ballast machine weight supports stable contact on the slab

Specifications

Grinding Speed

205 rpm

Grinding Width

24″

Horse Power

2 HP

Engine Type

Baldor

Operation Type

Grinding Specifications

Power Source

Electric

Model #

CPG202E1(115V)

Part #

5801235

Product Type

Concrete Grinder

Product Subtype

Dual Head

Power

& Performance

Engine/Motor

Baldor Electric

Power Phase

1PH

Voltage

115V

Speed

1725

RPM

Head

Power Output – Cycles

60 Hz

Head Capacity

10"/12"

Width

24" Variable

Dust Collection System

2" Dust Port

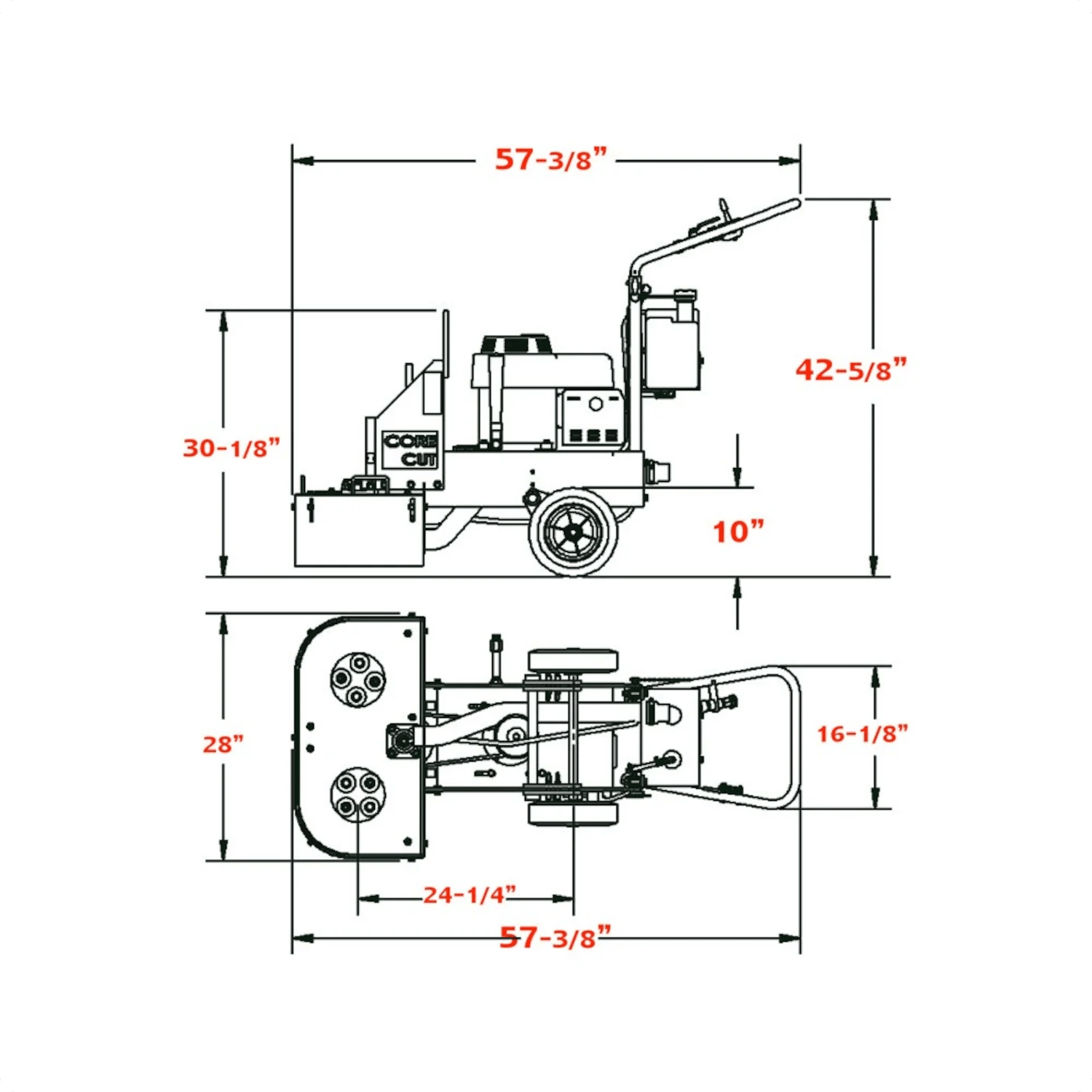

Length

57 3/8"

Height

42 5/8"

Weight (lbs)

390 lb

Includes

65 lb

Warranty

Warranty Product Warranty 1 Year Warranty Engine Warranty –

Catalog Number

42765

Best-fit applications

The CPG202E1(115V) is best matched to coating removal, slab preparation, concrete polishing, and floor-profile correction where the job requires Electric power source, & Performance power, and 24″ grinding width.

• Site utility or fuel: 115V
• Tooling or working setup: 24″
• Handling reference: 390 lb
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
