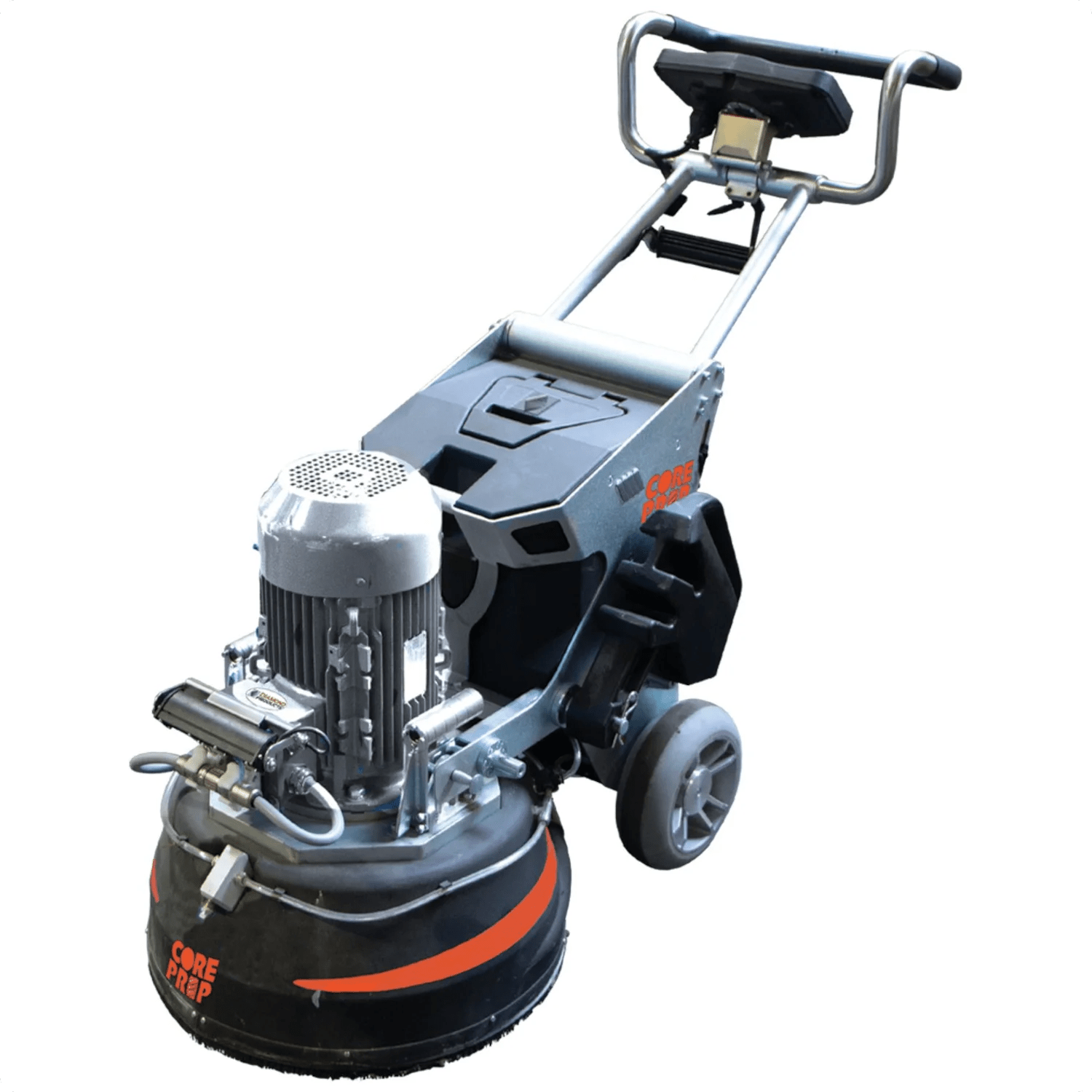

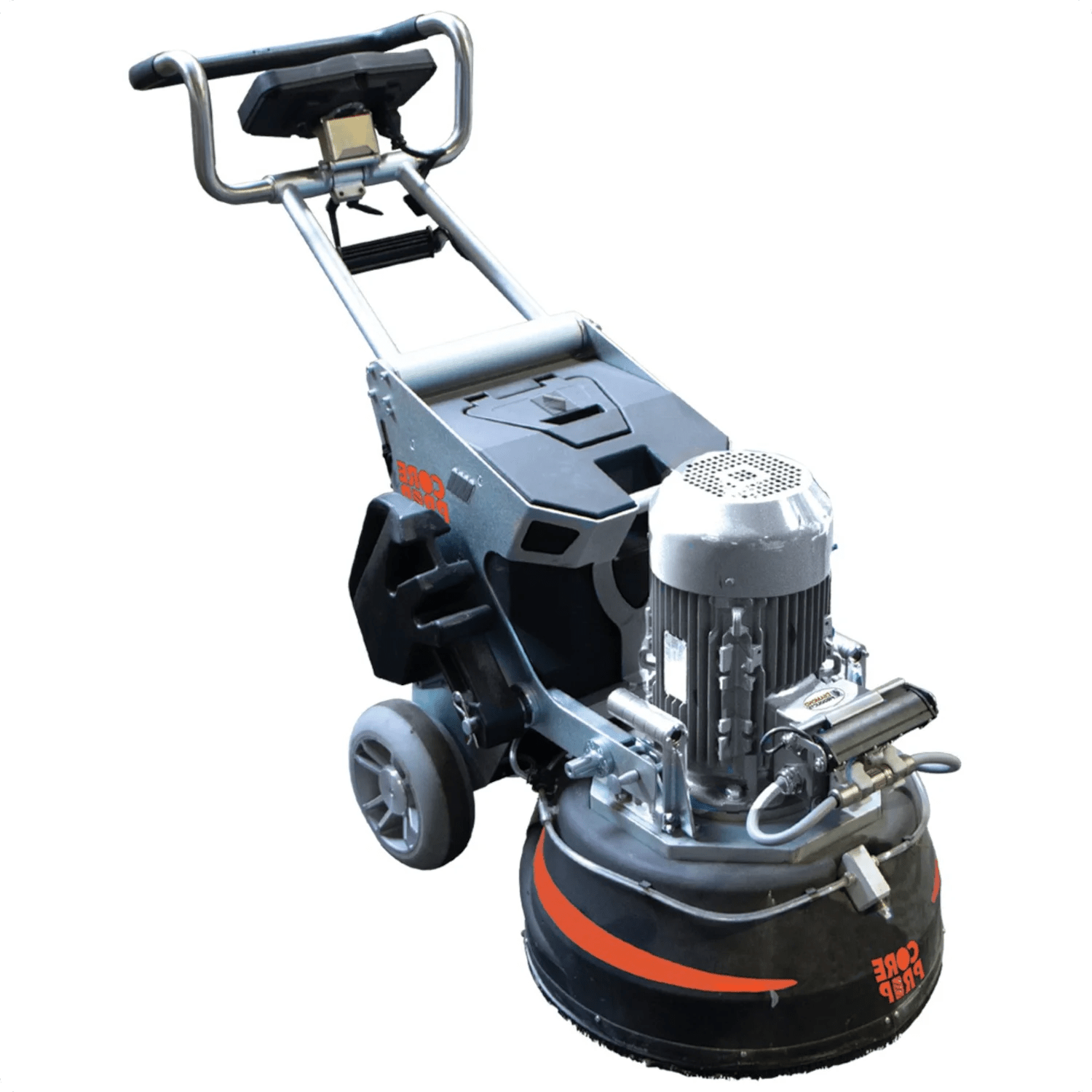

Concrete Surface Grinder/Polisher – 20.25″ Width, 5HP Motor, CPG205E3

Diamond Products CPG205E3 Concrete Surface Grinder is a concrete surface grinder designed for coating removal, slab preparation, concrete polishing, and floor-profile correction. The CPG205E3 configuration pairs Electric power source, & Performance power, and 20.25" grinding width.

Key differentiators

• 20.25" working path sized for professional surface preparation
• 1000 – 2850 RPM operating speed range for controlled material removal
• Electric drive is suited to indoor or power-available projects
• Designed for grinding, polishing, coating removal, and slab preparation
• Dust or water compatibility supports cleaner surface prep workflows
• 278 machine weight supports stable contact on the slab

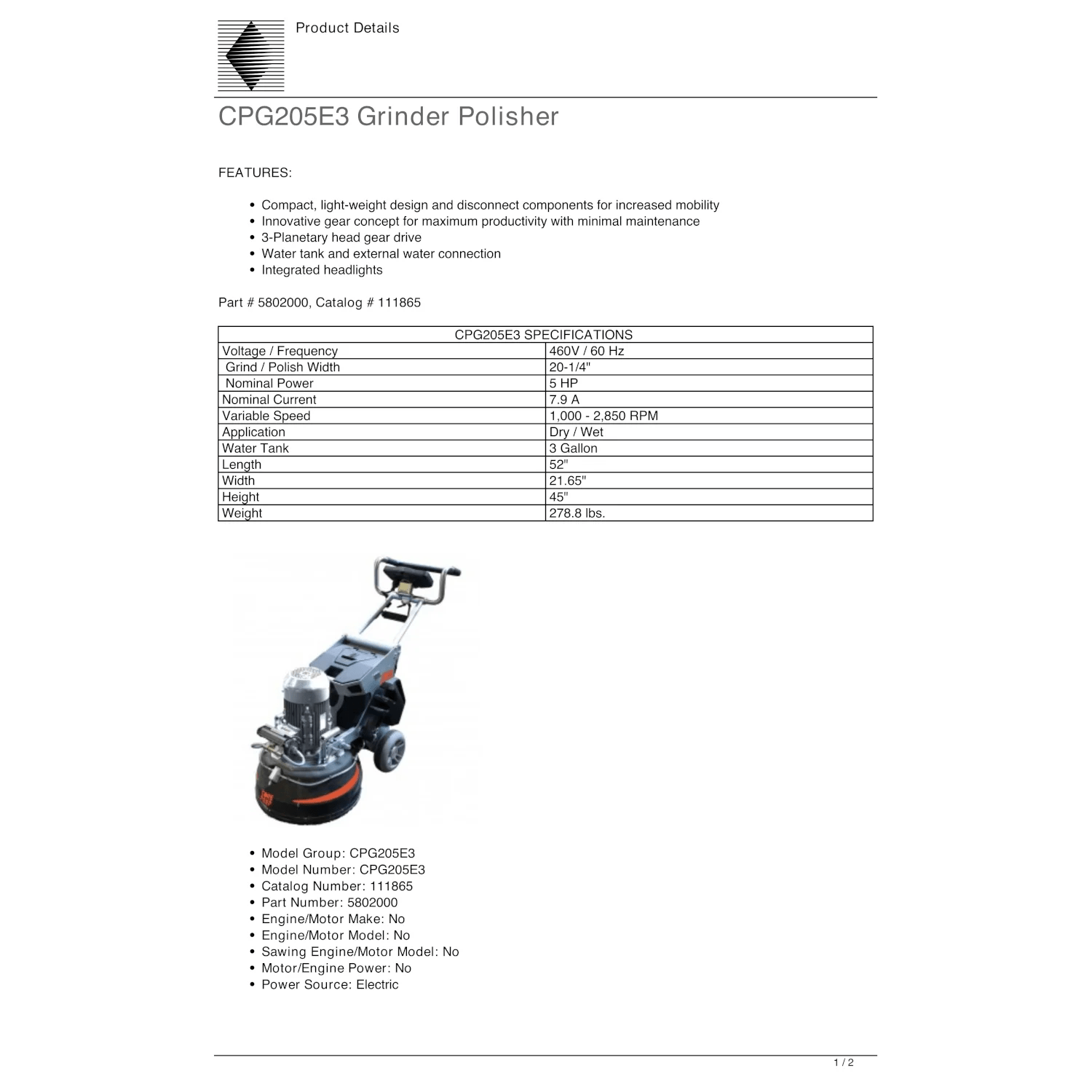

Specifications

Grinding Speed

1000 – 2850 RPM

Horse Power

5 HP

Engine Type

Baldor

Grinding Width

20.25"

Operation Type

Push Drive

Power Source

Electric

Model #

CPG205E3

Part #

5802000

Product Type

Concrete Floor Grinder Polisher

Product Subtype

Grinder/Polisher

Power

& Performance

Engine/Motor

Baldor Electric

Power Phase

3PH

Voltage

460V

Speed

1,000 – 2,850

Power Output – Cycles

60 Hz

Water Tank

3 Gallon Grinding Specifications

Head Capacity

20.25"

Width

20.25" Variable

Length

52"

Height

45"

Weight (lbs)

278 lb

Warranty

Warranty Product Warranty 1 Year Warranty Engine Warranty –

Catalog Number

111865

Best-fit applications

The CPG205E3 is best matched to coating removal, slab preparation, concrete polishing, and floor-profile correction where the job requires Electric power source, & Performance power, and 20.25" grinding width.

• Site utility or fuel: 460V
• Tooling or working setup: 20.25"
• Handling reference: 278 lb
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
