Challenger DX77R ALI Recessed/Flush Mounted Double-Scissor Lift

Product Overview

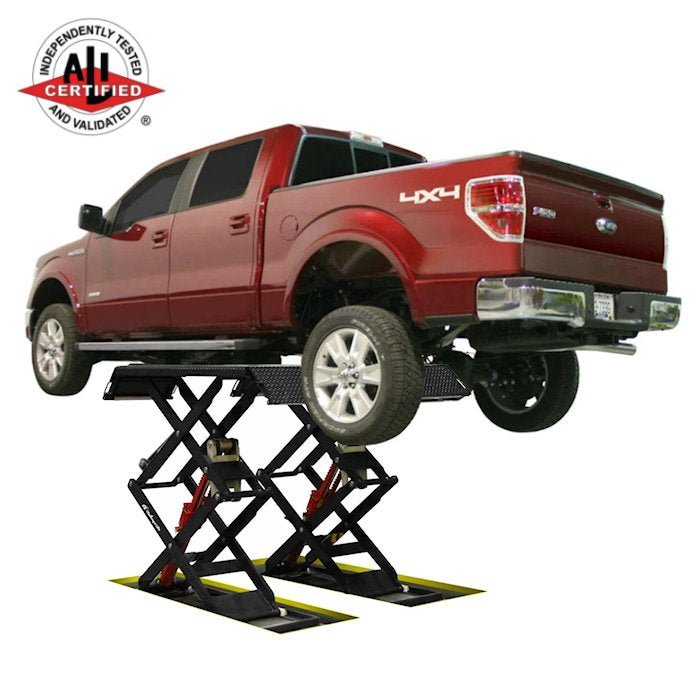

Challenger DX77R Recessed/Flush Mounted Double-Scissor Lift

The Challenger DX77R is a flush-mount scissor lift engineered for maximum productivity and ergonomic efficiency in busy automotive service environments. With a 7,700 lb. lifting capacity and a 70" rise height, this double-scissor design delivers exceptional working clearance while maintaining a clean, recessed installation that sits flush with your shop floor. Built with precision in Italy, the DX77R features synchronized hydraulics, a cross-member-free design for unobstructed access, and reinforced diamond-plated ramps that extend to accommodate longer wheelbase vehicles—all within a compact footprint that maximizes your bay space.

Engineered for Efficiency and Safety

The DX77R was engineered with efficiency and productivity at its core. This double-scissor lifting system delivers taller rise compared to single-scissor designs, providing greater overall working clearance that increases technician productivity and minimizes fatigue. The hydraulically synchronized system ensures smooth, balanced lifts for all makes and models within the rated capacity, while the lift transition cam provides controlled and smooth rise and descent for safe, predictable operation.

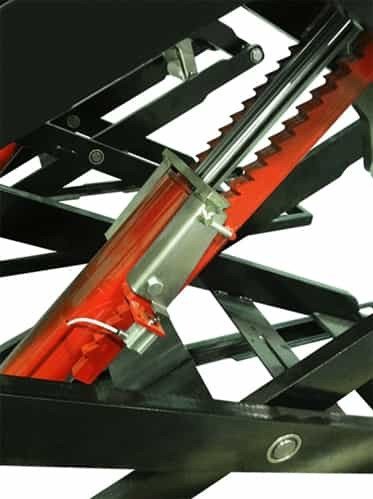

With a mechanical safety lock featuring an air-actuated release, technicians can work at an ergonomic height that reduces strain and boosts efficiency. The cross-member-free platform design offers free access all around the vehicle and between platforms, creating an uncluttered, hazard-free work area that enhances safety and workflow.

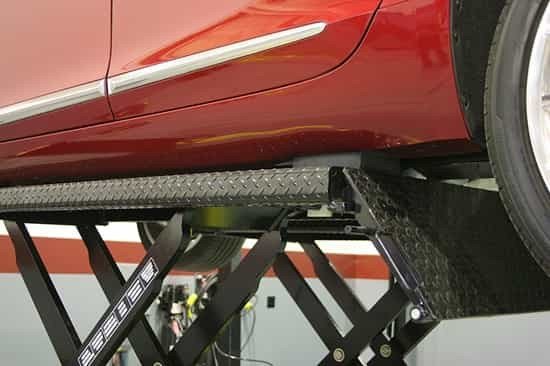

The reinforced diamond-plated ramps easily flip up to extend the platform length, accommodating longer wheelbase vehicles without compromising stability or capacity. Whether you're servicing compact cars or full-size trucks, the DX77R adapts to your needs.

Flush Mount Installation for a Clean Shop Floor

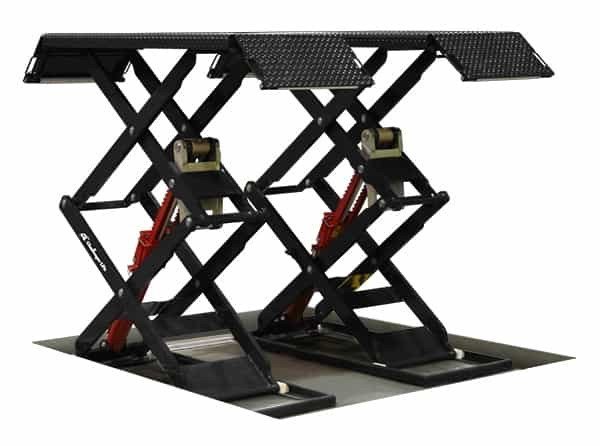

The DX77R features a recessed/flush mount installation, designed to sit level with your shop floor for a clean, professional appearance and seamless vehicle drive-on access. This flush-mount configuration maximizes bay space and eliminates the above-ground footprint typical of standard-mount lifts, giving your shop a streamlined look while maintaining full lifting power and functionality.

The lift includes a complete recessed installation kit (DX77-FM) and all necessary hardware, along with rubber spotting blocks (four 1-1/2" and four 3" blocks) to ensure safe, stable contact with a wide variety of vehicle undercarriages.

Simple, Intuitive Controls

The electric/hydraulic power control console houses three simple push-button controls for intuitive operation:

• Raise Smooth, controlled ascent

• Lower Safe, steady descent

• Lock Release Air-actuated safety lock disengagement

This straightforward design minimizes training time and reduces operator error, allowing your team to work quickly and confidently. The lift achieves full rise in just 43 seconds, keeping your service bays moving efficiently throughout the day.

Key Features & Highlights

• 7,700 lb. lifting capacity with 70" rise height (flush mount configuration)

• Flush-mount installation for a clean, professional shop floor appearance

• Double-scissor design delivers taller rise and greater working clearance

• Synchronized hydraulic system with lift transition cam for smooth, controlled operation

• Cross-member-free platform design provides unobstructed access around and between platforms

• Mechanical safety lock with air-actuated release for ergonomic working heights

• Reinforced diamond-plated flip-up ramps extend platform for longer wheelbase vehicles

• 3HP single-phase motor (208v–220v, 60Hz) for reliable power

• 43-second rise time for efficient bay throughput

• Made in Italy precision European engineering and quality

What's Included

Your Challenger DX77R arrives complete with everything you need for installation and operation:

• Recessed installation kit (DX77-FM) and all necessary mounting hardware

• 1-1/2" rubber spotting blocks (set of 4)

• 3" rubber spotting blocks (set of 4)

ALI Certified for Your Peace of Mind

The Challenger DX77R is ALI Certified, meeting the rigorous safety and performance standards set by the Automotive Lift Institute. This certification ensures your lift has been independently tested and validated for safe operation in professional automotive service environments.

Product Features

• Electric/hydraulic power control console

• Double scissor lifting for taller rise allows more overall working clearance.

• Reinforced diamond plated ramps easily flip up to extend platform.

• Mechanical safety lock with air actuated release allows technician to work at an ergonomic height to increase productivity and minimize fatigue.

• Lift transition cam provides a more controlled and smoother rise and descent.

• The hydraulically synchronized system provides 7,700 lbs lifting capacity.

• Power unit console houses three simple button push controls

• Raise

• Lower

• Lock Release

Made in Italy

Includes

• Recessed installation kit (DX77-FM) & hardware

• 1 1/2” Rubber spotting blocks (set of 4)

• 3” Rubber spotting blocks (set of 4)

Product Specifications

Specifications

DX77
DX77R

Installation

Standard Mount

Flush Mount

Lift Capacity

7,700 lbs.

A Rise Height

74-1/2” (1890mm)

70” (1775mm)

B Overall Length (Lowered)

82-3/4” (2102mm)

C Overall Length (Raised)

83-1/4” (2114mm)

D Overall Width

79-3/4” (2026mm

68-1/4” (1733mm)

E Platform Length

59” (1500mm)

F Platform Width

23-1/2" (600mm)

G Width Between Platforms

21” (533mm)

H Ramp Length

11-3/4” (300mm)

I Lowered Height

4-1/2” (116mm)

N/A

Motor

3HP, Single Phase, 60Hz

Voltage

208v – 220v

Air Supply Required

90 – 120 psi

Speed of Rise

43 Seconds

Max Load per Platform

3,850 lbs. (1750kg)

Key Features

• Published product configuration: Challenger DX77R Recessed/Flush Mounted Double-Scissor Lift The Challenger DX77R is a flush-mount scissor lift engineered for maximum productivity and ergonomic efficiency in busy automotive service environments. With a 7,700 lb. lifting capacity and a 70" rise height, this double-scissor design delivers exceptional
• Exact manufacturer model or part number: DX77R
• Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
• 4 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model DX77R, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
