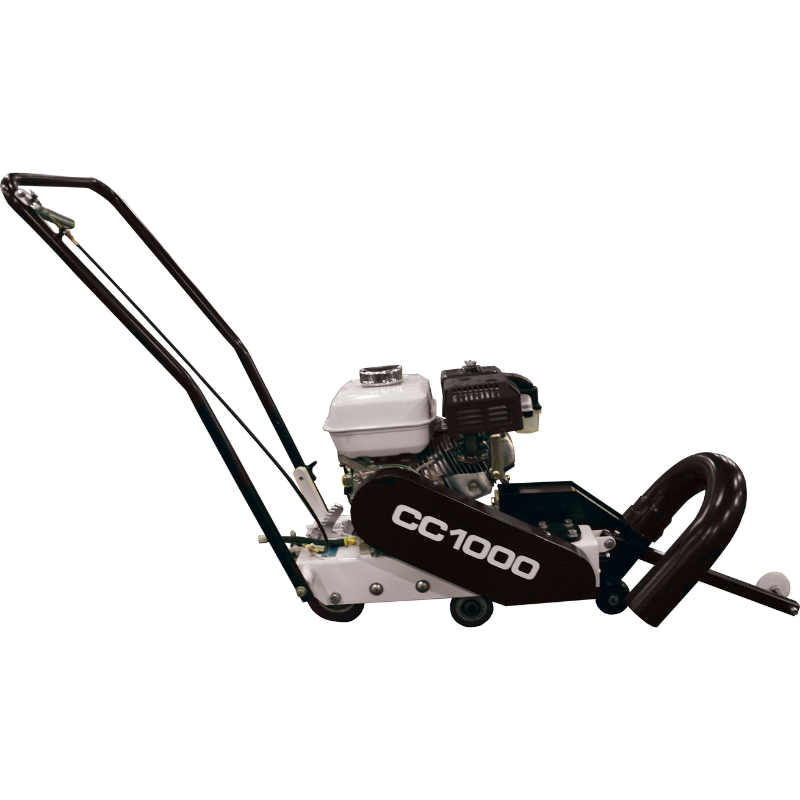

CC1000 Small Joint Cutting Saw – Gas & Electric – 8″ Blade Capacity

Diamond Products CC1000 Concrete Joint Saw is a concrete joint saw designed for early-entry control joints in fresh concrete slabs. The CC1000 configuration pairs Electric power source, 8 in blade capacity, and Up Cut cut direction.

Key differentiators

• 8 in cutting capacity supports the intended blade or bar setup
• 3,800 rpm shaft or chain speed detail for matching tooling and application
• Built for early-entry control joints that help reduce random cracking
• Compact format supports fast work after finishing green concrete
• Useful for sidewalks, commercial slabs, driveways, and flatwork
• Electric power configuration for matching site conditions

Specifications

Model

CC1000

Cut Direction

Up Cut

Power Source

Electric

Catalog Number

47104

Part Number

5800552

Blade capacity

8 in

Max cutting depth

2-1/4 in

Blade shaft rpm

3,800 rpm

Blade shaft diameter

1 in

Arbor diameter

1 in or optional 5/8 in

Frame

1/8 in steel

Best-fit applications

The CC1000 is best matched to early-entry control joints in fresh concrete slabs where the job requires Electric power source, 8 in blade capacity, and Up Cut cut direction.

• Site utility or fuel: Electric
• Tooling or working setup: 8 in
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
