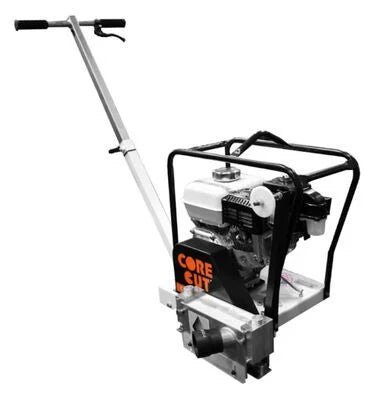

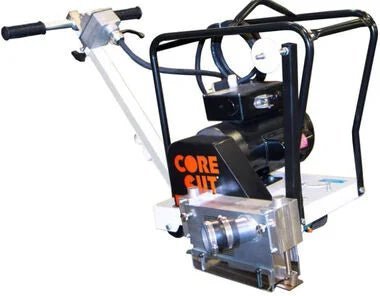

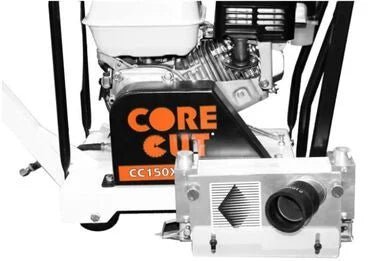

Diamond Products CC150XL-EE First-Cut Concrete Saw True Early Entry Series 6in Honda GX160 Engine 4.8HP

Diamond Products CC148HXL-EE6 / CC150XL-EE Walk-Behind Concrete Saw is a walk-behind concrete saw designed for early-entry control joints in fresh concrete slabs. The CC148HXL-EE6 / CC150XL-EE configuration pairs Gasoline power source, 4.8 HP engine power, and 6-1/2 in blade capacity.

Key differentiators

• 6-1/2 in cutting capacity supports the intended blade or bar setup
• 4.8 HP power package for dependable production cutting
• 4,020 rpm shaft or chain speed detail for matching tooling and application
• Built for early-entry control joints that help reduce random cracking
• Compact format supports fast work after finishing green concrete
• Useful for sidewalks, commercial slabs, driveways, and flatwork

Specifications

Model

CC148HXL-EE6 / CC150XL-EE

Part Number

5801345

Catalog Number

32739

Engine

Honda GX160

Engine Power

4.8 HP

Power source

Gasoline

Blade capacity

6-1/2 in

Max cutting depth

1-1/2 in

Blade shaft rpm

4,020 rpm

Blade shaft diameter

1-1/4 in

Arbor diameter

1 in

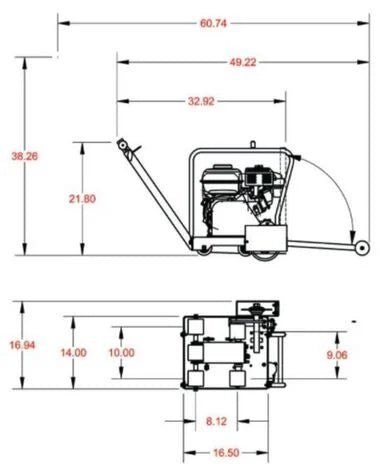

Dimensions

32.92 x 16.94 x 21.80 in

Weight

100 lb

Best-fit applications

The CC148HXL-EE6 / CC150XL-EE is best matched to early-entry control joints in fresh concrete slabs where the job requires Gasoline power source, 4.8 HP engine power, and 6-1/2 in blade capacity.

• Site utility or fuel: Gasoline
• Tooling or working setup: 6-1/2 in
• Handling reference: 100 lb
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
