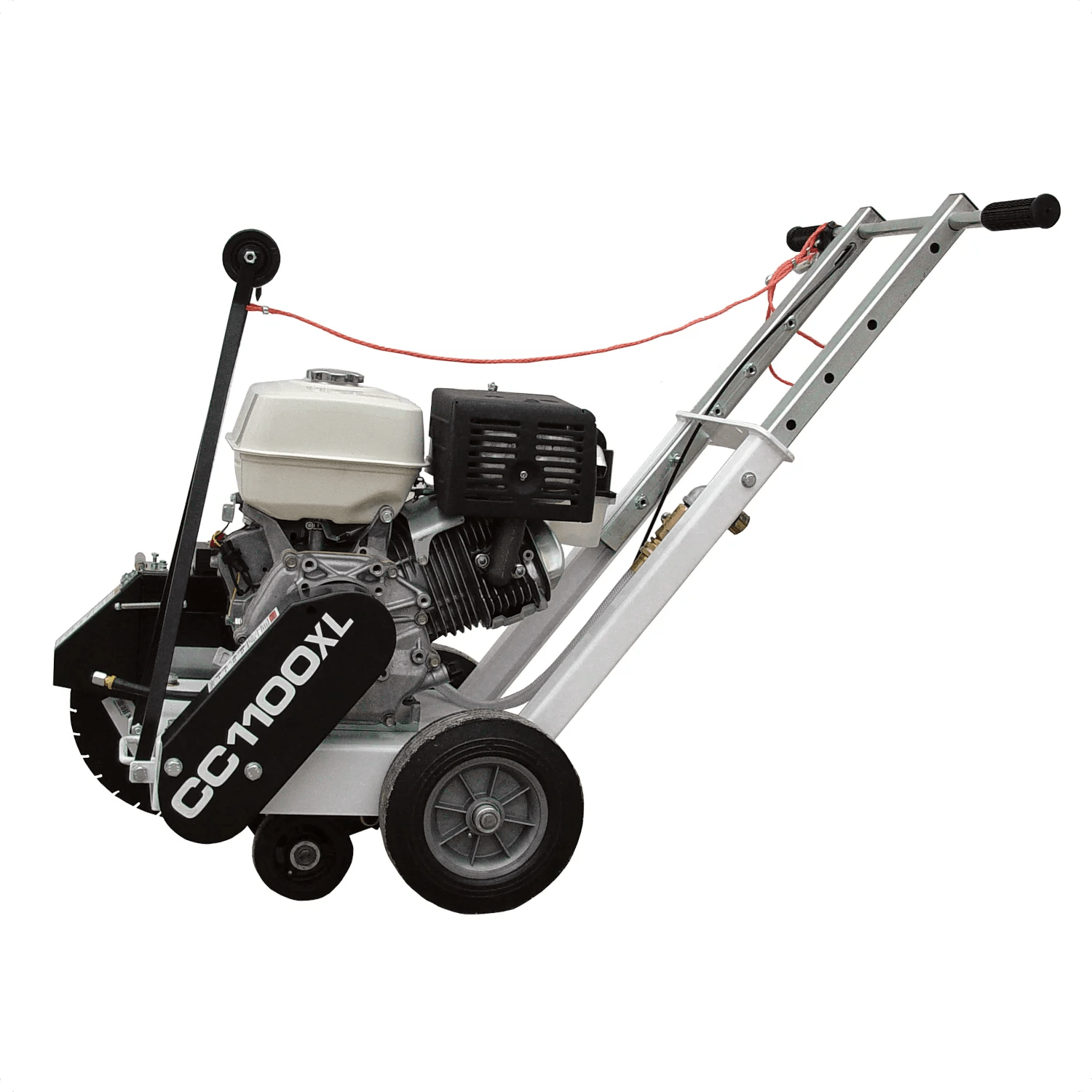

Core Cut Joint Saw – 11.7HP – Gas – 14″ Blade – Upcut

Diamond Products CC1111HUXL-14 Concrete Joint Saw is a concrete joint saw designed for early-entry control joints in fresh concrete slabs. The CC1111HUXL-14 configuration pairs Gasoline power source, 11.7 HP engine power, and 14 in blade capacity.

Key differentiators

• 14 in cutting capacity supports the intended blade or bar setup
• 11.7 HP power package for dependable production cutting
• 2,650 rpm shaft or chain speed detail for matching tooling and application
• Built for early-entry control joints that help reduce random cracking
• Compact format supports fast work after finishing green concrete
• Useful for sidewalks, commercial slabs, driveways, and flatwork

Specifications

Model

CC1111HUXL-14

Cutting Depth

ꜜ4-5/8"

Cut direction

Upcut

Blade shaft rpm

2,650 rpm

Dry Weight

(lbs) 420

Product Warranty

1 year

Engine Warranty

1 year

Warranty

Warranty Product Warranty 1 year Engine Warranty 1 year

Catalog Number

8366

Engine Power

11.7 HP

Power source

Gasoline

Blade capacity

14 in

Arbor diameter

1 in

Best-fit applications

The CC1111HUXL-14 is best matched to early-entry control joints in fresh concrete slabs where the job requires Gasoline power source, 11.7 HP engine power, and 14 in blade capacity.

• Site utility or fuel: Gasoline
• Tooling or working setup: 14 in
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
