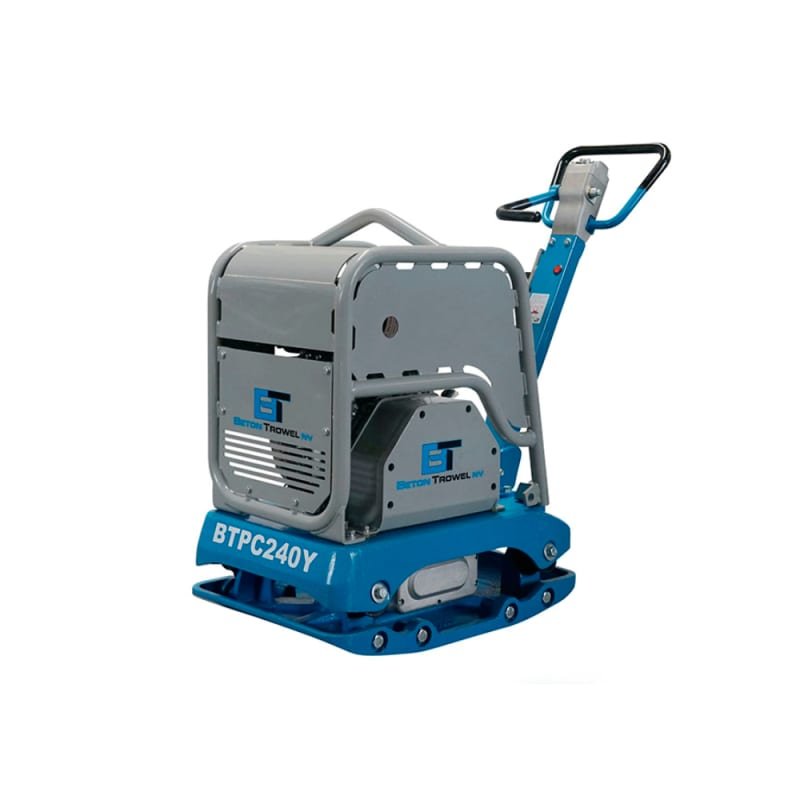

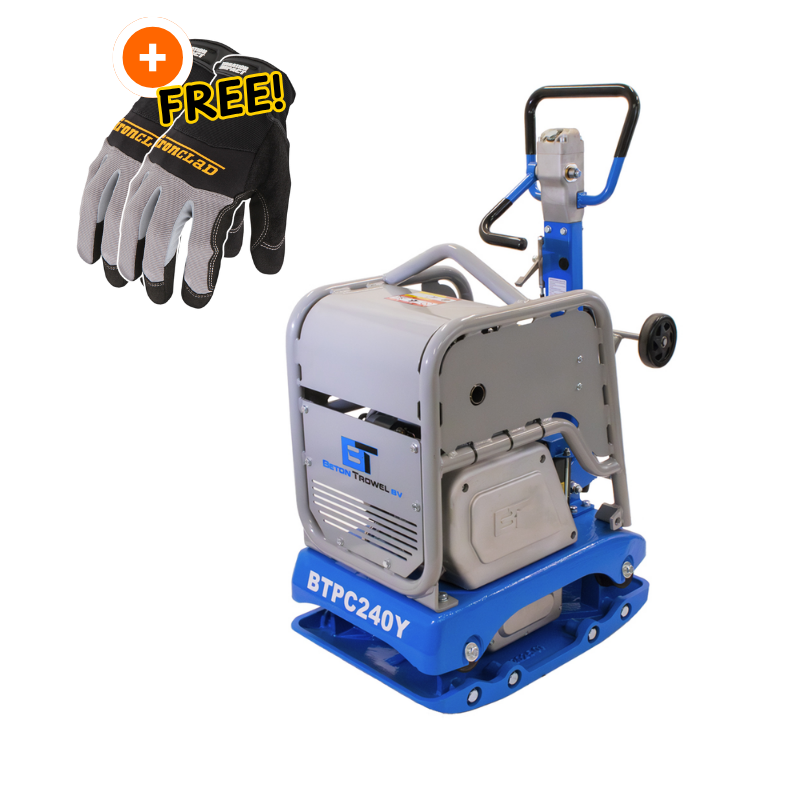

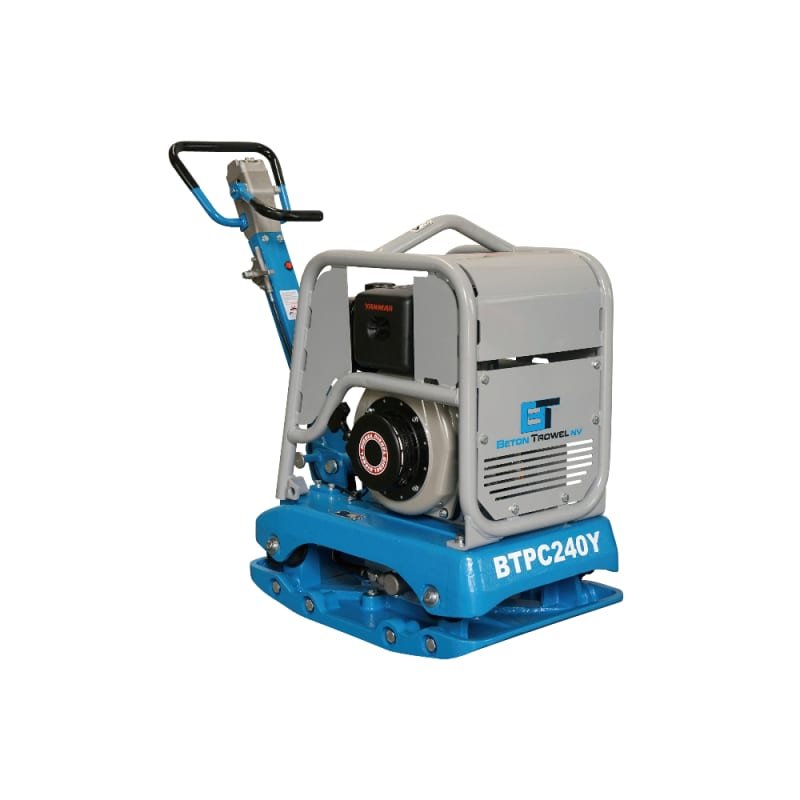

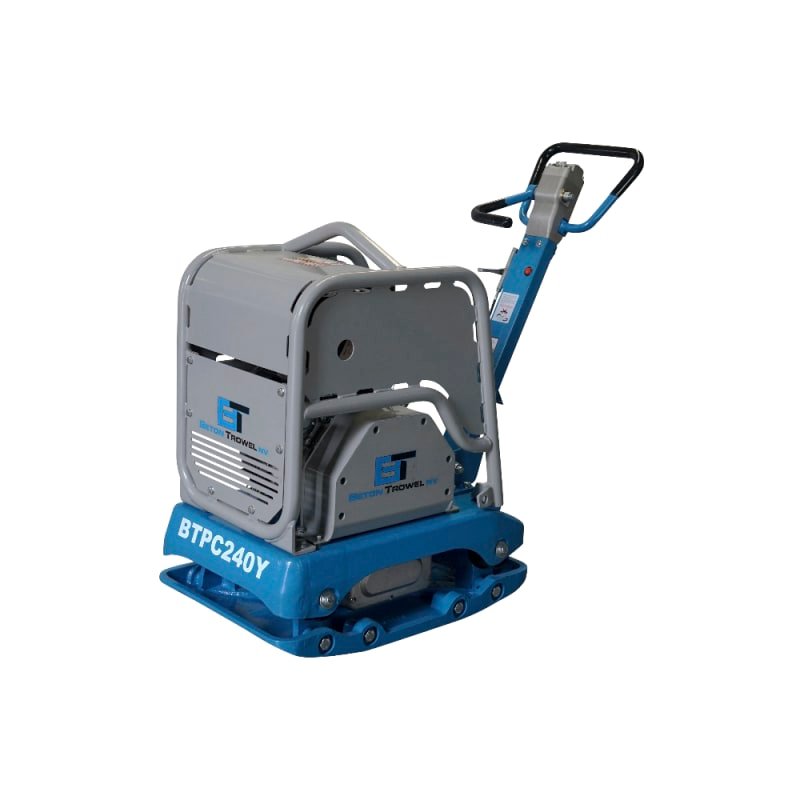

BT Reversible Plate Compactor | 18-in. | Yanmar L70 | 573 lbs.

Beton Trowel BTPC240Y Plate Compactor is a plate compactor designed for granular soil, asphalt, paver-base, and confined-area compaction. The BTPC240Y configuration pairs 35 kN / approx. 7,868 lbf centrifugal force, 260 kg / approx. 573 lb weight, and Yanmar L70 diesel engine.

Key differentiators

• 35 kN compaction or impact output for jobsite production planning
• Yanmar L70 diesel power package matched to the listed SKU
• 700 x 450 mm plate/roller footprint supports coverage and access planning
• 260 kg / approx. 573 lb machine weight helps crews plan loading and freight
• 23 m/min travel speed supports productivity estimates
• 5,200 VPM vibration rate for soil, asphalt, or paver compaction

Specifications

Equipment Type

Reversible Plate Compactor

Engine

Yanmar L70 diesel

Centrifugal Force (Lb.)

35 kN / approx. 7,868 lbf

Gradient Climb

35%

Plate Size L x W (In.)

700 x 450 mm / approx. 27.6 x 17.7 in

Travel Speed

23 m/min

Vibrations Per Minute

5,200 VPM

Warranty

1 Year

Horsepower

4.7 HP

Weight

260 kg / approx. 573 lb

Model

BTPC240Y

Plate Size

700 x 450 mm

Water Tank

No

Rubber Mat

No

Included

Machine in listed SKU configuration; optional accessories only when stated in title or source listing

Best-fit applications

The BTPC240Y is best matched to granular soil, asphalt, paver-base, and confined-area compaction where the job requires 35 kN / approx. 7,868 lbf centrifugal force, 260 kg / approx. 573 lb weight, and Yanmar L70 diesel engine.

• Tooling or working setup: Machine in listed SKU configuration; optional accessories only when stated in title or source listing
• Handling reference: 260 kg / approx. 573 lb
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
