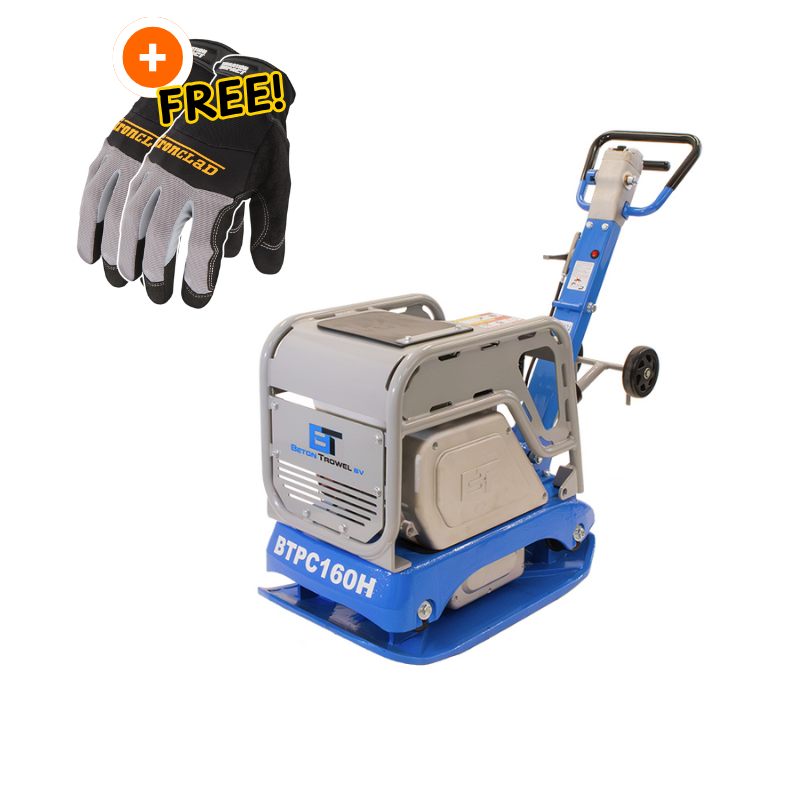

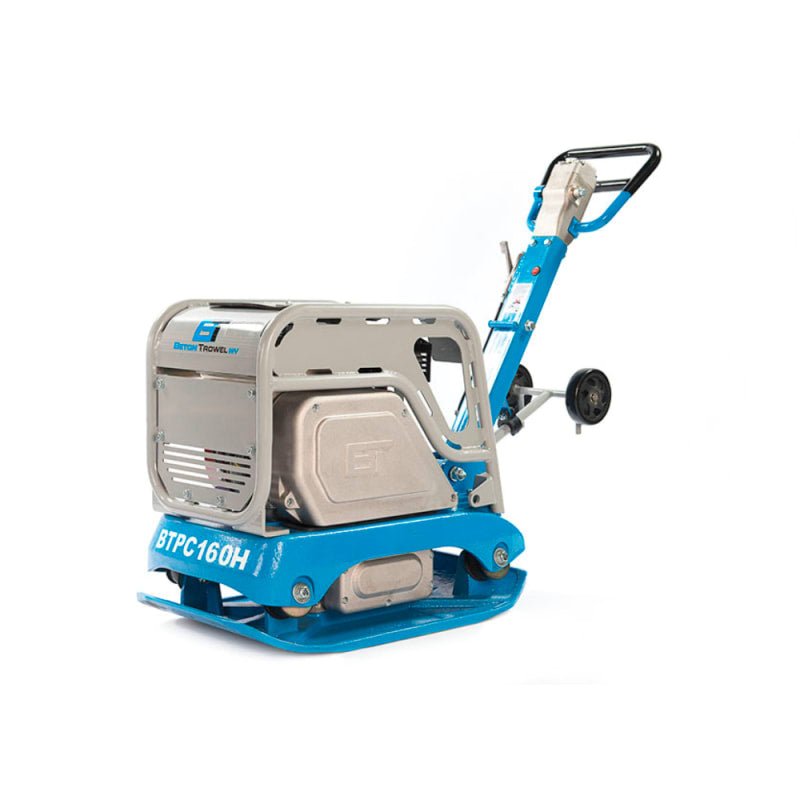

BT Reversible Plate Compactor | 17-in. | GX200 | 330 lbs.

Beton Trowel BTPC160H Plate Compactor is a plate compactor designed for granular soil, asphalt, paver-base, and confined-area compaction. The BTPC160H configuration pairs 6,071 lb. centrifugal force, 160 kg / approx. 353 lb weight, and Honda GX200 engine.

Key differentiators

• 27 kN compaction or impact output for jobsite production planning
• Honda GX200 power package matched to the listed SKU
• 700 x 430 mm plate/roller footprint supports coverage and access planning
• 160 kg / approx. 353 lb machine weight helps crews plan loading and freight
• 25 m/min travel speed supports productivity estimates
• 5,400 VPM vibration rate for soil, asphalt, or paver compaction

Specifications

Equipment Type

Reversible Plate Compactor

Engine

Honda GX200

Centrifugal Force (Lb.)

6,071 lb.

Dimensions

30 in. L x 20 in. W x 48 in. H

Gradient Climb

35%

Plate Size L x W (In.)

27.6 in. L x 16.9 in. W

Travel Speed

25 m/min

Vibrations Per Minute

5,400 VPM

Warranty

1 Year

Horsepower

6.5 HP

Weight

160 kg / approx. 353 lb

Model

BTPC160H

Plate Size

700 x 430 mm

Water Tank

Yes

Rubber Mat

Optional

Included

Machine in listed SKU configuration; optional accessories only when stated in title or source listing

Best-fit applications

The BTPC160H is best matched to granular soil, asphalt, paver-base, and confined-area compaction where the job requires 6,071 lb. centrifugal force, 160 kg / approx. 353 lb weight, and Honda GX200 engine.

• Tooling or working setup: Machine in listed SKU configuration; optional accessories only when stated in title or source listing
• Handling reference: 160 kg / approx. 353 lb
• Confirm delivery ZIP code and carrier-accessible receiving details before checkout
