BendPak PCL-18B-2 18,000 lb. per Portable Column Lift (Set of 2) – New Gray

Product Overview

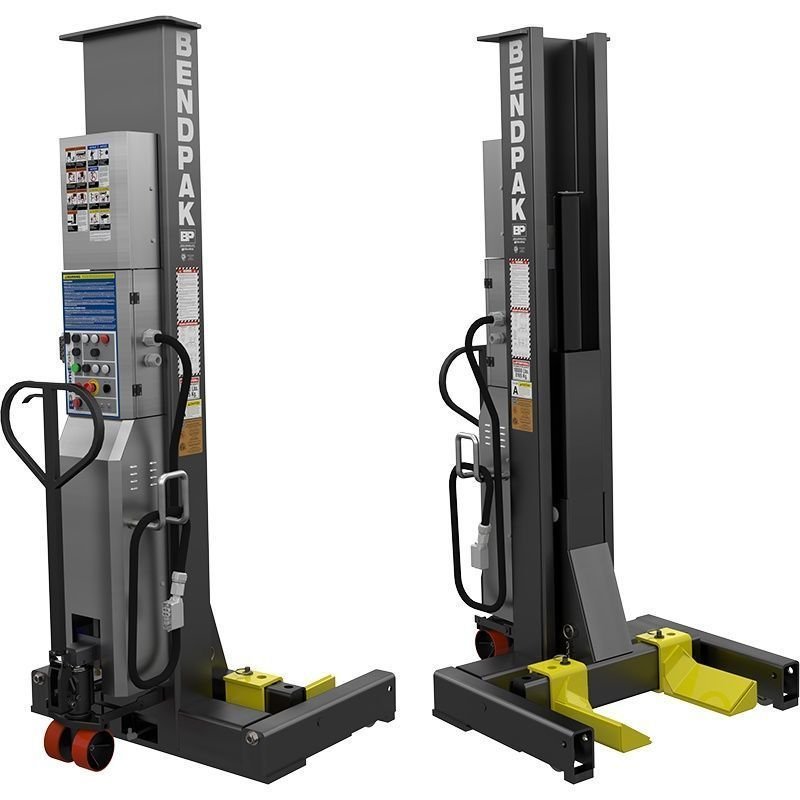

BendPak PCL-18B-2 18,000 lb. per Portable Column Lift (Set of 2) – New Gray

The BendPak PCL-18B-2 mobile column lift system delivers professional-grade heavy-duty lifting power with exceptional portability and flexibility. This 2-column set provides a combined 36,000 lb. total lifting capacity ( 18,000 lbs. per column ), making it ideal for fleet maintenance facilities, municipal garages, and commercial truck service operations. Engineered for both indoor and covered outdoor applications, the PCL-18B Series represents evolutionary advances in ergonomics, safety, durability, and performance. Meets or exceeds ANSI/ALI ALCTV-2011 standards for safe operation.

The Perfect Fit for Your Heavy-Duty Maintenance Facility

The PCL-18B Series proudly adds to BendPak's distinctive history of building the best lifts money can buy with revolutionary steps in ergonomics, power, safety, durability, and performance. These portable column lifts are designed exclusively for heavy-duty fleet service and are precisely suited for the toughest applications. Because they are portable and surface mounted, there's no excavation or expensive site preparation required—simply position, connect, and lift.

BendPak mobile column lifts provide the flexibility and convenience to lift vehicles ranging from light trucks to the largest two- and three-axle vehicles up to 144,000 pounds (when using 8-column configurations). They provide more of what you need on every job: limitless lift cycles to keep you working longer, more flexibility to work on a wide variety of vehicles with easier, safer operation, and more features and productivity-enhancing tools matched to your needs.

The PCL-18B Series defines professional-level performance and quality—from the super-efficient three-phase power system to a simplistic yet durable design that helps reduce scheduled service requirements and operating costs. Never before has a series of portable column lifts delivered so much power and versatility for both indoor and covered outdoor applications.

Maximum Productivity and Uptime

The PCL-18B portable column lift systems feature a user-friendly and revolutionary design that reduces operator fatigue, meaning a mobile lift that's easier to use and set up—and much faster than competitive units. They allow your technicians to get vehicles in the air and back on the road faster and easier than ever before.

Because the PCL-18B uses an energy-efficient on-demand electric-hydraulic power system, it requires no constant recharging so it's ready around the clock, providing measurably longer work cycles than any other mobile column lift in its class. Each column is equipped with an independent 208-240 volt, 3-phase power unit that delivers fast, smooth, and reliable lifting with 85-second lifting speed.

Ergonomic Steering Control

Durable, versatile, and simple to use, the PCL-18B features an ergonomic steering control with a built-in hydraulic jack that elevates the lift assembly in seconds and reduces operator fatigue and downtime. A 180-degree handle with familiar pallet-jack controls provides exceptional maneuverability in compact areas.

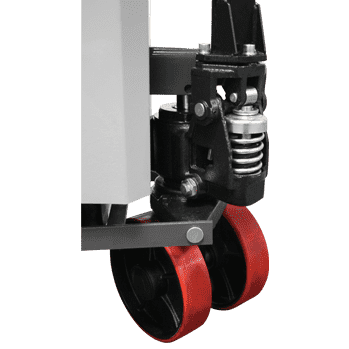

Tandem 8" diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris. With an effortless three strokes of the handle, the lift column is raised off the floor for instant portability. Once the column is positioned, the convenient spring-loaded handle returns efficiently to the upright position automatically. In the event the lift is raised with the steering wheels in the elevated position, an overload bypass valve protects the steering control unit. *Outdoor use only if covered and dry.

Horseshoe Wiring Design

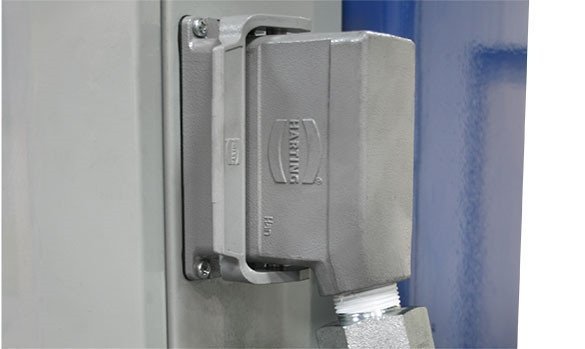

The innovative horseshoe wiring configuration on 4-column sets uses just three 30' control cables (as opposed to four like other brands), so the front or back of the lift is always accessible and free of interconnecting cable obstruction. Save valuable time by driving vehicles in and out of the work area without disconnecting and reconnecting cables.

Powerful and Reliable Hydraulic Design

Low-pressure HVLP direct-drive cylinders eliminate the need for lifting chains or expensive-to-maintain screw-drive systems. Inverted hydraulic cylinders mean the chrome piston rods are protected from debris and damage at all times, which extends the service life and reduces maintenance costs substantially.

Independent self-contained electric-hydraulic power units (one per column) are fast, smooth, and reliable. Each unit includes a motor, gear pump, reservoir, internal valving, a load-hold check valve, and pressure relief circuit in a reliable yet easily serviceable assembly. An enclosed electric-hydraulic power system ensures quieter operation—better suited for sound-sensitive areas.

Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss. Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks.

Industry-Best Mobility

Six-inch diameter Cush-Ride™ front wheels feature an adjustable active leaf spring design that provides variable up-front ground clearance for smooth traveling over uneven floors, deteriorating asphalt, expansion seams, and thresholds. You set the front wheel ride-height to whatever setting best suits your conditions.

Turn the adjusting screw to the max setting and the front legs rise nearly three inches off the ground to facilitate roll-on-roll-off loading of trailers and rollback trucks or to make easy passage of drainage gutters or floor irregularities. During operation, the front wheels automatically compress and settle down, providing firm stable support of the lift column.

Low mounted power units and cylinders mean a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems. A 40" turning circle provides improved mobility and space-saving design. Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another.

Intelligent Push-Button Controls

Operator convenience is a key parameter in the design of the PCL-18B. The PLC-based control system is operated by means of intuitive push-button controls for continuous synchronization of all columns. All operator instructions, symbols, and warnings are printed in clear text and are easy to understand.

The PCL-18B Series allows you to operate, view, and change operation parameters directly from each individual full-control panel. Intuitive controls allow the lift to be fully programmed and controlled from any column. Each column is equipped with an emergency shut-off switch. Control systems feature 24-volt safety circuitry for added protection. Separate key lock enclosure on each column prevents unauthorized use, and electronics are multi-fuse protected.

Self-Diagnostic Fault Codes

Smart electronics feature self-diagnostics and self-calibration functions. If a system error is detected or if the life of a consumable part is nearly expired, fault code indicators are instantly lighted. This allows the user and service coordinator to take appropriate action. If critical faults are detected, all operation functions will be disabled until the affected condition is corrected. Each column is equipped with a warning light and audible alarm for critical warning alerts.

Off-the-Shelf Componentry

A Direct Logic™ PLC (Programmable Logic Control) and other off-the-shelf components from top-tier hardware manufacturers control operation functions and column synchronization. Other lift systems may use dedicated proprietary printed circuit boards specific to that brand, which can be very expensive should replacement ever be needed—if and when available. All control system hardware conforms to CE, CSA, ANSI, ASME, OSHA, and UL regulations.

The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace.

Precision Synchronization

Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting.

Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights. Two-speed lowering option turtle or rabbit speed settings—allows you to control descent speed for added precision and safety.

Designed and Assembled in USA

At BendPak, we make every effort to use USA-sourced components and engineering for our products. Product development, assembly, testing, and packaging of all PCL-18B lifts is undertaken at our manufacturing facility in Santa Paula, California.

Exceptional Wheel Fork Versatility

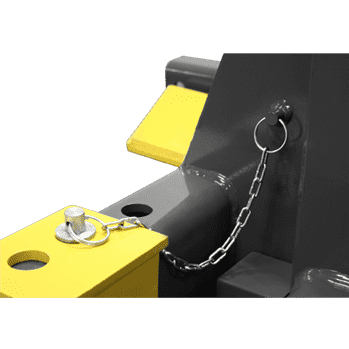

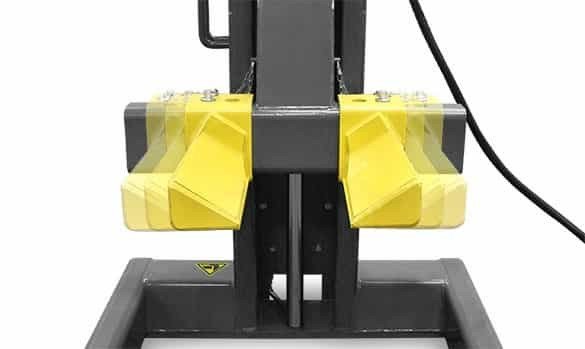

Extended forks accommodate wide tires and deep wheel configurations. Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters. Forks adjust from a minimum width of 9.5" to a maximum width of 35", with a lifting fork length of 11.5".

Built-In Safety Features

Multiple, automatic, independent safety locks spaced every 4 inches ensure safe operation at any height. Heavy-duty steel carriage rollers feature turned, ground, and polished axle pins for smooth, reliable operation. Durable powder-coat finish protects against corrosion and wear.

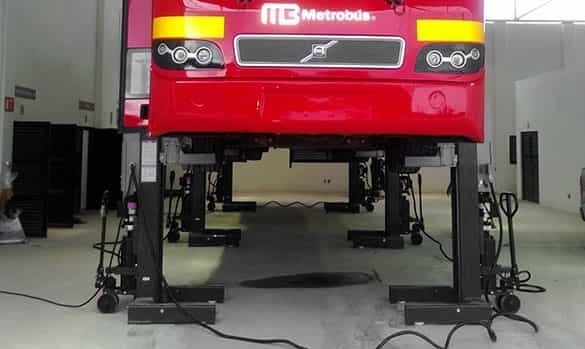

Use the lift to place vehicles on tall jack stands, then use the columns to raise another vehicle in an adjoining bay—maximizing your shop's efficiency and throughput.

You Never Have to Say, "Now What?" Again

We're more than just a lift company; we're a dedicated and highly focused team of experts whose primary commitment is to provide our customers with the best possible after-the-sale service available. Our award-winning Certified Service™ program is how we keep those customers smiling long after the initial purchase of their garage equipment product.

When the unexpected happens, BendPak Certified Service™ is your first and final step towards making it right. Even though our business starts with a quality, cost-effective product, we understand that it is the support and services we provide after the sale that help keep your business running at peak efficiency.

Key Highlights

• 18,000 lb. per column capacity 36,000 lb. total system capacity with this 2-column set

• Portable and surface-mounted no excavation or expensive site preparation required

• Energy-efficient on-demand power no constant recharging, ready around the clock

• Horseshoe wiring design reduces cable clutter, keeps work area clear

• Intelligent PLC-based controls operate from any column with self-diagnostic fault codes

• Multiple safety systems automatic locks every 4", emergency shut-off switches, 24-volt safety circuitry

• Off-the-shelf components no expensive proprietary parts, easy to service

• Designed and assembled in the USA Santa Paula, California

Standard Operation Functions

TEAM, PAIR, OR SINGLE COLUMN OPERATION selects which lift columns will operate as a group, tandem, or individually. Single mode results in commands from specific lift columns; team and pair modes result in commands from any column designated in their respective group.

UP CONTROL initiates the lift rise sequence. Automatic synchronization via auto-level corrections is made throughout all operations in addition to inadvertent loss of motion detection.

DOWN CONTROL initiates the lift lowering sequence. If the lift is parked on the locks, the lift will first automatically rise slightly to clear the locks before descending. If the lift is not parked on the locks, the lift will descend immediately with no initial upward movement. During the lowering sequence, the lift will initially descend at a slowed (turtle) speed, and then automatically initiate to full (rabbit) speed after a short delay. Automatic synchronization via auto-level corrections is made throughout all operations in addition to inadvertent loss of motion detection.

ULTIMATE LEVEL ERROR makes sure that if for any reason the lift operation exceeds a specified out-of-level tolerance threshold, all lift columns will stop and display an out-of-level tolerance error. To clear the error, an offending lift would be put in SINGLE mode and raised or lowered accordingly to reduce the difference in lift heights.

PARK CONTROL initiates the lift locking (parking) sequence. Each lift column will slowly settle onto the mechanical stops.

TWO SPEED OPERATION means parking and lowering speeds are controlled by you. When trying to settle a bus on tall jack stands, go ahead and opt for the slower "turtle" speed for a safe controlled descent; when the job's done and it's time to remove the vehicle from the work area, select the faster "rabbit" speed for a rapid controlled descent.

EMERGENCY STOP shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator.

Product Features

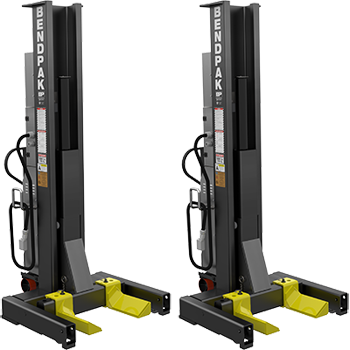

• Sets of 2 Columns 36,000 Total Capcity

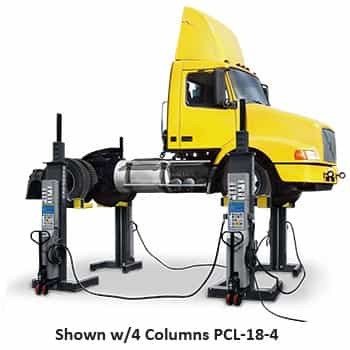

• Available in sets of 4 – PC8L-18B-4 72,000 lbs, 6 – PC8L-18B-6 108,000lbs or 8 – PCL-18B-8 144,000 lbs

• 18,000-lb. individual column capacity; 108,000-lb. maximum system capacity

• Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011

• Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles

• 208-240 volt, 3-phase main power system – optional voltages available upon request

• SINGLE, PAIR or TEAM operation,

• For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions

• Simple operation, long service life and minimum maintenance

• Intuitive controls allow the lift to be fully programmed and controlled from any column

• Control systems feature 24-volt safety circuitry

• The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls which can be very expensive to service or replace

• Smart electronics feature self-diagnostics and self-calibration functions

• Sealed and enclosed linear potentiometers feature precision potentiometric output and high frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting

• Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights

• Two-speed lowering option – turtle or rabbit speed settings

• Each column is equipped with a warning light and audible alarm for critical warning alerts

• Emergency shut off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator

• Separate key lock enclosure on each column

• Electronics are multi-fuse protected

• An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas

• Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen with the weight of a vehicle

• Low mounted power units and cylinders means a lower center of gravity making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems

• Extended forks accommodate wide tires and deep wheel configurations

• Multi-width wheel forks with locking pins accommodate the widest range of wheels eliminating the need for specialty wheel adapters

• Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris

• Heavy-duty steel carriage rollers feature turned, ground and polished axle pins

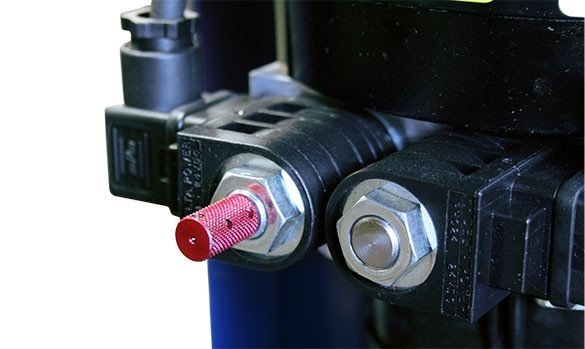

• Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks

• Durable forklift pockets provide simplistic handling when moving the lift columns from once facility to another

• Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss

• Multiple, automatic, independent safety locks spaced every 4 inches ensure safe operation

• Space-saving design, reduced column weight and a tight turning radius provides improved mobility

• Use the lift to place vehicles on tall jack stands then use the columns to raise another vehicle in an adjoining bay

• Durable powder-coat finish

Product Specifications

Specifications
PCL-18B-2
PCL-18B-4
PCL-18B-6
PCL-18B-8

Set of 2
Set of 4
Set of 6
Set of 8

Capacity

Max Column Capacity
18,000 lbs. / 8,165 kg (ea)

Total Capacity (lbs.)
36,000
72,000
108,000
144,000

Column Specs

A Overall Height (Raised)
101” (2,565 mm)

B Overall Height (Lowered)
146.5” (3,721 mm)

C Max Lifting Height
71.5” (1,889 mm)

D Overall Depth
48.75” (1,238 mm)

E Overall Width
45” (1,143 mm)/center>

C Chassis Length
32.25” (819 mm)

G Min Lifting Fork Width
9.5” (241 mm)

H Max Lifting Fork Width
35” (889 mm)

I Lifting Fork Length
11.5” (292 mm)

Turning Circle
40" (1,016 mm)

Column Weight
Each 1,450 lbs. (657 Kg)

Lifting Speed
85 sec

Motor
208 V – 240 V / 50 Hz – 60 Hz / 3 Ph

Shipping

Shipping Weight
1,450 lbs. / 657 kg (Ea. Column)

Shipping Dimensions
106" x 55" x 41" (Ea. Column)
(2,696 x 1,397 x 1,041 mm)

Key Features

• Published product configuration: BendPak PCL-18B-2 18,000 lb. per Portable Column Lift (Set of 2) – New Gray The BendPak PCL-18B-2 mobile column lift system delivers professional-grade heavy-duty lifting power with exceptional portability and flexibility. This 2-column set provides a combined 36,000 lb. total lifting capacity ( 18,000 lbs. per column
• Exact manufacturer model or part number: 5175291-V001
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 4 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175291-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
