BendPak HDSO-14P ALI Open Front 4 Post Car Lift 14,000 lb. – New Gray

Product Overview

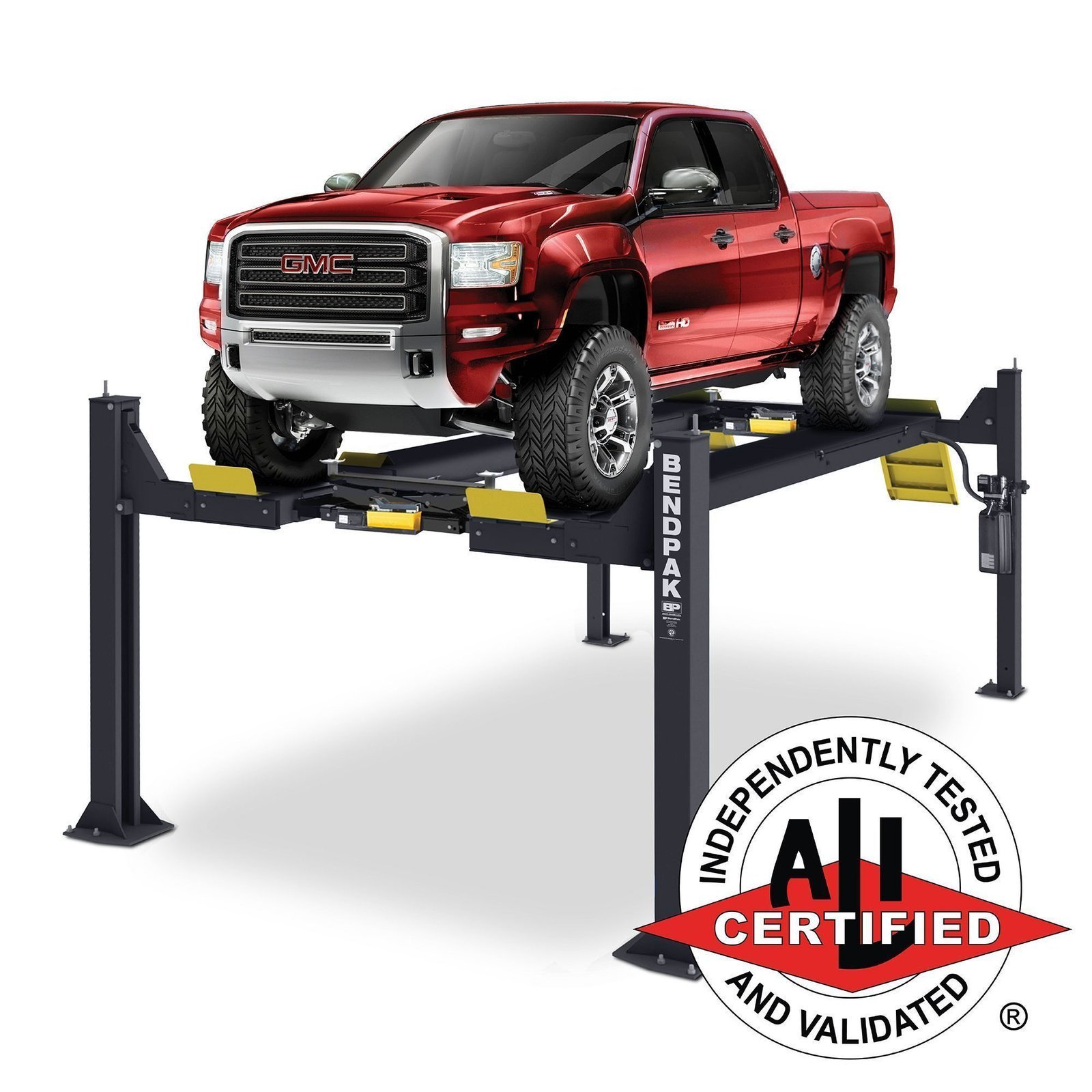

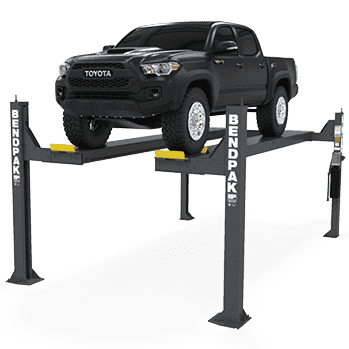

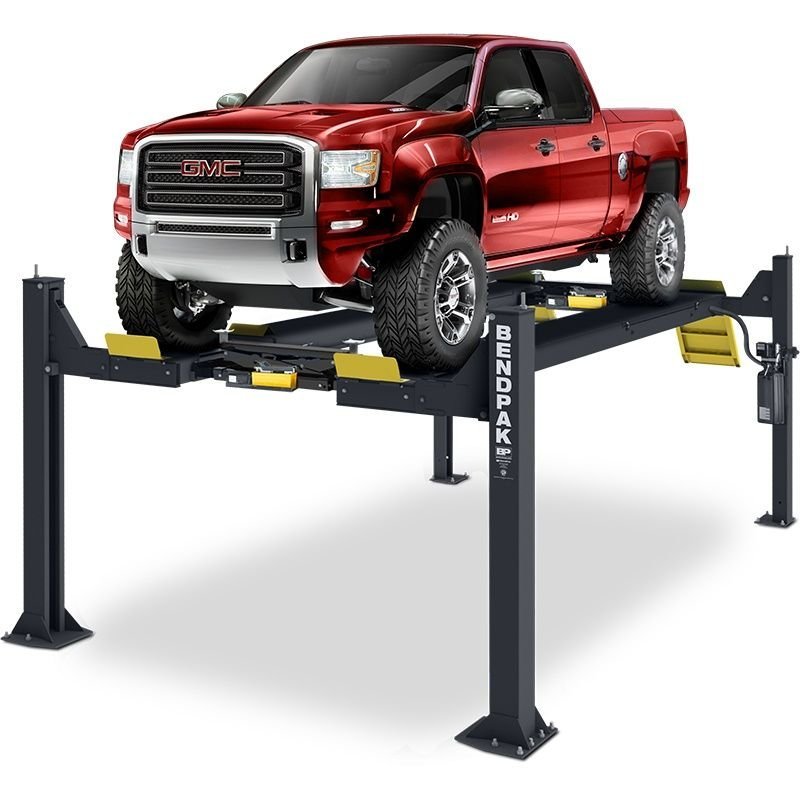

BendPak HDSO-14P ALI Open Front 4 Post Car Lift 14,000 lb. – New Gray

The BendPak HDSO-14P is a premium 14,000 lb. capacity open-front four-post car lift engineered for professional shops, alignment bays, and high-volume service centers. This ALI Certified lift combines a unique open-front design with extended runways and exceptional build quality, making it the perfect solution for servicing everything from compact cars to full-size trucks. With CE Approval and compliance with European Standard EN 1493, the HDSO-14P meets the highest international safety and performance standards.

Revolutionary Open-Front Design for Unrestricted Access

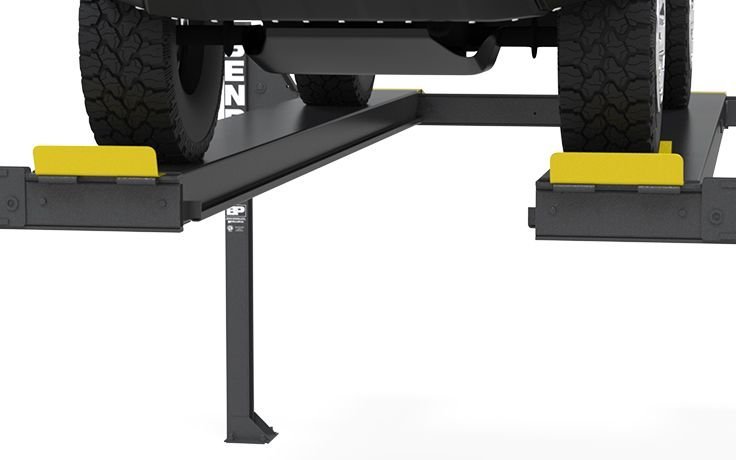

Unlike traditional four-post lifts, the HDSO-14P features a revolutionary open-front design with no front crossbar. This clear-entry configuration provides unrestricted access for technicians to enter and exit from beneath the vehicle with ease. Front-end adjustments, alignments, suspension work, and diagnostics become fast and frustration-free. This is an absolute must-have feature for busy alignment shops and high-productivity service bays where time is money.

With a generous 14,000 lb. lifting capacity and extended 199" runways, the HDSO-14P accommodates a wide range of vehicles—from low-clearance sports cars to heavy-duty pickups and SUVs. The longer approach ramps make loading low ground clearance vehicles simple and safe, while the 97" drive-thru clearance ensures you can work comfortably under even the tallest vehicles.

Patented Precision Leveling and Superior Stability

Patented adjustable front outrigger tubes provide infinitely adjustable pitch control, allowing you to achieve perfect front-lift leveling even on uneven floors or with excessive loads. This exclusive BendPak innovation ensures your vehicles sit level and stable, critical for precision alignment work and safe, efficient service.

The lift is equipped with 13 multi-level locking positions spaced every 4 inches, giving you flexible variable-height parking options for optimal under-vehicle access. A convenient pneumatic push-button safety lock control releases all four independent safety locks simultaneously, making height adjustments quick and effortless. For added security, independent backup slack-cable safety latches engage automatically in the unlikely event of cable failure, providing a redundant layer of protection.

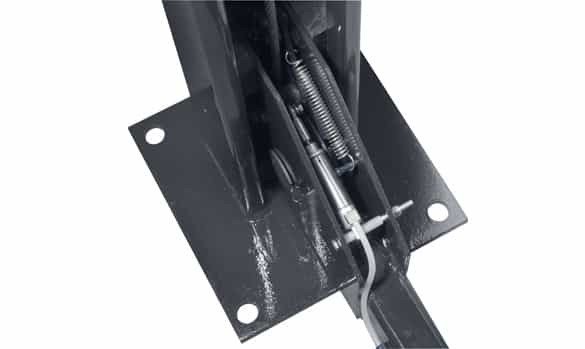

Large 12" x 10" base plates ensure a rock-solid foundation, distributing weight evenly and providing exceptional stability. Internal anti-sway slider blocks in each column further enhance rigidity and eliminate unwanted movement during lifting and lowering operations.

Unmatched Durability: Heavy-Duty Cables, Cylinders, and Components

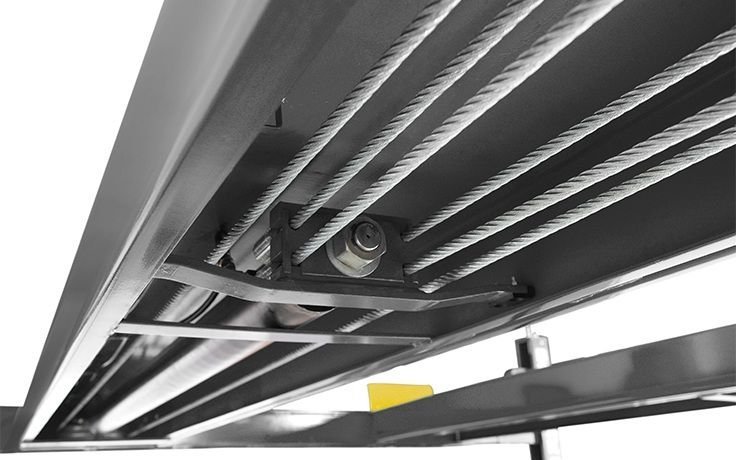

Dependable, long-lasting performance is at the heart of the HDSO-14P. Four heavy-duty 1/2" diameter stainless steel aircraft cables (6 x 25 construction) are rated at 14,400 lbs. each—giving the system a combined cable rating of over 411% of the lift's maximum capacity. This aircraft-quality cable is specifically engineered for lifting applications, offering an ideal balance of abrasion resistance and fatigue life. All lifting cables are fully enclosed within the lift structure, keeping them protected from debris and ensuring a clean, professional appearance.

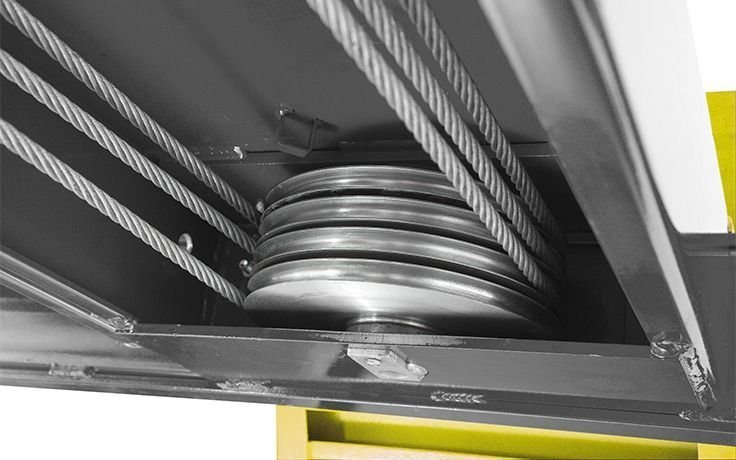

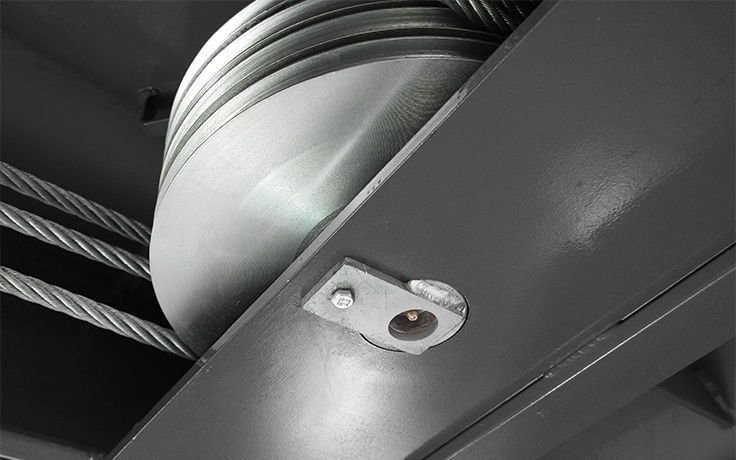

Oversize dual-hub cable sheaves with a massive 10-1/2" diameter and 2-1/4" diameter sheave axles dramatically reduce cable wear and stress, extending the life of critical components and minimizing long-term maintenance costs. Dual-hub sheaves further reduce fatigue and improve reliability. Grease nipples are conveniently located on every sheave and sheave axle, making routine lubrication maintenance fast and easy.

The lift is powered by a single hydraulic cylinder hidden beneath the runway for minimal exposure and maximum reliable performance. BendPak's leak-proof industrial-grade hydraulic cylinder technology is unmatched in the industry:

Each cylinder features a single-piece, pilot-fitted, machined steel piston wrapped with specially designed pressure-loaded U-cup piston seals, backups, and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground, and polished C-1045/50 micro-alloy steel, plated to a minimum of.001" diametrically for superior operation and extended service life. High-durometer, mechanically-loaded rod seals eliminate leakage, while an abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing that exceeds ASTM specifications, ensuring the cylinders remain straight, smooth, and dependable for years. An integrated flow restrictor provides controlled descent in the unlikely event of a hose rupture, adding another layer of safety.

Maintenance-Free Electric Hydraulic Power System

The HDSO-14P incorporates a maintenance-free electric hydraulic power system for ultimate dependability and trouble-free operation. Powered by a 220 VAC / 60 Hz / 1Ph motor, the system delivers consistent, reliable performance and operates at a whisper-quiet 45 dB noise level ideal for busy shops. The lift raises to full height in just 60 seconds, with a maximum rise of 70 inches and a max lifting height of 77.625 inches. All controls are conveniently located within close reach for ease of operation.

Note: An air supply (minimum 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.

Built to Last: Premium Powder-Coat Finish

All BendPak HDSO-Series lifts feature a durable, high-quality powder-coat finish in a sleek new gray color. Unlike competitors that cut corners, BendPak takes pride in a meticulous 10-step powder coating process:

First, all parts are visually inspected and sandblasted. They're then washed in BendPak's 5-stage phosphate tanks (accommodating parts up to 25' long) and immediately dried to prevent rust. Next, parts are outgassed (pre-baked) in a curing oven to eliminate potential blemishes hidden in metal pores. After outgassing, threaded holes and surfaces are carefully masked with high-temperature tape and silicone plugs. A quick thinner wipe removes debris and fingerprints before parts are hung on an electrostatically grounded conveyor. The powder is applied using an electrostatic spray gun, "sticking" to the surface like dust on a TV screen. Finally, the parts are cured in a 400°F oven for 45 minutes, resulting in an extremely durable finish that withstands the harshest environmental and chemical conditions.

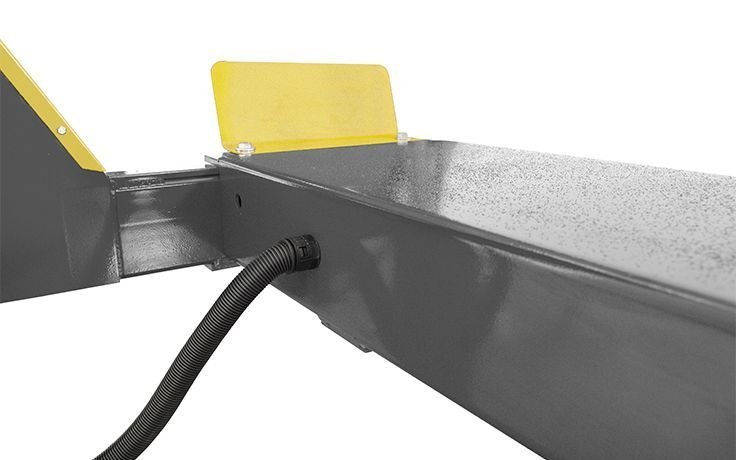

The runways feature a non-skid surface for maximum grip, even when wet or oily, and include an integrated rail-kit for optional accessories. The runways also adjust for different tread widths, making the lift versatile for any vehicle configuration.

Key Highlights

• 14,000 lb. capacity with a balanced 7,000 lb. max per axle

• Open-front design for unrestricted access—no front crossbar

• Extended 199" runways and longer approach ramps for low-clearance vehicles

• ALI Certified and CE Approved (meets European Standard EN 1493)

• Patented adjustable front outrigger tubes for precision leveling on uneven floors

• 13 locking positions spaced every 4" with automatic engagement and pneumatic push-button release

• Leak-proof single hydraulic cylinder with integrated flow restrictor for controlled descent

• Oversize 10-1/2" dual-hub cable sheaves and heavy-duty 1/2" stainless steel aircraft cables

• Maintenance-free electric hydraulic power system (220V / 1Ph) with 45 dB quiet operation

• 60-second full rise with 70" max rise and 77.625" max lifting height

• Non-skid runways with rail-kit for accessories and adjustability for different tread widths

• Independent backup slack-cable safety latches and fully enclosed cables, locks, and sheaves

• Rugged 10-step powder-coat finish in new gray for superior durability

• Large 12" x 10" base plates and internal anti-sway slider blocks for rock-solid stability

• Integrated rolling bridge airline kit, roll-back kits, drive-thru ramps, drip trays, and RJ-7 rolling jacks available as options

Expand Your Service Capabilities with Optional Accessories

Optional 7,000 lb. capacity rolling jacks (Model RJ-7) make an excellent addition to increase your service capacity. These bridge jacks raise the front or rear portion of a vehicle off the runways, enabling efficient wheel and brake service. Using a pair of jacks, you can elevate the entire vehicle for total undercarriage access. Each jack features telescoping arms and frame contact pads that extend over the runways and position under vehicle lifting points. Telescoping rail supports accommodate adjustable runways for different tread widths. Each jack includes three safety-lock positions and stackable truck/van adapters for increased lifting height and better access to frame contact points on high ground-clearance vehicles. The jacks come equipped with a commercial-grade air-hydraulic pump requiring 125 PSI maximum pressure and 10-20 CFM.

Optional Add-On Alignment Kit (Model #5210142) – Available While Supplies Last

Transform your standard four-post lift into an economical alignment solution. This alignment kit is designed to fit all standard 9K, 12K, and 14K four-post lifts with minimum 19" wide runways. It includes rear slip plates, turnplate pockets, and commercial-grade turnplates to convert your lift for performing two- and four-wheel alignments.

Kit Includes:

• Fits 9K – 14K runway lifts that are a minimum of 19" wide

• Bolt-on ramp piece for both front turn plates and rear slip plates

• Commercial-grade turn plates

Additional options available: integrated rolling bridge airline kit, roll-back kits, drive-thru ramps, and drip trays.

Product Features

• 14,000-lb. lifting capacity

• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493

• Huge cable sheaves reduce wear and tear

• Extremely convenient open-front design for easy access

• Extended runway length for servicing

• Longer approach ramps for low ground clearance vehicles

• Electric / hydraulic power system

• Runways include rail-kit for optional accessories

• Runways adjust for different tread widths

• Automatic leveling system with multiple auto-leveling locking positions

• Single hydraulic cylinder mounted underneath runway

• Fully enclosed lifting cables, safety locks, and sheaves

• Internal anti-sway slider blocks in each column

• Pneumatic push-button safety release

• Features heavy-duty 1/2" aircraft cable

• Safety locks enclosed in columns minimize pinch points

• Oversized sheave diameter reduces cable fatigue

• Runways feature non-skid surface

• Rugged, self-lubricating cable sheaves

• Features 1-3/8” sheave axles

• Multi-position safety locks in each column

• Independent backup slack-cable safety latches

• Includes fully adjustable lock stops for precise leveling

• Integrated rolling bridge airline kit option available

• Roll-back kit options available

• Optional drive-thru ramps available

• Optional drip trays available

• Optional 7,000-lb. capacity rolling jacks available (Model RJ-7)

Optional # 5210142 Add-On Alignment Kit – Available While Supplies Last

This Alignment Kit is designed to fit all standard 9K, 12K, and 14K four‐post lifts with minimum 19” wide runways. This wheel alignment kit provides the necessary rear slip plates, turnplate pockets and commercial‐grade turnplates to convert your standard four‐post lift into an economical solution for performing two and four‐wheel alignments.

Kit Includes

• Fits 9K – 14K Runway Lifts that are a minimum of 19” wide

• Bolt on ramp piece for both the front turn plates & back slip plates

• Turn plates

Product Specifications

Model

HDSO14P
HDSO14AX

Capacity

Lifting Capacity: (*)

14,000 lbs. (6,350 kg)

*Max Capacity / Front Axle

7,000 lbs. (3,175 kg)

*Max Capacity / Rear Axle

7,000 lbs. (3,175 kg)

Rise

A Min. Runway Height

7.625" (194 mm)

B Max. Rise

70" (1,778 mm)

C Max. Lifting Height

77.625" (1,972 mm)

Time to Full Rise

60 seconds

Outside Dimensions

D Overall Width Front

143” (3,632 mm)

E Overall Width Rear

130” (3,301 mm)

F Outside Length

215.5" (5,473 mm)
215" (5,472 mm)

G Overall Length

244" (6,198 mm)
243" (6,191 mm)

H Height of Columns Front

105" (2,664 mm)

I Height of Columns Rear

103” (2,613 mm)

Inside Dimensions

J Width Between Columns Front

123” (3,124 mm)

K Width Between Columns Rear

120” (3,046 mm)

L Drive-Thru Clearance

97” (2,464 mm

Runways

M Runway Width

20" (508 mm)
20.5” (520 mm)

N Length of Runways

199" (5,054 mm)

O Width Between Runways

45" (1,143 mm)

P Runway Centerline

65" (1,651 mm)
N/A

Q Outside Edge of Runways

85" (2,159 mm)
N/A

Wheel Alignment

Min. 4-Wheel Alignment

N/A
89" (2,261 mm)

Max. 4-Wheel Alignment

N/A
156" (3,962 mm)

Max. 2-Wheel Alignment

N/A
182" (4,420 mm)

Minimum Wheelbase

Rated Capacity

140" (3,556 mm)

75% Capacity

120" (3,048 mm)

50% Capacity

100" (2,540 mm)

25% Capacity

80" (2,032 mm)

Locking

Locking Positions

13

Lock Spacing

Every 4" (102 mm)

Power Unit

Motor

220 VAC / 60 Hz / 1Ph

Noise

45 dB

Shipping

Weight

3,099-lbs. (1,405 kg)
3,586-lbs. (1,626 kg)

Dimensions

218" x 22" x 50"
(5,537 mm x 558 mm x 1,282 mm)
240" x 23" x 41"
(6,096 mm x 584 mm x 1,041 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
