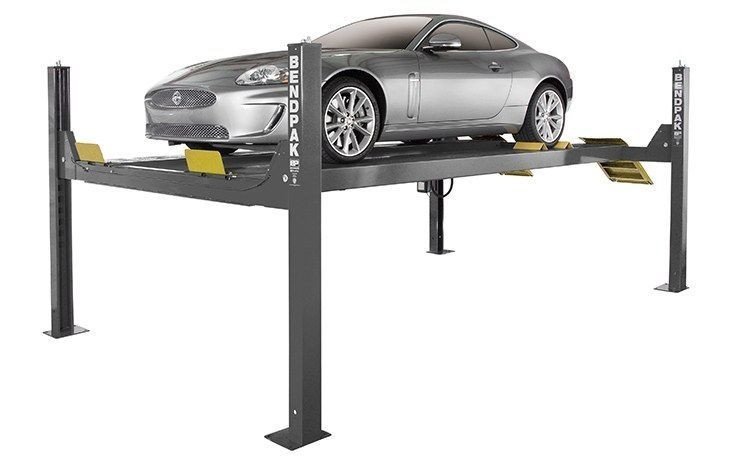

BendPak HDS-14 Standard Length 4 Post Car Lift 14,000 lb. – New Gray

Product Overview

BendPak HDS-14 Standard Length 4 Post Car Lift 14,000 lb. – New Gray

No Such Thing as Overboard: Built for Professional Demands

BendPak's HDS-14 four-post lift incorporates an extensive list of features that our competitors might call overkill—but we don't design for flash. Every component on this lift is standard, not an add-on or extra. Our commercial-grade four-post car lifts are recognized worldwide as the industry benchmark in dependability, quality, and safety. When you invest in a BendPak lift, you spend less time worrying about what you're working under and more time doing what you love.

From heavy-duty 1/2" aircraft cable to fully enclosed lifting cables and safety locks, the HDS-14 is built for increased durability, safety, and productivity. Every element of this lift has been engineered to handle the strenuous demands of professional use, year after year.

Key Design Features and Benefits

Extended Standard-Length Runways: The HDS-14 features 197.5-inch runways designed to safely support vehicles with longer wheelbases. Driving onto the runway is safe and simple for vehicles of all sizes, and the extended design prevents unnecessary wear and tear during loading.

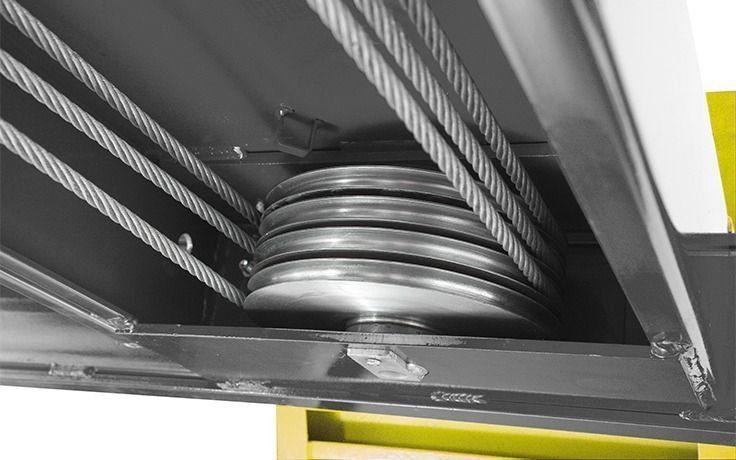

Dual-Hub Cable Sheaves: Massive 10.5-inch diameter cable sheaves within the runway and cross tubes reduce stress, fatigue, and wear across the entire structure. Combined with 2.25-inch diameter sheave axles, these oversized sheaves dramatically improve lift durability and reduce cable fatigue over the life of the lift.

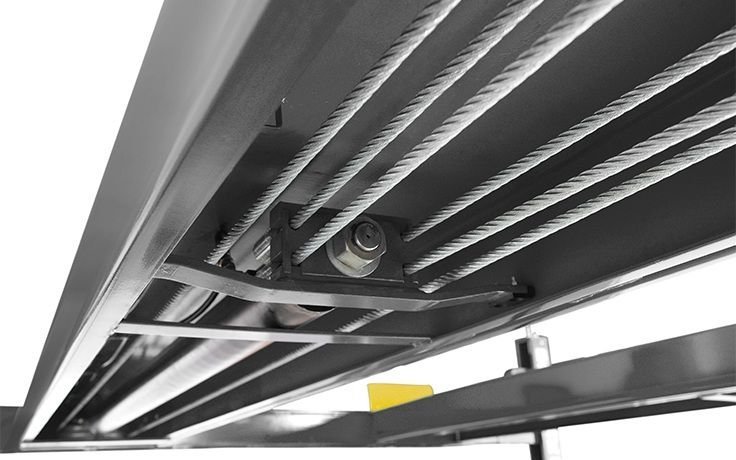

Heavy-Duty Aircraft Cable: This lift is equipped with four 1/2-inch diameter, 6 x 25 stainless-steel lifting cables, each with a breaking strength exceeding 14,000 lbs. This aircraft-quality cable was specifically designed for heavy lifting applications, providing an ideal balance between abrasion resistance and fatigue life. Oversized self-lubricating cable rollers and rugged 1.75-inch roller axles further enhance reliability.

Built-In Lubrication: Grease fittings are conveniently located on every sheave and sheave axle, keeping these critical components well-lubricated and simplifying your periodic maintenance schedule.

Hydraulic Flow Restrictor: An integrated hydraulic flow restrictor provides controlled descent in the unlikely event of an unexpected hose rupture, adding an extra layer of safety to every operation.

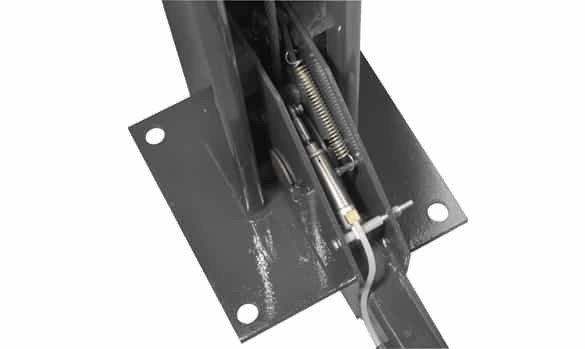

Large Base Plates: 10" x 12" base plates provide a rock-solid foundation without excessively cluttering your shop floor space.

Secondary Lock System: Independent backup slack-cable safety latches are on constant guard and act as a redundant safety device in the unlikely event of an unexpected cable failure. Safety locks are enclosed in columns to minimize pinch points and improve operator safety.

Fully Integrated Design: Lifting cables, airlines, safety latches, and sheaves are all fully enclosed within the structure. You're still able to look in and perform visual inspections during operation, but the enclosed design protects critical components from damage and contamination.

Internal Anti-Sway Slider Blocks: Each column features internal anti-sway slider blocks that minimize movement and enhance stability during lifting and lowering operations.

Adjustable Height Locking Positions: Each column features multi-position safety locks with 15 locking positions for variable-height parking, storage, and infinite leveling. Lock spacing every 4 inches provides the flexibility you need for different vehicle types and service tasks.

Pneumatic Push-Button Safety Release: A pneumatic push-button safety release makes engaging and disengaging the locks fast and effortless. Note: An air supply (minimum 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.

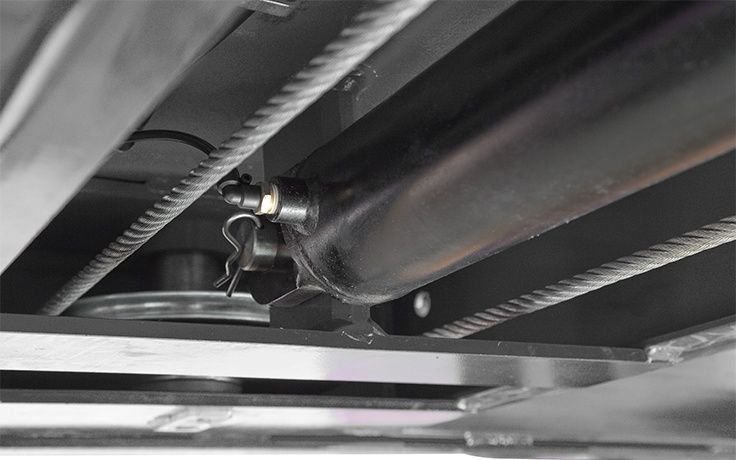

Electric-Hydraulic Power System: A maintenance-free electric-hydraulic power system ensures ultimate dependability. The single hydraulic cylinder is conveniently mounted underneath the runway, and all operator controls are within easy reach. Raising and lowering the lift is as easy as pushing a button.

Customizable Power Unit Location: The power unit location can be customized to fit your shop layout and optimize workflow.

Longer Approach Ramps: Mid to long-style approach ramps decrease the drive-on angle, making the lift ideal for low-riding sports cars and vehicles with minimal ground clearance. The approach ramps incorporate built-in rear-wheel chocks for added safety during loading.

Flexible Protective Conduit: All hydraulic hoses and airlines are routed through flexible, non-metallic tubing that protects against electrical shocks from worn cables and general wear from heavy use. This design also helps your lift pass ALI inspections by preventing visible cable damage.

Durable Matte Finish Runways: The runways feature a durable matte finish that resists wear and provides excellent traction. Runways include rail-kit for optional accessories, allowing you to add drip trays, rolling jacks, and other tools.

What Makes the HDS-14 Stand Out?

• 14,000 lb. lifting capacity with 7,000 lbs. max per axle ideal for trucks, SUVs, vans, and full-size vehicles

• 70-inch max rise in just 60 seconds, with 77.5-inch max lifting height for ample working clearance

• 120-inch width between columns and 98-inch drive-thru clearance for easy vehicle positioning and workflow

• CE Approved, ETL Certified, and built to meet or exceed European Standard EN-1493

• Optional 7,000-lb. capacity rolling jacks (Model RJ7W) enable wheel service and undercarriage access

Optional Accessories to Maximize Your Lift

Optional RJ7W Rolling Bridge Jack: The optional 7,000-pound capacity rolling jack is powerful enough to engage the frame of a 14,000 lb. vehicle and hoist half of it in the air. Rolling bridge jacks are essential for four-post lift operators looking to maximize shop capabilities and perform wheel service. BendPak bridge jacks are second-to-none in quality and are highly recommended for all full-service shops.

Optional #5210142 Add-On Alignment Kit (Available While Supplies Last): This Alignment Kit is designed to fit all standard 9K, 12K, and 14K four-post lifts with minimum 19-inch wide runways. This wheel alignment kit provides the necessary rear slip plates, turnplate pockets, and commercial-grade turnplates to convert your standard four-post lift into an economical solution for performing two and four-wheel alignments.

Kit Includes:

• Fits 9K – 14K runway lifts that are a minimum of 19 inches wide

• Bolt-on ramp piece for both the front turn plates and back slip plates

• Commercial-grade turn plates

Optional Add-On Alignment Kit #5210142

Optional drive-thru ramps and optional drip trays are also available to further customize your lift to your specific needs.

Dimensions and Capacity Overview

The HDS-14 Standard Length model features an overall length of 242 inches and an outside length of 213 inches, with 197.5-inch runways. The overall width is 130 inches, with 120 inches between columns and 98 inches of drive-thru clearance. Each 20-inch wide runway offers adjustable spacing: choose between 34.5 inches or 41.5 inches between runways to accommodate a wide variety of vehicle track widths.

Minimum wheelbase requirements vary by load capacity:

• Rated capacity (14,000 lbs.): 140-inch minimum wheelbase

• 75% capacity (10,500 lbs.): 120-inch minimum wheelbase

• 50% capacity (7,000 lbs.): 100-inch minimum wheelbase

• 25% capacity (3,500 lbs.): 80-inch minimum wheelbase

The lift ships at 2,606 lbs. with shipping dimensions of 209" x 22" x 29", making delivery and installation straightforward.

Product Features

• 14,000-lb. lifting capacity

• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493

• Mid to long-style approach ramps for low ground clearance vehicles

• Runways include rail-kit for optional accessories

• Single hydraulic cylinder mounted underneath runway

• Fully enclosed lifting cables, safety locks and sheaves

• Internal anti-sway slider blocks in each column

• Pneumatic push-button safety release

• Features heavy-duty 1/2" aircraft cable

• Safety locks enclosed in columns minimize pinch points

• Oversized sheave diameter reduces cable fatigue

• Oversized self-lubricating cable rollers

• Rugged 1.75" roller axles

• Multi-position safety locks in each column

• Customizable power unit location

• Approach ramps incorporate built-in rear-wheel chocks

• Independent backup slack-cable safety latches

• Runways feature a durable matte finish

• Optional drive-thru ramps available

• Optional drip trays available

• Optional 7,000-lb. capacity rolling jacks available (Model RJ7W)

• ETL approved

Optional # 5210142 Add-On Alignment Kit – Available While Supplies Last

This Alignment Kit is designed to fit all standard 9K, 12K, and 14K four‐post lifts with minimum 19” wide runways. This wheel alignment kit provides the necessary rear slip plates, turnplate pockets and commercial‐grade turnplates to convert your standard four‐post lift into an economical solution for performing two and four‐wheel alignments.

Kit Includes

• Fits 9K – 14K Runway Lifts that are a minimum of 19” wide

• Bolt on ramp piece for both the front turn plates & back slip plates

• Turn plates

Product Specifications

Model

HDS-14
HDS-14X

Style

Standard Length
Extended Length

Capacity

Lifting Capacity: (*)

14,000 lbs. (6,350 kg)

*Max Capacity / Front Axle

7,000 lbs. (3,175 kg)

*Max Capacity / Rear Axle

7,000 lbs. (3,175 kg)

Rise

A Min. Runway Height

7.5" (191 mm)

B Max. Rise

70" (1,778 mm)

C Max. Lifting Height

77.5" (1,969 mm)

Time to Full Rise

60 seconds

Outside Dimensions

D Overall Width

130" (3,302 mm)

E Outside Length

213" (5,410 mm)
243" (6,172 mm)

F Overall Length

242" (6,147 mm)
272" (6,908 mm)

G Height of Columns

92" (2,337 mm)

Inside Dimensions

H Width Between Columns

120" (3,048 mm)

I Drive-Thru Clearance

98" (2,489 mm)

Runways

J Runway Width

20" (508 mm)

K Length of Runways

197.5" (5,017 mm)
227.5" (5,778 mm)

L Width Between Runways

34.5" or 41.5" (876 or 1,054 mm)

M Runway Centerline

57.5" or 64.5" (1,461 or 1,638 mm)

N Outside Edge of Runways

77.5" or 84.5" (1,969 or 2,146 mm)

Minimum Wheelbase

Rated Capacity

140" (3,556 mm)
170" (4,318 mm)

75% Capacity

120" (3,048 mm)
145" (3,683 mm)

50% Capacity

100" (2,540 mm)
120" (3,048 mm)

25% Capacity

80" (2,032 mm)
95" (2,413 mm)

Locking

Locking Positions

15

Lock Spacing

Every 4" (102 mm)

Power Unit

Motor

220 VAC / 60 Hz / 1Ph

Noise

45 dB

Shipping

Weight

2,606-lbs. (1182 kg)
2,740 lbs. (1,242 kg)

Dimensions

209" x 22" x 29"
(5359 mm x 610 mm x 737 mm)
239" x 24" x 29"
(6,070 mm x 558 mm x 737 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Key Features

• Published product configuration: BendPak HDS-14 Standard Length 4 Post Car Lift 14,000 lb. – New Gray No Such Thing as Overboard: Built for Professional Demands BendPak's HDS-14 four-post lift incorporates an extensive list of features that our competitors might call overkill—but we don't design for flash. Every component on this lift is standard, not
• Exact manufacturer model or part number: 5175170
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 4 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175170, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
