BendPak 10AP Pro Series Adj-Width ALI 2 Post Lift Package

Product Overview

BendPak 10AP Pro Series Adj-Width ALI 2 Post Lift Package

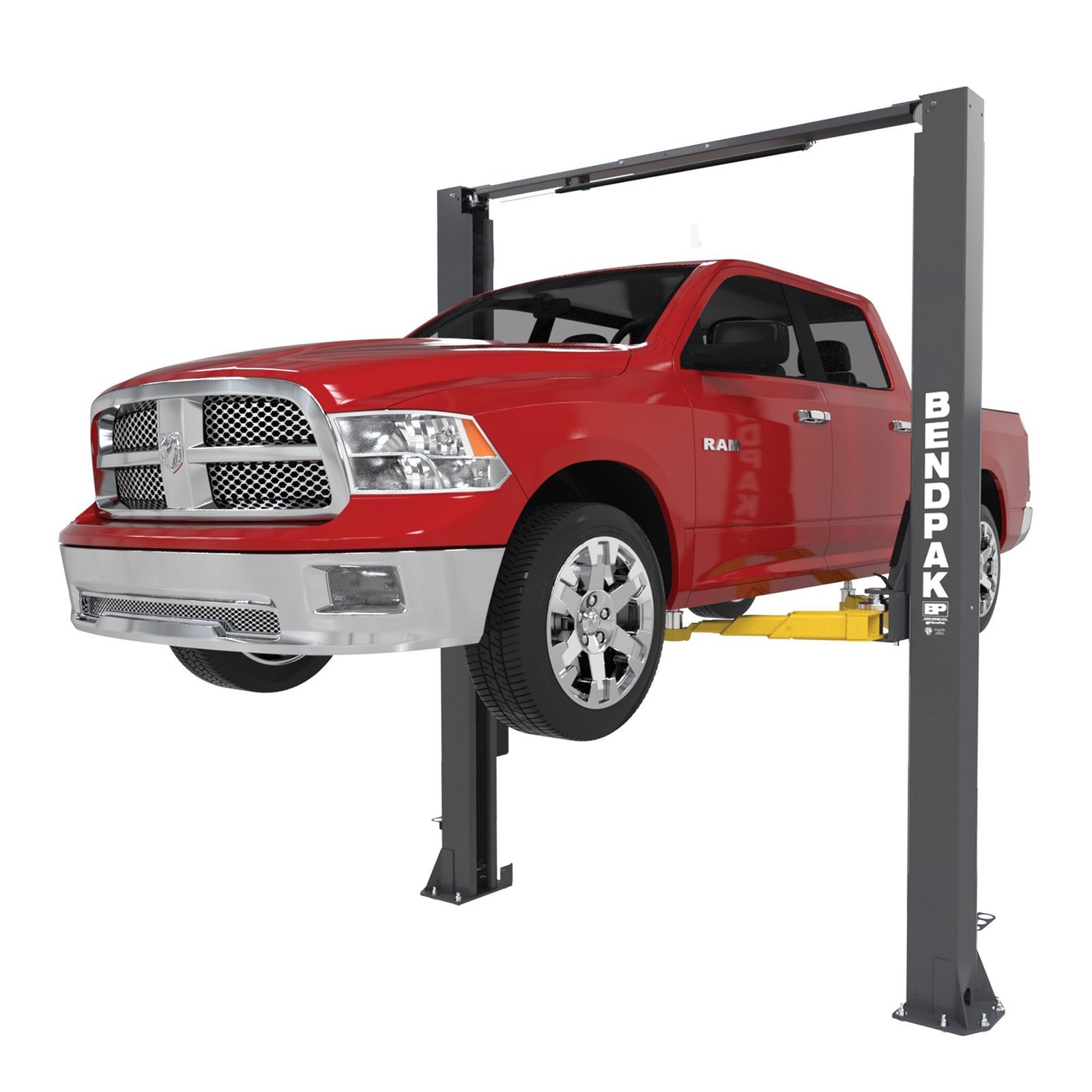

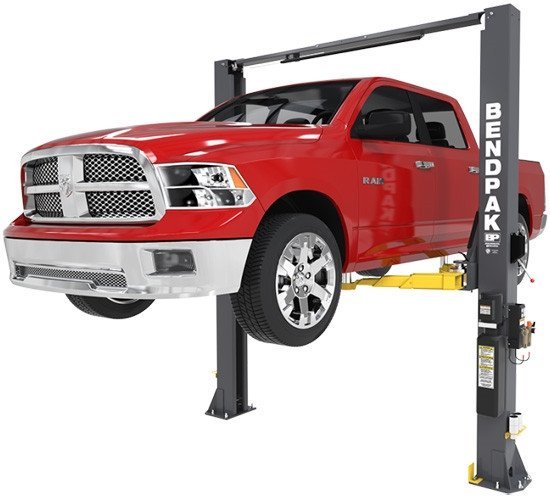

Transform your automotive service bay with the BendPak 10AP Pro Series an ALI-certified 10,000 lb. capacity two-post lift engineered to deliver unmatched versatility, safety, and performance. This adaptable clearfloor design combines an expandable top beam that accommodates both wide and narrow drive-thru configurations, exclusive Bi-Metric™ arms for more versatile arm positioning, and the revolutionary Automatic Swing Arm Restraint System (ASARS) to handle virtually any vehicle lifting requirement, whether symmetric or asymmetric.

From passenger cars to light-duty trucks, the 10AP is designed to maximize productivity, minimize maintenance costs, and provide rock-solid reliability for professional shops and serious enthusiasts alike. Powered by a 220 VAC / 60 Hz / 1-phase motor, this lift features dual hydraulic direct-drive cylinders, an advanced electric/hydraulic HVLP power system, and a self-lubricating dura-glide UHMW polyethylene bearing system that represents the pinnacle of two-post lifting technology.

Revolutionary Automatic Swing Arm Restraint System (ASARS)

Game-Changing Vehicle Lifting Technology

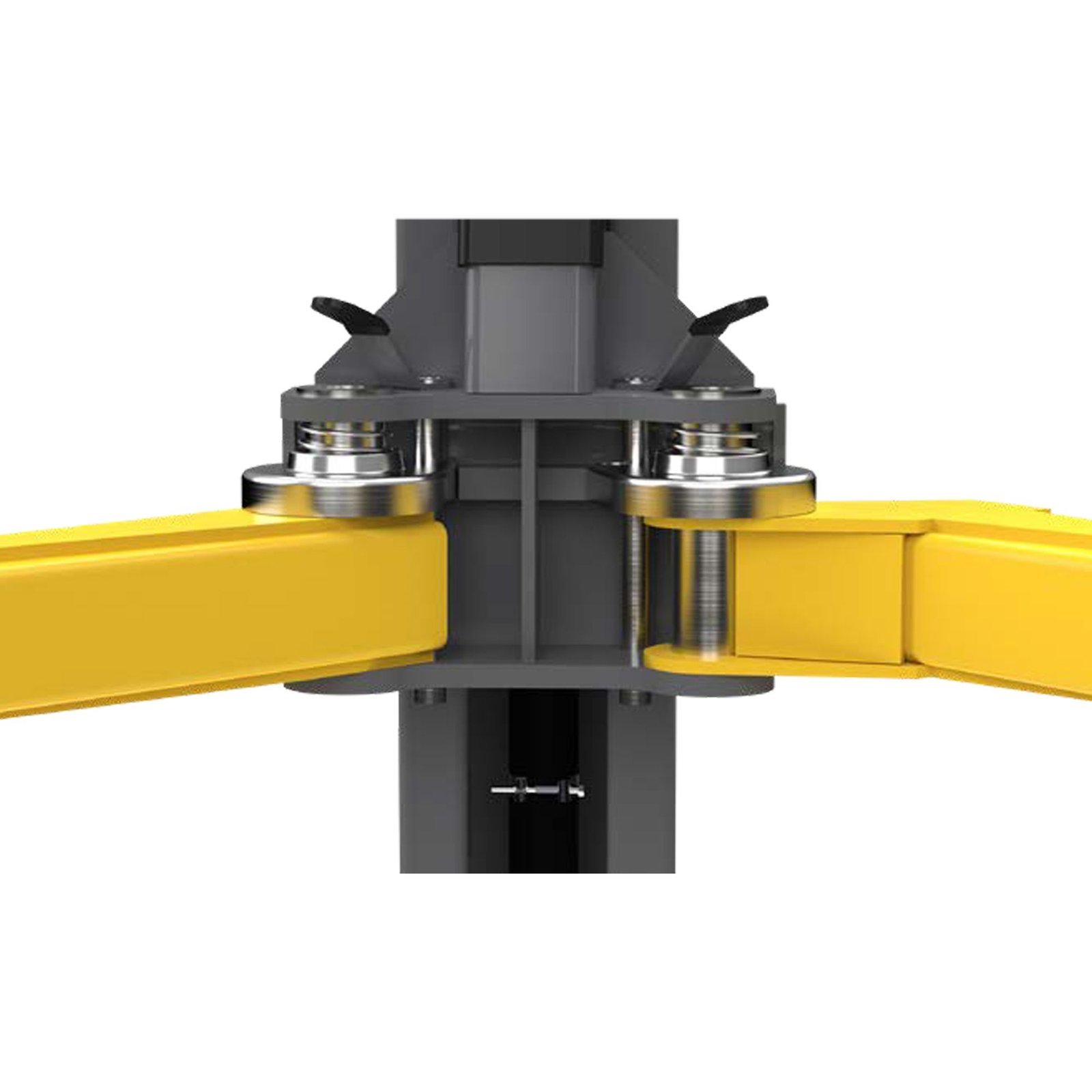

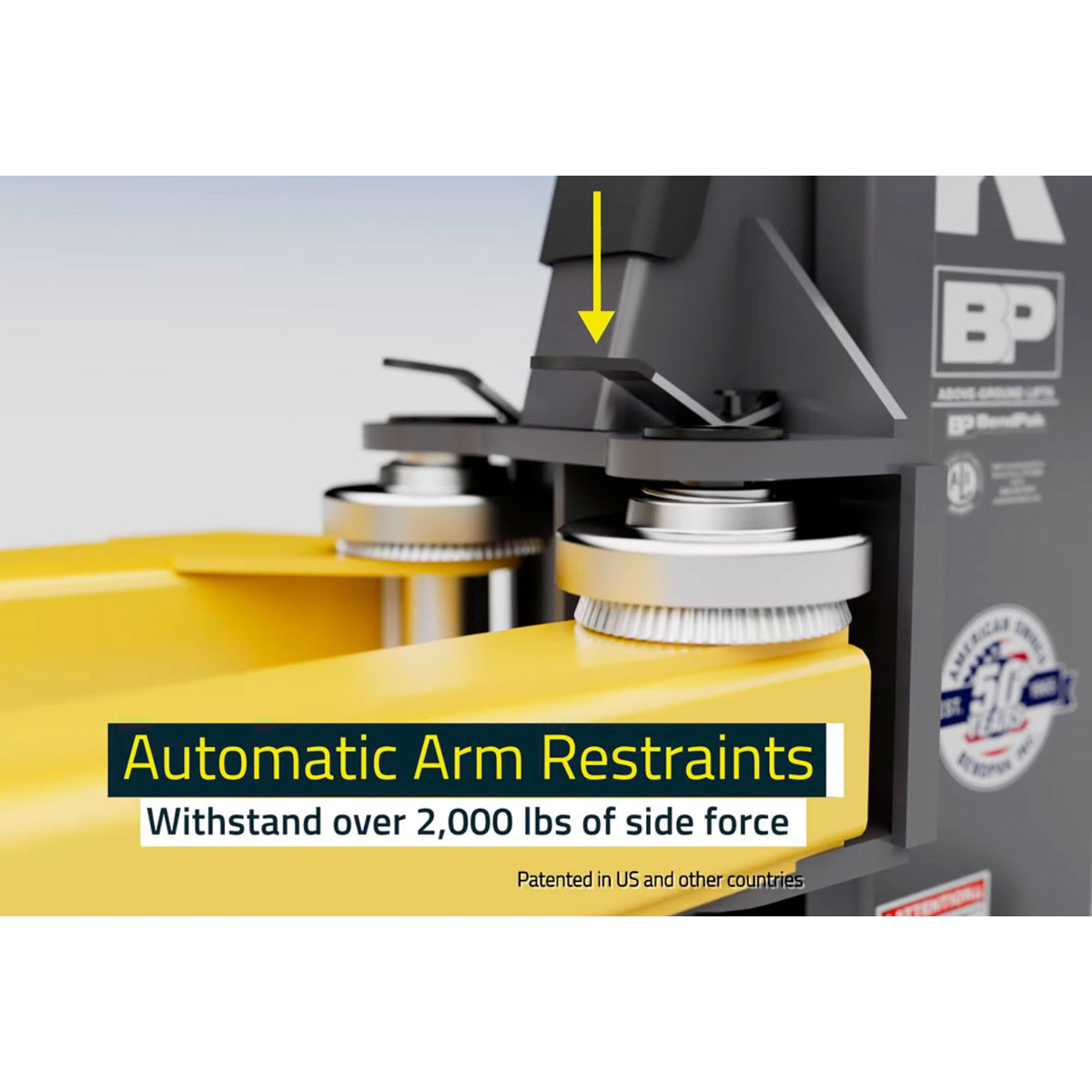

At the heart of the AP Pro-Series is the revolutionary Automatic Swing Arm Restraint System (ASARS), an absolute game-changer in vehicle lifting technology. Featuring a robust, forged-steel design, the ASARS offers a complete 360-degree grip with over 2,000 lbs. of load holding force, ensuring absolute stability while preventing unplanned movement during lift operations. This system requires minimal operator intervention, delivering unmatched reliability and ease of use.

Swing arm restraints have been used for decades on two-post lifts to minimize the chance of arm movement during operation. Traditional systems require manual engagement, but BendPak's ASARS takes it to the next level with automatic engagement that activates seamlessly as the lift rises. Once engaged, these automatic arm restraints withstand over 2,000 pounds of side force, providing superior protection against accidental arm displacement.

The single-point safety release allows quick and easy arm adjustment when needed, while the padded overhead safety shutoff bar provides additional operator protection. Combined with safety locks in each column spaced every 3 inches, the 10AP delivers multiple layers of protection that exceed industry standards. The 3/8" (10mm) high-strength multi-strand galvanized steel equalizing cable with oversized sheave diameter reduces cable fatigue for extended service life and reliable synchronization between columns.

Unmatched Versatility with Four Configuration Options

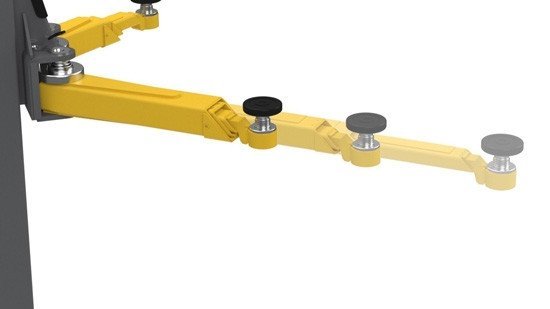

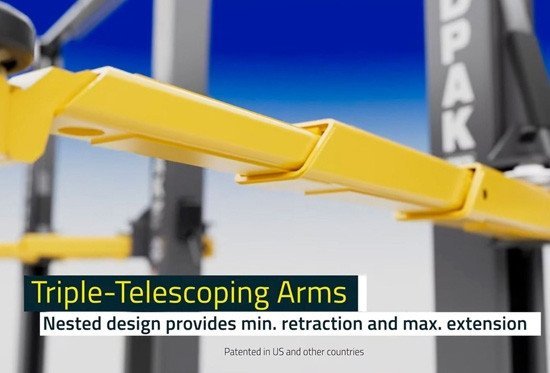

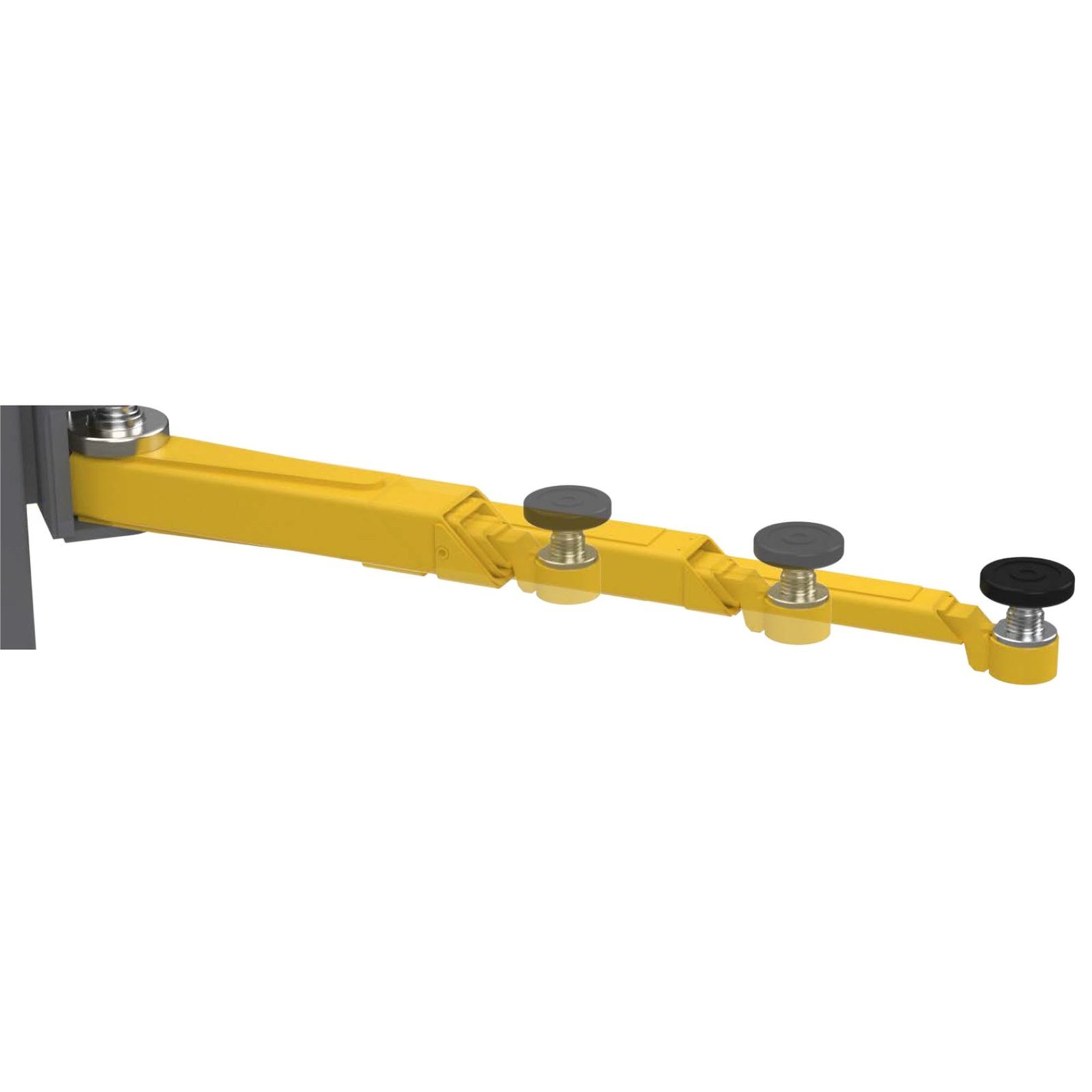

The 10AP Pro Series features four triple-telescoping arms with adjustable reach, accommodating a wide variety of vehicle sizes and configurations. Front arms extend from a 24.5" minimum to 50" maximum reach, while rear arms adjust from 32" to 59.25", providing exceptional flexibility for different vehicle wheelbases and lift point locations. Each arm supports a maximum load of 2,500 lbs., ensuring balanced, safe operation across the entire 10,000 lb. total capacity.

Choose from multiple configurations to match your specific ceiling height requirements and workspace needs:

• 10AP 145" overall height, 69" max rise, ideal for standard ceiling applications

• 10AP-168 168" overall height, 69" max rise, extended overhead clearance for taller shop ceilings

• 10APX 157" overall height, 75.5" max rise, extra lifting height for larger vehicles and SUVs

• 10APX-181 181" overall height, 75.5" max rise, maximum clearance configuration for ultimate versatility

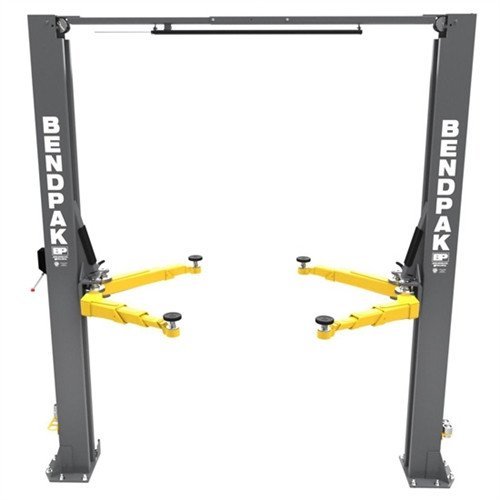

Each configuration features the same robust 10,000 lb. lifting capacity and build quality. The expandable top beam adjusts to provide either 135" or 145" width overall, with corresponding inside column spacing of 108.5" or 118.5" and drive-thru clearances of 97.5" or 107.5" to accommodate different bay layouts, vehicle widths, and shop configurations. This adjustability makes the 10AP exceptionally adaptable to your specific workspace requirements.

Advanced Lifting Performance & Safety Features

The dual hydraulic direct-drive cylinders paired with the electric/hydraulic HVLP power system deliver smooth, reliable lifting performance with a rise time of approximately 45 seconds to full height. Operating at less than 70 dB noise level, this lift provides quiet operation that won't disrupt your work environment — quieter than a typical vacuum cleaner.

Oversized 53" and 59" tall carriages provide superior strength and durability compared to standard designs, distributing loads more evenly and reducing stress on lift components. These heavy-duty carriages are a hallmark of BendPak quality, contributing to the exceptional longevity and reliability you expect from professional-grade equipment.

The self-lubricating dura-glide UHMW polyethylene bearing system minimizes maintenance requirements while ensuring smooth, consistent operation over thousands of lift cycles. This advanced bearing system reduces friction and wear dramatically, eliminating the need for regular greasing and contributing to the exceptional service life of the 10AP. The result is lower operating costs and more uptime for your shop.

Exclusive Bi-Metric™ Arm Design

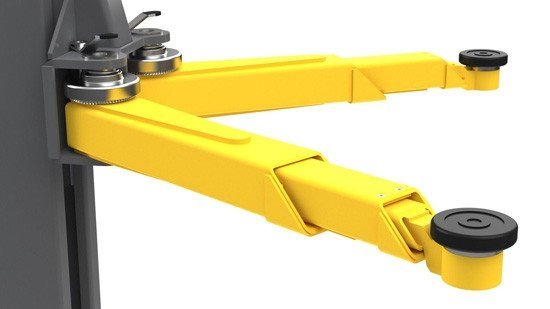

The innovative Bi-Metric™ arm design sets the 10AP apart from conventional two-post lifts. This exclusive BendPak technology provides more versatile arm positioning options, allowing you to precisely locate lift points for both symmetric and asymmetric lifting applications. Whether you're working on compact cars, full-size trucks, or anything in between, the Bi-Metric™ system ensures optimal balance and safety by giving you more flexibility in arm placement.

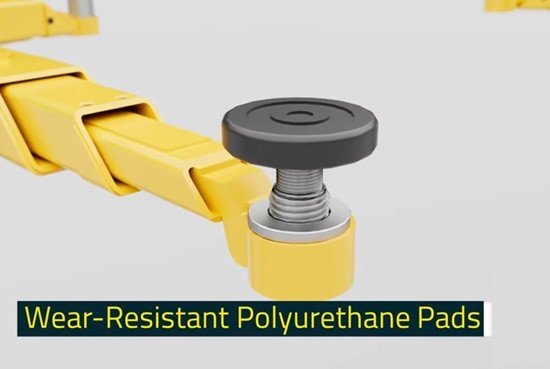

Drop-end arms provide a lower pad height for accessing low-profile vehicles and difficult lift points. Combined with double-telescoping screw pads that offer 2" (51mm) of vertical adjustment and a minimum height of just 4" (102mm) with pads, this lift accommodates virtually any vehicle configuration with ease. This low-profile capability is essential for modern sports cars and low-riding vehicles that challenge conventional lift designs.

The arms are designed to handle the demanding requirements of professional shop environments, with reinforced construction and precision engineering that ensures stable, secure lifting every time. The intuitive arm positioning makes setup fast and straightforward, even for technicians new to the equipment.

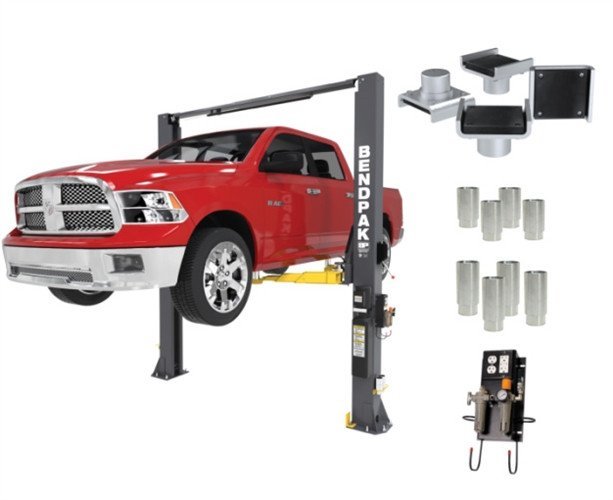

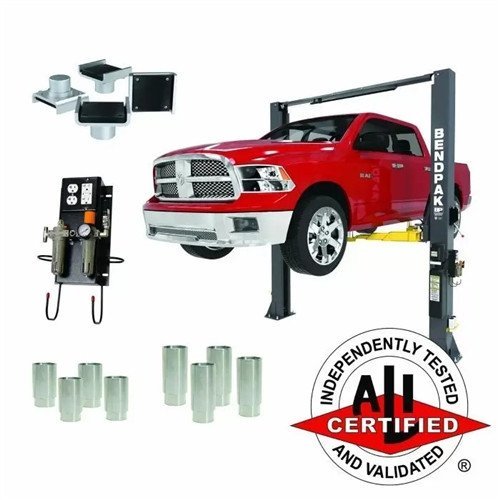

Complete Package with Premium Accessories

This comprehensive package includes everything you need to start lifting immediately — no need to purchase additional accessories or adapters separately:

• WSA-100 Air-Electric Workstation integrated controls for convenient operation with both electric and pneumatic functions

• Set of 4 Frame Cradle Pads (#5215761) designed for secure frame engagement on pinch-weld and frame lifting points

• Set of 4 Medium Adapters (#5215758) versatile lifting extensions for a wide range of applications

• Set of 4 Tall Adapters (#5215759) additional height for specialized applications and hard-to-reach lift points

• Adapter Holder convenient storage bracket for quick access to adapters when you need them

With adapters included, the lift provides multiple rise configurations to match your specific needs: 73" rise with pad only, or 82.5" rise with pad plus 63mm adapter for standard models. The extended-rise APX models provide corresponding heights of 79.5" rise with pad only and 89" rise with pad plus adapter, giving you maximum flexibility for lifting taller vehicles and accessing undercarriage components.

The included frame cradle pads and adapters are precision-engineered to work seamlessly with the 10AP's arm design, providing stable, secure contact with vehicle lift points. This attention to detail extends throughout the entire package, ensuring you have professional-grade accessories that match the quality of the lift itself.

Built to Last with Premium Construction

Every BendPak 10AP features a durable powder coat finish that resists corrosion, scratches, and shop chemicals, maintaining its professional appearance through years of hard use. This isn't just about looks — the powder coating provides critical protection for the steel components, extending service life and reducing maintenance requirements.

The lift's construction reflects BendPak's commitment to quality and safety. Heavy-duty steel components, precision-machined parts, and robust welded construction combine to create a lift that's built for decades of reliable service. The oversized cable sheave diameter works in conjunction with the high-strength galvanized steel cables to reduce wear and extend component life far beyond what you'd expect from standard lift designs.

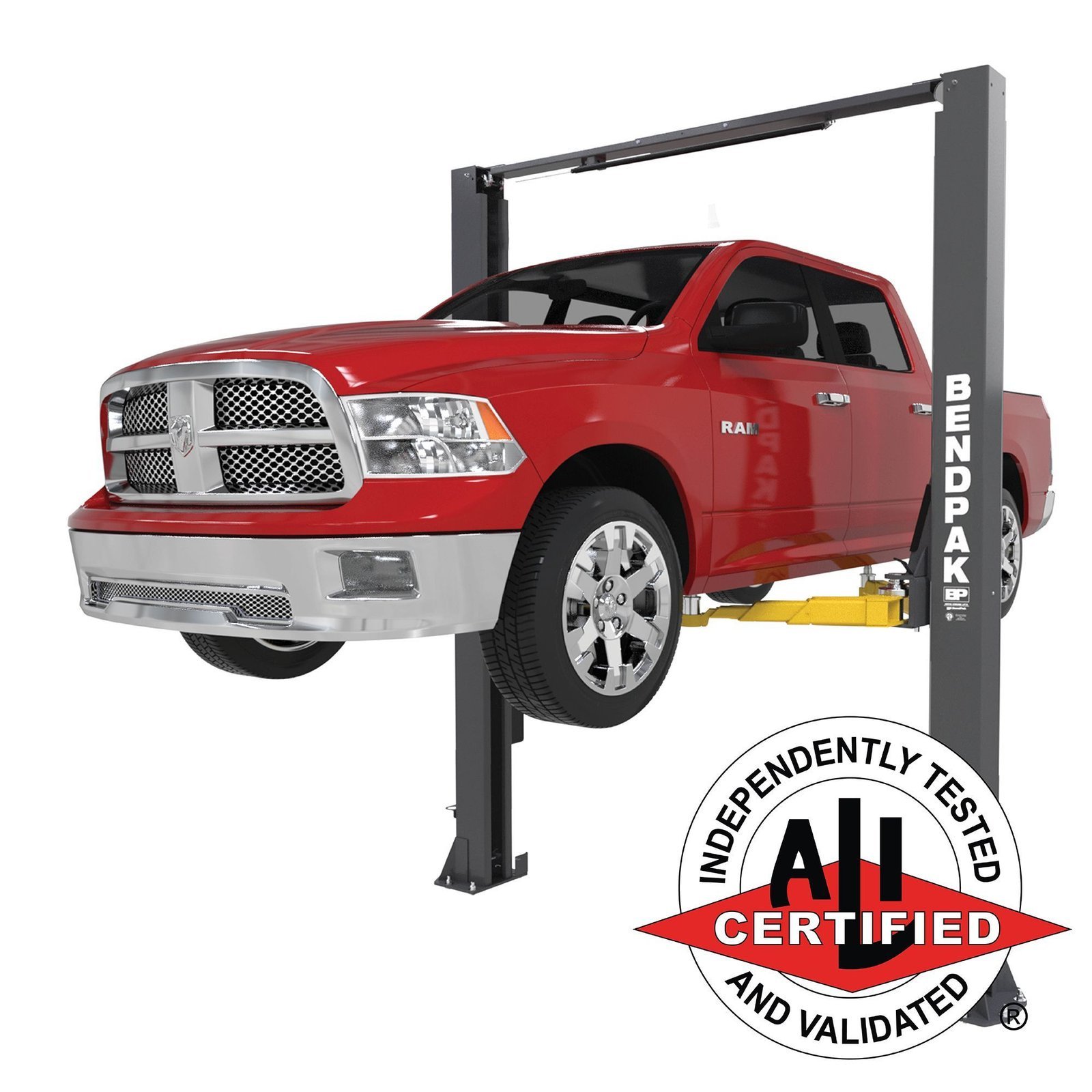

As an ALI-certified lift, the 10AP meets or exceeds the rigorous standards established by the Automotive Lift Institute for safety and performance. This certification provides independent verification that this lift has been tested and validated to industry-leading standards, giving you confidence in your investment.

Why Choose the BendPak 10AP Pro Series?

• ALI Certified meets rigorous industry safety and performance standards

• 10,000 lb. capacity handles everything from compact cars to light-duty trucks

• Adjustable width expandable top beam accommodates 135" or 145" overall width configurations

• Exclusive Bi-Metric™ arms superior versatility for symmetric and asymmetric lifting

• ASARS technology automatic restraints with over 2,000 lbs. of holding force

• Four model configurations choose from standard or extended-rise designs to match your ceiling height

• Complete package includes workstation, pads, adapters, and holder

• Self-lubricating bearings reduced maintenance and smooth, reliable operation

• Quiet operation less than 70 dB noise level

• Durable construction powder coat finish and heavy-duty components built to last

Professional-Grade Performance for Demanding Applications

The BendPak 10AP Pro Series delivers the performance professional shops demand day after day. The combination of dual hydraulic direct-drive cylinders, advanced safety features, and precision engineering creates a lifting experience that's smooth, secure, and efficient. Whether you're performing routine maintenance, complex repairs, or diagnostic work, this lift provides the stable platform and convenient access you need.

The clearfloor design maximizes workspace around the vehicle, giving technicians unobstructed access from all angles. There are no base plates or trip hazards to navigate, making it faster and safer to move equipment, tools, and yourself around the lift. This design also simplifies shop cleaning and improves overall workspace efficiency.

With approximately 45 seconds to full rise, the 10AP keeps your workflow moving efficiently. The controls are intuitive and responsive, and the single-point safety release makes it easy to adjust arms or reposition vehicles when needed. Every aspect of this lift has been engineered to maximize productivity and minimize downtime.

Patent-Protected Innovation

This product is protected by patent in the United States ( Patent No. US11820632B2 ), Canada, China, and other countries where corresponding patent protection has been sought. This represents genuine innovation in automotive lift technology — not just incremental improvements, but fundamental advances in how two-post lifts perform and protect operators.

When you invest in a BendPak 10AP, you're getting cutting-edge technology backed by BendPak's decades of engineering expertise and commitment to quality. This is equipment designed to serve your shop for many years, with the performance, safety features, and reliability that professional technicians depend on every day.

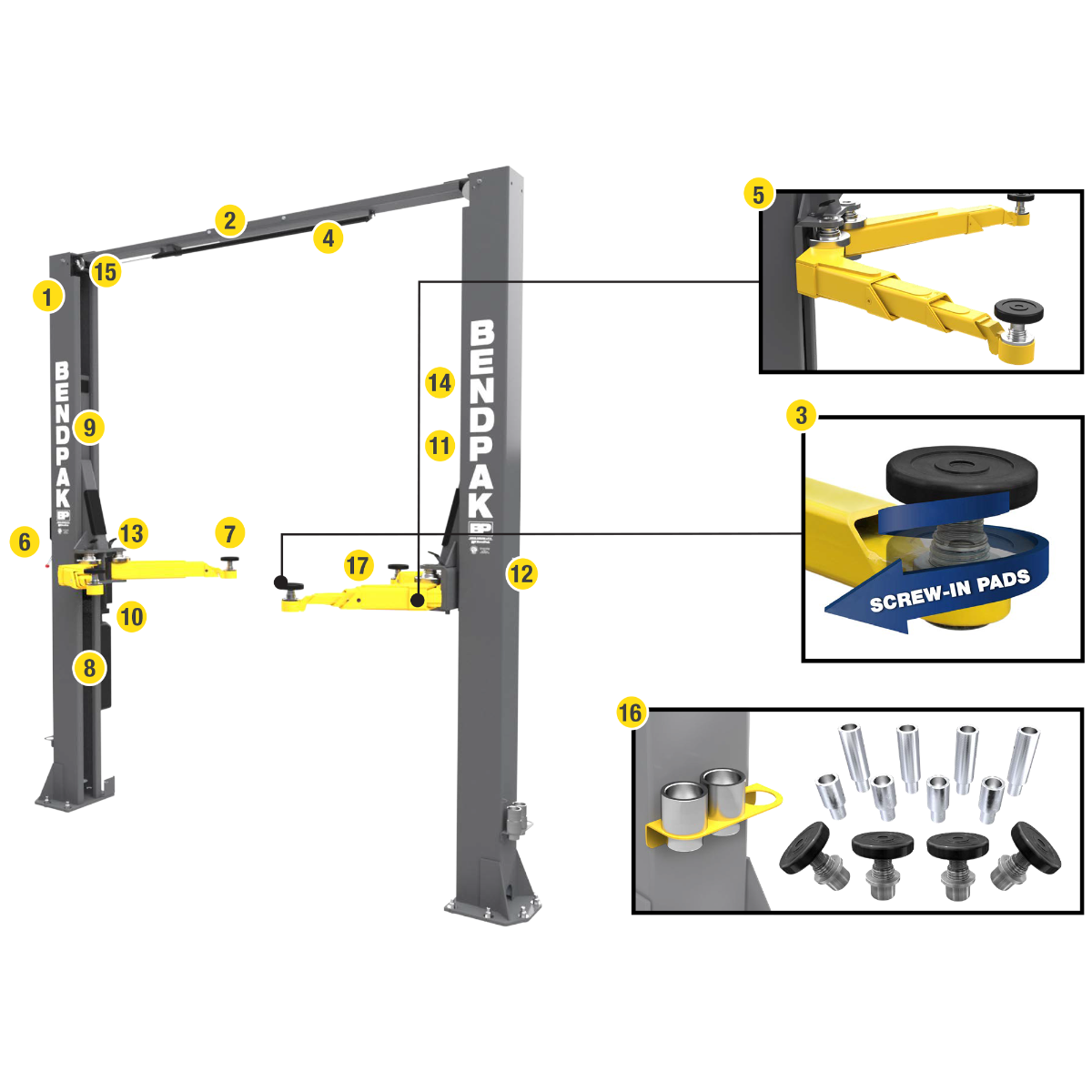

Product Features

• Durable powder coat finish

• Expandable top beam accommodates wide or narrow drive-thru configurations

• Double-telescoping screw pads offer increased versatility

• Padded overhead safety shutoff bar

• Exclusive Bi-Metric™ arm design for more versatile arm positioning

• Single-point safety release

• Drop-end arms provide a lower pad heigh

• Dual hydraulic direct-drive cylinders

• Oversized 53" & 59" tall carriages for superior strength and durability

• Electric / hydraulic HVLP power system

• Self-lubricating dura-glide UHMW polyethylene bearing system

• Safety locks in each column spaced every 3"

• Automatic arm restraints withstand over 2000-pounds of side force

• 3/8"(10mm) High-strength multi-strand galvanized steel equalizing cable

• Oversized cable sheave diameter reduces cable fatigue

• Four triple-telescoping arms

• ALI certified

Includes

• WSA-100 Air-electric Workstation

• Set of 4 #5215761 Frame Cradle Pads

• Set of 4 #5215758 Medium Adapters / #5215759 Tall Adapters

• Adapter Holder

This product is protected by patent in the United States (Patent No. US11820632B2), Canada, China, and other countries where corresponding patent protection has been sought.

Product Specifications

Model

10AP
10AP-168
10APX
10APX-181

Capacity

Lifting Capacity: (*)

10,000 lbs. (4,536 kg)

Rise

A Max Rise

69" / 1,753 mm

75.5" / 1,918 mm

B Rise + Pad Only

73" / 1,854 mm

79.5" / 2,007 mm

C Rise + Pad + 63 mm Adapter

82.5" /2,096 mm

89" / 2,261 mm

D Min. Height + Pad

4" /102 mm

Time to Full Rise

≈45 seconds

Outside Dimensions

E Height Overall

145" /3,683 mm

168" / 4,267 mm

157" / 3,988 mm

181" / 4,597 mm

F Width Overall

135" or 145" / 3,431 mm or 3,683 mm

G Outside Column Width

127.5" or 137.5" / 3,239 mm or 3,493 mm

Inside Dimensions

H Inside Columns

108.5" or 118.5" / 2,756 mm or 3,010 mm

I Drive-Thru Clearance

97.5" or 107.5" (2,477 mm or 2,731 mm)

J Floor To Overhead Switch

140" / 3,556 mm

163" / 4,140 mm

152" / 3,861 mm

176" / 4,470 mm

Arms & Pads

K Front Arm Reach (Max)

50" / 1,270 mm

K Front Arm Reach (Min)

24.5" / 622 mm

K Rear Arm Reach (Max)

59.25" / 1,505 mm

K Rear Arm Reach (Min)

32" / 813 mm

Max Load Per Arm

2,500 lbs. / 1,134 kg

Screw Pad Adjustment

2" / 51 mm

Power Unit

Motor

220 VAC / 60 Hz. / 1Ph

Noise

<70 dB

The design, material and specifications are subject to change without notice.
